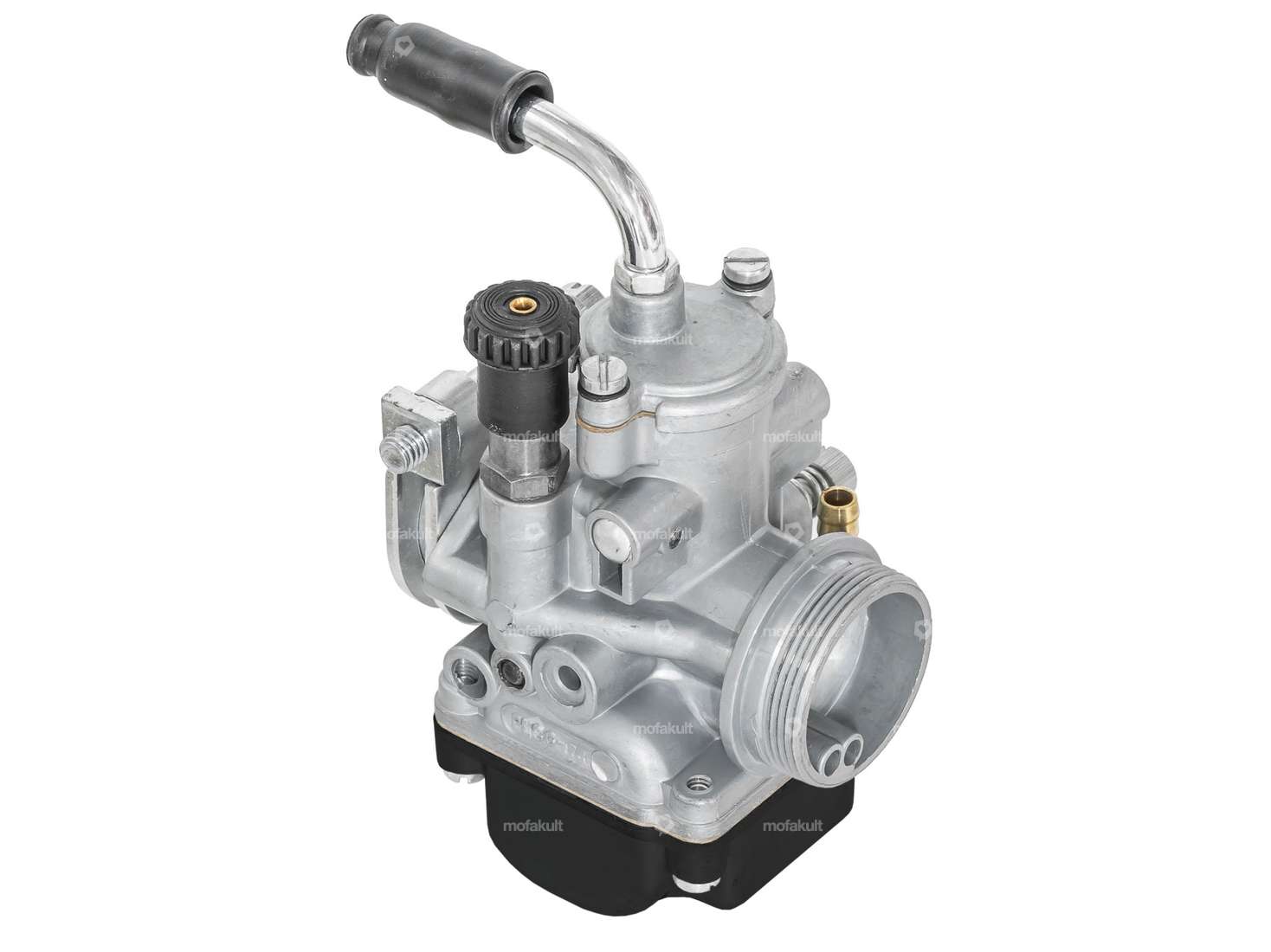

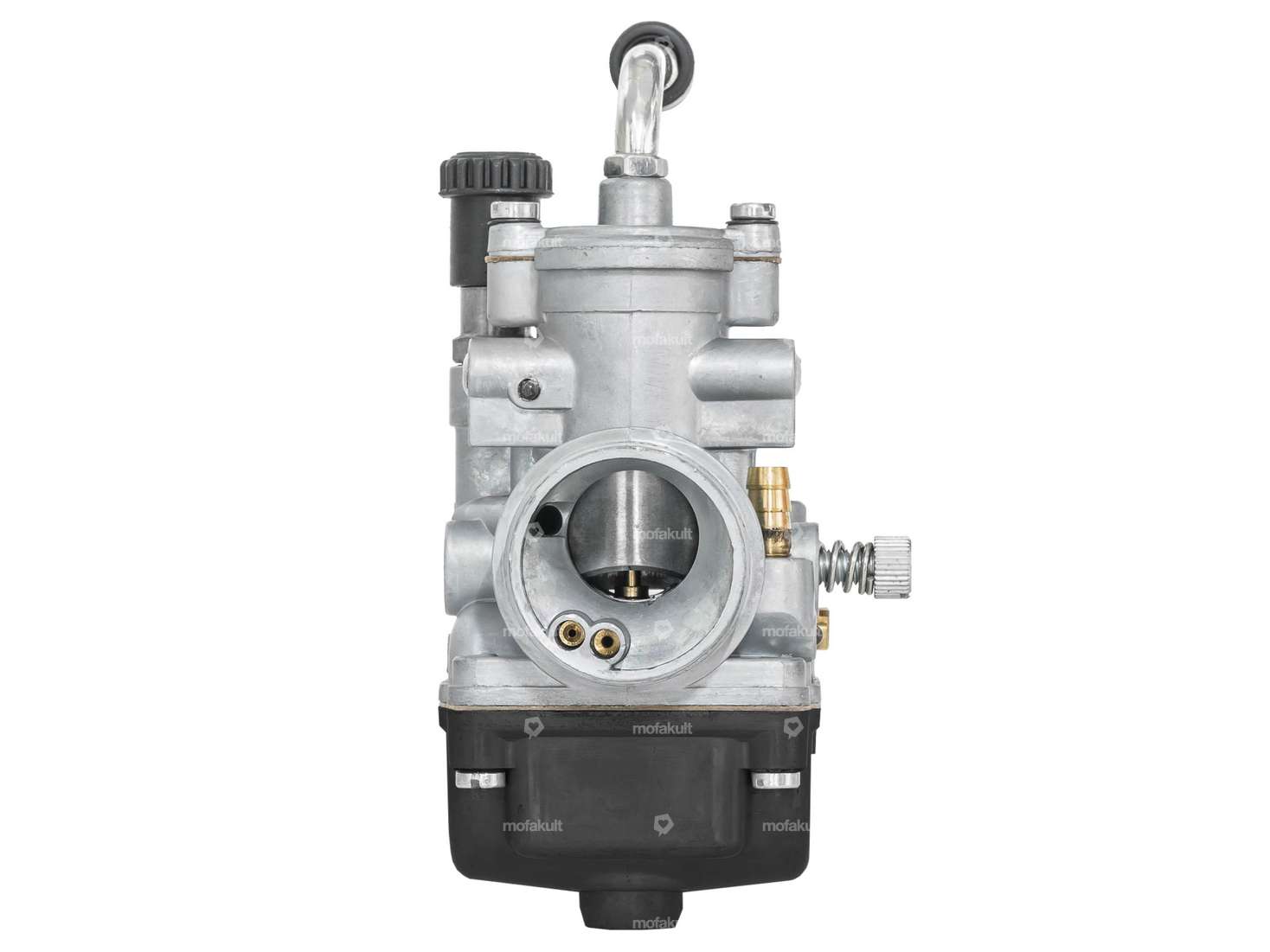

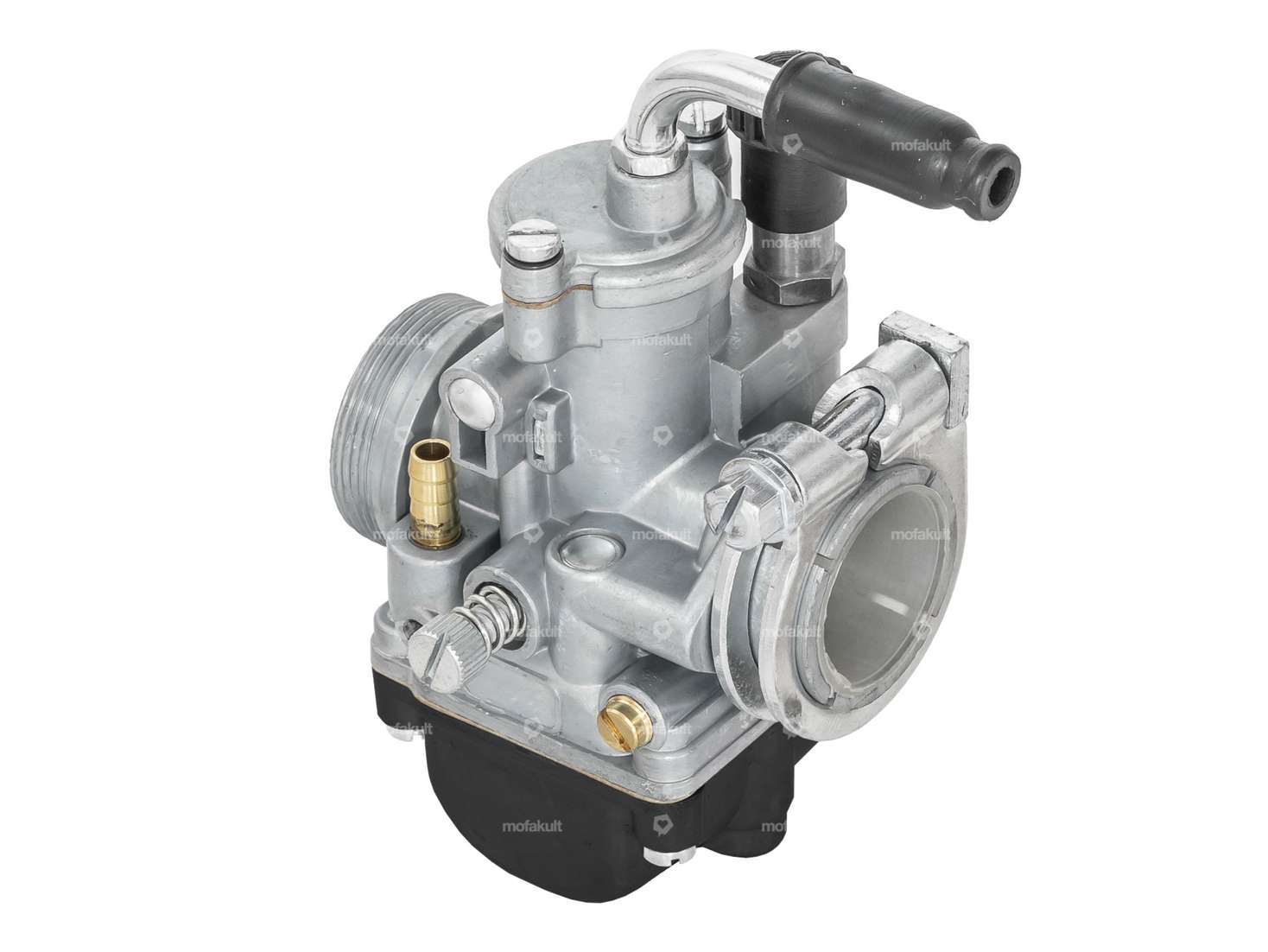

17.5 mm PHBG AS carburetor hand choke (Dell'Orto replica)

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 79.00

Incl. 23% VAT.

Description

Cost-effective replica of the Dell'Orto 17.5 mm PHBG AS carburetor for universal use on your moped, moped and small motorcycle.
This racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 75 cc.

The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and secondary throttle bodies and the mixture adjustment screw.

The carburetor has an M32x1.25 thread on the air filter side.

Main throttle body size (M5): 82
Additional throttle body size (idle throttle body): -
Size choked: 55
Connection diameter air filter without intake funnel: 32 mm (M32 x 1.25)
Connection diameter intake manifold: 24 mm (resp. 26 mm after removing the reduction sleeve)
Total height: 120 mm
Total width: 75 mm
Total width: 60 mm

You can find suitable nozzles, air filters and intake manifolds in the accessories section.

Good-quality reproduction product from the Asian market.

ManufacturerQuenching
Total length75 mm
Component group CarburetorCarburetor complete
Area of applicationTuning
Nominal diameter17.5 mm
Carburetor typePHBG AS
Ø Internal connection24 mm
Height120 mm
Ø without reducing sleeve26 mm
Mounting typePlug connection clamped
Ø Air filter connection32 mm
Air filter connection threadMF32x1.25 (fine pitch thread)
Width60 mm
Ø fuel hose connection6 mm
Choke controlHand choke
Choke nozzle size55
Nozzle threadM5x0.8 (standard thread)
Nozzle size82
