19.5 mm PHBG replica racing carburetor for universal use for your moped, moped and small motorcycle.
This racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 75 cc.
The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and auxiliary valves and the mixture adjustment screw.
The carburetor has an M32x1.25 thread on the air filter side. The air filter can be attached directly to the thread.
Main thread size (M5): 85
Side thread size (idle thread): 55
Choked thread size: 53
Air filter connection diameter: 32 mm (M32 x 1.25)
Inlet connection diameter: 24 mm (or 26 mm after removing the reducer). 26 mm after removing the reduction sleeve)
Total height: 132 mm
Total length: 70 mm
Total width: 60 mm
High-quality alternatives, matching nozzles, air filters and intake manifolds can be found in the accessories section.
Good quality aftermarket product from the Asian market.
Details
| Manufacturer | Quenching |
| Component group Carburetor | Carburetor complete |
| Material | Aluminum |
| Nominal diameter | 19.5 mm |
| Color | black |
| Carburetor type | PHBG |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 85 |
| Ø Inside entrance | 24 mm, 26 mm |
| Total length | 70 mm |
| Ø Air filter connection | 32 mm |
| Air filter connection thread | MF32x1.25 (fine pitch thread) |
| Width | 60 mm |
| Mixed oil connection | No |
| Height | 132 mm |
| Vacuum connection | No |
| Choke control | Hand choke |
| Choke nozzle size | 53 |
| Mounting type | Plug connection clamped |
| Camouflaged | No |
| Size of secondary nozzle | 55 |
| Area of application | Tuning |
Accessories & related products
18.5 mm intake manifold Dell'Orto PHBG | Puch E50
Material: Aluminum · Surface: polished · Area of application: Tuning · Ø inside: 18.8 mm · Total length: 40 mm · Number of fixing points: 2 pcs · Ø External connection: 23.9 mm · Color: Chrome · Hole spacing inlet: 38 mm · Height flange center hole: 45 mm · Total height: 57 mm · Mounting type: Screws · Camouflaged: No
EUR 21.50
swiing® revival nozzle set M5 (70 - 92) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Quantity: 10 pcs · Component group Carburetor: Spraying · Material: Brass · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 70 · Nozzle size: 72 · Nozzle size: 75 · Nozzle size: 78 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 85 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92 · Total length: 8 mm
EUR 25.10
swiing® revival nozzle set M5 (92 - 110) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Quantity: 10 pcs · Component group Carburetor: Spraying · Material: Brass · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98 · Nozzle size: 100 · Nozzle size: 102 · Nozzle size: 104 · Nozzle size: 106 · Nozzle size: 108 · Nozzle size: 110 · Total length: 8 mm
EUR 25.10
swiing® revival nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Quantity: 10 pcs · Component group Carburetor: Spraying · Material: Brass · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70 · Total length: 8 mm
EUR 25.10
swiing® revival nozzle M5 (30 - 120 of your choice) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Component group Carburetor: Spraying · Material: Brass · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 30 · Nozzle size: 31 · Nozzle size: 32 · Nozzle size: 33 · Nozzle size: 34 · Nozzle size: 35 · Nozzle size: 36 · Nozzle size: 37 · Nozzle size: 38 · Nozzle size: 39 · Nozzle size: 40 · Nozzle size: 41 · Nozzle size: 42 · Nozzle size: 43 · Nozzle size: 44 · Nozzle size: 45 · Nozzle size: 46 · Nozzle size: 47 · Nozzle size: 48 · Nozzle size: 49 · Nozzle size: 50 · Nozzle size: 51 · Nozzle size: 52 · Nozzle size: 53 · Nozzle size: 54 · Nozzle size: 55 · Nozzle size: 56 · Nozzle size: 57 · Nozzle size: 58 · Nozzle size: 59 · Nozzle size: 60 · Nozzle size: 61 · Nozzle size: 62 · Nozzle size: 63 · Nozzle size: 64 · Nozzle size: 65 · Nozzle size: 66 · Nozzle size: 67 · Nozzle size: 68 · Nozzle size: 69 · Nozzle size: 70 · Nozzle size: 71 · Nozzle size: 72 · Nozzle size: 73 · Nozzle size: 74 · Nozzle size: 75 · Nozzle size: 76 · Nozzle size: 77 · Nozzle size: 78 · Nozzle size: 79 · Nozzle size: 80 · Nozzle size: 81 · Nozzle size: 82 · Nozzle size: 83 · Nozzle size: 84 · Nozzle size: 85 · Nozzle size: 86 · Nozzle size: 87 · Nozzle size: 88 · Nozzle size: 89 · Nozzle size: 90 · Nozzle size: 91 · Nozzle size: 92 · Nozzle size: 93 · Nozzle size: 94 · Nozzle size: 95 · Nozzle size: 96 · Nozzle size: 97 · Nozzle size: 98 · Nozzle size: 99 · Nozzle size: 100 · Nozzle size: 101 · Nozzle size: 102 · Nozzle size: 103 · Nozzle size: 104 · Nozzle size: 105 · Nozzle size: 106 · Nozzle size: 107 · Nozzle size: 108 · Nozzle size: 109 · Nozzle size: 110 · Nozzle size: 111 · Nozzle size: 112 · Nozzle size: 113 · Nozzle size: 114 · Nozzle size: 115 · Nozzle size: 116 · Nozzle size: 117 · Nozzle size: 118 · Nozzle size: 119 · Nozzle size: 120 · Total length: 8 mm
EUR 4.20
Dell'Orto secondary nozzle PHBG (size 30 - 70) of your choice
Manufacturer: Dell'Orto · Material: Brass · Component group Carburetor: Spraying · Carburetor type: PHBG · Nozzle type: Secondary nozzle · Drive: Slot · Nozzle size: 30 · Nozzle size: 35 · Nozzle size: 40 · Nozzle size: 45 · Nozzle size: 50 · Nozzle size: 55 · Nozzle size: 60 · Nozzle size: 65 · Nozzle size: 70
EUR 5.90

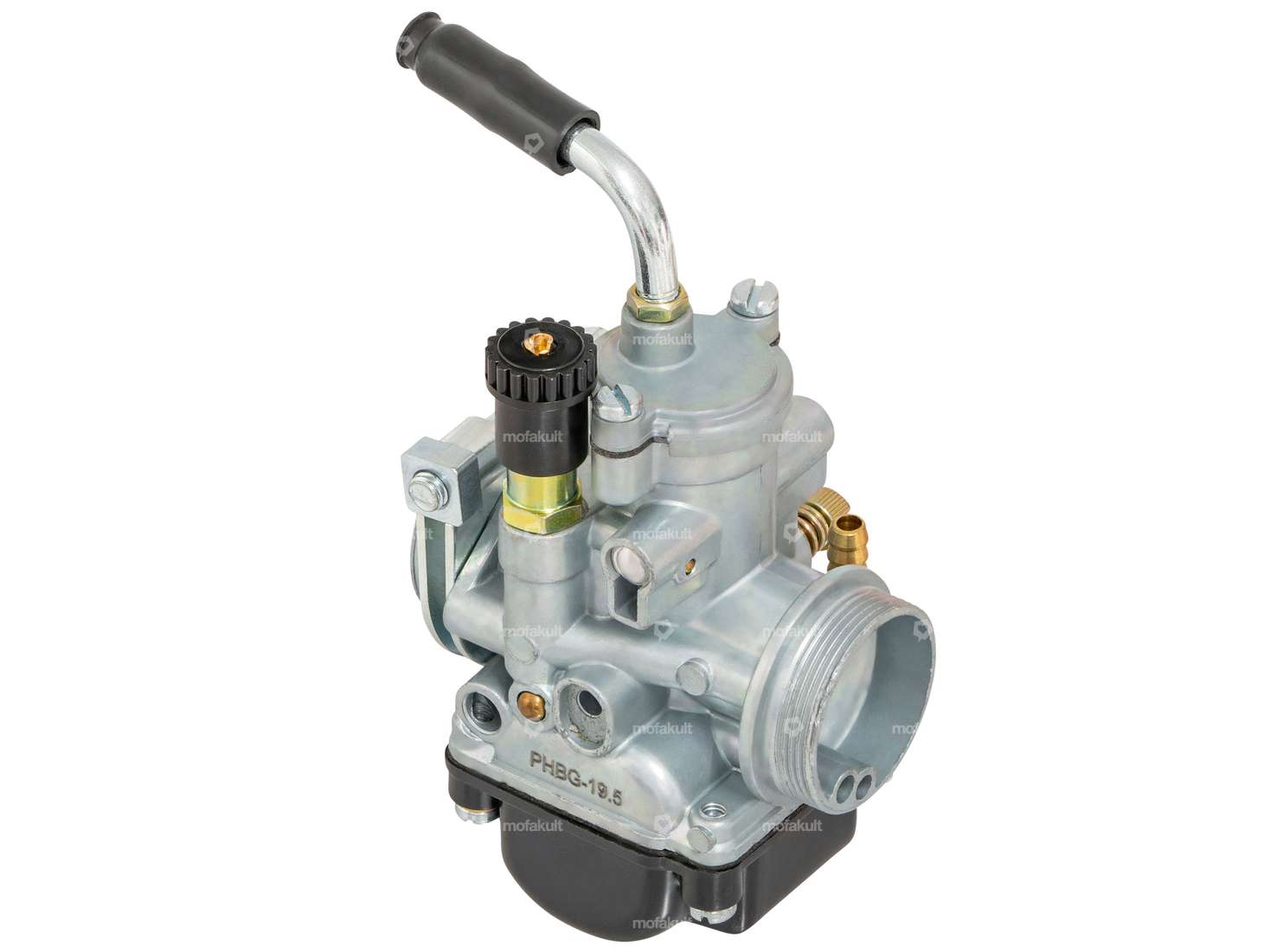

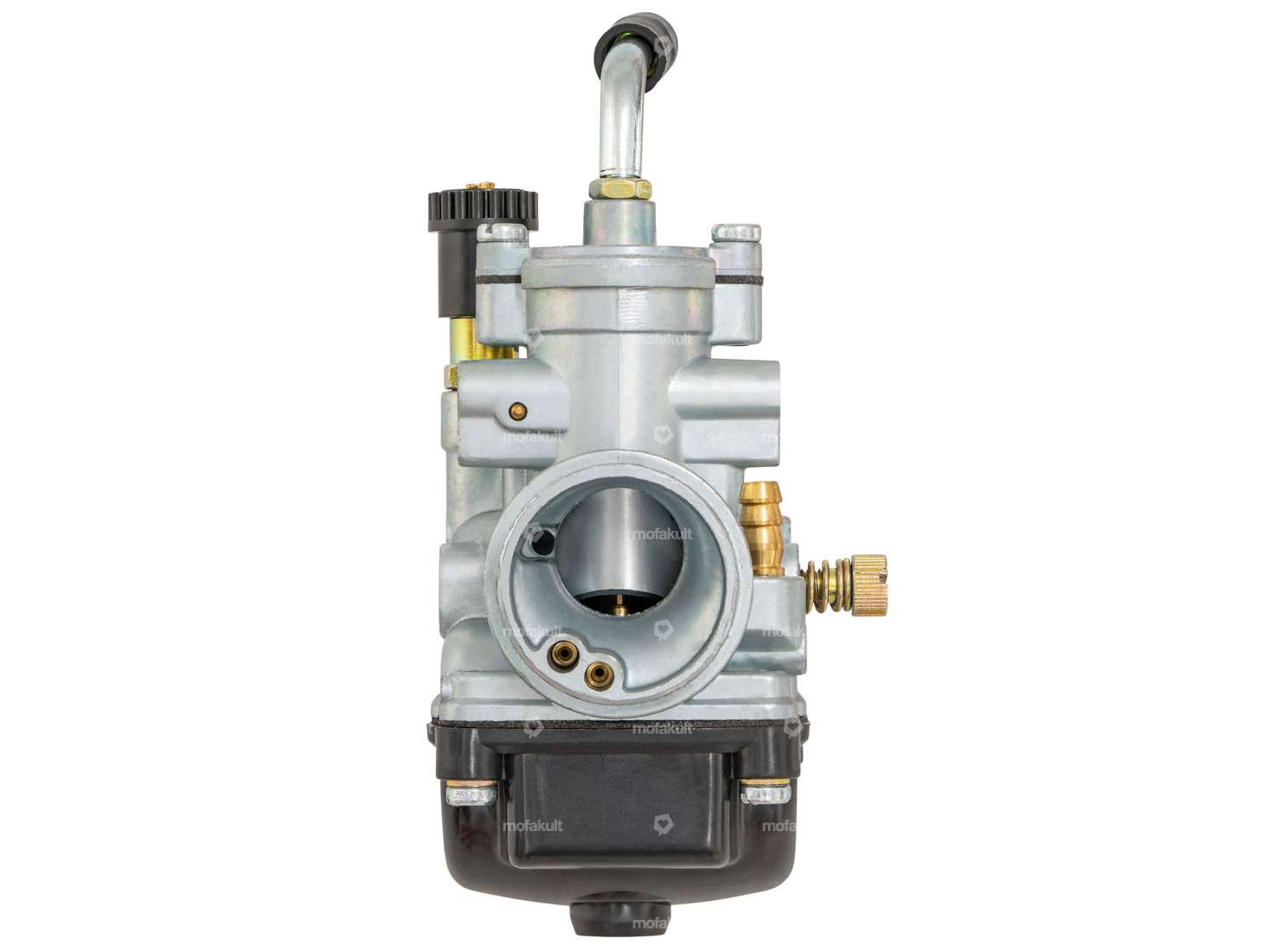

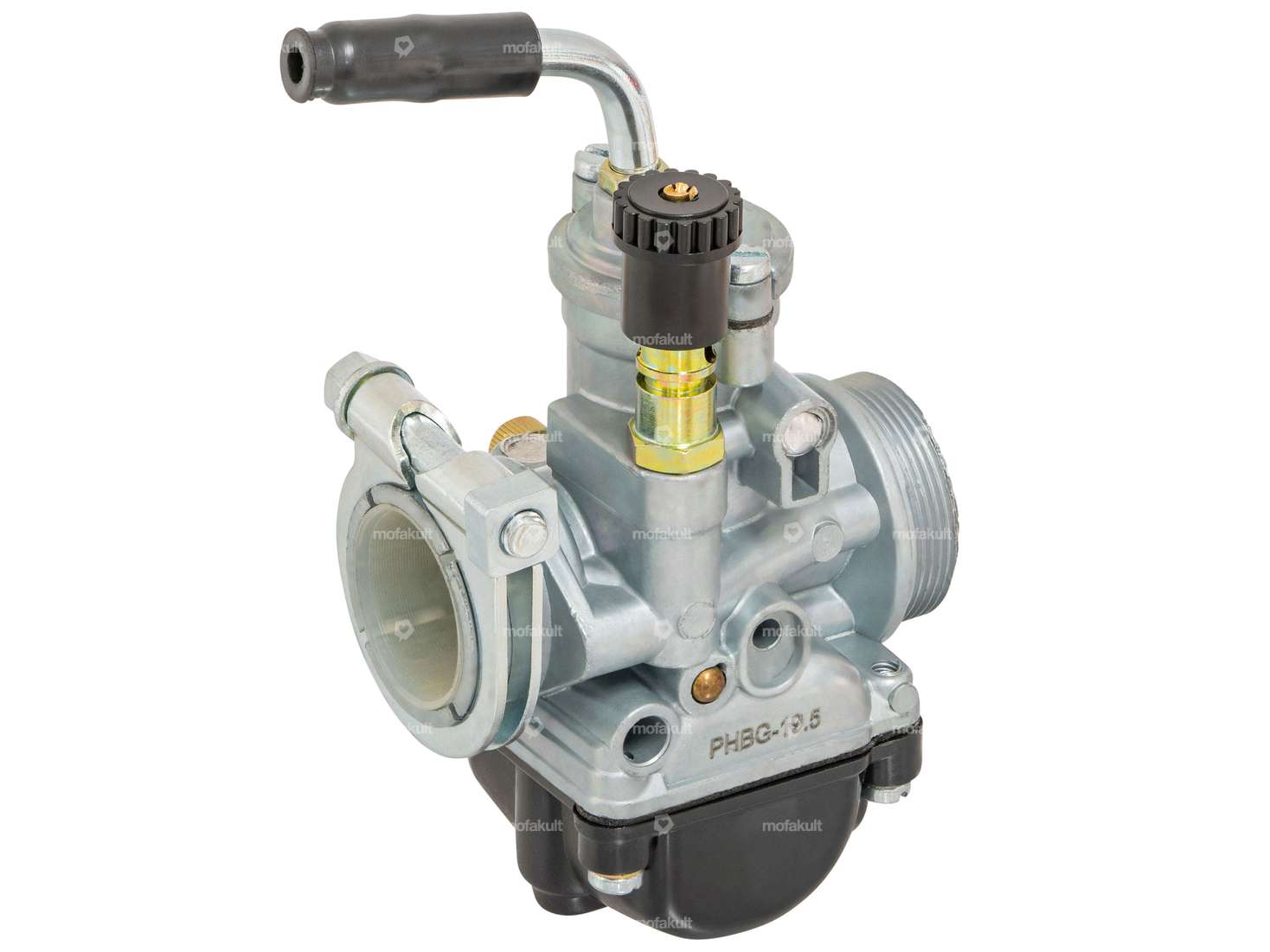

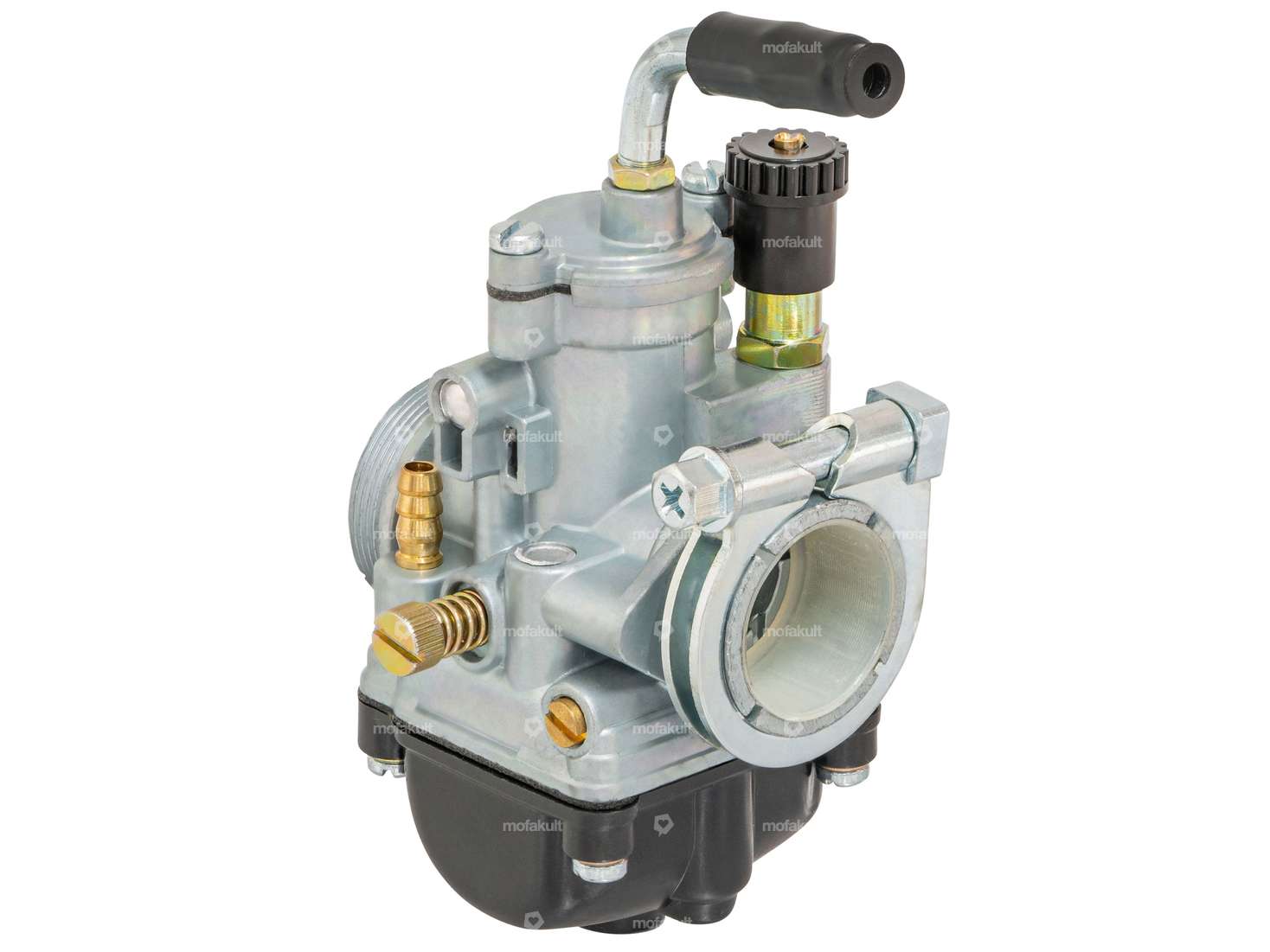

GPO 19.5 mm PHBG AS carburetor hand choke (Dell'Orto replica)
