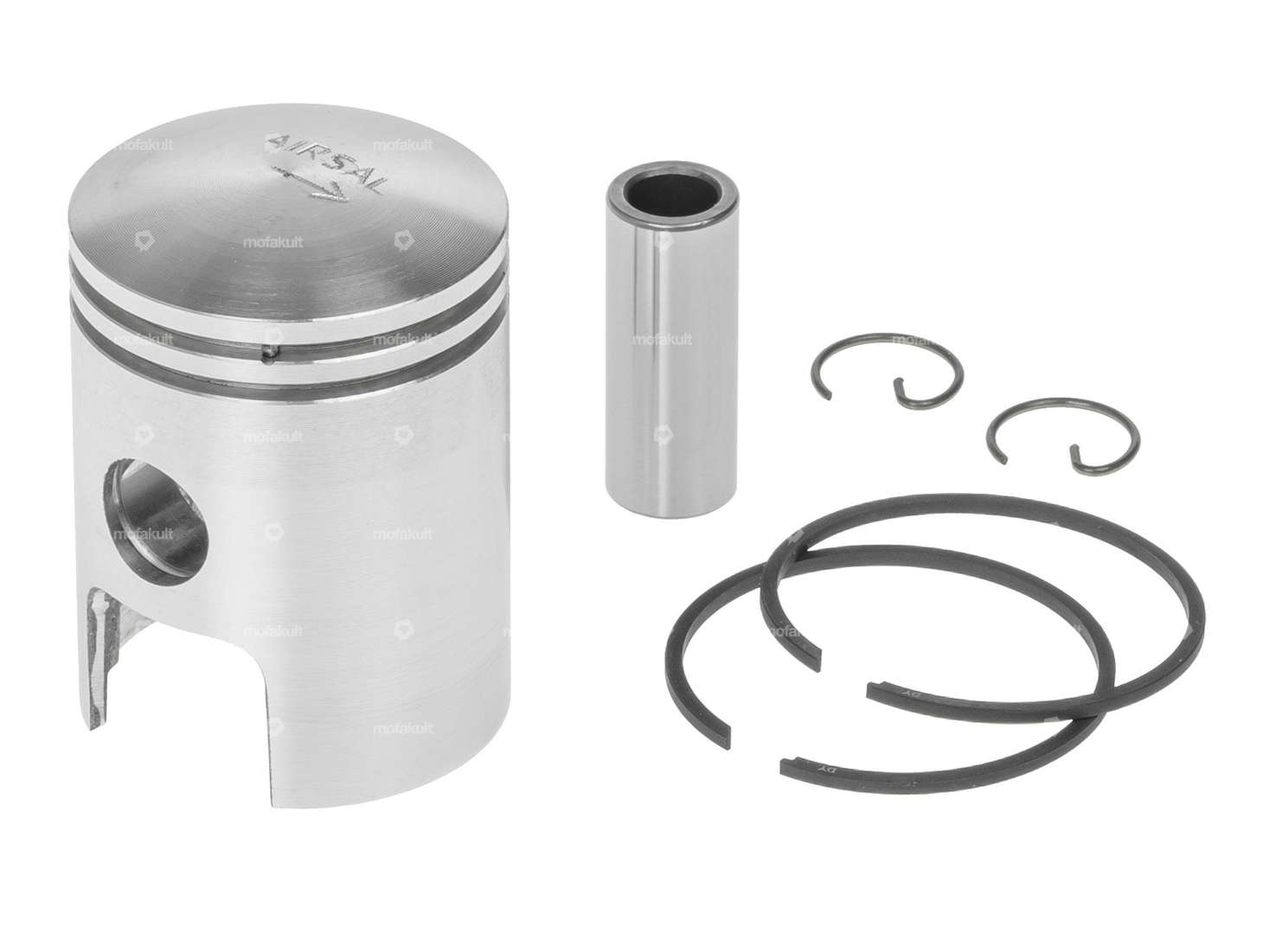

38.0 mm replacement piston with two 1.5 mm rectangular piston rings with internal fuse (IS) suitable for various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Nominal diameter | 38 mm |
| Manufacturer | Airsal |
| Ø outside piston (A) | 37.95 mm |
| Compression height (C) | 22.3 mm |
| Curvature (D) | 3.8 mm |
| Total piston height (E) | 52.5 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Ø piston pin (B) | 12 mm |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Thick piston ring | 1.6 mm |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Accessories & related products
Airsal 38 mm cylinder kit 50 cc camouflaged | Puch Maxi, X30
Nominal diameter: 38 mm · Manufacturer: Airsal · Material: Aluminum · Area of application: Tuning · Camouflaged: Yes · Crankshaft stroke: 43 mm · Displacement: 50 ccm · Ø cylinder neck: 48 mm · Surface: sandblasted · Ø outlet inside: 20 mm · Ø piston pin (B): 12 mm · Inlet window: 23.5 / 20 x 14.5 mm · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole spacing inlet: 38 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44
EUR 120.50

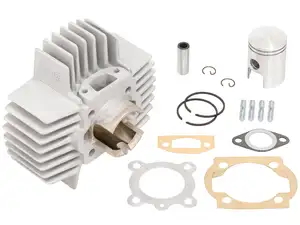

Airsal 38 mm cylinder kit (large ribs) | Puch
Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Number of fixing points: 4 pcs · Nominal diameter: 38 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 22 mm · Inlet window: 24 / 20 x 14 mm · Thread inlet: M6x1 (standard thread) · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: Yes · Camouflaged: No · Hole spacing inlet: 38 mm · Area of application: Tuning
EUR 120.50
EUR 108.40

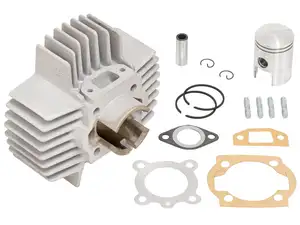

Airsal 38 mm cylinder kit (large ribs) fast version | Puch
