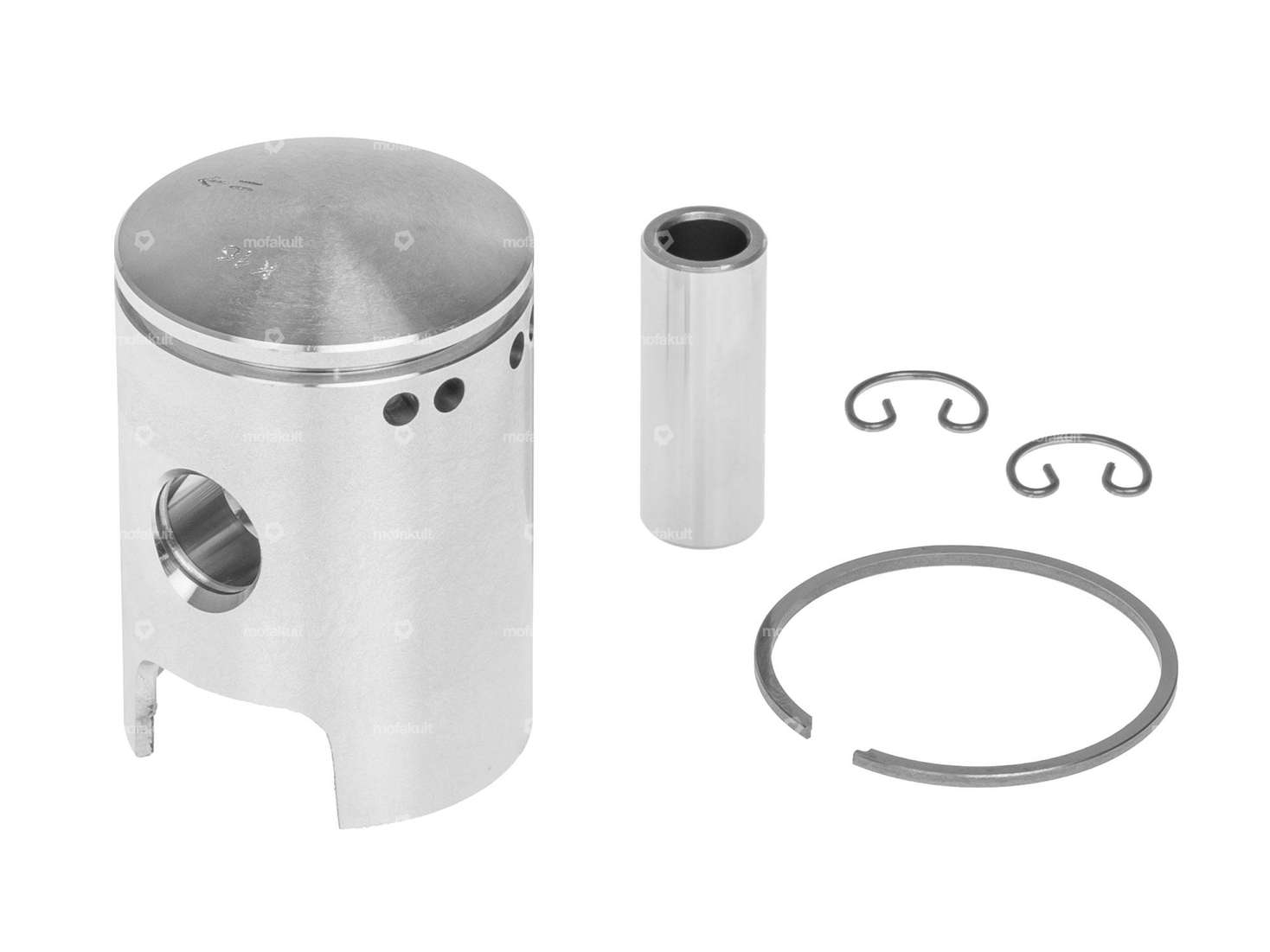

38.0 mm piston with a 1.5 mm rectangular piston ring with internal fuse (IS) for slotted cylinders of various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Manufacturer | Athena |
| Nominal diameter | 38 mm |
| Ø outside piston (A) | 37.94 mm |
| Compression height (C) | 22.5 mm |
| Curvature (D) | 3.55 mm |
| Total piston height (E) | 55 mm |
| Number of piston rings (F) | 1 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Tolerance group | A |
| Weight piston kit | 76 g |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Number of components: 7 pcs · Manufacturer: GPO · Material: Steel · Surface: burnished · Area of application: (Dis)assembly tool · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats: 10 mm · Width across flats: 17 mm
EUR 24.00

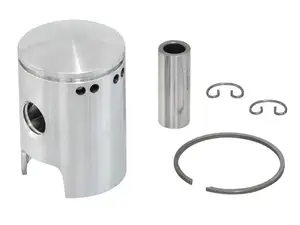

Athena piston 38 mm #B | Puch
