For: Sachs · Hercules

20271

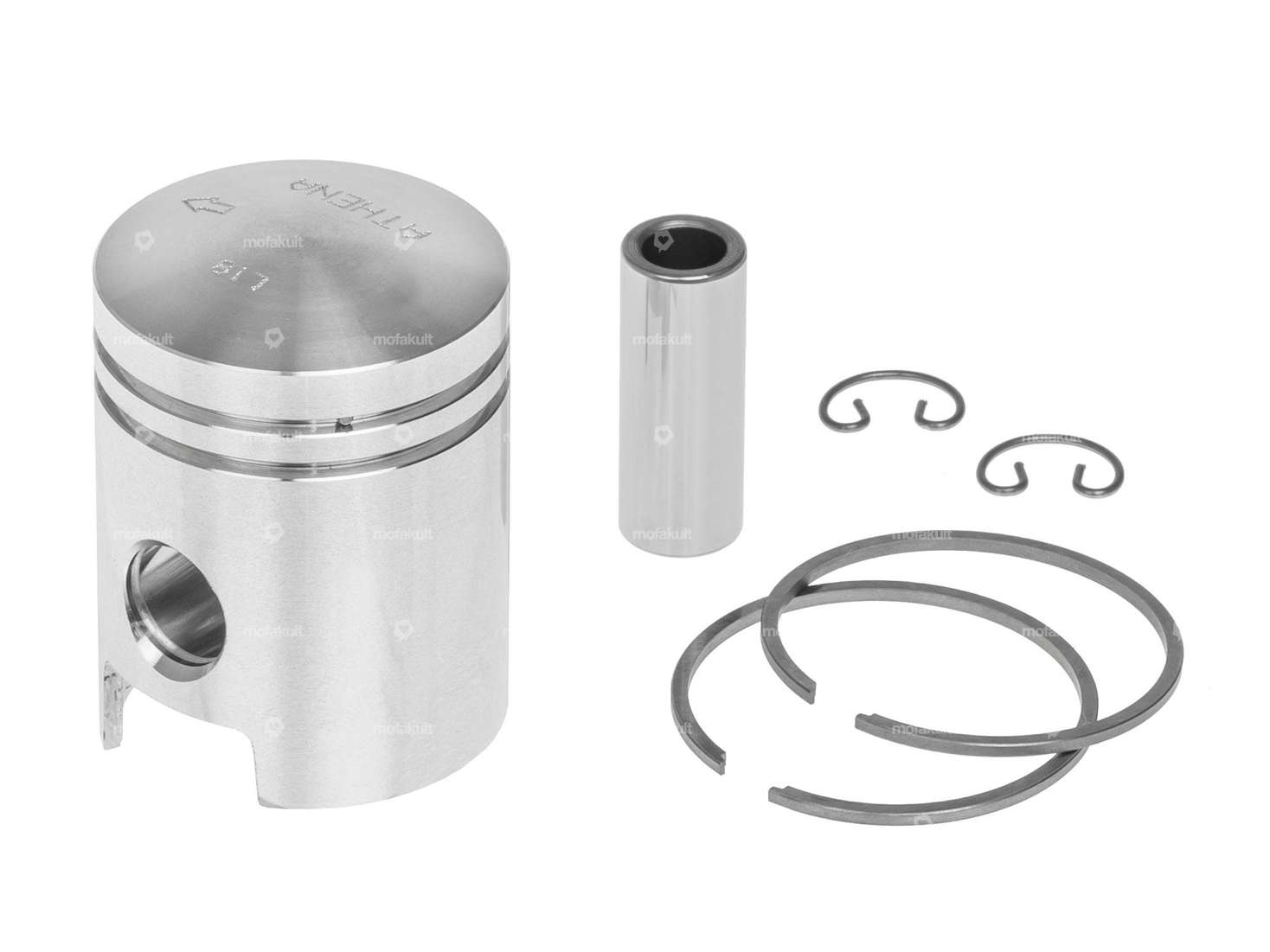

Athena piston 38 mm #A | Sachs 504, 505

EUR 84.30

Incl. 23% VAT.

Description

38 mm replacement piston with two 1.5 mm rectangular piston rings with internal circlip (IS) for your moped / moped with Sachs 504, 505 engine.

ManufacturerAthena
Ø outside piston (A)37.94 mm
Compression height (C)29.25 mm
Curvature (D)1.85 mm
Total piston height (E)52.14 mm
Number of piston rings (F)2 pcs
Nominal diameter38 mm
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Tolerance groupA
Weight piston kit79 g
Sachs

504 (without pedal shaft)

505 (with pedal shaft) - 1A (AT) , 2A (HG) , 2B (HG)

Hercules

Great - 2 , 3 , 4 , 5 , Optima
