For: Puch

11196

Athena piston 45 mm #A | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 60.20

Incl. 23% VAT.

Description

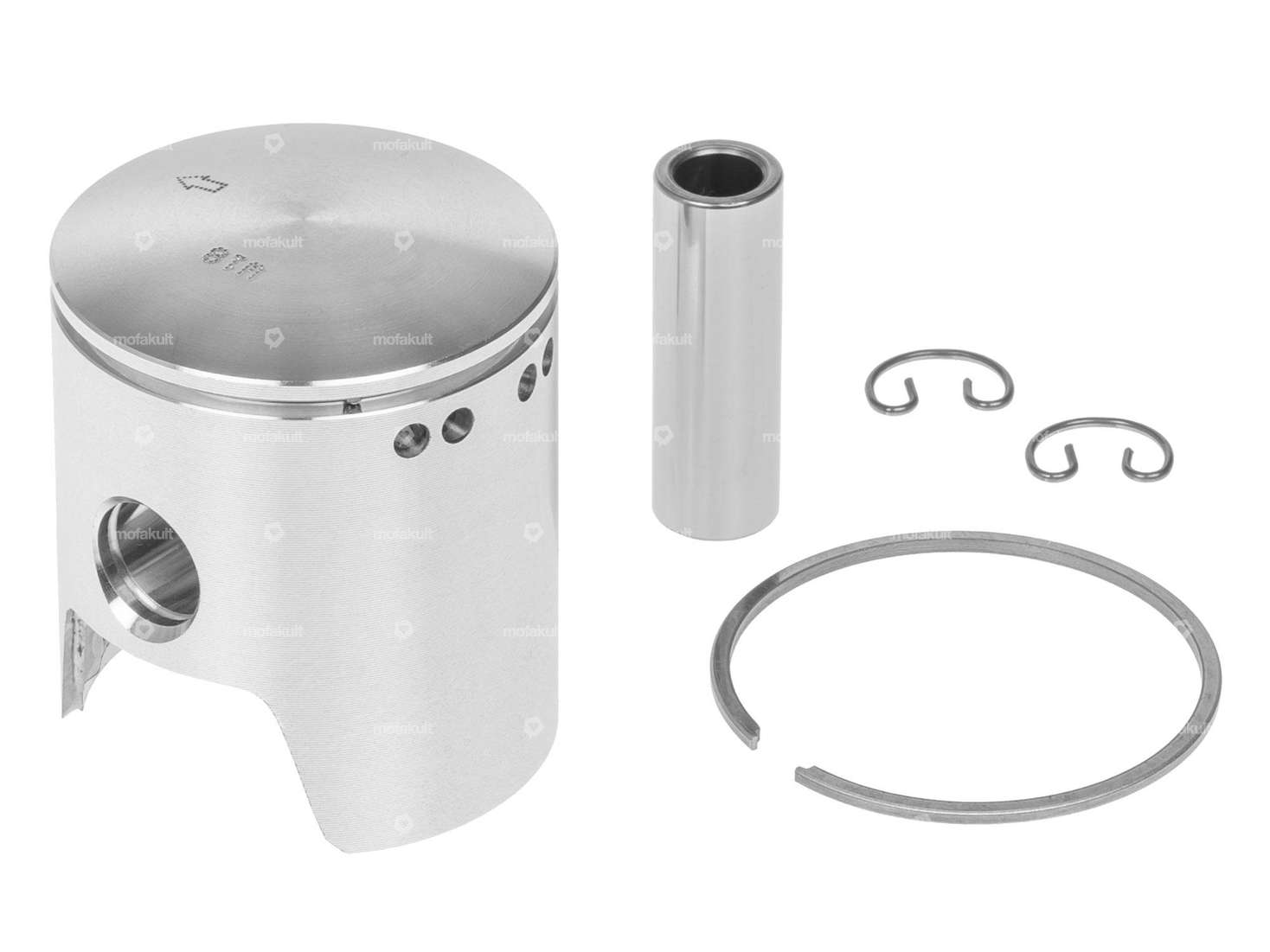

45.0 mm replacement piston with a 1.5 mm rectangular piston ring with internal fuse (IS) for various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter45 mm
ManufacturerAthena
Ø outside piston (A)44.94 mm
Compression height (C)22.4 mm
Curvature (D)3.15 mm
Total piston height (E)52.67 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Tolerance groupA
Weight piston kit98 g
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)
