For: Sachs · Hercules

20272

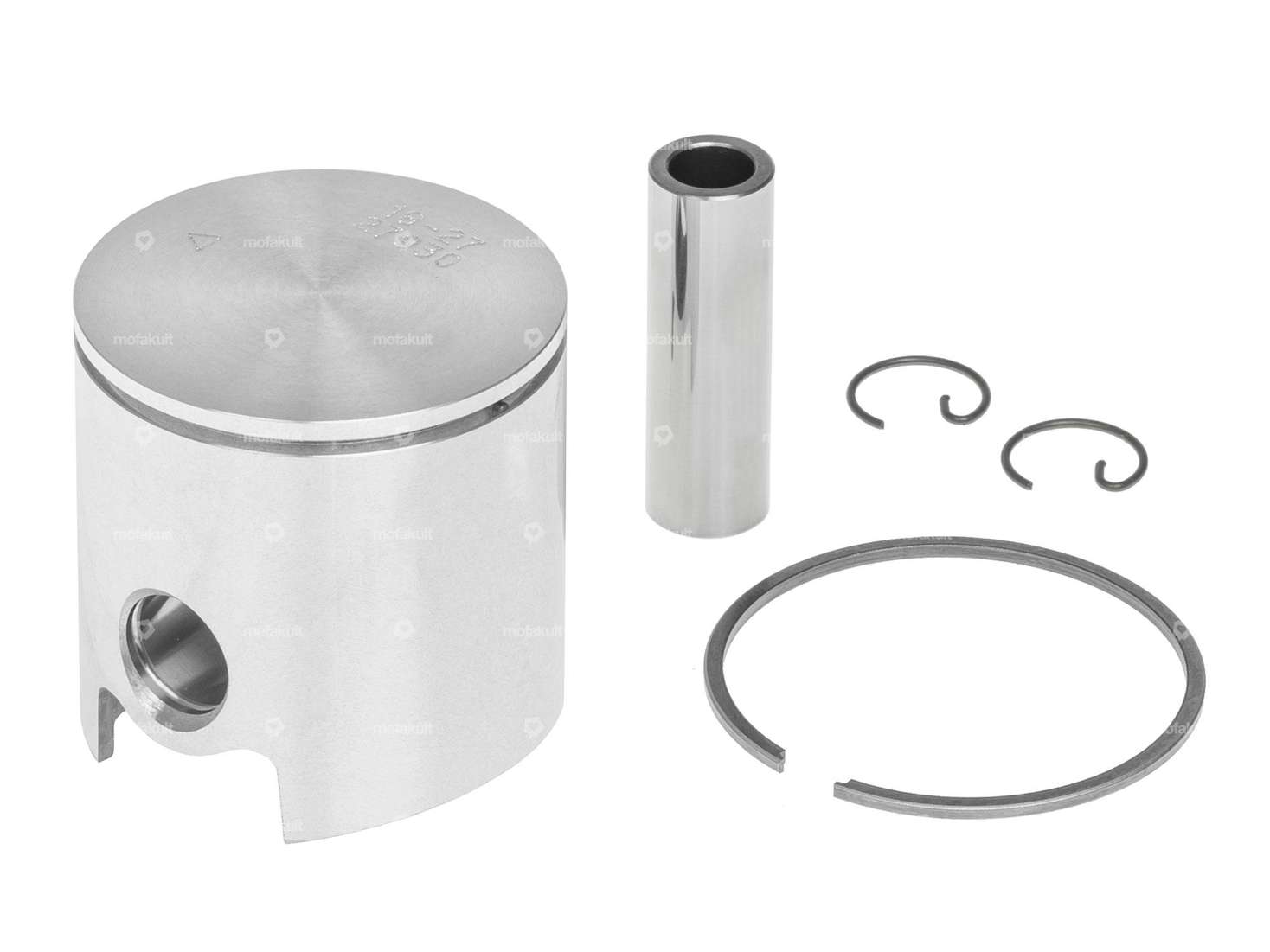

Athena piston 45 mm #A | Sachs 504, 505

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 84.30

Incl. 23% VAT.

Description

45 mm replacement piston with a 1.5 mm rectangular piston ring with internal fuse (IS) for the Athena racing cylinder suitable for your moped / moped with Sachs 504 and 505 engine.

Nominal diameter45 mm
ManufacturerAthena
Ø outside piston (A)44.92 mm
Compression height (C)28.2 mm
Total piston height (E)45.2 mm
Number of piston rings (F)1 pcs
Piston ring impactInternal fuse (IS)
Piston ring moldRectangular ring
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Tolerance groupA
Weight piston kit98 g
Sachs

504 (without pedal shaft)

505 (with pedal shaft) - 1A (AT) , 2A (HG) , 2B (HG)

Hercules

Great - 2 , 3 , 4 , 5 , Optima
