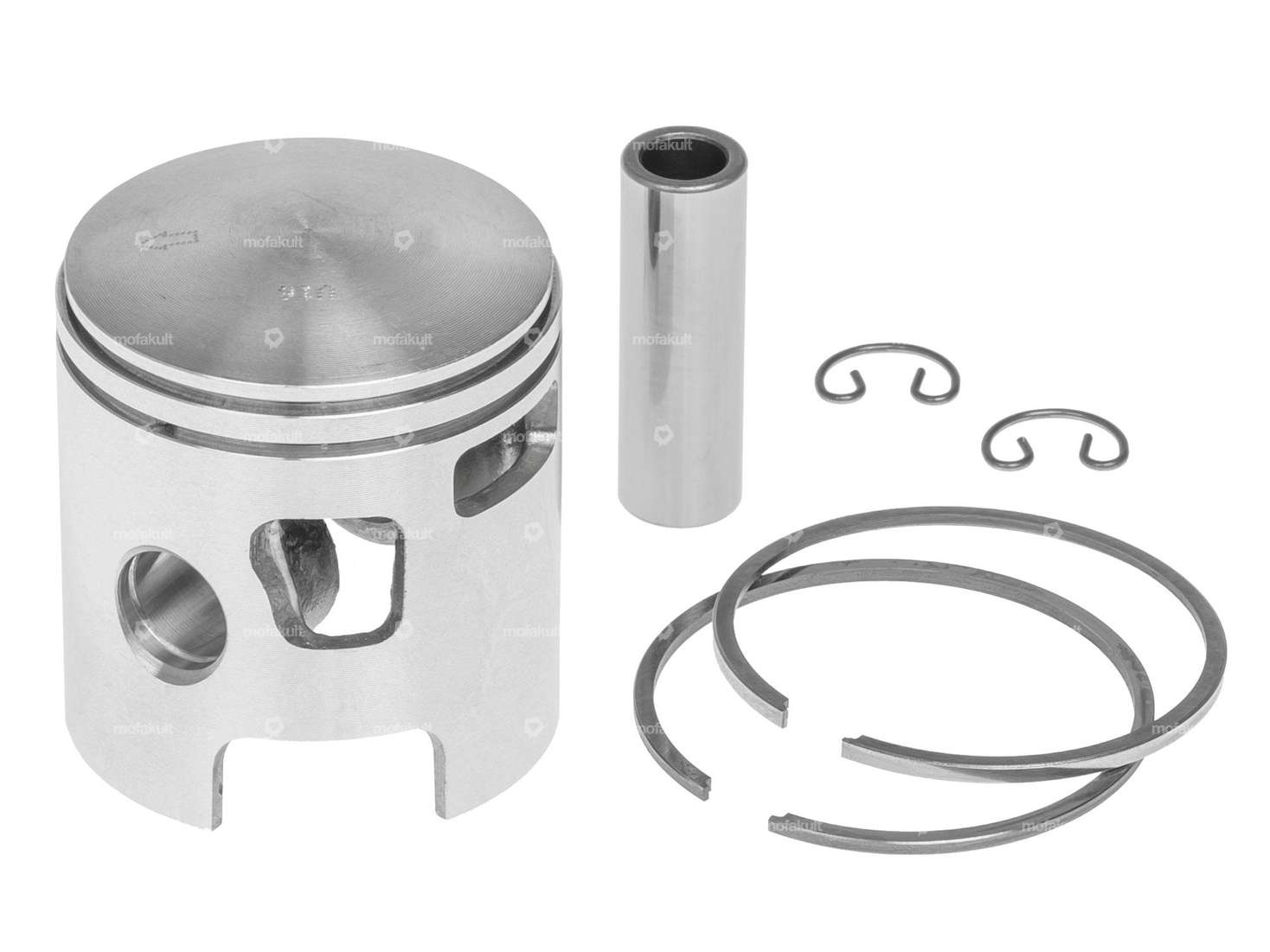

46 mm piston with a 2 mm and a 1.5 mm rectangular piston ring with internal circlip (IS) for Piaggio mopeds / mopeds with Athena cylinder kit.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Nominal diameter | 46 mm |
| Manufacturer | Athena |
| Ø outside piston (A) | 45.93 mm |
| Compression height (C) | 26 mm |
| Curvature (D) | 2.92 mm |
| Total piston height (E) | 51 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | L-ring, Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Ø piston pin (B) | 10 mm |
| Piston ring height | 2 mm, 1.5 mm |
| Weight piston kit | 94 g |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Width across flats: 10 mm · Width across flats: 17 mm · Total length: 130 mm · Number of components: 7 pcs
EUR 24.00

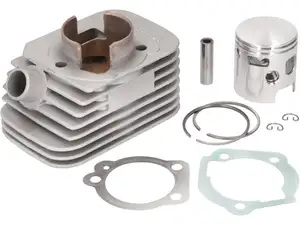

Athena 46 mm cylinder kit without head 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
