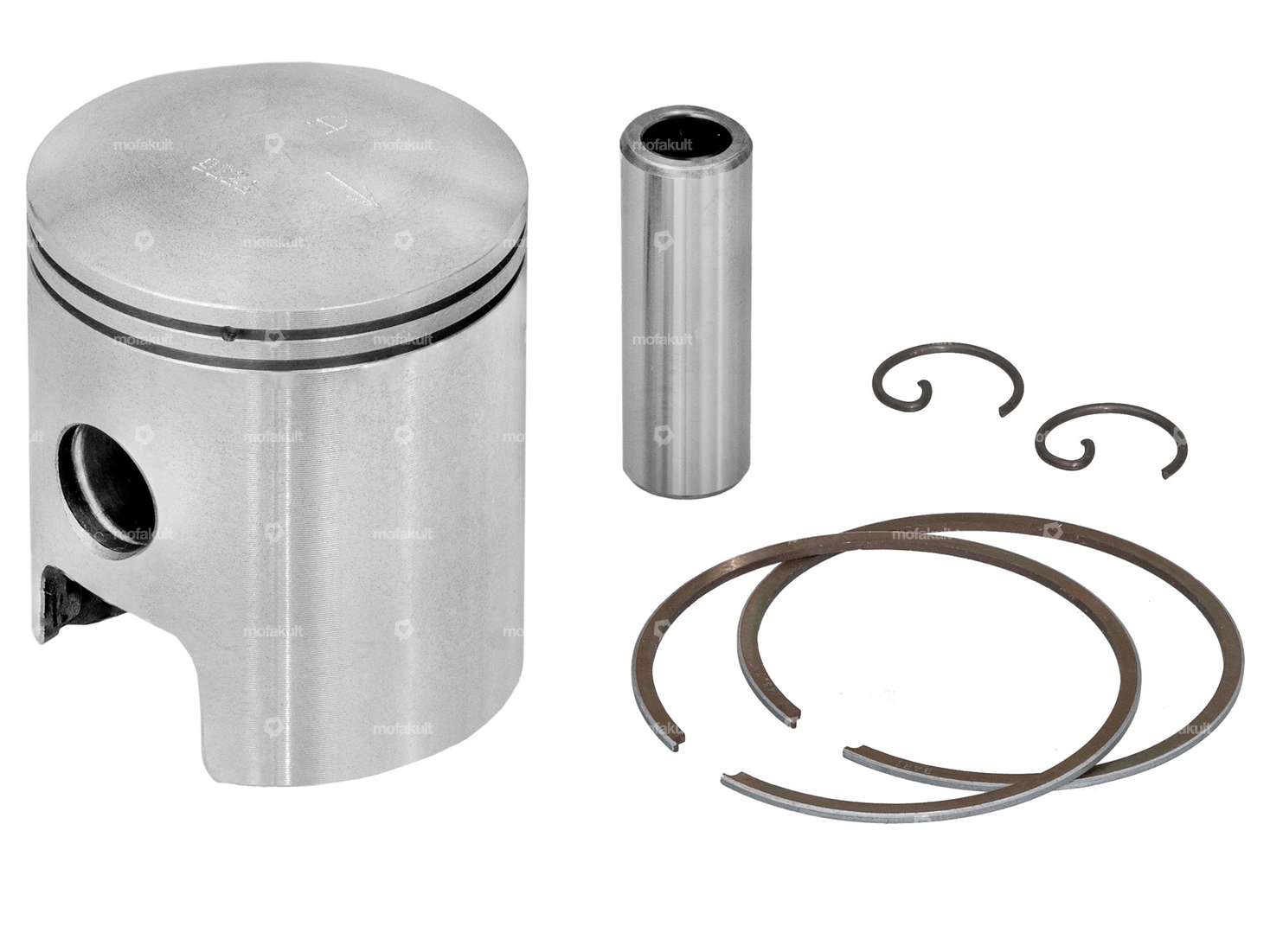

43.7 mm ¨oum dimension piston with two 1 mm rectangular piston rings with internal locking (IS) for the Metra-Kit cylinder on your Puch moped / moped.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Spanish manufacturer Barikit.
| Nominal diameter | 43.5 mm |
| Manufacturer | Barikite |
| Ø outside piston (A) | 43.65 mm |
| Compression height (C) | 22.3 mm |
| Curvature (D) | 3.4 mm |
| Total piston height (E) | 52.2 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1 mm |
| Ø piston pin (B) | 12 mm |
| Weight piston kit | 99 g |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Ratings
Accessories & related products

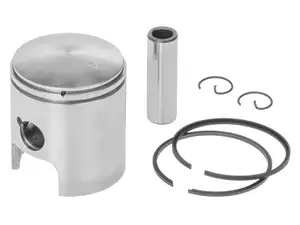

Metrakit piston 43.5 mm | Puch
Manufacturer: Metracite · Ø outside piston (A): 43.45 mm · Compression height (C): 22.9 mm · Curvature (D): 3.1 mm · Total piston height (E): 49.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Nominal diameter: 43.5 mm · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Weight piston kit: 85 g
EUR 48.30
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats: 10 mm · Width across flats: 17 mm · Number of components: 7 pcs · Area of application: (Dis)assembly tool
EUR 24.10
Metrakit 43.5 mm cylinder kit (65 cc - camouflaged) | Puch
Nominal diameter: 43.5 mm · Manufacturer: Barikite · Manufacturer: Metracite · Material: Aluminum · Surface: sandblasted · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Camouflaged: Yes · Area of application: Tuning
EUR 163.40
Moped fans also bought
Continental 2.00 - 2.50 x 17" tube
Manufacturer: Continental · Tire width: 2 - 2.5 " · Tire width: 2.25 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width: 2 " · Width: 2 1/4 " · Width: 2 1/2 " · Tire height [%]: 100 · Wheel size: 17 " · Old designation: 21 x 2 " · Old designation: 21 x 2.25 " · Old designation: 21 x 2.5 " · Valve type: TR6 car valve
EUR 18.00
EUR 12.00
swiing® ingenious crankshaft "High End" | Puch E50
Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Thread length: 11 mm · Thread length: 15 mm · Total length of crankpin on clutch side: 74 mm · Thread type: MF10x1 (fine pitch thread) · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Weight: 968 g · Number of gears: 1 pcs
EUR 165.80
EUR 140.40
GPO stud bolt special M6 x 106 mm galvanized (10.9 strength) | Puch
Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Diameter: 7 mm · Total length: 106 mm · Thread length: 15 mm · Thread length: 19 mm · Thread type: M6x1 (standard thread) · Strength class: 10.9 · Alternative version of the Puch OEM number: 360.1.10.034.1
EUR 5.20

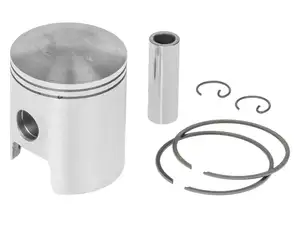

Barikit piston 44 mm MetraKit cylinder oversize | Puch
