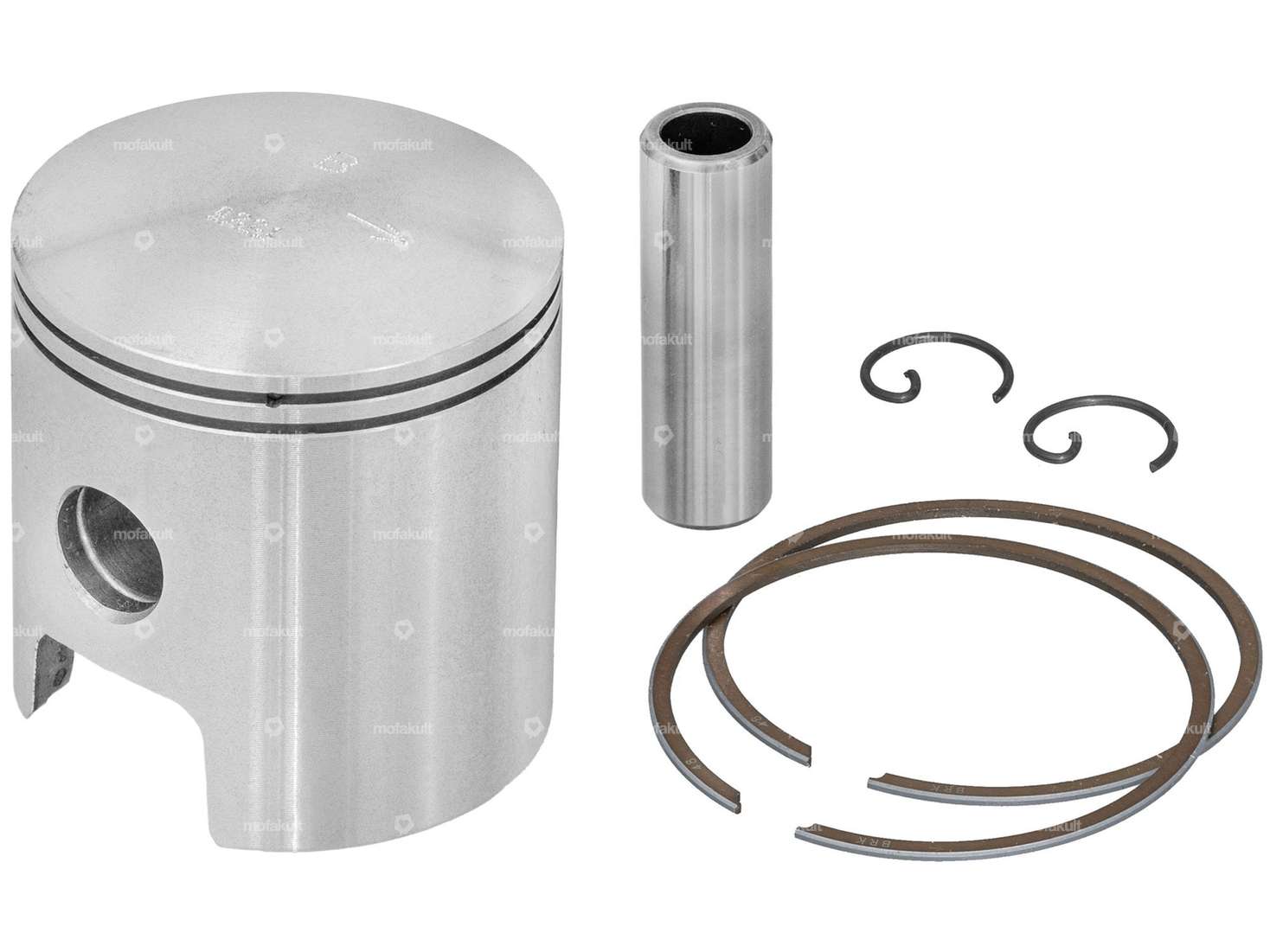

48.0 mm ¨oum dimension piston with two 1 mm rectangular piston rings with internal locking (IS) for the Metra-Kit cylinder on your Puch moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Spanish manufacturer Barikit.
| Manufacturer | Barikite |
| Ø outside piston (A) | 47.95 mm |
| Compression height (C) | 22 mm |
| Curvature (D) | 3.45 mm |
| Total piston height (E) | 52.45 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 48 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1 mm |
| Ø piston pin (B) | 12 mm |
| Piston weight | 124 g |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Accessories & related products

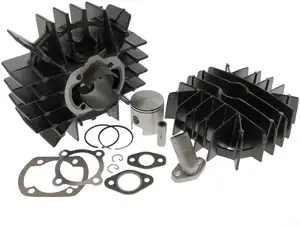

Metrakit 47 mm cylinder kit 75 ccm
Manufacturer: Metracite · Material: Gray cast iron · Surface: varnished · Displacement: 75 ccm · Nominal diameter: 47 mm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Number of fixing points: 4 pcs · Thread inlet: M6x1 (standard thread) · Hole spacing outlet: 42 mm · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: No · Area of application: Tuning
EUR 408.40
Not in stock

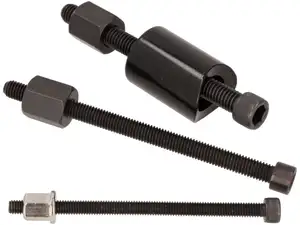

GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Area of application: (Dis)assembly tool · Number of components: 7 pcs · Total length: 130 mm · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm
EUR 23.90
Moped fans also bought

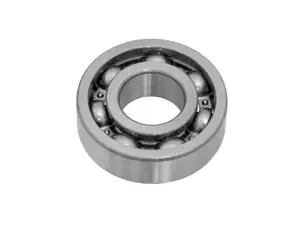

NTN 6203 C3 Ball bearing 17/40/12
Manufacturer: NTN · Material: Steel · Surface: blank · Bearing type: Deep groove ball bearing · Inner ring width: 12 mm · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Ø outside: 40 mm · Ø inside: 17 mm · Stock number: 6203 · Width: 12 mm · Ball bearing closed: No · Area of application: Standard
EUR 10.70

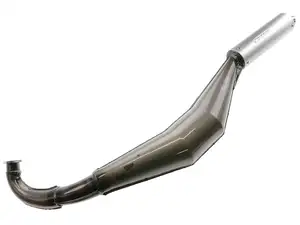

Simonini exhaust aluminum | Puch
Manufacturer: Simonini · Material: Steel · Surface: varnished · Total length: 830 mm · Ø Internal connection: 23 mm · Ø Silencer: 60 mm · Mounting type: Welded lug · Ø Flame tube outside: 29 mm · Exhaust type: Cone / double cone · Number of fixing points: 1 pcs · Ø outside: 95 mm · Flame tube attachment: Flange
EUR 222.20

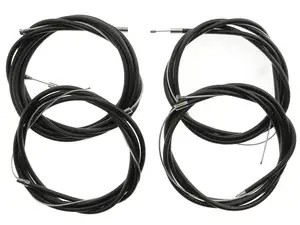

Cut cable set Black | Sachs Automatic
