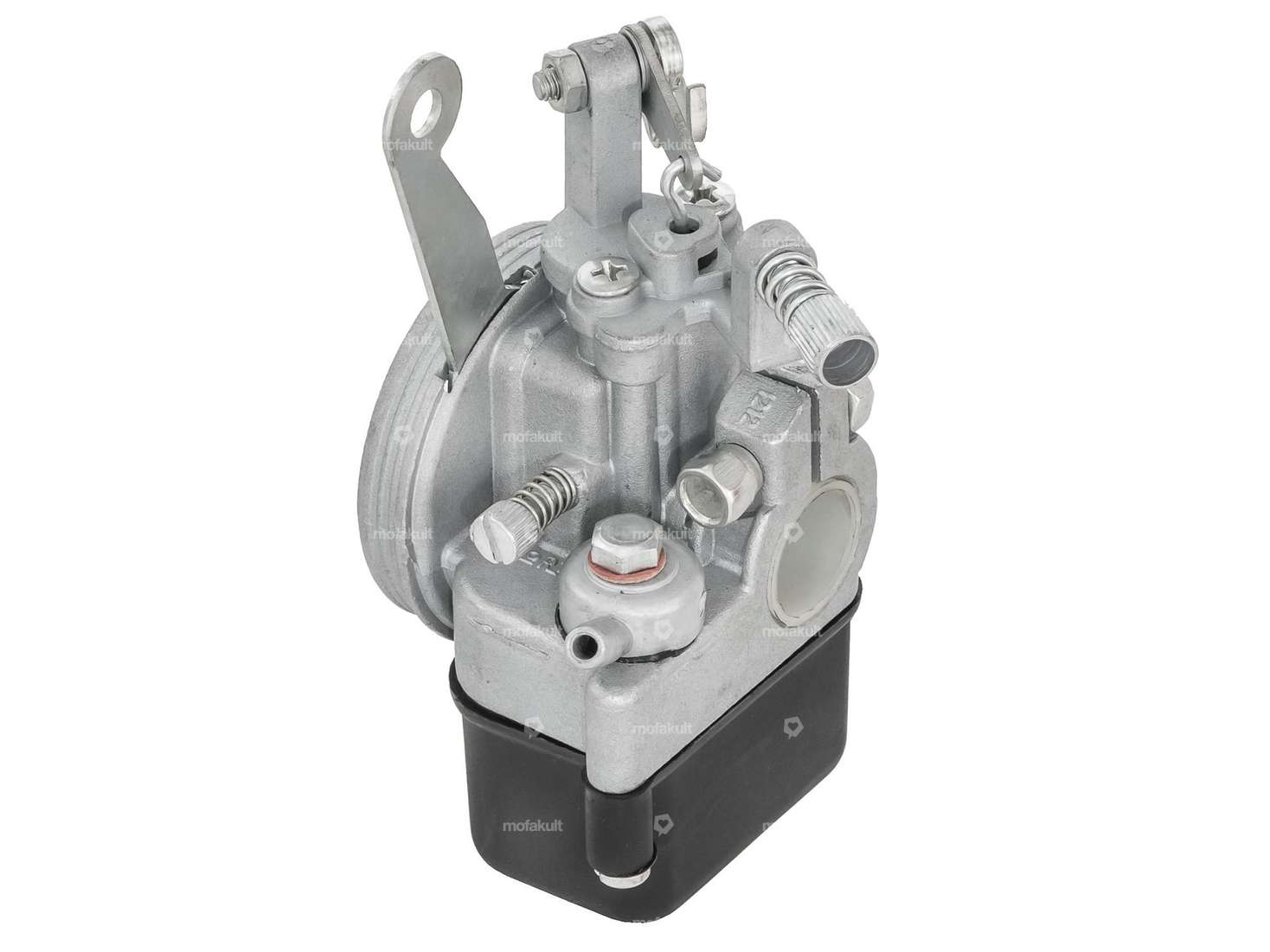

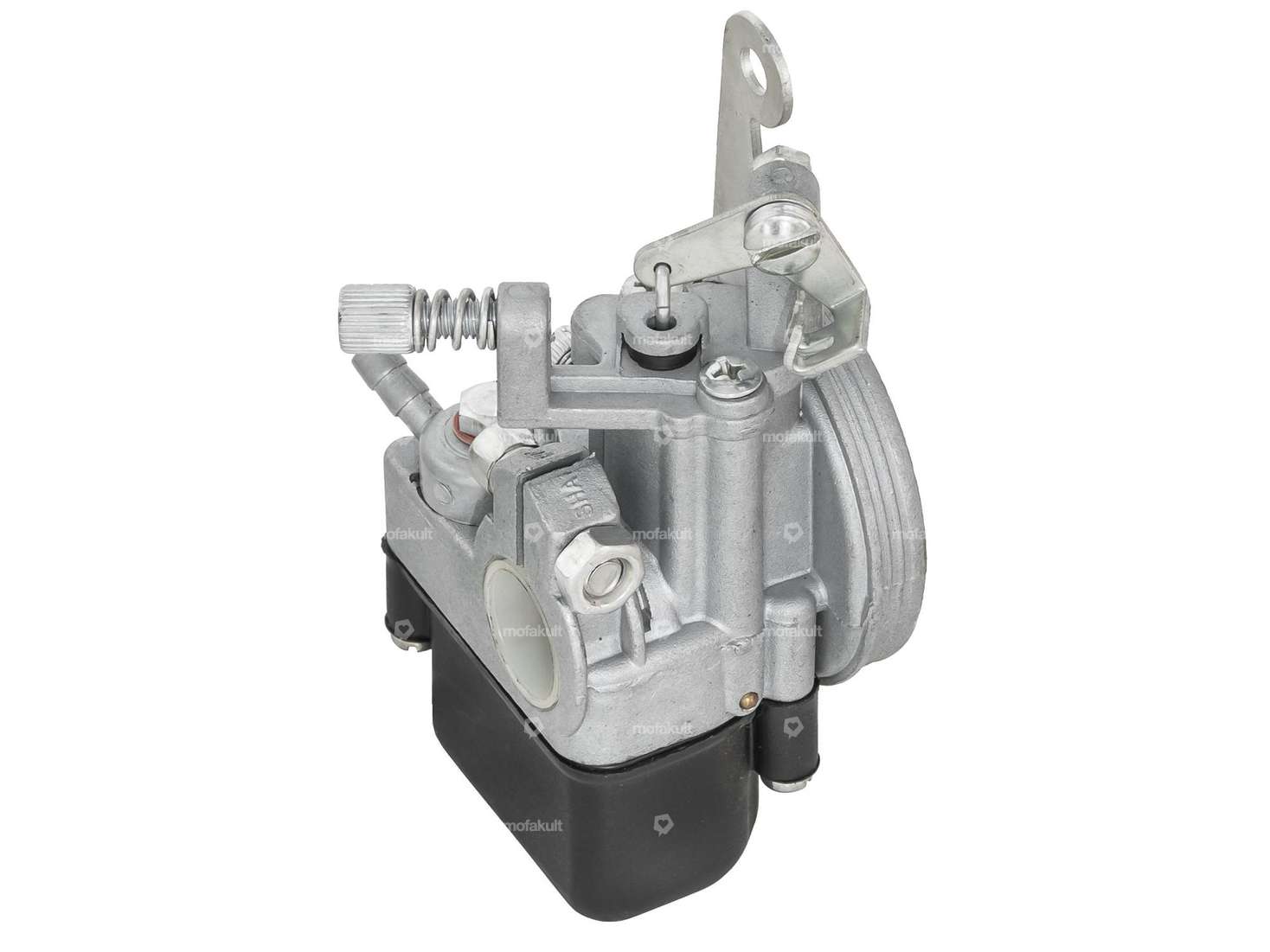

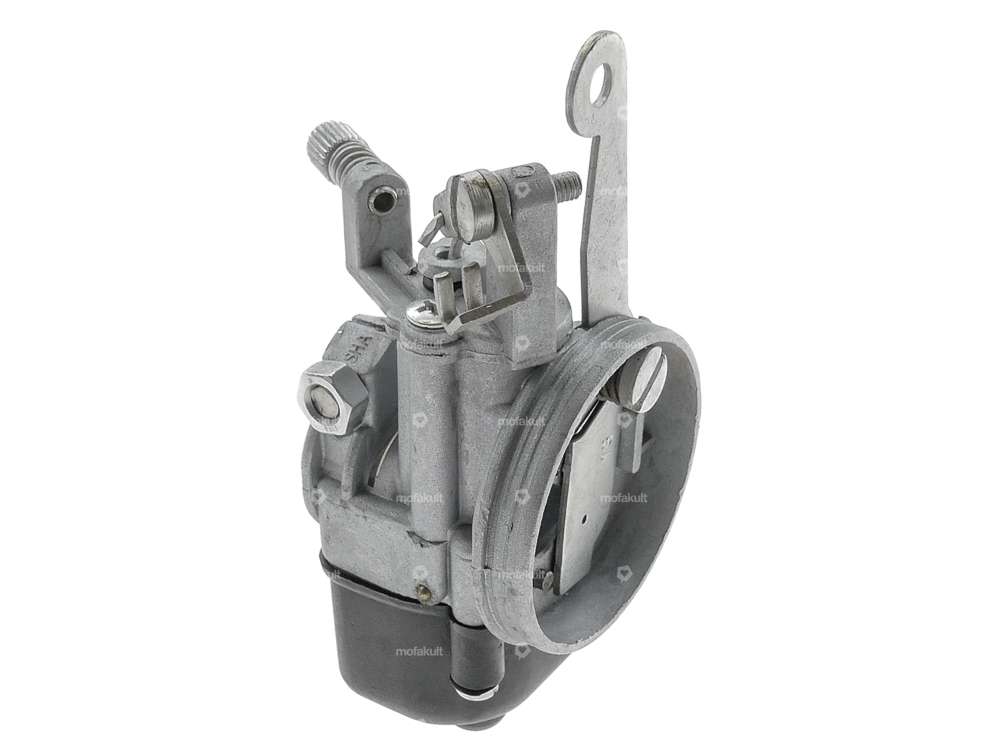

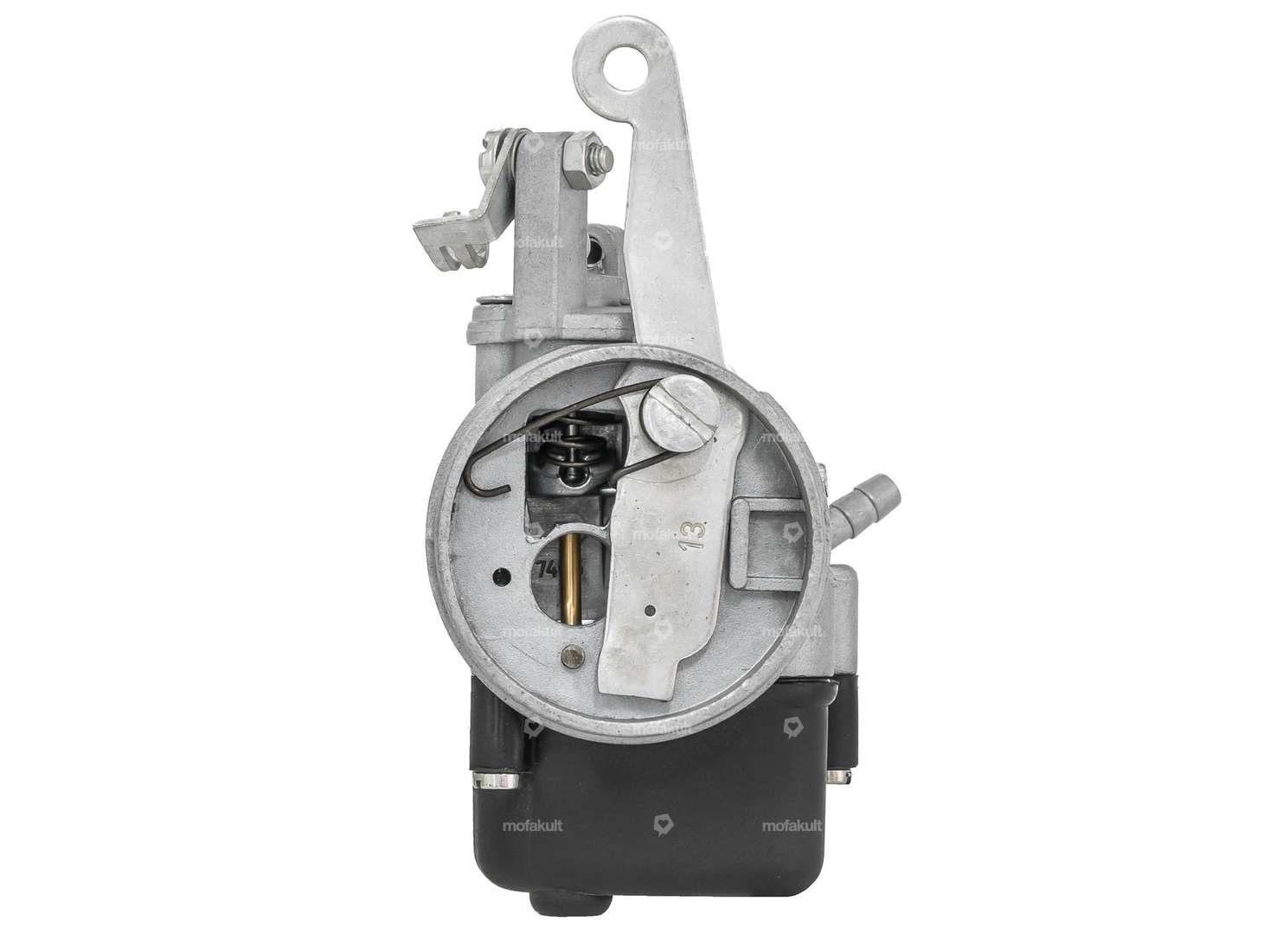

Favourable 12 / 12 replica carburettor for your Piaggio Si moped / moped.
The tuning carburettor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburettor type: SHA type 3 (SHA3)
Main diameter (M5): 62
Inlet connection diameter: 16 mm (or 18 mm after removing the reducer). 18 mm after removing the reducing sleeve)
Ø outside air filter connection: 50.3 mm
Ø passage on air filter side: 12 mm
Ø passage on intake manifold side: 12 mm
Total height: 117.5 mm
Total length: 60 mm
Total width: 60 mm
Note: The finish of the aftermarket carburetors varies. The idle throttle bore is not perfect on all of them. We also recommend that you clean the carburetor again before installation, as some metal shavings from production can be found in the carburetor. If you want to be on the safe side and avoid problems, go straight for the original Dell'Orto product.
You can find suitable jets, air filters and original Dell'Orto carburettors in the accessories section.
Good quality reproduction product from the Asian market.
| Nominal diameter | 12 mm |
| Manufacturer | Quenching |
| Component group Carburetor | Carburetor complete |
| Area of application | Tuning |
| Width | 60 mm |
| Carburetor type | SHA (Piaggio) |
| Height | 118 mm |
| Ø without reducing sleeve | 18 mm |
| Mounting type | Plug connection |
| Ø Inside entrance | 12 mm |
| Ø Output inside | 12 mm |
| Ø Air filter connection | 50.3 mm |
| Ø Internal connection | 16 mm |
| Ø fuel hose connection | 6 mm |
| Total length | 60 mm |
| Choke control | Hand choke |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 62 |
| Piaggio | Si |
