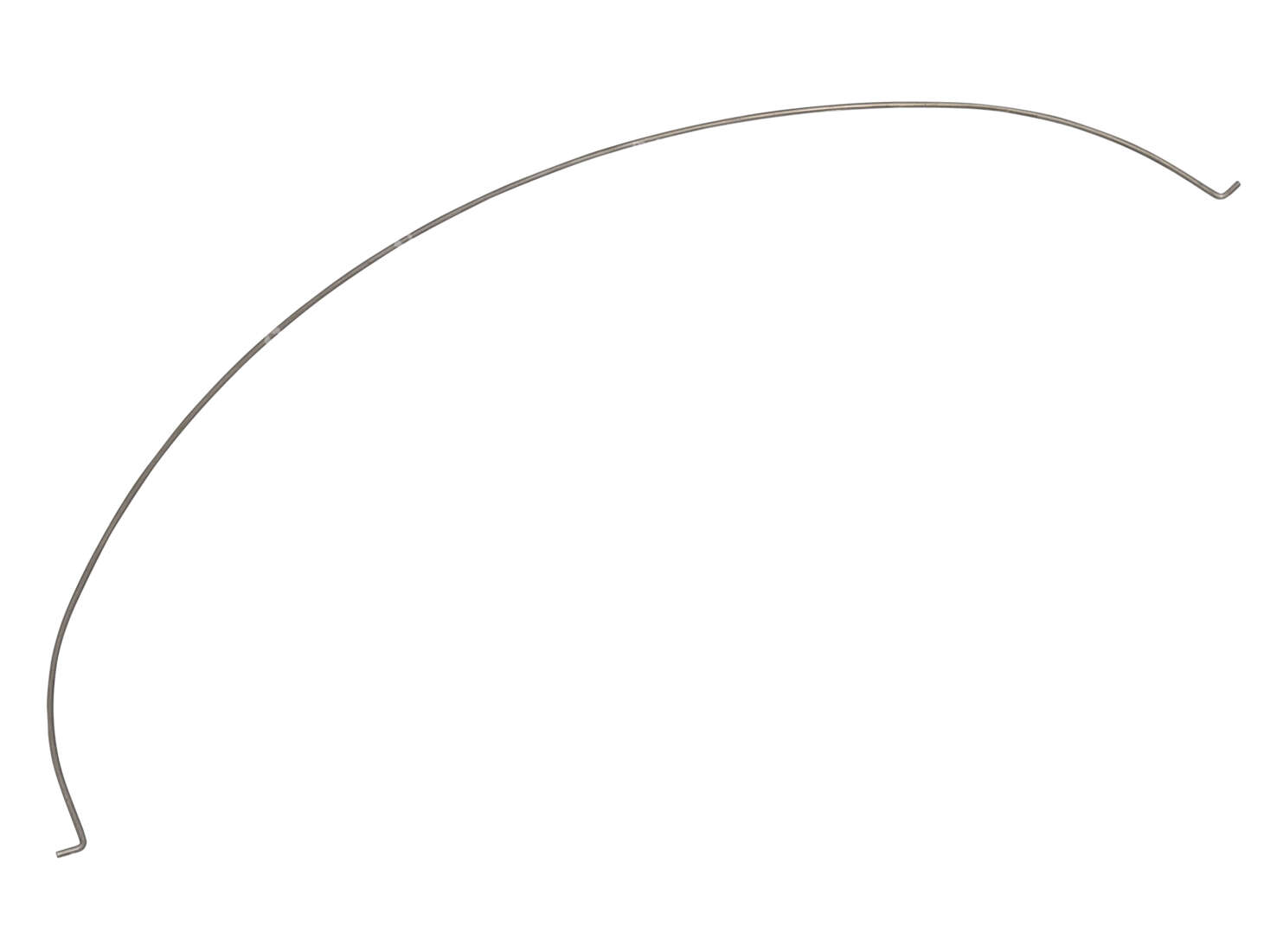

Clamping ring fan cover | Puch / Tomos

Engine gasket set | Puch MS, VS, DS, MV, M

Number of components: 8 pcs · Area of application: Standard

Crankshaft full cheeks | Puch MV, VS, MS, DS, Monza, X50 (3 & 4 speed)

Cheek type: Full cheeks · Total length of crankpin on clutch side: 73 mm · Total length crankpin ignition side: 66 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Number of gears: 3 pcs · Number of gears: 4 pcs · Area of application: Tuning

40 mm Aluminum Cylinder Kit | Puch Supermaxi LG1 / LG2, Monza, X50-4

Nominal diameter: 40 mm · Material: Aluminum · Surface: sandblasted · Displacement: 60 ccm · Crankshaft stroke: 43 mm · Number of fixing points: 4 pcs · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Area of application: Tuning · Camouflaged: No

Silentblock 10/22/33 mm

Ø outside: 22 mm · Material: Rubber · Material: Steel · Ø inside: 10 mm · Total length: 33 mm

Silentblock engine mount | Puch MS50, VS50, MV50

Ø inside: 8 mm · Ø outside: 20 mm · Material: Rubber · Material: Steel · Total length: 17 mm

Silent Block 12/25/36 mm Swing Arm Bearing | Puch VZ50, MC50, X50, Monza

Ø inside: 12 mm · Ø outside: 25 mm · Material: Rubber · Material: Steel · Total length: 36 mm · Puch OEM number: 367.1.21.011.2

Torsion spring brake plate front & rear Puch DS50, VZ50, VS50, MV50

Spring design: Torsion spring · Material: Spring steel · Surface: galvanized (blue)

Spring strut bolt Puch DS50, VZ50, VS50, MV50

Material: Steel · Surface: galvanized (blue) · Thread type: MF12x1 (fine pitch thread) · Thread type: MF8x1 (fine pitch thread) · Nominal diameter (thread): 8 mm · Nominal diameter (thread): 12 mm · Total length: 64 mm · Width across flats: 14 mm

KMC drive chain 415H (reinforced) 128L

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Ø Pin: 3.94 mm · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Color: gray · Rolling circumference: 1626 mm · Ø bore: 4 mm · Number of chain links: 128 pcs · Chain lock type: Spring lock

Magura cable clamp Ø 8 x 15 mm

Manufacturer: Magura · Ø Cable bushing: 2.3 mm · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Thread type: M6x1 (standard thread) · Ø outside: 8 mm · Total length: 15 mm · Ø Bundle: 6 mm · Screw head: Hexagon · Drive: External hexagon · Drive: Slot · Width across flats: 7 mm · Thread length: 7 mm · Area of application: Standard

Magura cable holder

Ø Cable bushing: 4 mm · Ø Nipple hole: 6.2 mm · Manufacturer: Magura · Material: Brass · Color: silver · Total length: 14.5 mm · Surface: nickel-plated · Ø Bundle: 10 mm · Ø outside: 8 mm · Area of application: Standard · Magura OEM number: 411 440

OMG fuel filter metal 6 mm (removable)

Manufacturer: OMG · Material: Glass · Material: Metal · Total length: 40 mm · Total length: 63 mm · Filter type: Plastic net · demountable: Yes · Color: gray · Color: transparent · Color: white · Ø fuel hose connection: 5.6 mm · Ø fuel hose connection: 6 mm · Ø inside: 3.45 mm · Ø outside: 22 mm

Motorex engine oil (gear oil) manual 450 ml

Manufacturer: Motorex · Oil type: GL4 · Viscosity (SAE): 80W · Area of application: Gearbox lubrication with clutch · Contents: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Temperature resistance (min.): -30 - 220 °C

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents: 450 ml · Gearbox type: Automatic machine · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

swiing® revival rubber stand stop / tank rack black | Puch

Manufacturer: swiing® revival parts · Material: Rubber · Ø outside: 22.3 mm · Total length: 15.5 mm · Color: black · Ø mounting hole: 12.5 mm · Ø Bundle: 14.9 mm · Waistband height: 3 mm · Puch OEM number: 050.1.2123

Hexagon head screw M7x16 galvanized

Material: Steel · Surface: nickel-plated · Drive: External hexagon · Screw head: Hexagon · Thread type: M7x1 (standard thread) · Shank: No · Nominal diameter (thread): 7 mm · Thread length: 16 mm · Strength class: 8.8 · Width across flats: 11 mm

GPO gasket set carburetor Bing SRE

Manufacturer: GPO · Thickness: 0.5 mm · Thickness: 0.9 mm · Thickness: 1.5 mm · Material: Sealing paper · Component group Carburetor: Sealing, revising · Ø inside: 7.8 mm · Ø inside: 41 mm · Carburetor type: SRE · Ø outside: 12.2 mm · Ø outside: 45 mm · Camouflaged: No

HPX insulating tape 19 mm black (10m roll)

Manufacturer: HPX · Material: Polyvinyl chloride (PVC) · Surface: rubberized · Place of use: Universal · Color: black · Total length: 10000 mm · Width: 19 mm · Rear side texture: Adhesive · Transferfolie: No
