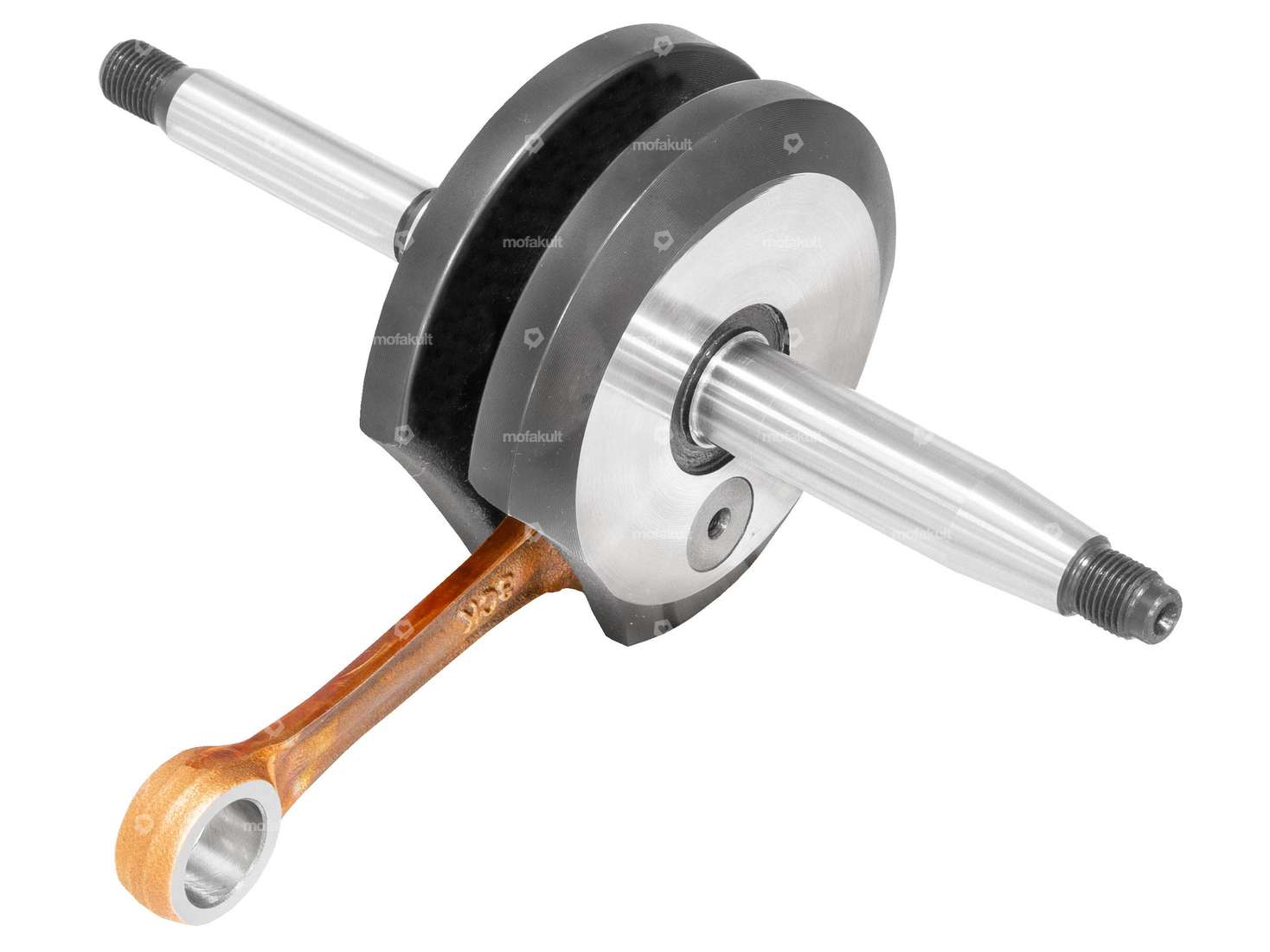

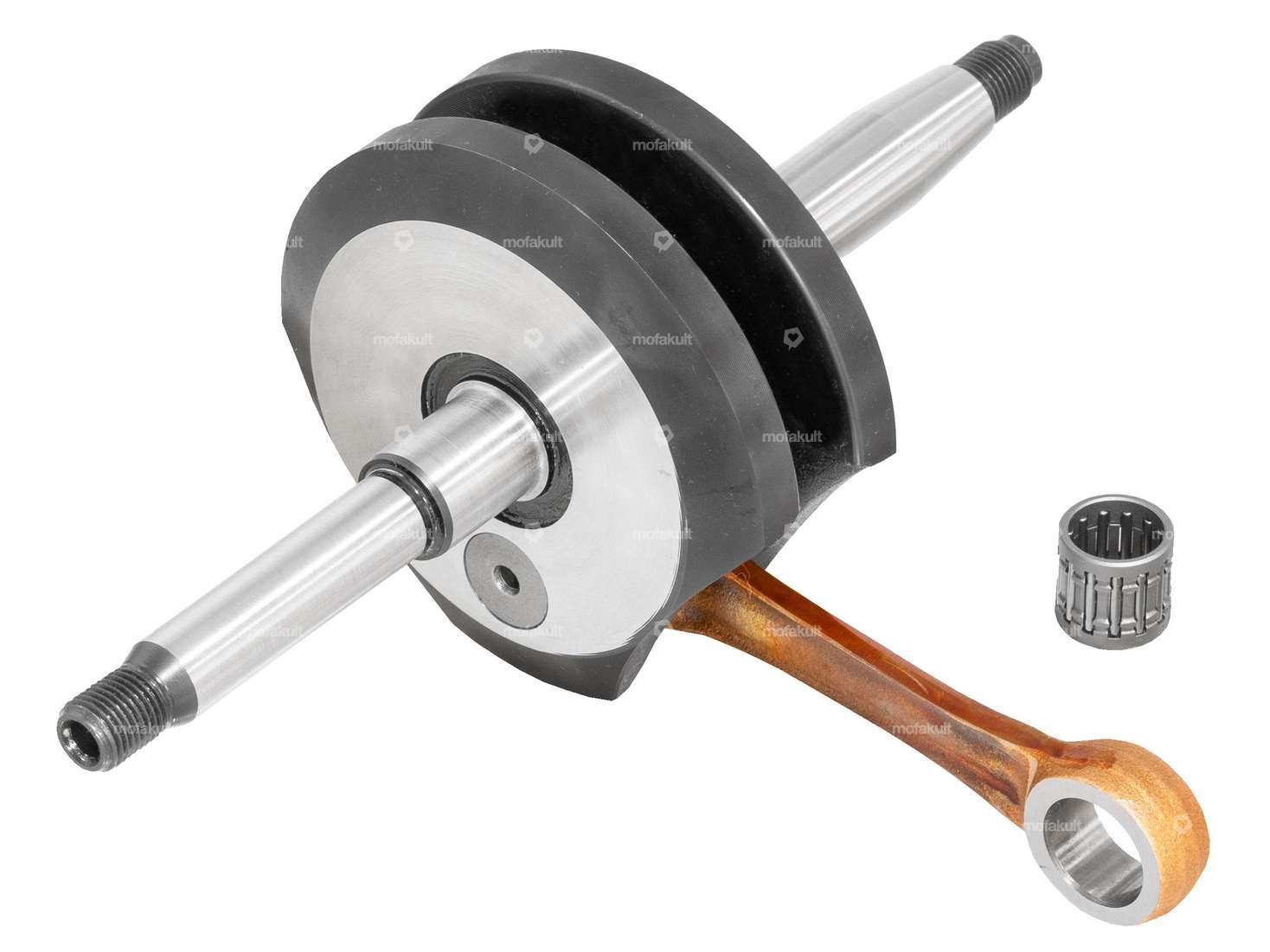

Crankshaft suitable for mopeds / mopeds with Sachs 505, 535 A1 and 535 AV engines. Among other things, this shaft is suitable for Hercules Prima 2, 3, 4, 5 and Optima models.
| Area of application | Standard |
| Material | Steel |
| Crankshaft stroke | 44 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Connecting rod length center-center | 85 mm |
| Total length of crankpin on clutch side | 77.5 mm |
| Total length crankpin ignition side | 73.5 mm |
| Ø crank webs | 79.9 mm |
| Ø Connecting rod eye | 15 mm |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 15 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Thread length | 12 mm |
| Dimension needle bearing | 12 / 15 x 14.2 mm (axe 12) |
| Wide crank webs | 34.3 mm |
| Length 1st paragraph | 18 mm |
| Length 2nd paragraph | 44 mm |
| Ø 1st step (on the coupling side) | 15 mm |
| Ø 2nd shoulder (on the clutch side) | 11.6 mm |
| Length of shoulder (ignition side) | 42.5 mm |
| Weight | 956 g |
| Number of gears | 1 pcs, 2 pcs |
| Pony OEM number | A4477 |
| Sachs | 505 (with pedal shaft) |
| Hercules | Great - 2, 3, 4, 5, Optima |
