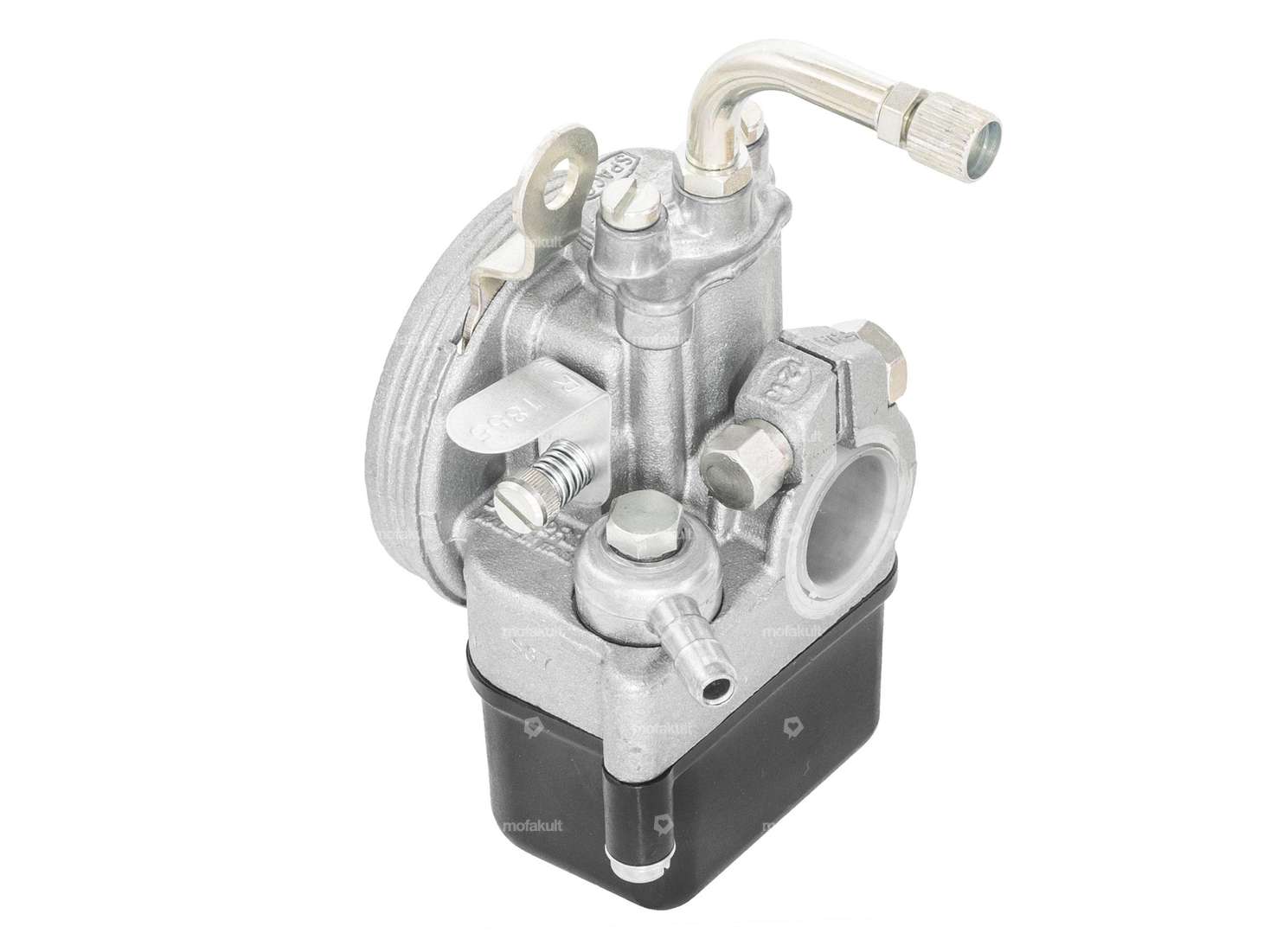

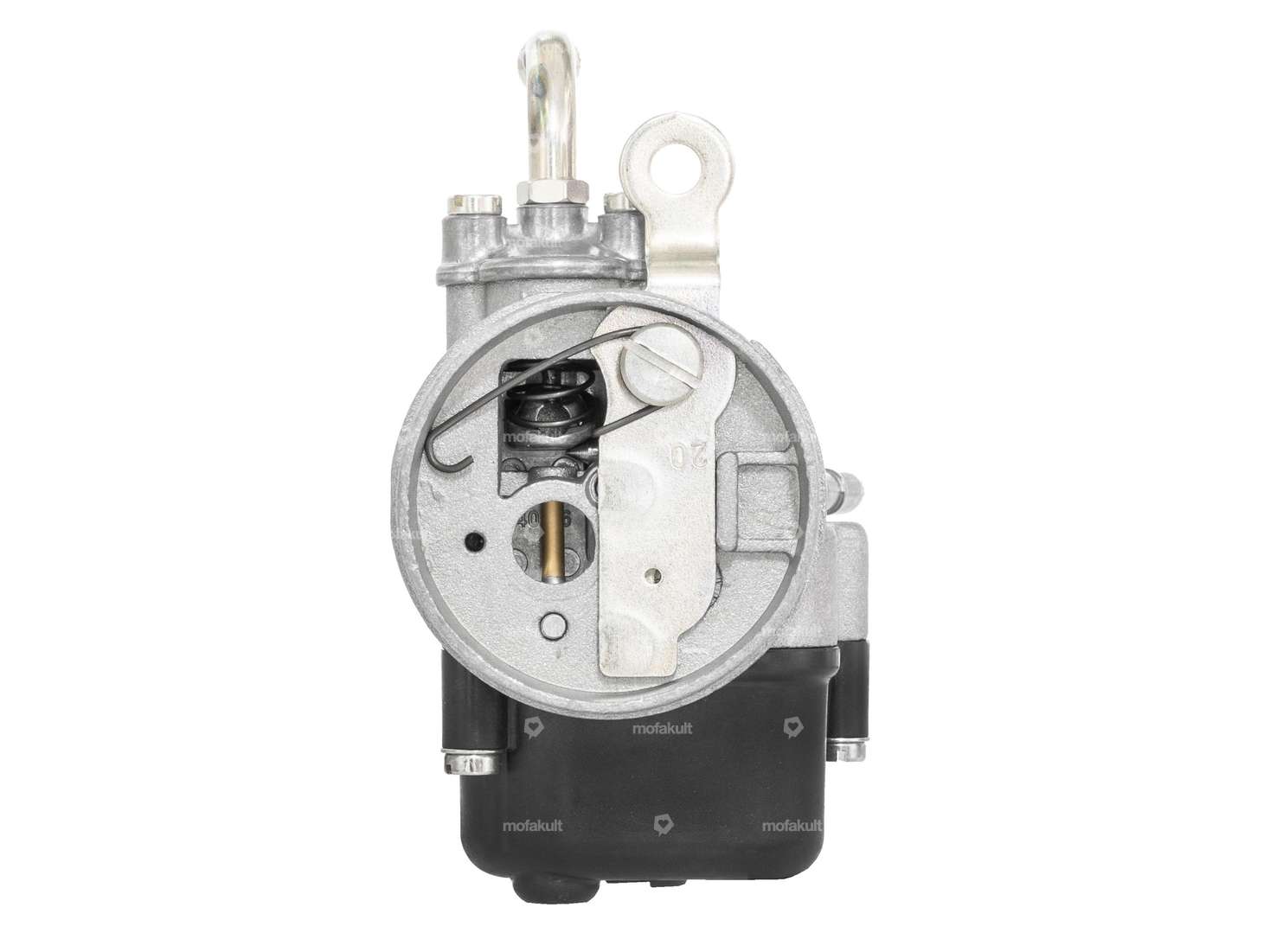

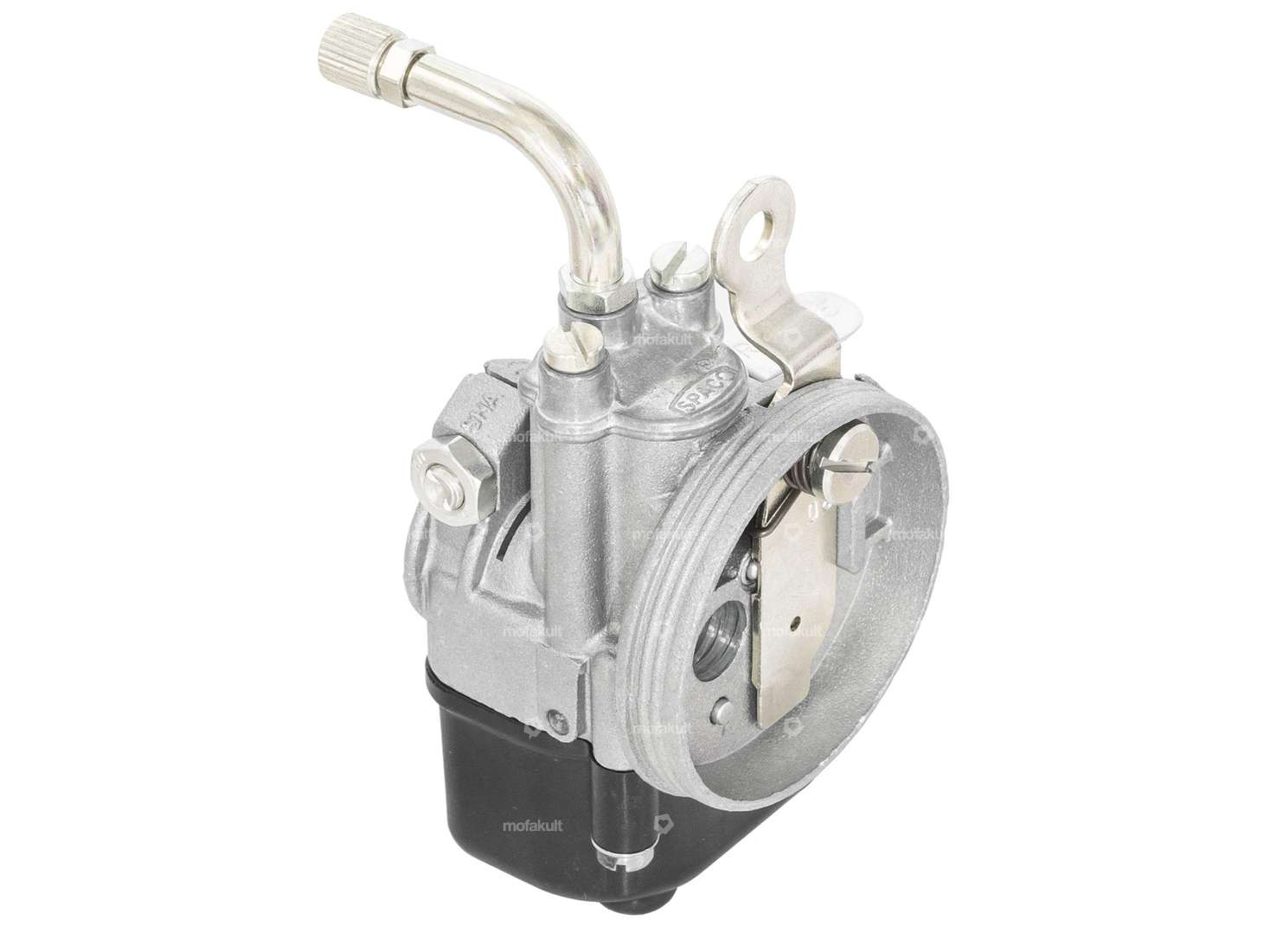

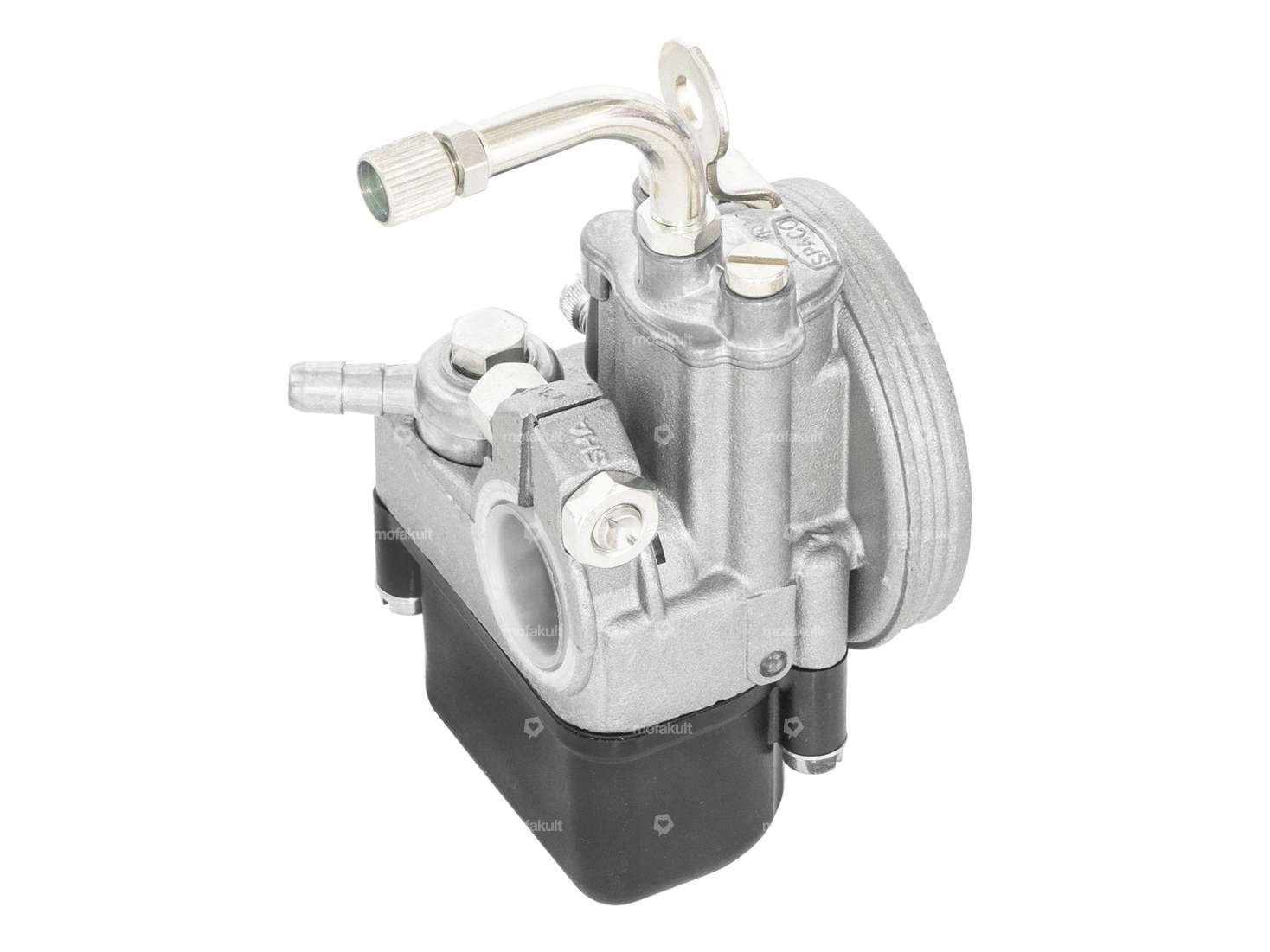

Dell'Orto 12/10 mm SHA carburetor suitable for Pony Beta 521 mopeds.
This carburetor is an alternative to the original Pony carburetor. The choke lever differs slightly from the original carburetor.
Installed dimensions: 37
Attention: To be able to mount the carburetor with the original air filter box, the flange in the accessory must be glued on with Loctite 638 and an air filter mat must be inserted in the air filter box. It is no longer possible to fit the air filter screen!
You can find the attachment parts and suitable nozzles in the accessories section.
Quality product from the Italian manufacturer Dell'Orto.
Nozzle size: 37 · Manufacturer: Dell'Orto · Camouflaged: No · Material: Aluminum · Color: black · Carburetor type: SHA (Piaggio) · Nominal diameter: 12 mm, 10 mm · Ø Internal connection: 16 mm · Ø without reducing sleeve: 19 mm · Ø Inside entrance: 10 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.6 mm · Ø fuel hose connection: 6 mm, 5.3 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Mounting type: Plug connection clamped · Total length: 55 mm · Width: 60 mm · Height: 111 mm · Area of application: Original, Tuning · Component group Carburetor: Carburetor complete
| Nominal diameter | 12 mm |
| Manufacturer | Dell'Orto |
| Component group Carburetor | Carburetor complete |
| Carburetor type | SHA (Piaggio) |
| Choke control | Hand choke |
| Total length | 45 mm |
| Ø fuel hose connection | 6 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Height | 96 mm |
| Nozzle size | 37 |
| Ø without reducing sleeve | 19 mm |
| Mounting type | Plug connection clamped |
| Ø Internal connection | 16 mm |
| Ø Inside entrance | 10 mm |
| Ø Output inside | 12 mm |
| Ø Air filter connection | 50.6 mm |
| Width | 60 mm |
| Mixed oil connection | No |
| Vacuum connection | No |
| Area of application | Tuning |
| Pony / Cilo (Beta 521 & 512) | Beta 512 Beta 521 (engine) |
