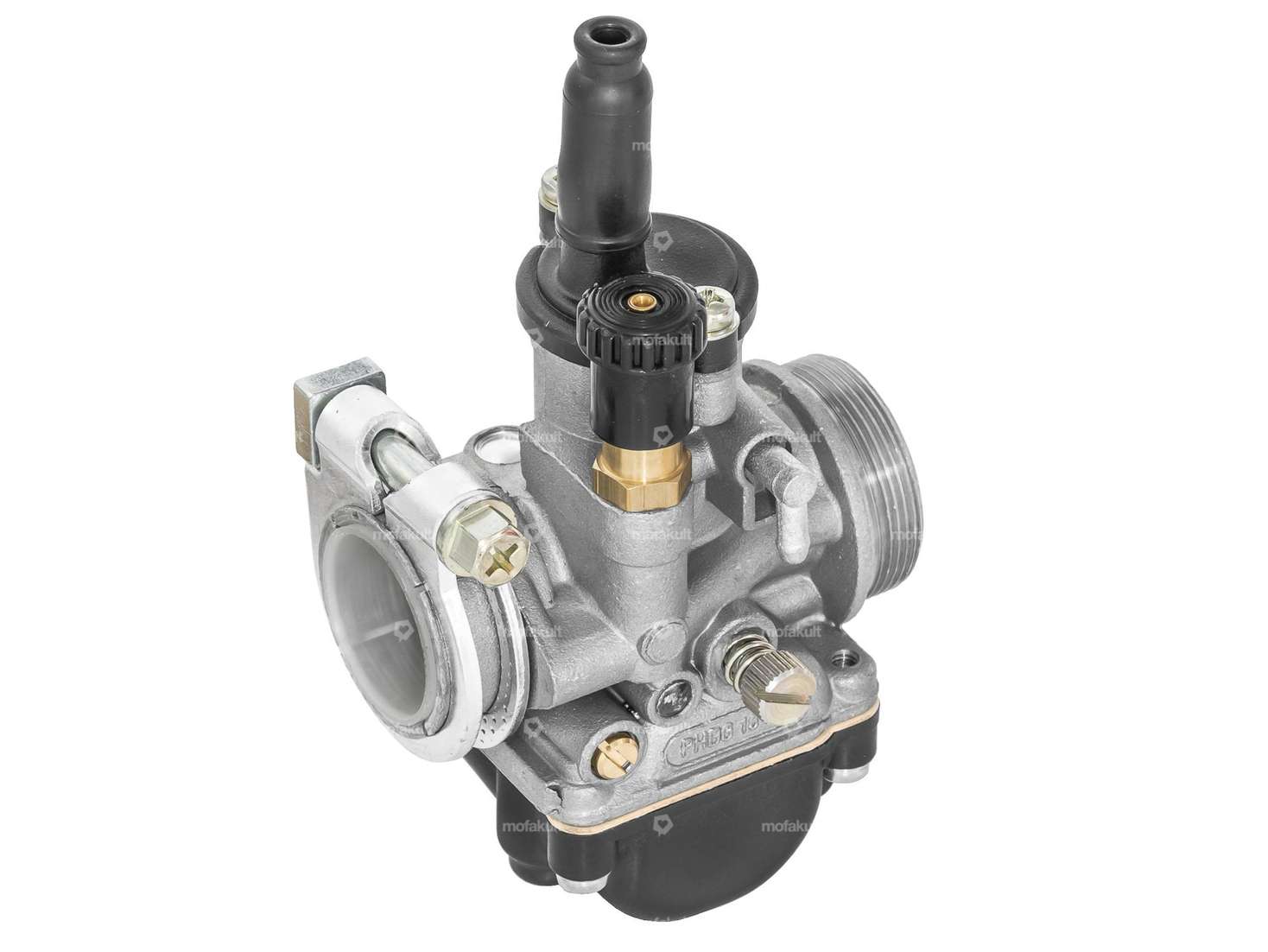

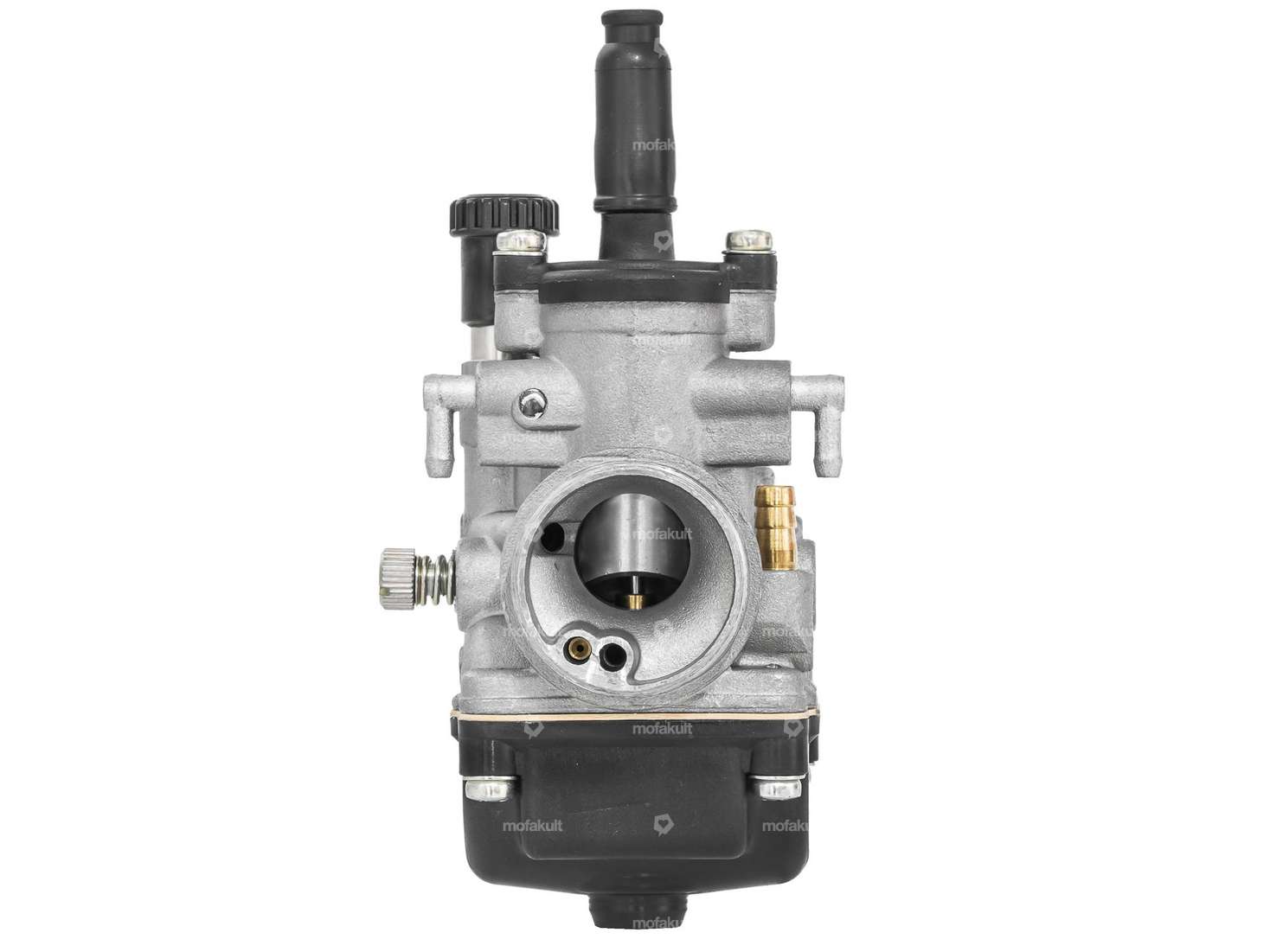

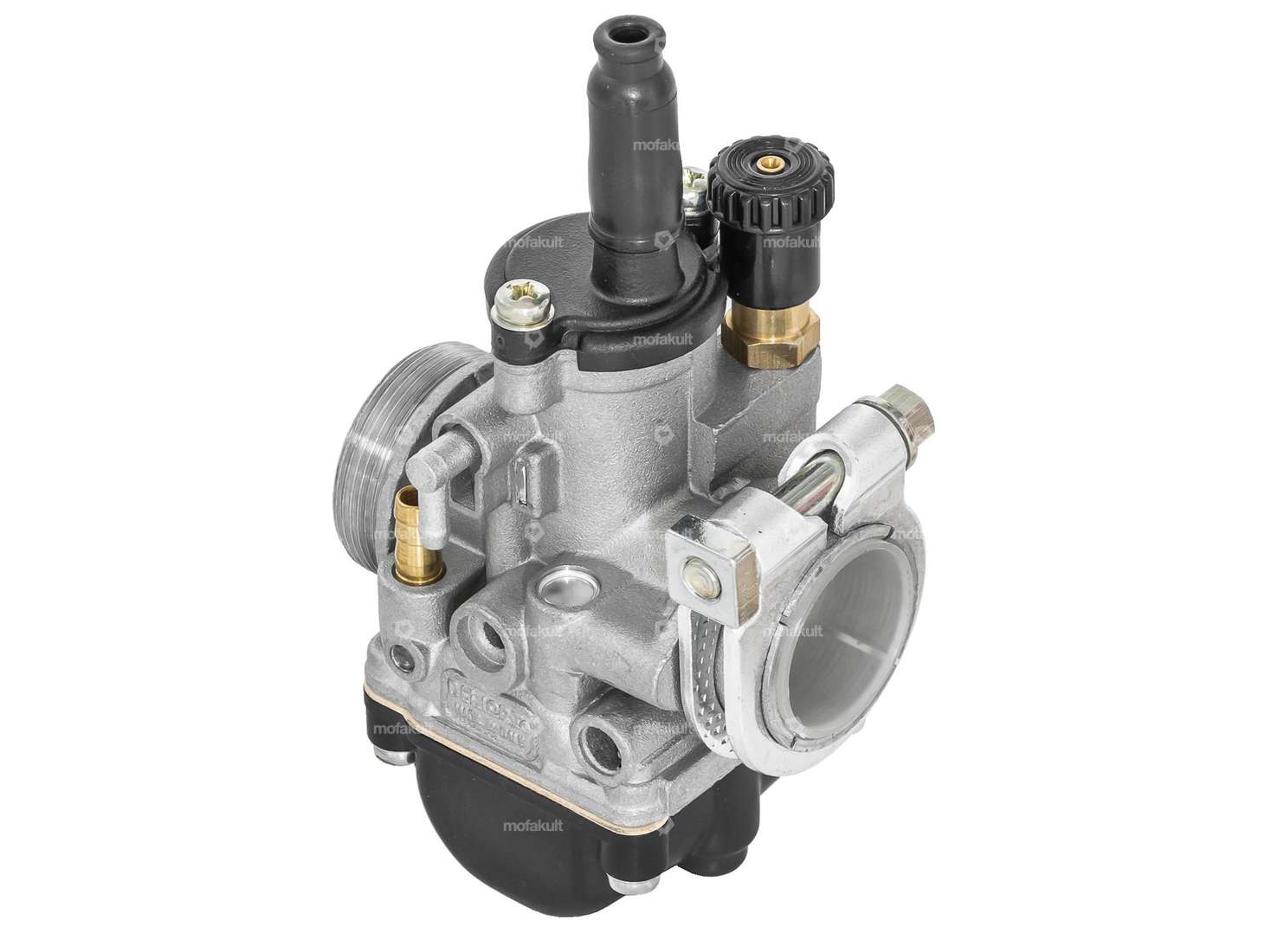

Dell'Orto 16 mm PHBG AS carburetor hand choke

Home
| Motor
| Carburetor & intake system
| Carburetor
EUR 156.30

Incl. 23% VAT.

16 mm PHBG racing carburetor for universal use for your moped, moped and small motorcycle.
This high-quality racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 70 cc.

The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and secondary lines and the mixture adjustment screw.

The carburetor has an M32x1.25 thread on the air filter side. The air filter can be attached directly to the thread.

Main thread size (M5): 74 (with throttle plate)
Adjacent thread size (idle thread): 50
Choked thread size: 60
Air filter connection diameter: 32 mm (M32 x 1.25)
Inlet connection diameter: 24 mm (or 26 mm after removing the reducer). 26 mm after removing the reducing sleeve)
Total height: 125 mm
Total width: 75 mm

Matching nozzles, air filters and intake manifolds can be found in the accessories section.

Quality product from the Italian manufacturer Dell'Orto.

Details

Nominal diameter16 mm
ManufacturerDell'Orto
Component group CarburetorCarburetor complete
Carburetor typePHBG AS
Choke controlHand choke
Width75 mm
Ø fuel hose connection6 mm
Nozzle threadM5x0.8 (standard thread)
Height125 mm
Ø without reducing sleeve26 mm
Ø Internal connection24 mm
Area of applicationTuning
Ø Air filter connection32 mm
Air filter connection threadMF32x1.25 (fine pitch thread)
Mounting typePlug connection clamped
Choke nozzle size60
Nozzle size74
Size of secondary nozzle50
