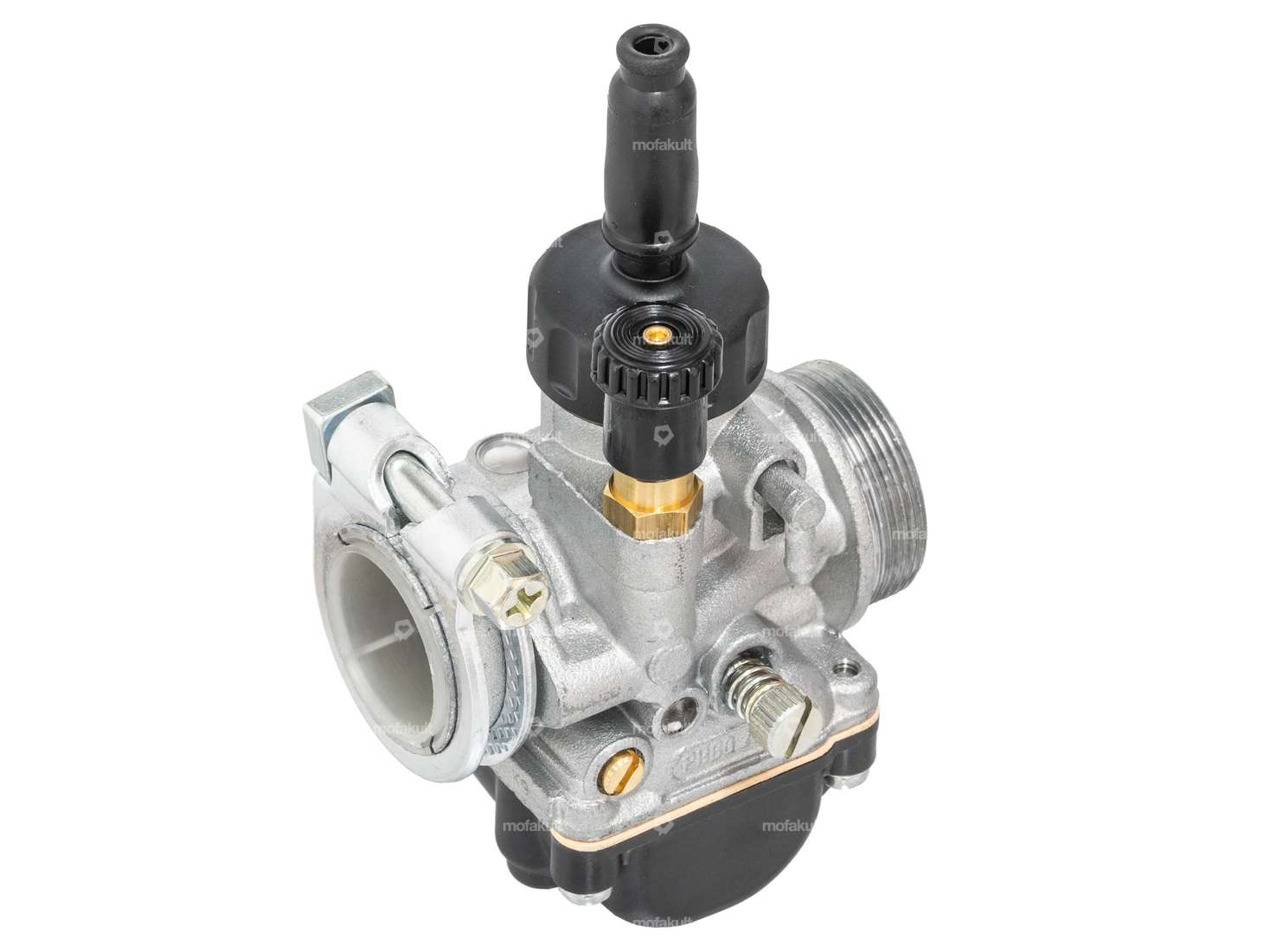

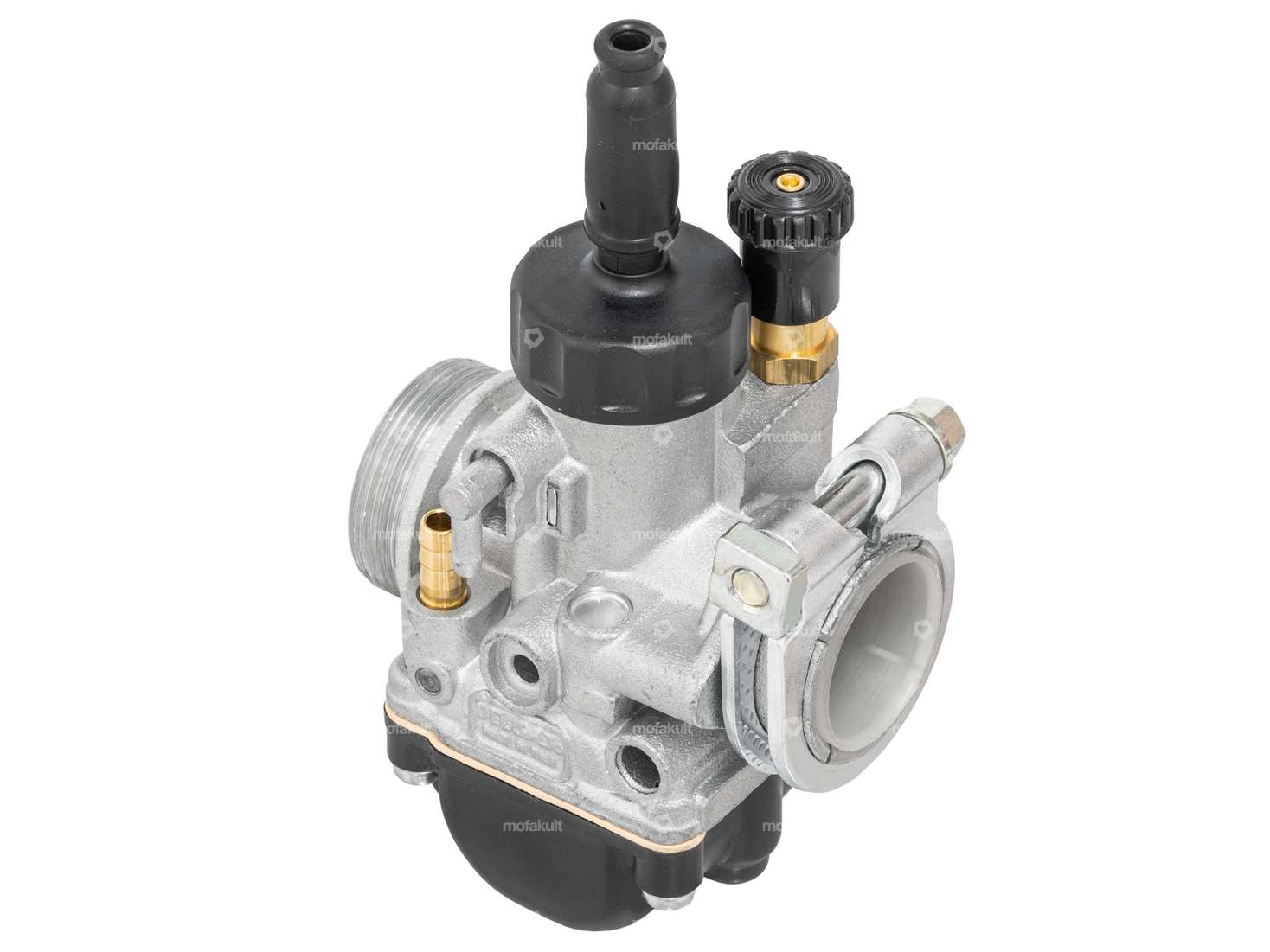

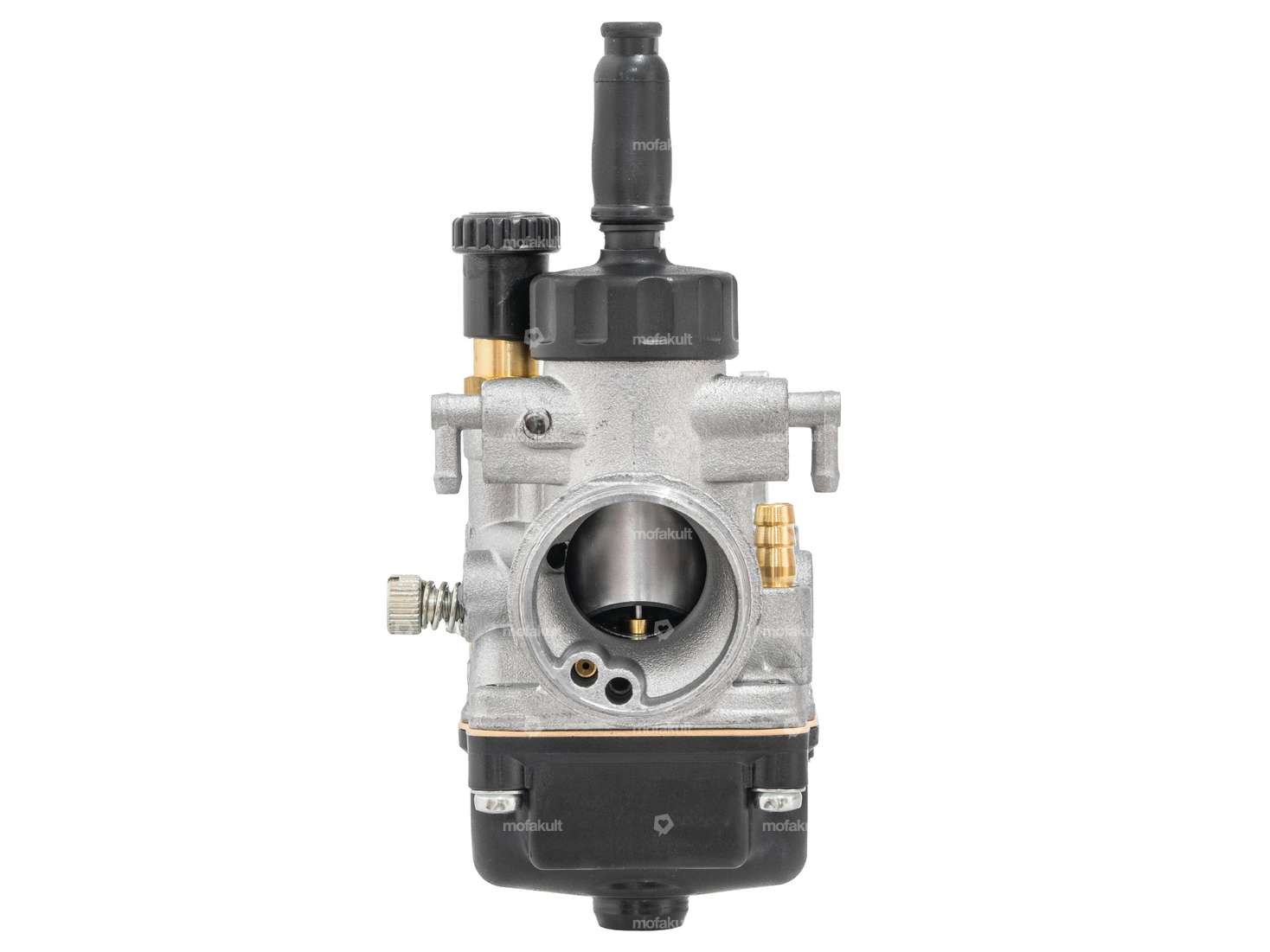

Dell'Orto 20 mm PHBG AS carburetor hand choke

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 168.70

Incl. 23% VAT.

Description

20 mm PHBG racing carburetor for universal use for your moped, moped and small motorcycle.
This high-quality racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 75 cc.

The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and secondary lines and the mixture adjustment screw.

The carburetor has an M32x1.25 thread on the air filter side. The air filter can be attached directly to the thread.

Main thread size (M5): 90 (with throttle plate)
Adjacent thread size (idle thread): 50
Choked thread size: 60
Air filter connection diameter: 32 mm (M32 x 1.25)
Inlet connection diameter: 24 mm (or 26 mm after removing the reducer). 26 mm after removing the reducing sleeve)
Total height: 125 mm
Total width: 75 mm

You can find matching nozzles, air filters and intake manifolds in the accessories section.

Quality product from the Italian manufacturer Dell'Orto.

ManufacturerDell'Orto
Nominal diameter20 mm
Component group CarburetorCarburetor complete
Carburetor typePHBG AS
Width75 mm
Ø fuel hose connection6 mm
Nozzle threadM5x0.8 (standard thread)
Nozzle size90
Ø without reducing sleeve26 mm
Height125 mm
Ø Internal connection24 mm
Ø Air filter connection32 mm
Air filter connection threadMF32x1.25 (fine pitch thread)
Mounting typePlug connection clamped
Choke controlHand choke
Area of applicationTuning
Choke nozzle size60
Size of secondary nozzle50
