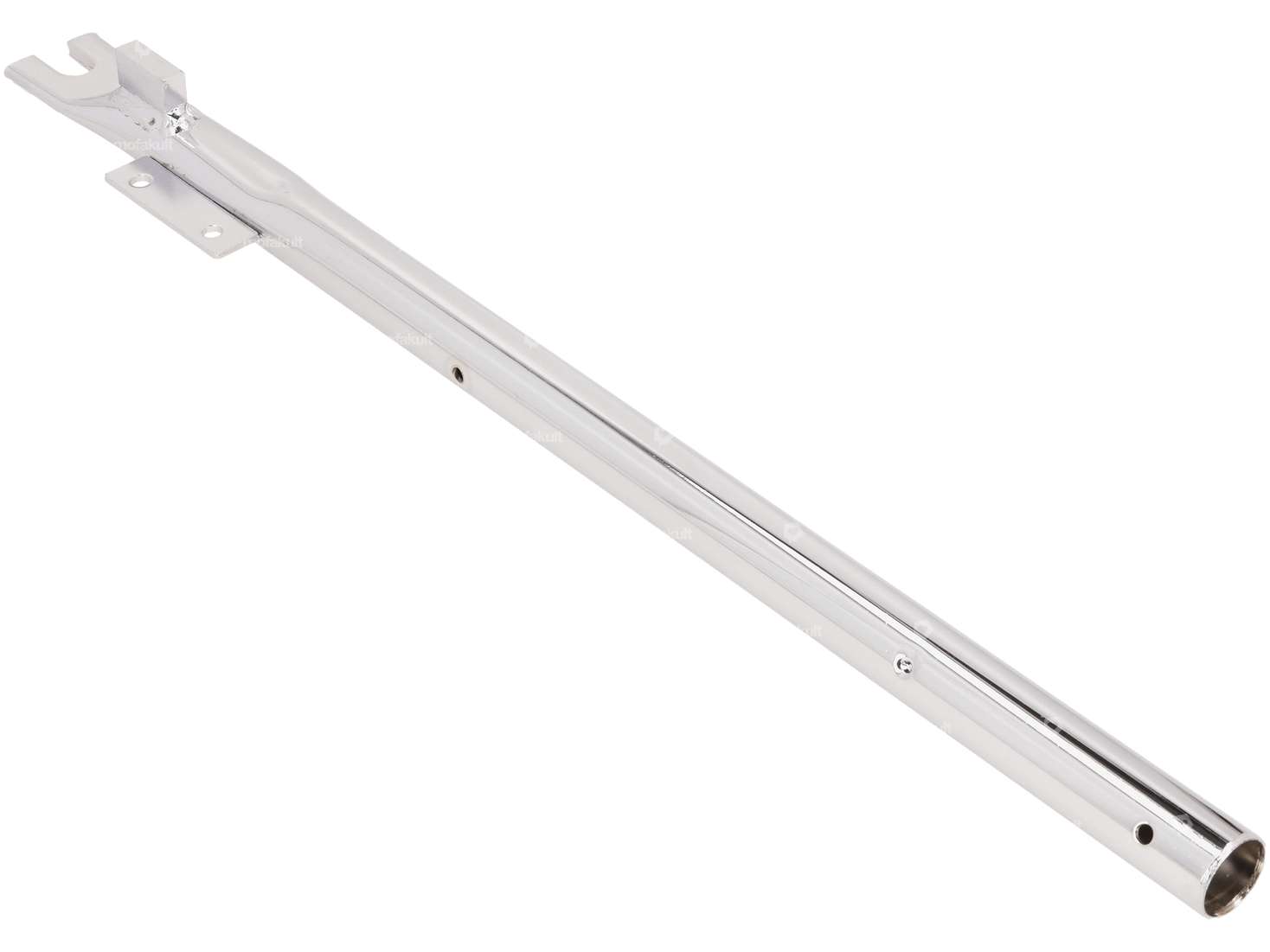

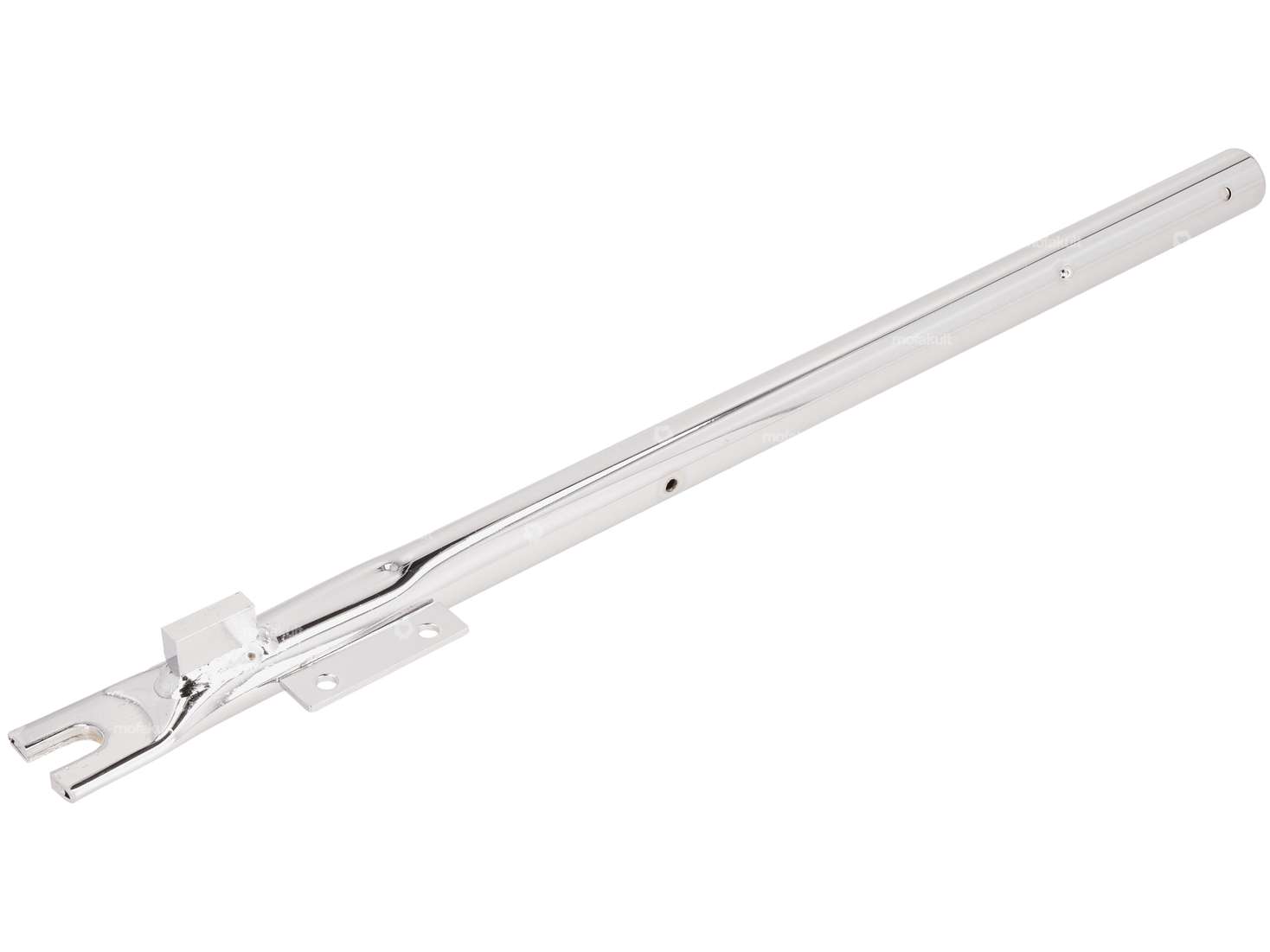

Left fork leg for Puch X30 NS, NL, NG-2AH and Supermaxi LG1 and LG2.
High-quality reproduction product.
Combines top workmanship and precision fit.
The flat bar for attaching the brake anchor plate is located on the left side rail, 30 mm above the center of the wheel axle.
A bracket is provided for attaching the mudguard. The distance between the drill holes is 36 mm.
Ø fork leg: 23 mm
Flat bar for brake anchor plate: 25x8x16 mm (LxWxH)
Total length: 49.5 cm
Above mudguard flap to below fork leg: 127 mm
Length mudguard flap: 56.5 mm
(stanchion tube, dip tube)
Branded product of the Italian manufacturer EBR.
| Manufacturer | EWC |
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Adjustable | No |
| Total length | 493 mm |
| Ø spars | 23 mm |
| Distance brake cam to wheel axle center-center | 45 mm |
| Puch |
