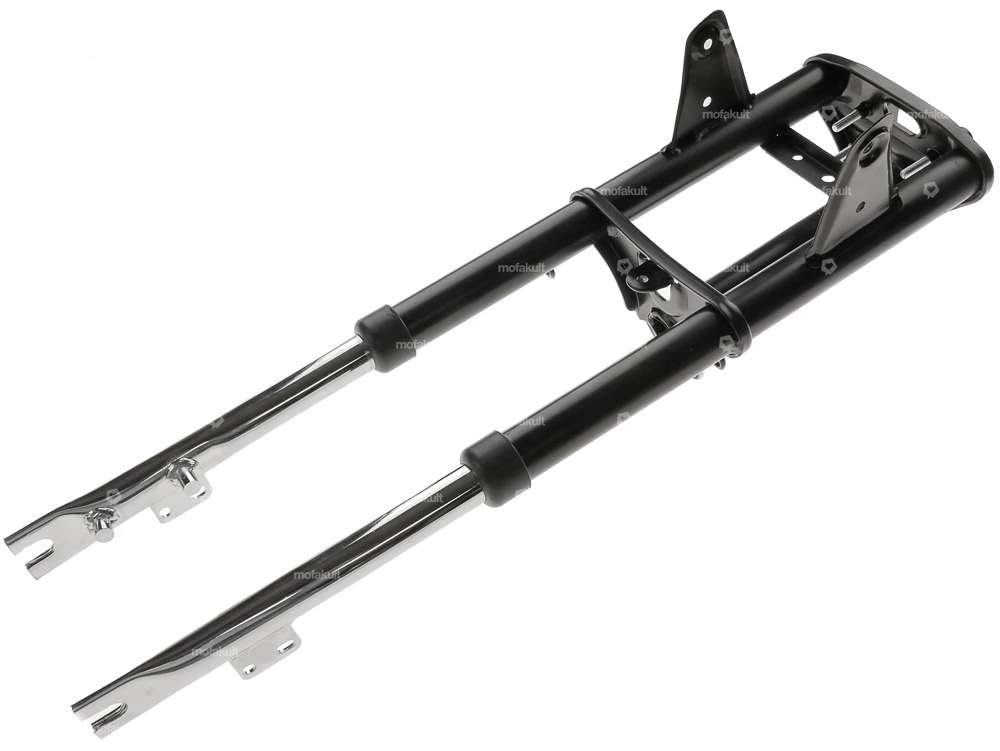

Forks suitable for Sachs Pony Junior 503 and 504 mopeds.

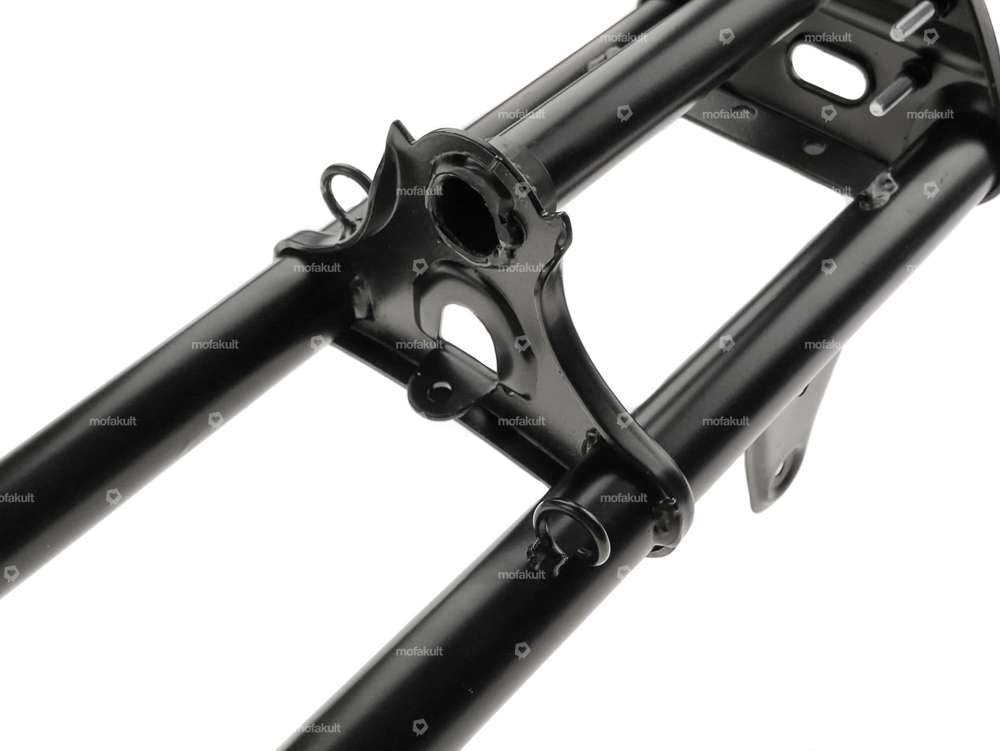

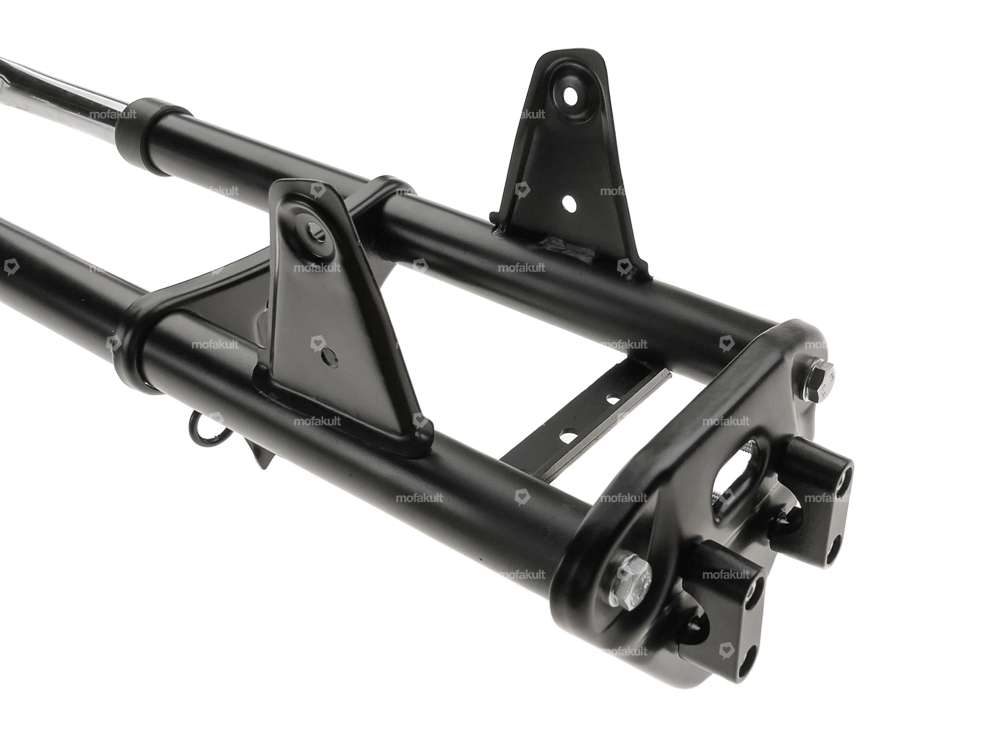

Including the handlebar clamps on the upper fork bridge.
Internal diameter head tube (for possible stem mounting): 21 mm
Head tube length: 20.5 cm
Length center of wheel axle to lower edge of lower fork crown: 36.4 cm
Head tube thread: 1" / 24G (original Sachs)
Total length: 59 cm

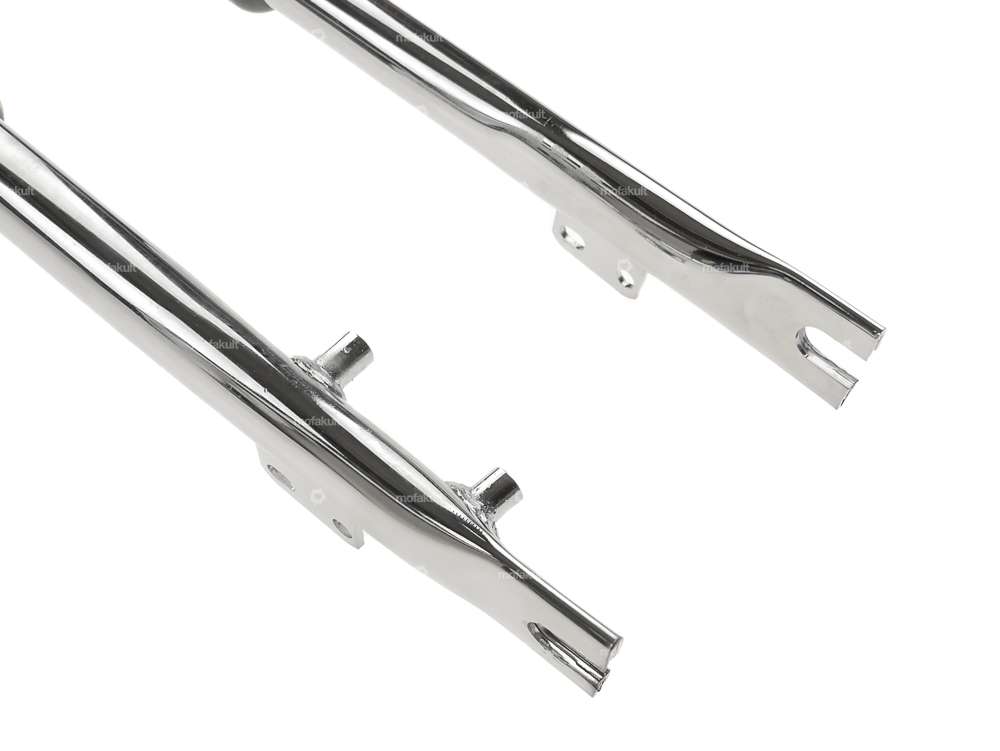

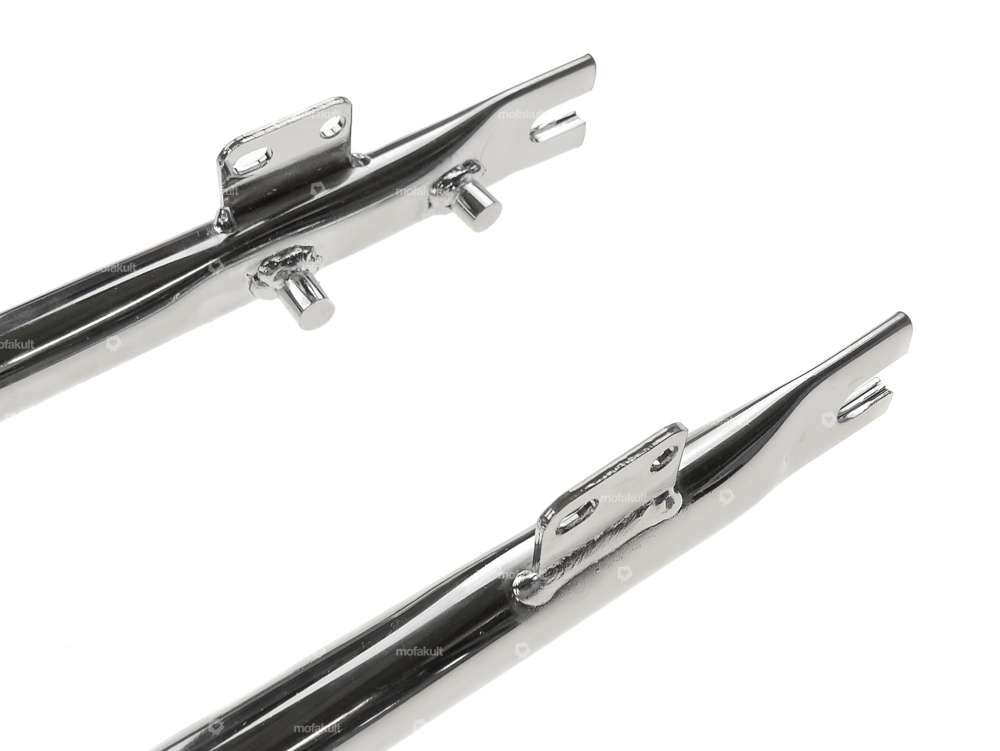

The two retaining clips on the right fork leg, for locking the brake anchor plate, are located 21 and 72 mm above the wheel axle.
You will find the matching headset set in the accessories below.
Branded product from the Italian manufacturer EBR.
| Manufacturer | EWC |
| Material | Steel |
| Surface | varnished, chrome-plated |
| Color | black, Chrome |
| Adjustable | No |
| Total length | 595 mm |
| Spar end distance (center-center) | 120 mm |
| Ø outer head tube | 25.65 mm |
| Ø spars | 23 mm |
| Ø head tube inside | 24.3 mm |
| Head tube length | 205 mm |
| Thread type | FG25.4 (1" 24G) |
| Fork bridge - center wheel axle | 375 mm |
| Distance brake cam to wheel axle center-center | 35 mm, 85 mm |
| Thread length | 58 mm |
| Sachs |
