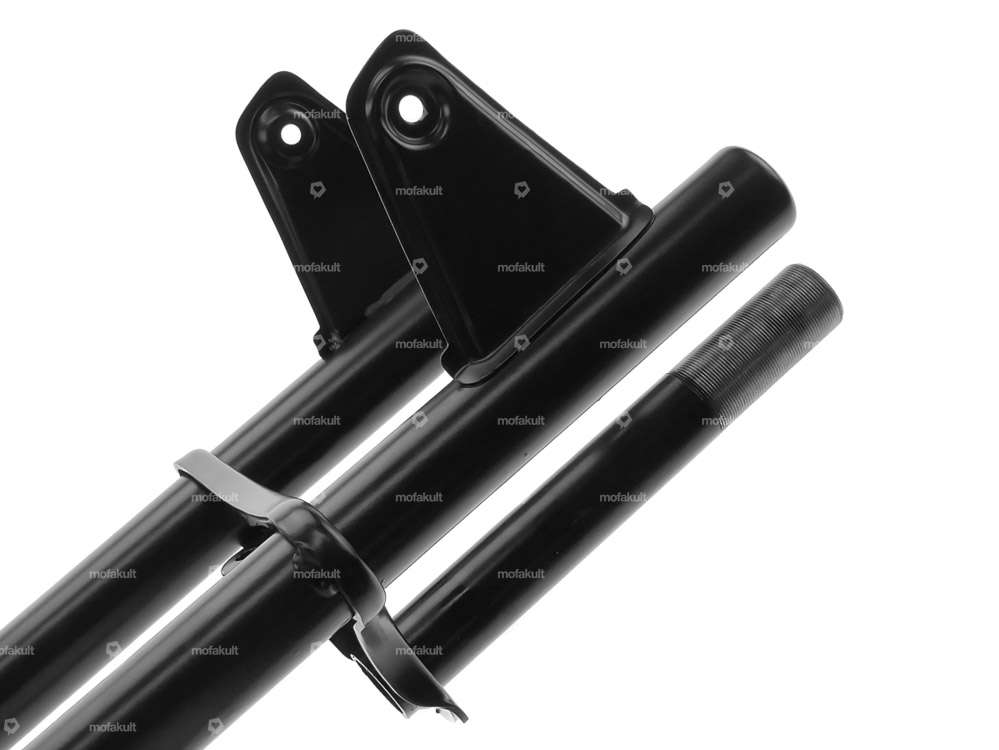

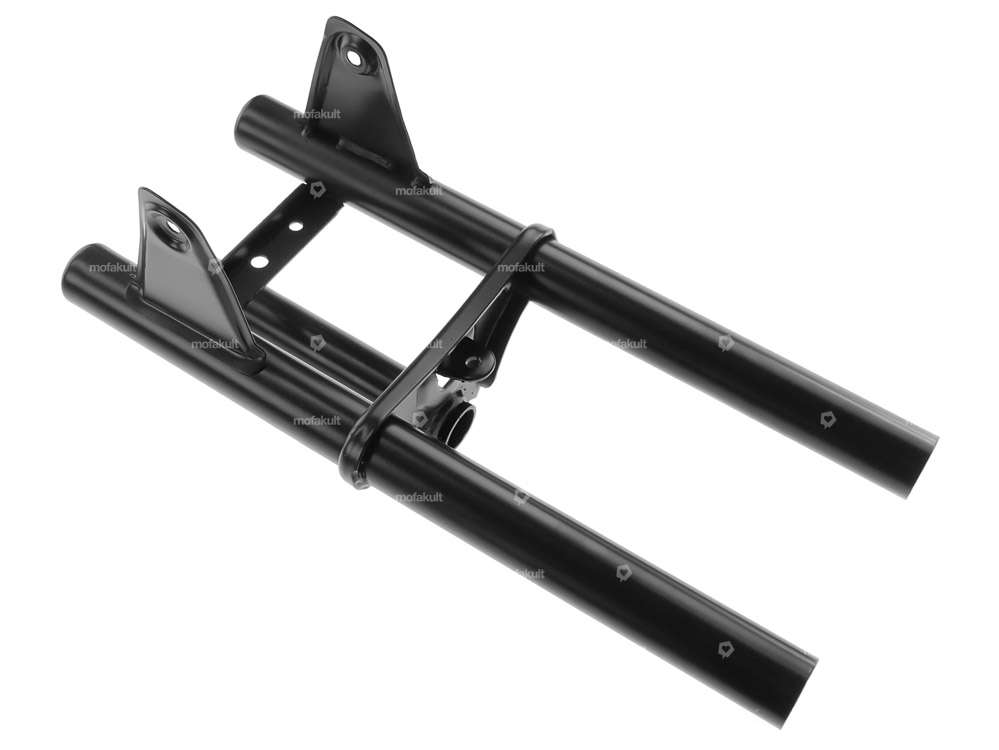

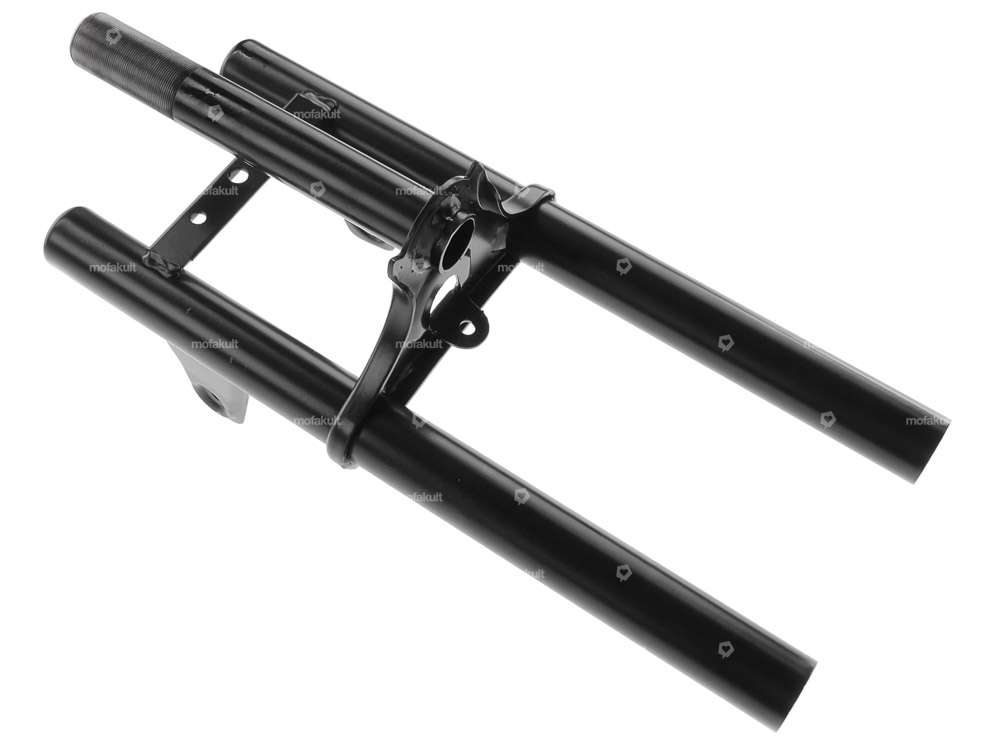

EBR lower triple tree black | Puch

EBR fork reinforced black | Puch

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Total length: 580 mm · Thread type: MF26x1 (fine pitch thread) · Adjustable: No · Ø spars: 28 mm · Spar end distance (center-center): 140 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Head tube length: 180 mm · Fork bridge - center wheel axle: 381 mm · Distance brake cam to wheel axle center-center: 40 mm · Color: Chrome · Color: black · Thread length: 57 mm

EBR fork reinforced & extended chrome | Puch

Manufacturer: EWC · Thread type: MF26x1 (fine pitch thread) · Color: Chrome · Surface: chrome-plated · Material: Steel · Adjustable: No · Ø spars: 28 mm · Thread length: 57 mm · Spar end distance (center-center): 140 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Head tube length: 180 mm · Fork bridge - center wheel axle: 381 mm · Distance brake cam to wheel axle center-center: 40 mm · Total length: 670 mm

EBR standard fork chrome | Puch

Manufacturer: EWC · Thread type: MF26x1 (fine pitch thread) · Color: Chrome · Surface: chrome-plated · Material: Steel · Adjustable: No · Ø spars: 23 mm · Thread length: 57 mm · Spar end distance (center-center): 140 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Head tube length: 180 mm · Fork bridge - center wheel axle: 383 mm · Distance brake cam to wheel axle center-center: 40 mm · Total length: 570 mm

EBR fork upside-down super strong | Puch

Manufacturer: EWC · Thread type: MF26x1 (fine pitch thread) · Color: Chrome · Color: black · Surface: chrome-plated · Surface: varnished · Material: Steel · Adjustable: Yes · Ø spars: 30 mm · Thread length: 58 mm · Spar end distance (center-center): 145 mm · Ø outer head tube: 25.15 mm · Ø head tube inside: 20.7 mm · Head tube length: 217 mm · Fork bridge - center wheel axle: 468 mm · Distance brake cam to wheel axle center-center: 40 mm · Total length: 720 mm

Loctite 243 medium-strength threadlocker 10 ml

Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents: 10 ml · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Area of application: Chemistry · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

EBR standard fork black | Puch

Manufacturer: EWC · Thread type: MF26x1 (fine pitch thread) · Color: Chrome · Color: black · Surface: chrome-plated · Material: Steel · Adjustable: No · Ø spars: 23 mm · Thread length: 57 mm · Spar end distance (center-center): 120 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Head tube length: 180 mm · Fork bridge - center wheel axle: 383 mm · Distance brake cam to wheel axle center-center: 40 mm · Total length: 570 mm

EBR Upper Fork Bridge, Black | Puch

Manufacturer: EWC · Thread type: M7x1 (standard thread) · Color: black · Surface: varnished · Material: Steel · Spar end distance (center-center): 120 mm · Ø head tube inside: 26 mm · Hole pattern [mm]: 29.5 x 60

EBR spring insert fork (pair) | Puch

Ø wire: 3 mm · Manufacturer: EWC · Thread type: M8x1.25 (standard thread) · Color: brown · Surface: burnished · Material: Spring steel · Total length: 185 mm · Ø inside: 13.5 mm · Ø outside: 19.5 mm

EBR fork with lock black | Puch Maxi

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Surface: varnished · Thread type: MF26x1 (fine pitch thread) · Adjustable: No · Color: Chrome · Color: black · Spar end distance (center-center): 120 mm · Ø outer head tube: 26.2 mm · Ø head tube inside: 22.3 mm · Ø spars: 23 mm · Head tube length: 180 mm · Fork bridge - center wheel axle: 385 mm · Distance brake cam to wheel axle center-center: 40 mm · Total length: 580 mm · Thread length: 57 mm

Fork leg set | Puch Maxi S, N

Manufacturer: Quenching · Surface: chrome-plated · Color: Chrome · Adjustable: No · Material: Steel · Ø spars: 23 mm · Distance brake cam to wheel axle center-center: 38 mm · Total length: 578 mm

swiing® revival type plate TYPE X30 NL CH7192 | Puch

Manufacturer: swiing® revival parts · Material: Aluminum · Color: black · Total length: 40 mm · Number of fixing points: 2 pcs · Ø mounting hole: 2.7 mm

GPO control bearing set M26x1 | Puch

Bearing type: Bearing ring · Manufacturer: GPO · Surface: galvanized (blue) · Color: silver · Material: Steel · Ø mounting frame: 31 mm · Ø inside: 26.8 mm · Ø outside: 41 mm · Thread type: MF26x1 (fine pitch thread)

swiing® revival snap ring low control bearing set

Nominal diameter: 20 mm · Nominal diameter: 28 mm · Thickness: 0.6 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Height: 7 mm · Puch OEM number: 349.1.30.015.1 · Sachs OEM no.: P0521

Sliding bush fork original | Puch

Manufacturer: Made in Italy · Color: white · Material: Plastic · Ø inside: 23 mm · Ø outside: 27 mm · Total length: 30 mm · Puch OEM number: 349.1.30.126.1

Magura adjusting screw brake short

Manufacturer: Magura · Surface: nickel-plated · Color: silver · Material: Brass · Drive: Knurled screw · Ø shaft: 6.1 mm · Ø External head: 9.15 mm · Total length: 31 mm · Total length: 40 mm · Thread type: MF6x0.75 (fine pitch thread) · Thread length: 15 mm · Shank length: 6.9 mm · Magura OEM number: 315 390

Circlip pliers (4 holders)

Clamping range: 10 - 50 mm · Surface: raw · Surface: varnished · Total length: 160 mm · Number of components: 5 pcs · Height: 15 mm · Width: 80 mm · Area of application: (Dis)assembly tool

swiing® revival stand spring Inox | Puch

Spring design: Tension spring · Ø inside: 9 mm · Length spring hook: 19 mm · Length spring hook: 53 mm · Ø wire: 2.5 mm · Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Surface: raw · Total length: 122 mm · Ø outside: 14 mm

EBR Upper Fork Bridge, Black | Puch

Manufacturer: EWC · Thread type: M7x1 (standard thread) · Color: black · Surface: varnished · Material: Steel · Spar end distance (center-center): 120 mm · Ø head tube inside: 26 mm · Hole pattern [mm]: 29.5 x 60

GPO steerer tube nut M26x1 open stem chrome

Manufacturer: GPO · Material: Steel · Nut type: Flange nut · Nominal diameter (thread): 26 mm · Drive: External hexagon · Surface: chrome-plated · Ø inside: 22.1 mm · Thread type: MF26x1 (fine pitch thread) · Height: 14 mm · Thread depth: 11.5 mm · Ø outside: 36.5 mm · Width across flats: 30 mm

swiing® revival steerer tube nut M26x1 closed fork plate Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Nominal diameter (thread): 26 mm · Drive: External hexagon · Ø outside: 36.6 mm · Thread type: MF26x1 (fine pitch thread) · Height: 14 mm · Width across flats: 30 mm
