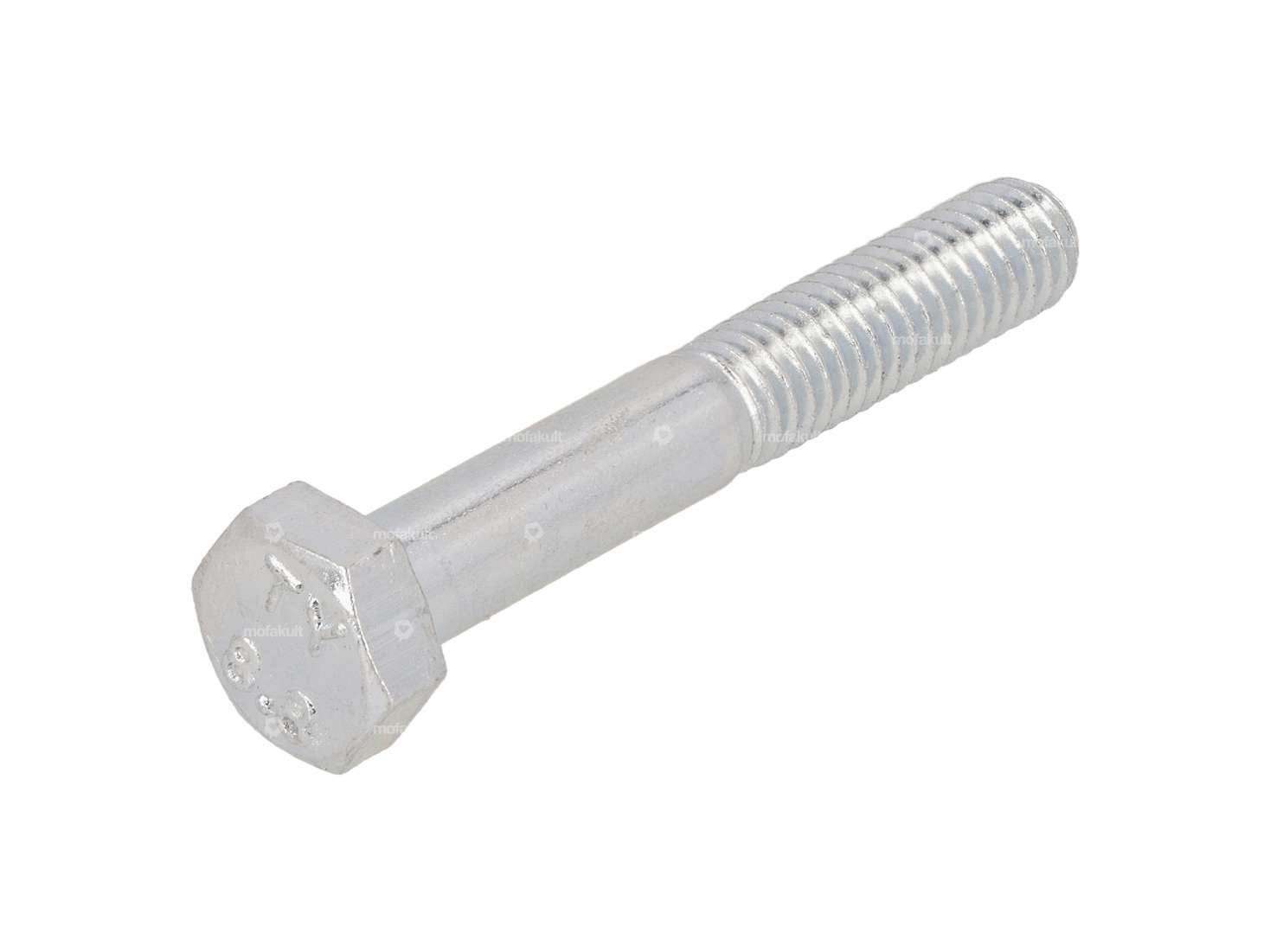

Engine housing screw | Piaggio Ciao, SI, Bravo, Boxer

M6x30 hexagon head screw with galvanized shank (strength 10.9)

Thread type: M6x1 (standard thread) · Material: Steel · Surface: galvanized (blue) · Width across flats SW: 10 mm · Drive: External hexagon · Screw head: Hexagon · Shank: Yes · Shank length: 12 mm · Thread length: 18 mm · Strength class: 10.9

Washer M6 standard (6.4/12/1.6) galvanized

Material: Steel · Surface: galvanized (blue) · Thread size: M6 · Nominal diameter (thread): 6 mm · Thickness: 1.6 mm · Ø inside: 6.4 mm · Hardness [HV]: 140 HV · Ø outside: 12 mm · Pony OEM number: A4515 · Sachs OEM no.: 0944 142 002

Nut M6 raised galvanized

Height: 6 mm · Thread type: M6x1 (standard thread) · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut 1D · Width across flats SW: 10 mm · Drive: External hexagon · Strength class: 8

Nut M6 galvanized

Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut 0.8D · Thread type: M6x1 (standard thread) · Drive: External hexagon · Height: 4.8 mm · Width across flats SW: 10 mm · Area of application: Standard · Strength class: 8

GPO screw set engine housing galvanized | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Thread type: M6x1 (standard thread) · Material: Steel · Surface: galvanized (blue) · Width across flats SW: 10 mm · Drive: External hexagon · Screw head: Hexagon · Shank: Yes · Strength class: 8.8

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Mounting type: Union nut · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Reserve level: 70 mm

Screw M4x12 pan-head galvanized

Material: Steel · Thread type: M4x0.7 (standard thread) · Surface: galvanized (blue) · Total length: 12 mm · Shank: No · Drive: Cross recess · Screw head: Lens head · Strength class: 8.8 · Alternative version of the Pony OEM number: A1406 · Alternative version of the Sachs OEM number: 0240 106 101

Hexagon head screw M7x16 galvanized

Material: Steel · Surface: nickel-plated · Screw head: Hexagon · Drive: External hexagon · Shank: No · Width across flats SW: 11 mm · Thread type: M7x1 (standard thread) · Thread length: 16 mm · Strength class: 8.8

Malossi cylinder head for 44 - 47 mm cylinder kit | Piaggio Ciao, Bravo 1, Boxer

Surface: sandblasted · Manufacturer: Malossi · Material: Aluminum · Width: 87 mm · Ø cylinder: 44 - 47 mm · Height: 60 mm · Candle thread: long · Hole pattern [mm]: 35 x 55 · Decompressor: Yes · Number of fixing points: 3 pcs · Total length: 122 mm · Area of application: Racing · Camouflaged: No

Wedge 12.1x4.9x3 mm

Material: Steel · Total length: 12.5 mm · Width: 3 mm · Height: 4.9 mm

Pan head screw Ø 2.9x16 Inox

Material: Chrome steel (known as Nirosta®) · Thread type: Sheet metal screw · Total length: 16 mm · Screw head: Lens head

Pan head screw Ø 2.9x22 Inox

Thread type: Sheet metal screw · Material: Chrome steel (known as Nirosta®) · Screw head: Lens head · Total length: 22 mm

Countersunk head sheet metal screw Ø 2.9x32 Inox

Material: Chrome steel (known as Nirosta®) · Thread type: Sheet metal screw · Total length: 32 mm · Screw head: Countersunk head

Slotted cheese head screw M3x35 galvanized

Thread type: M3x0.5 (standard thread) · Material: Steel · Surface: galvanized (blue) · Drive: Slot · Screw head: Cylinder head · Ø External head: 5.5 mm · Shank: No · Thread length: 35 mm · Strength class: 4.8

M6x40 hexagon head screw with galvanized shank

Thread type: M6x1 (standard thread) · Material: Steel · Surface: galvanized (blue) · Width across flats SW: 10 mm · Drive: External hexagon · Screw head: Hexagon · Shank: Yes · Shank length: 18 mm · Total length: 44 mm · Thread length: 22 mm · Strength class: 8.8
