43.0 mm ¨oum dimension piston with two 1.5 mm rectangular piston rings with internal fuse (IS) for blown BAD ASS Pandora 43.00 mm cylinders on your moped / moped with Sachs 503, 50/2, 502 engine.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out more about the piston rings, their piston rods and locking types on the legend in the pictures.
The piston kit is used for the bored and honed 43 mm cylinder variant.

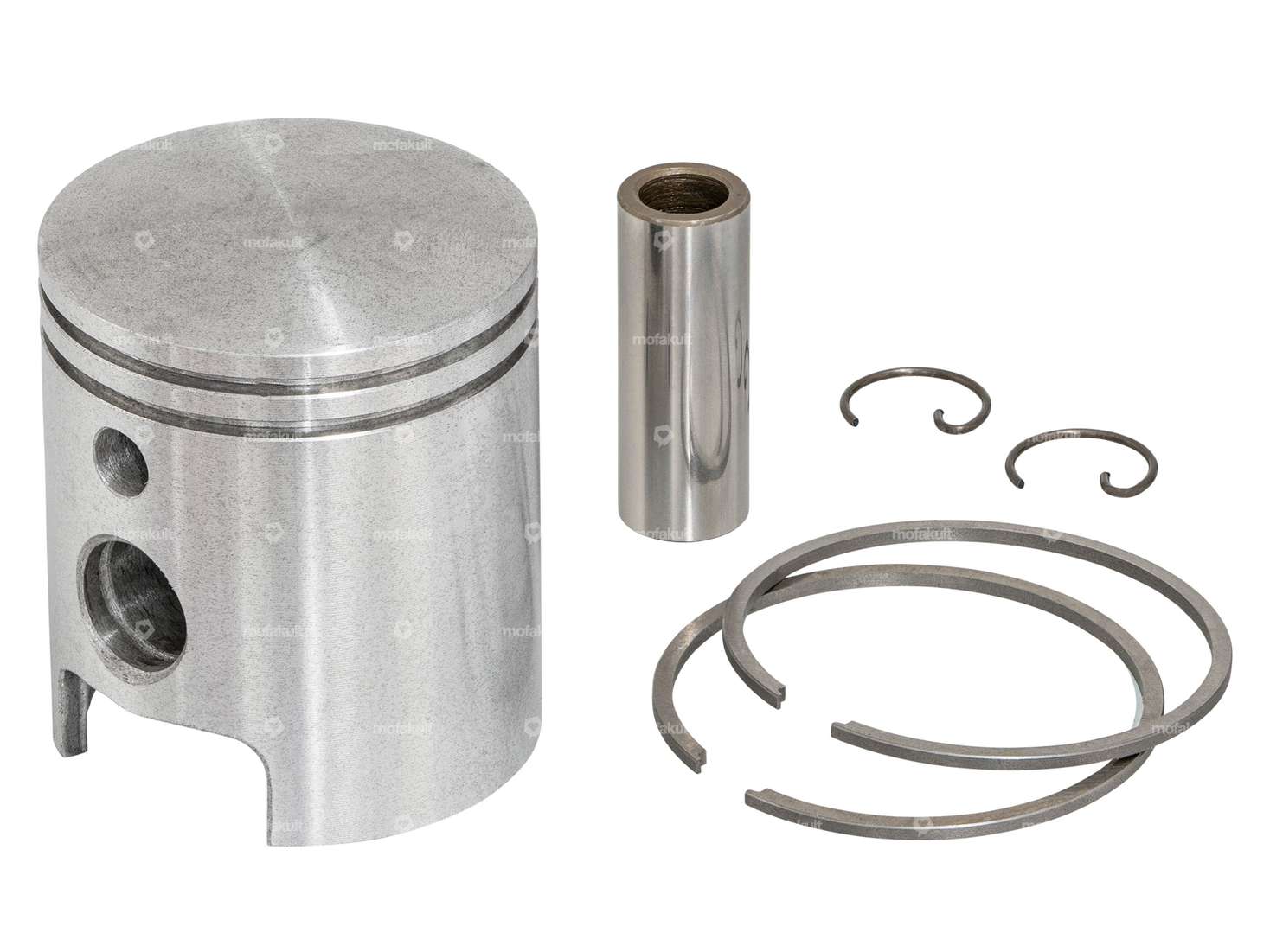

The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer GOL.
Details
| Nominal diameter | 43 mm |
| Manufacturer | BAD ASS |
| Ø outside piston (A) | 42.96 mm |
| Compression height (C) | 27.8 mm |
| Curvature (D) | 2 mm |
| Total piston height (E) | 50.6 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Ø piston pin (B) | 12 mm |
| Piston ring impact | Internal fuse (IS) |
| Piston weight | 107 g |
Suitable for the following models
| Sachs |
