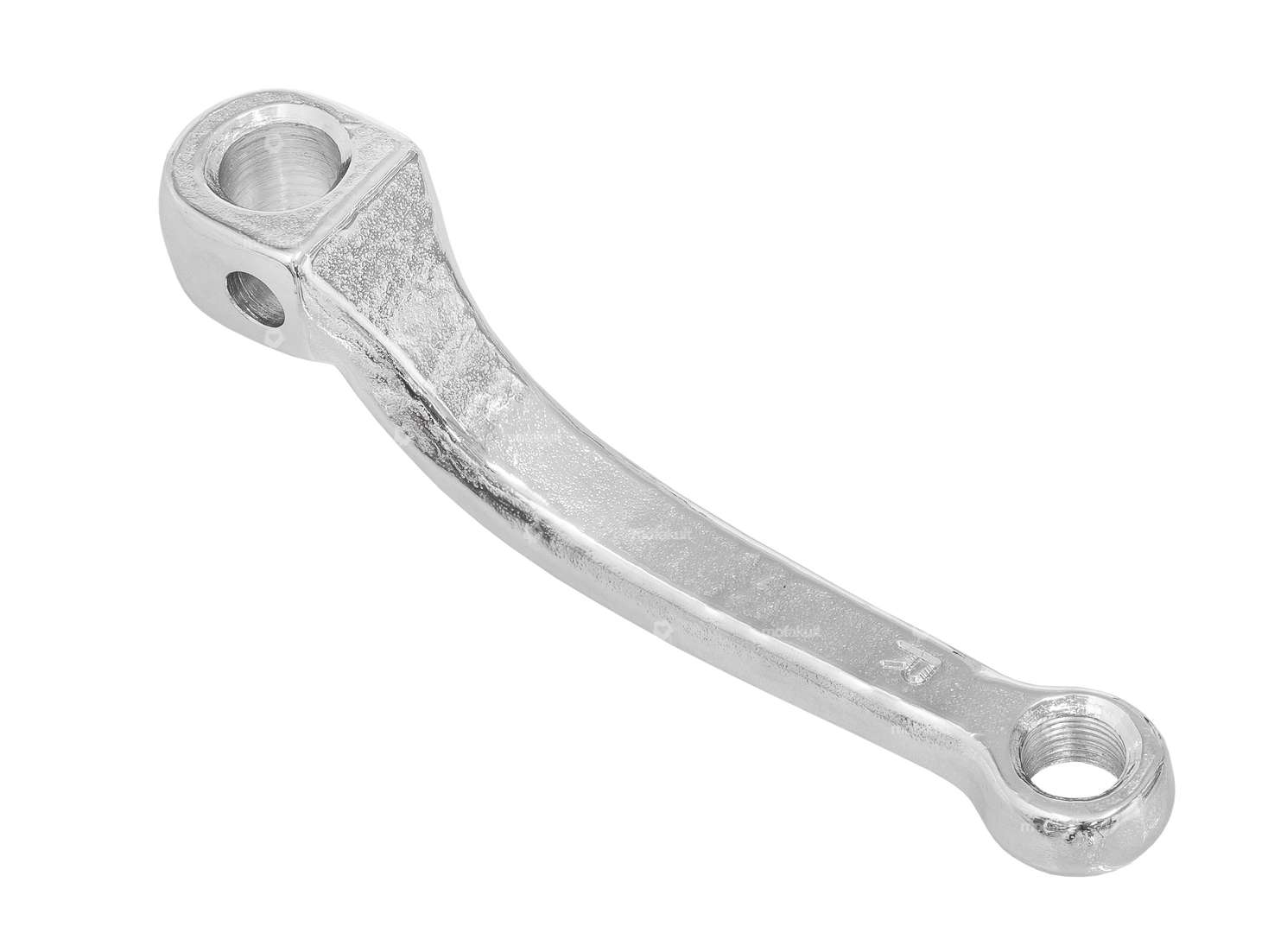

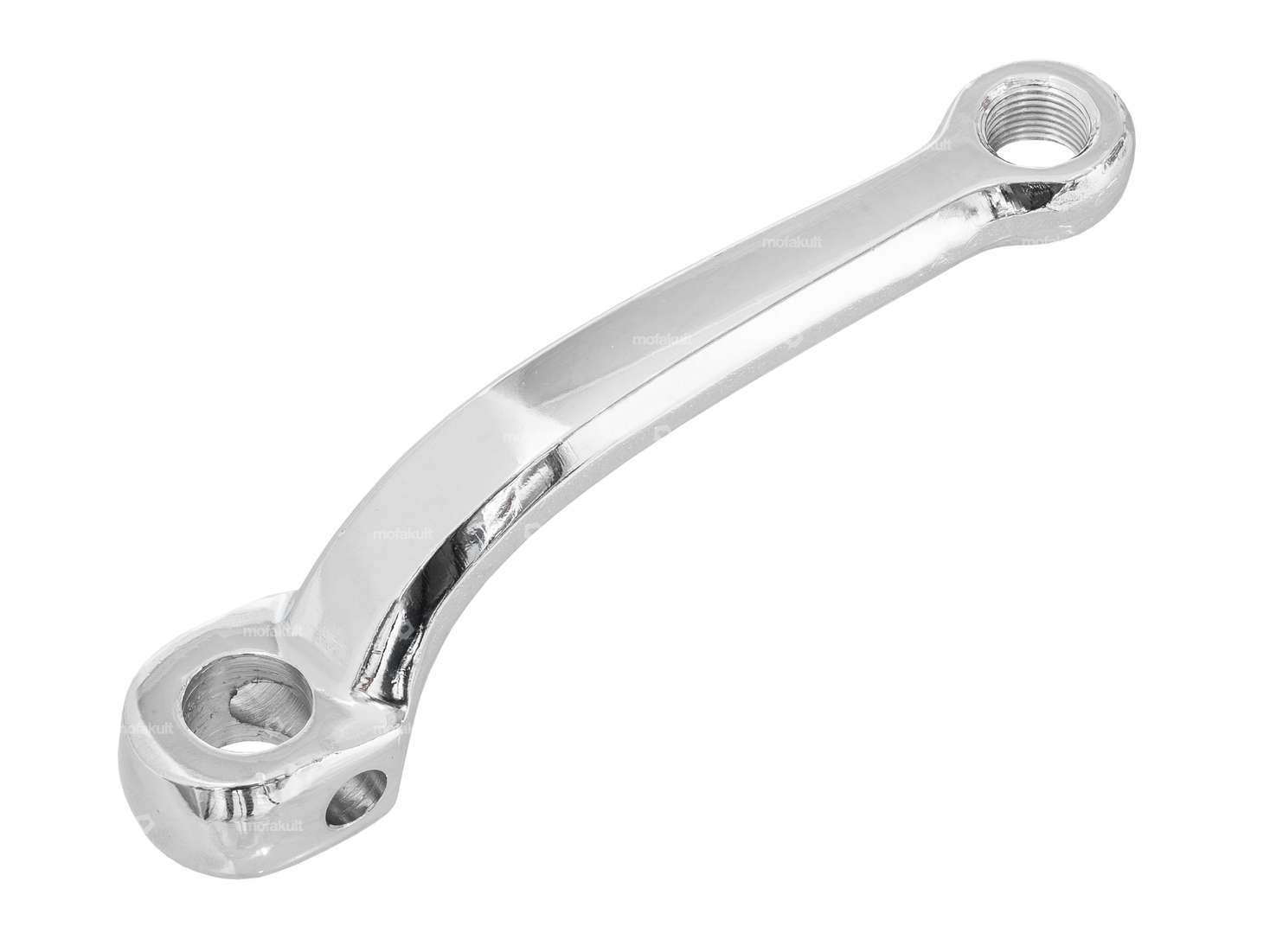

Right chrome-plated pedal arm. The outside (visible surface) is high-gloss chrome-plated, the rest is matt chrome-plated.

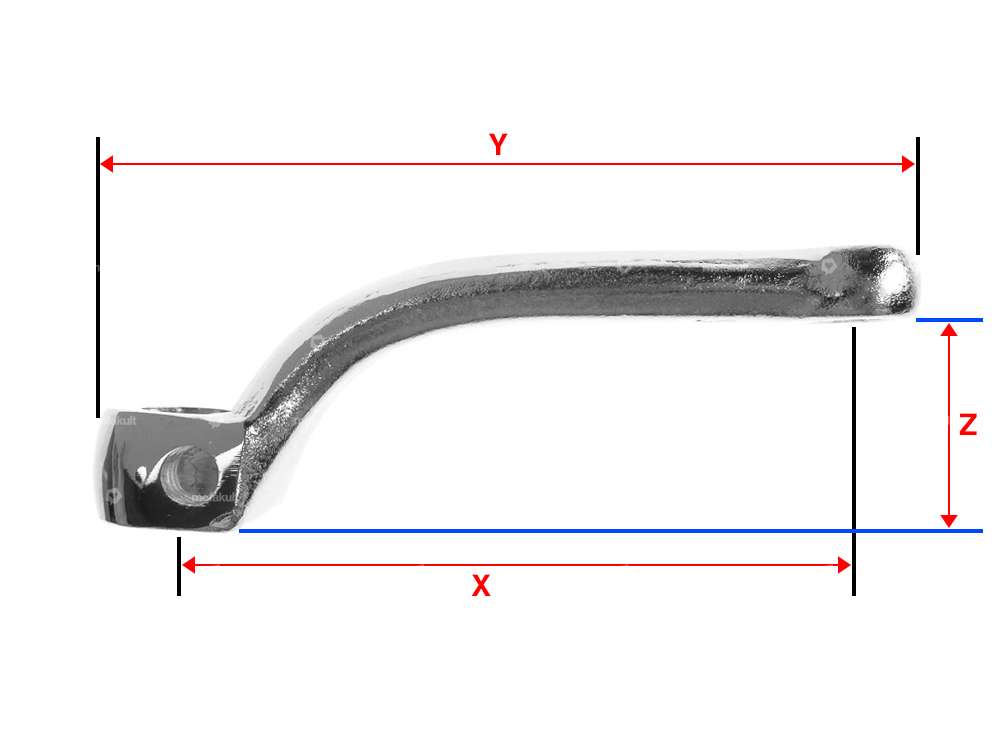

Crank length X (center axle - center thread): 123 mm
Total length Y: 153 mm
Crushing Z: 40 mm
Ø axle mounting: 16 mm
Pedal mounting thread: 9/16"
9.5 mm crank keys are used for mounting on the pedal axle. These and the corresponding counterpart for the left side can be found in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
| Manufacturer | GPO |
| Material | Steel |
| Surface | chrome-plated |
| Thread type | FG14.3 (9/16" 20G) |
| Color | Chrome |
| Total length | 153 mm |
| Crank length (center-center) | 123 mm |
| Ø Pedal wedge | 9.5 mm |
| Ø Pedal axle | 16 mm |
| Cranking (offset) | 40 mm |
