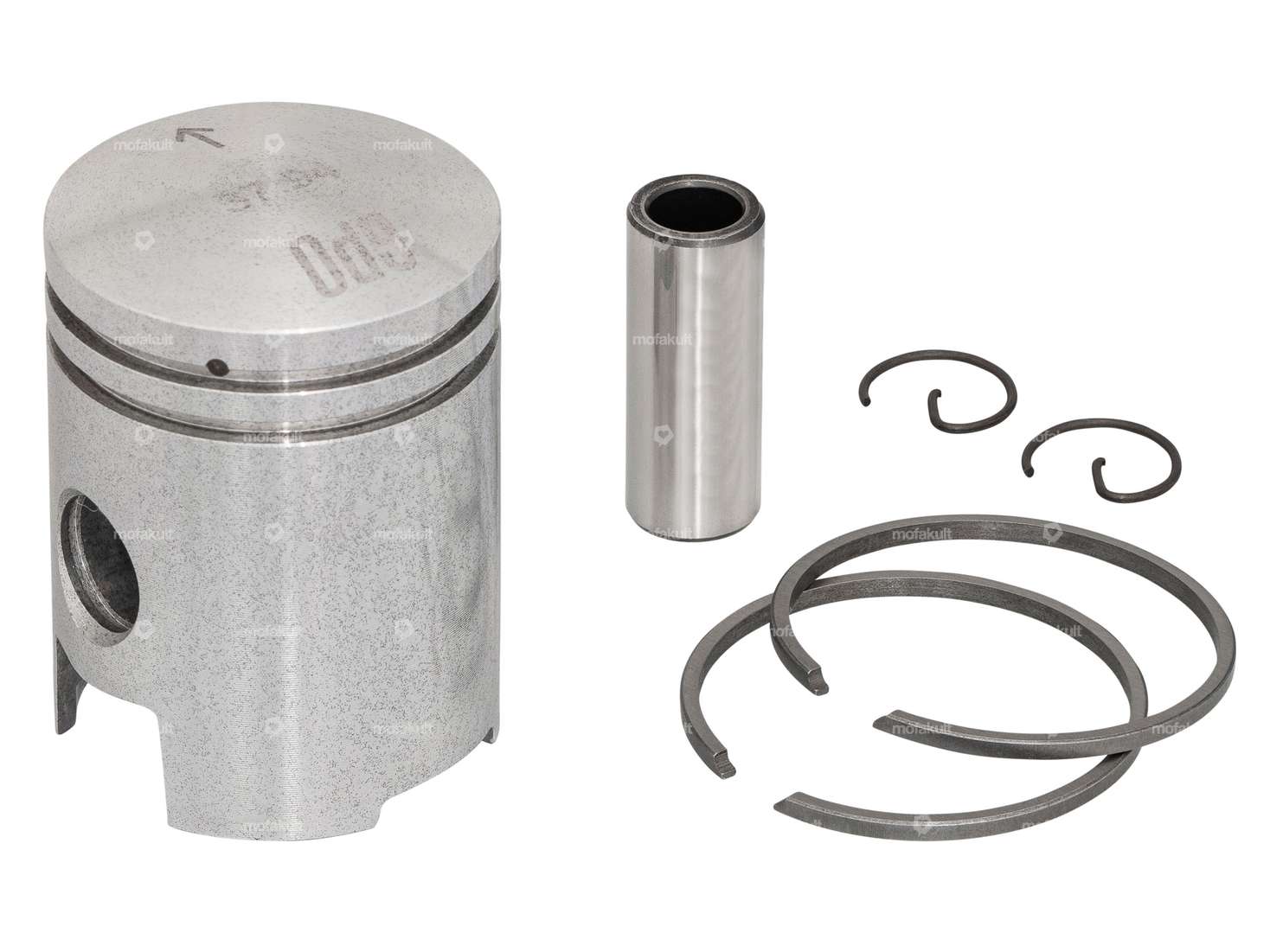

38 mm replacement piston with two rectangular piston rings with flank lock (FS) suitable for blown Sachs 50/3, 50/4 mopeds / mopeds with reproduction cylinders such as our GPO Wummer.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the common piston rings, their stems and locking types on the legend in the pictures.
| Manufacturer | GPO |
| Ø outside piston (A) | 37.94 mm |
| Compression height (C) | 27.5 mm |
| Curvature (D) | 3.5 mm |
| Total piston height (E) | 53 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 38 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 1.7 mm |
| Thick piston ring | 2 mm |
| Ø piston pin (B) | 12 mm |
| Weight piston kit | 78 g |
| Alternative version of the Sachs OEM number | 0290 058 025 |
| Sachs | 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool · Number of components: 7 pcs
EUR 24.00
Explore categories from Piston
Moped fans also bought
GPO 38 mm cylinder round inlet | Sachs 50/3, 50/4 fan-cooled (DE)
Manufacturer: GPO · Material: Gray cast iron · Camouflaged: No · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Nominal diameter: 38 mm · Area of application: Racing · Area of application: Tuning · Number of fixing points: 4 pcs · Outlet type: Union nut · Hole spacing inlet: 31 mm
EUR 102.40
GPO 38 mm cylinder diaphragm | Sachs 50/3, 50/4 fan-cooled (DE)
Manufacturer: GPO · Material: Gray cast iron · Camouflaged: No · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Nominal diameter: 38 mm · Area of application: Racing · Area of application: Tuning · Number of fixing points: 4 pcs · Outlet type: Union nut · Hole spacing inlet: 67 mm
EUR 132.60
swiing® revival Stud Bolt M5x23 Inlet (Diaphragm) 10.9 | Sachs 50/2 (A3700)
Thread type: M5x0.8 (standard thread) · Manufacturer: swiing® revival parts · Thread length: 6 mm · Thread length: 12 mm · Material: Steel · Nominal diameter (thread): 5 mm · Surface: galvanized (blue) · Diameter: 4.9 mm · Total length: 23 mm · Area of application: Standard · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101 · Sachs OEM no.: 0640 016 102
EUR 2.20

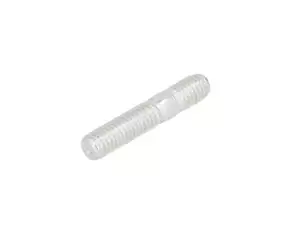

swiing® revival Stud Bolt, M5x26, Galvanized (Grade 10.9) | Sachs (A1474)
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M5x0.8 (standard thread) · Total length: 26 mm · Nominal diameter (thread): 5 mm · Thread length: 7 mm · Thread length: 14 mm · Strength class: 10.9 · Pony OEM number: A1474 · Sachs OEM no.: 0241 031 101
EUR 2.20

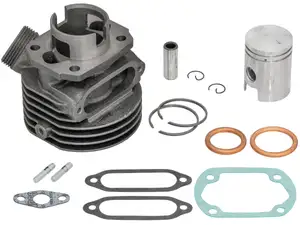

GPO 38 mm cylinder kit diaphragm | Sachs 50/2, 50/3, 50/4 fan-cooled (DE)
Nominal diameter: 38 mm · Manufacturer: GPO · Material: Gray cast iron · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 67 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 51 x 40 / 37 x 37 · Camouflaged: No · Area of application: Tuning
EUR 172.40

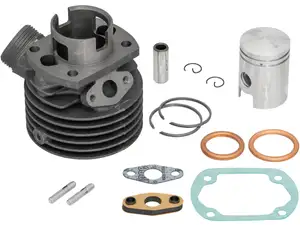

GPO 38 mm cylinder kit slotted | Sachs 50/2, 50/3, 50/4 fan-cooled (DE)
