For the economical repair of damaged or worn threads (of all materials) and as a design element for thread reinforcement when using materials with low shear strength (e.g. aluminum, aluminum-magnesium alloys). The use of wear-free HeliCoil thread inserts not only repairs the thread but also increases the thread load-bearing capacity.
Execution:
High-strength, free-running HeliCoil®plus thread inserts made of stainless steel with high wear resistance, low thread friction in tight tolerances, high surface strength as well as corrosion resistance and heat resistance. The flexible design enables even load and stress distribution and thus produces durable screw connections of the highest quality for all operating loads (static, dynamic) with ideal force transmission. Uncomplicated, quick assembly, creates an internal thread that is true to gauge and can be used on both sides.

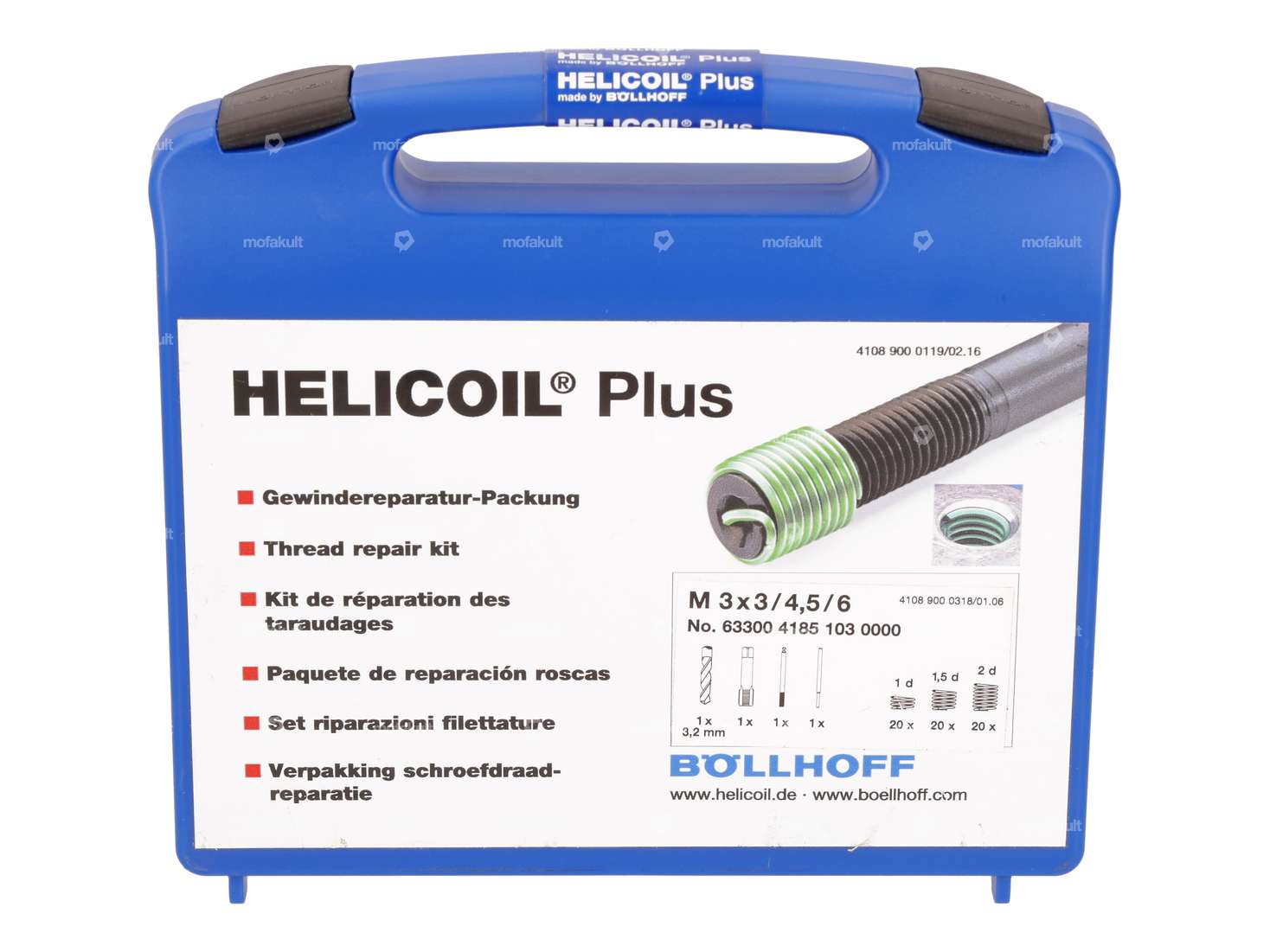

Complete repair kit for M3 thread sizes in a plastic case.
Application:
1. Drill out the defective thread with the enclosed drill.
2. Check the tap and threaded bolt.
3. Cut the holding thread with the special HeliCoil tap.
4. Turn the thread insert into the holding thread using the installation tool.
5. Remove the tang with the tang breaker
Scope of delivery
- 1 pc. twist drill Ø3.2 mm
- 1 pc. Tap
- 1 pc. Installation tool
- 1 pc. Stud breaker
- 20 pcs. HeliCoil thread insert (1×D)
- 20 pcs. HeliCoil threaded insert (1.5×D)
- 20 pcs. HeliCoil threaded insert (2×D)

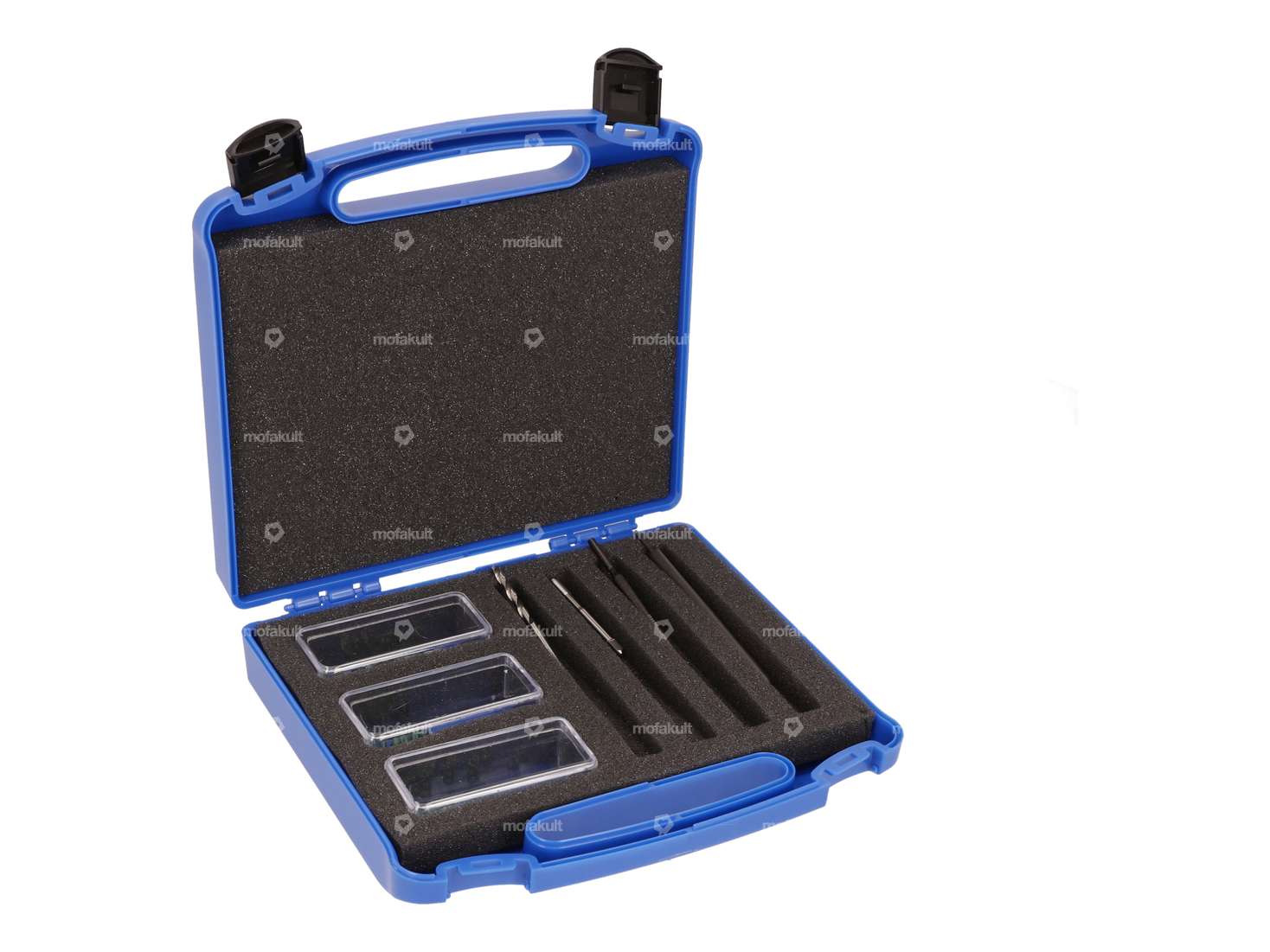

- 1 pc. Plastic case 180×165×45 mm (L×B×H)
Note
Adetailed instruction is included.
Original HeliCoil product from the German manufacturer Böllhoff.
| Ø bore | 3.2 mm |
| Total length | 3 mm, 4.5 mm, 6 mm |
| Manufacturer | HeliCoil |
| Area of application | Workshop accessories |
| Material | Chrome steel (known as Nirosta®) |
| Number of components | 60 pcs |
| Dimension thread insert | 1D, 1.5D, 2D |
| Thread type | M3x0.5 (standard thread) |
| Nominal diameter (thread) | 3 mm |
| Storage method | Suitcase |
| Dimension storage box | 180 x 165 x 45 mm |
Moped fans also bought
HeliCoil thread repair set M6 (professional tool)
Surface: coated · Manufacturer: HeliCoil · Material: Chrome steel (known as Nirosta®) · Total length: 6 mm · Total length: 9 mm · Total length: 12 mm · Number of components: 60 pcs · Thread type: M6x1 (standard thread) · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Ø bore: 6.3 mm · Nominal diameter (thread): 6 mm · Storage method: Suitcase · Dimension storage box: 180 x 165 x 45 mm · Area of application: Workshop accessories
EUR 96.00
HeliCoil thread repair case M5 - M12 (professional tool)
Material: Chrome steel (known as Nirosta®) · Storage method: Suitcase · Manufacturer: HeliCoil · Number of components: 300 pcs · Nominal diameter (thread): 5 mm · Nominal diameter (thread): 6 mm · Nominal diameter (thread): 8 mm · Nominal diameter (thread): 10 mm · Nominal diameter (thread): 12 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Area of application: Workshop accessories · Thread type: M10x1.5 (standard thread) · Thread type: M12x1.75 (standard thread) · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Dimension storage box: 420 x 345 x 120 mm
EUR 408.40
HeliCoil thread repair set M4 (professional tool)
Manufacturer: HeliCoil · Material: Chrome steel (known as Nirosta®) · Area of application: Workshop accessories · Thread type: M4x0.7 (standard thread) · Number of components: 60 pcs · Nominal diameter (thread): 4 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Ø bore: 4.2 mm · Total length: 4 mm · Total length: 6 mm · Total length: 8 mm · Storage method: Suitcase · Dimension storage box: 180 x 165 x 45 mm
EUR 100.80
HeliCoil thread repair set M5 (professional tool)
Material: Chrome steel (known as Nirosta®) · Total length: 5 mm · Total length: 7.5 mm · Total length: 10 mm · Storage method: Suitcase · Manufacturer: HeliCoil · Number of components: 60 pcs · Nominal diameter (thread): 5 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Area of application: Workshop accessories · Ø bore: 5.2 mm · Thread type: M5x0.8 (standard thread) · Dimension storage box: 180 x 165 x 45 mm
EUR 100.80
HeliCoil thread repair set M10x1 (professional tool)
Material: Chrome steel (known as Nirosta®) · Total length: 10 mm · Total length: 15 mm · Total length: 20 mm · Storage method: Suitcase · Manufacturer: HeliCoil · Number of components: 30 pcs · Nominal diameter (thread): 10 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Area of application: Workshop accessories · Ø bore: 10.2 mm · Thread type: MF10x1 (fine pitch thread) · Dimension storage box: 180 x 165 x 45 mm
EUR 120.00

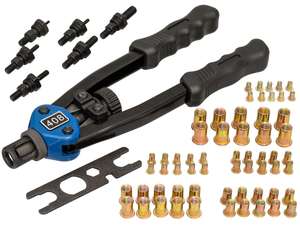

BGS rivet nut pliers set 68 pcs.
