For: Sachs

30015

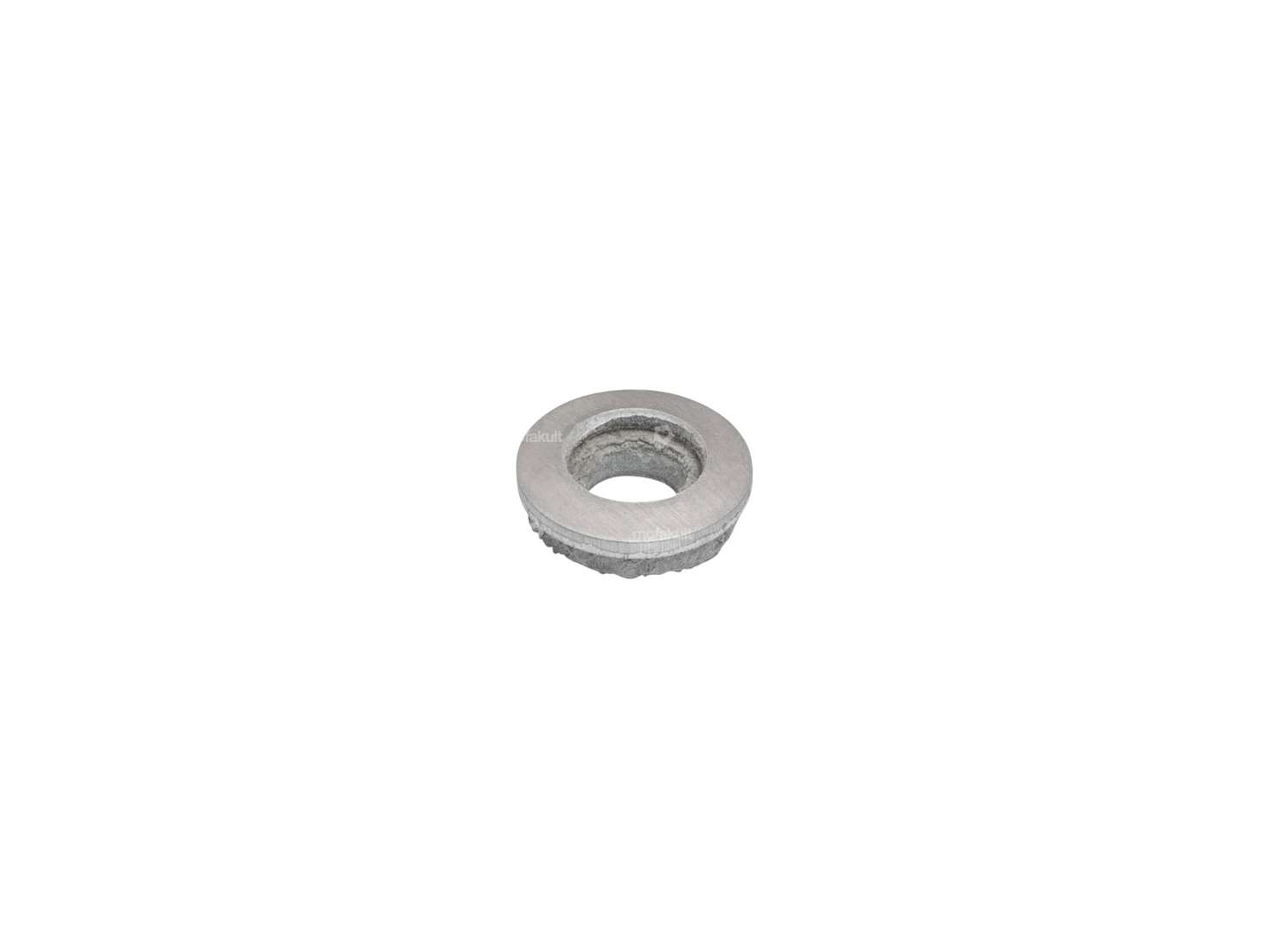

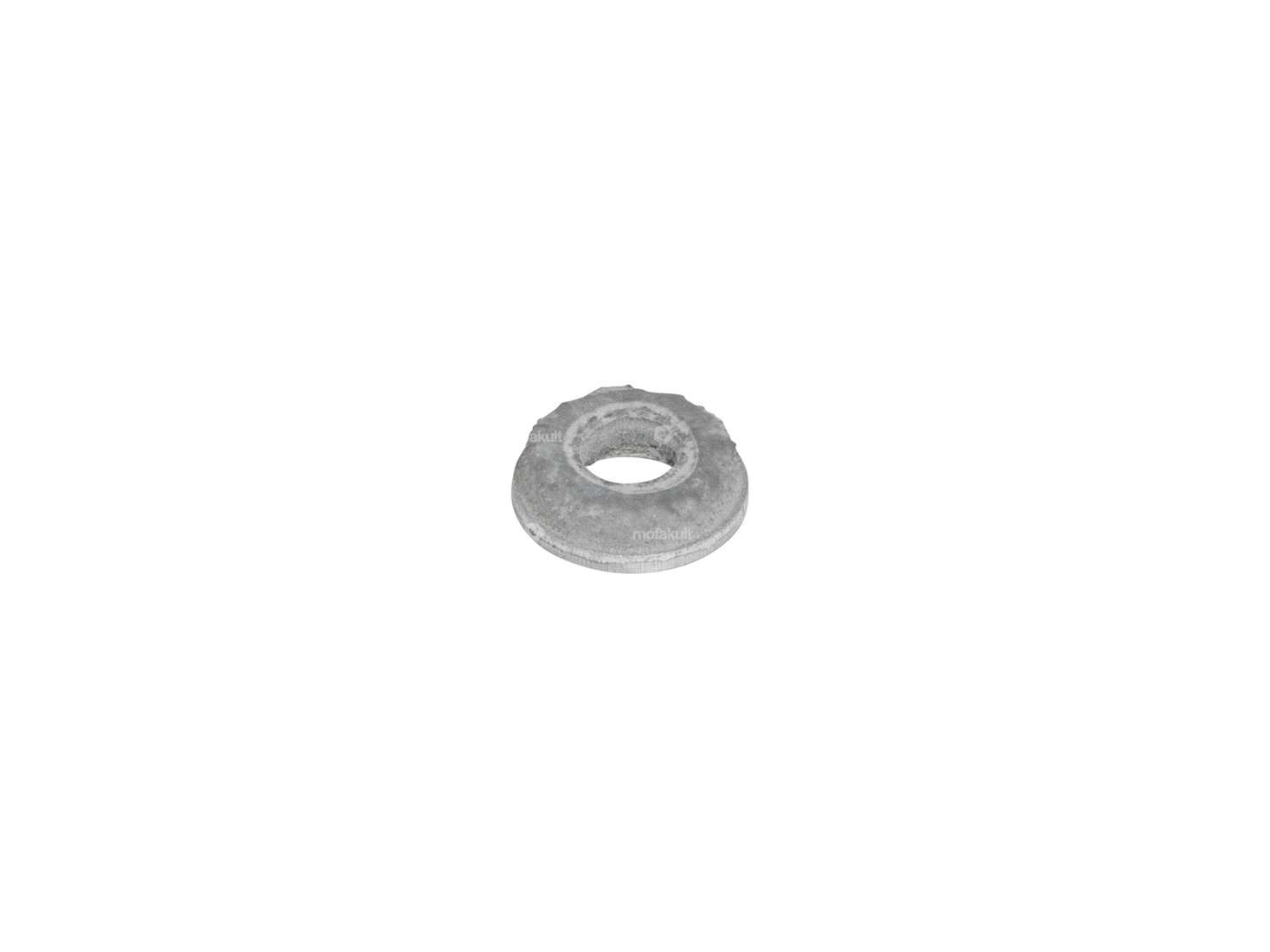

Insulating washer (5/10/2) Bing SSB carburetor flange M5 (A1829)

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 3.50

Incl. 23% VAT.

Description

Sealing washer 5 x 10 x 2 mm for the carburetor flange of Bing SSB carburetors, which are installed on Sachs 502, 50/2, 50/3, 50/4 mopeds / mopeds.

The washer acts as an insulating washer to keep heat away from the carburetor and also as an additional sealing washer.
The aluminium washer has an EPDM rubber ring vulcanized onto it. This fits perfectly against the sealing surface and encases the stud bolt.

Ø inner: 4.6 - 5.7 mm
Ø outer: 10 mm
Height: 2.9 mm
Material: aluminum & EPDM rubber

Price per piece.

Original Sachs spare part number: A1829

Nominal diameter inside5 mm
MaterialAluminum, EPDM - Rubber
Nominal diameter (thread)5 mm
Pony OEM numberA1829
Sachs OEM no.0250 089 000
Sachs

50 (Fahrtwind, 1.25 / 1.5 hp, DE)

502 (Saxonette) - AL , AML

50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS)

50/3

50/4 - MLFB (2.6 PS) , LKH (4.5 PS)
