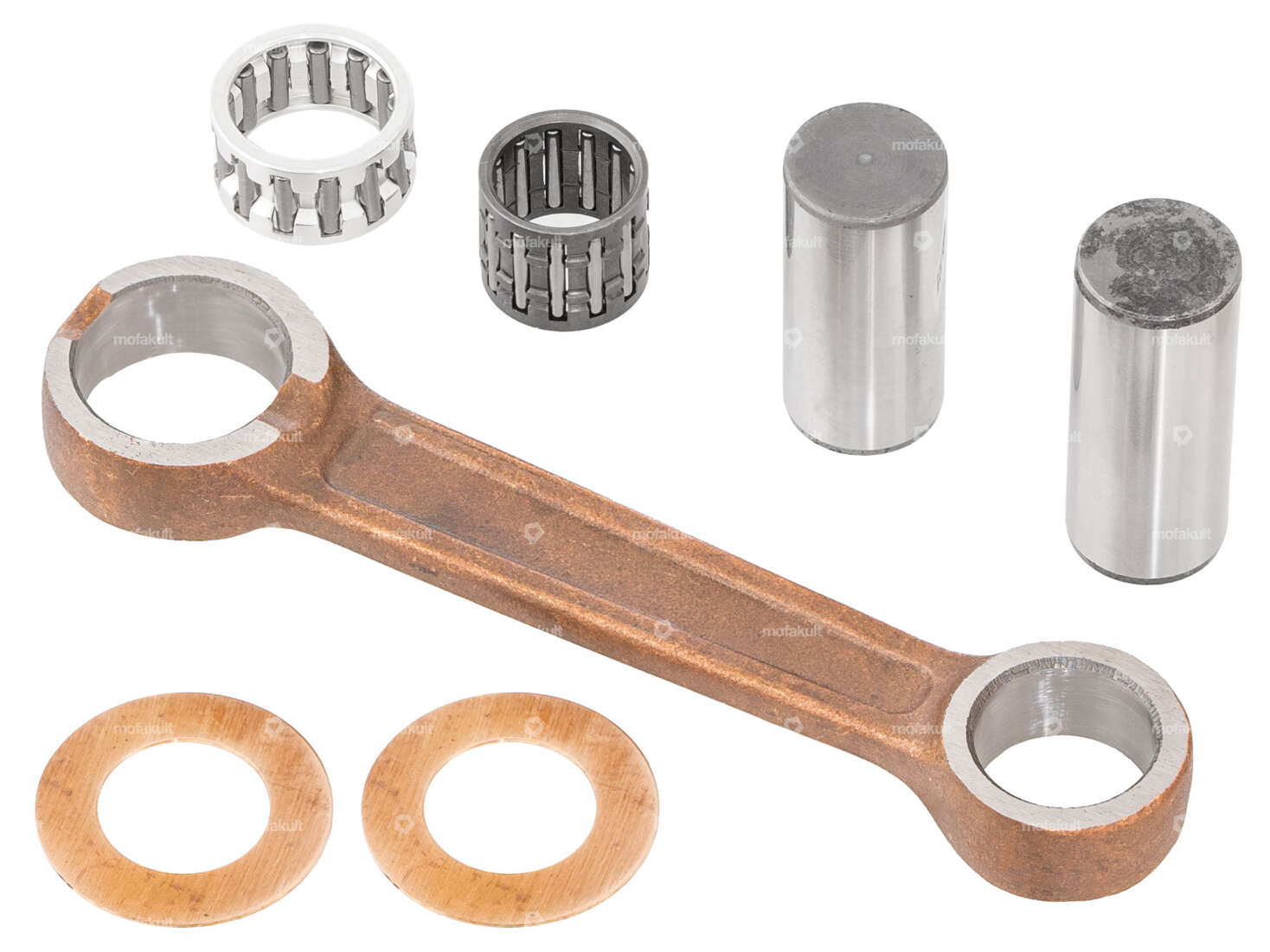

Complete connecting rod suitable for crankshafts of various mopeds, mopeds and small motorcycles with Sachs engines.
The replacement connecting rod comes with two connecting rod bolts of different lengths, which are used depending on the crankshaft. The connecting rod requires a 14 mm piston pin.
- Dimension connecting rod pin 1: Ø14 x 30.2 mm
- Dimension connecting rod pin 2: Ø 14 x 34.4 mm
- Pleuellänge (center - center): 85 mm
- Total connecting rod length: 107.4 mm
- Thickness: 10 mm
- Outer diameter of the lower connecting rod eye: 24.75 mm
- Outer diameter of the upper connecting rod eye: 20.85 mm
- Lower needle roller bearing (silver ball): Ø18/14 x 9.75 mm
- Upper needle bearing: Ø15/12 x 12.7 mm
- Ø für piston pin: 12 mm
The two brass spacers are included.
Branded product from the Portuguese manufacturer Jasil under the Top Racing brand.
| Manufacturer | Jasil |
| Material | Steel |
| Area of application | Standard, Tuning |
| Surface | copper-coated |
| Connecting rod length center-center | 85 mm |
| Ø Connecting rod bolt | 14 mm |
| Ø lower connecting rod eye outside | 24.75 mm |
| Ø upper connecting rod eye outside | 20.85 mm |
| Ø lower bearing inside | 18 mm |
| Thickness | 10 mm |
| Ø inside upper bearing | 15 mm |
| Dimension lower bearing | 14/18 x 9.75 mm |
| Total length | 107.4 mm |
| Dimension upper bearing | 12/15 x 12.7 mm |
| Ø piston pin (B) | 12 mm |
| Connecting rod pin length | 30.2 mm, 34.4 mm |
| Sachs | 502 (Saxonette) - AL , AML 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) 50/5 503 - AAL , ABL , 2AL / 2BL , AB , AC , ADV 504 (without pedal shaft) 505 (with pedal shaft) - 1A (AT) , 2A (HG) 508 - 1 A 535 |
