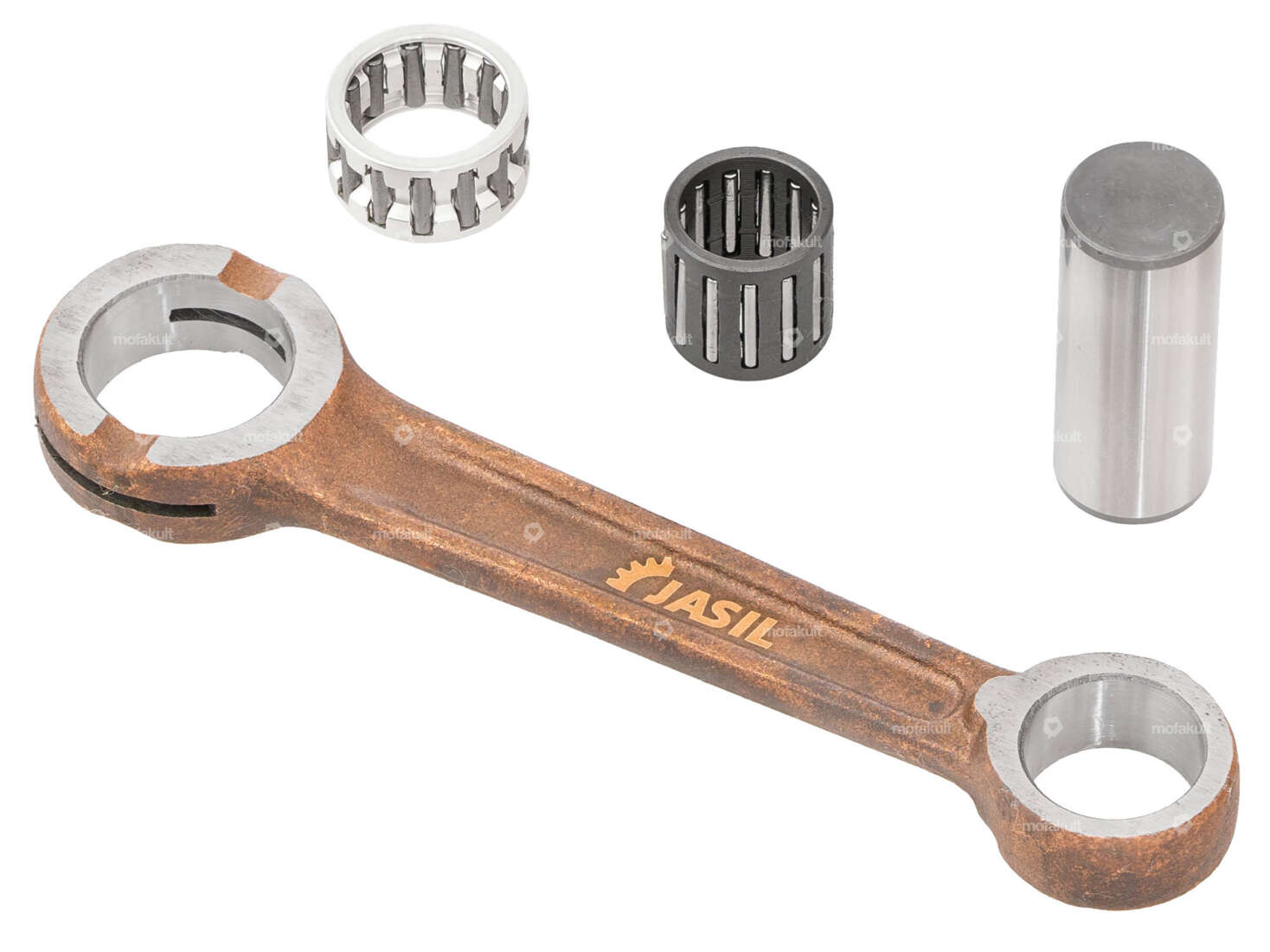

Jasil connecting rod | Puch

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Rito Crankshaft Racing | Puch E50

Manufacturer: Rito · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 11 mm · Thread length: 14 mm · Dimension needle bearing: 12 / 15 x 15 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 970 g · Number of gears: 1 pcs · Area of application: Racing · Area of application: Tuning

Rito connecting rod | Puch

Manufacturer: Rito · Material: Steel · Surface: copper-coated · Connecting rod length center-center: 90 mm · Total length: 114 mm · Ø piston pin (B): 12 mm · Ø Connecting rod bolt: 16 mm · Ø lower connecting rod eye outside: 28.2 mm · Ø upper connecting rod eye outside: 20.5 mm · Ø lower bearing inside: 21 mm · Ø inside upper bearing: 15 mm · Dimension lower bearing: 16/21 x 9.7 mm · Dimension upper bearing: 12/15 x 14.7 mm · Connecting rod pin length: 34.15 mm · Thickness: 10 mm · Area of application: High End

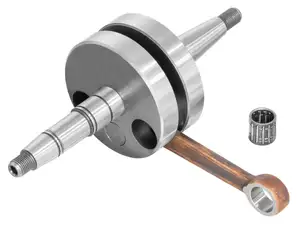

Jasil crankshaft | Puch E50

Manufacturer: Jasil · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.6 mm (axe 12) · Wide crank webs: 34.3 mm · Length 1st paragraph: 23.3 mm · Length 2nd paragraph: 25 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 942 g · Number of gears: 1 pcs · Area of application: Standard

Mazzucchelli crankshaft original E50

Manufacturer: Mazzucchelli · Area of application: Standard

swiing® revival crankshaft "Original" | Puch E50

Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread type: MF8x1 (fine pitch thread) · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 873 g · Number of gears: 1 pcs · Area of application: Standard

swiing® revival connecting rod standard | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: copper-coated · Connecting rod length center-center: 90 mm · Total length: 114.5 mm · Ø piston pin (B): 12 mm · Ø Connecting rod bolt: 12 mm · Ø lower connecting rod eye outside: 24.6 mm · Ø upper connecting rod eye outside: 20.9 mm · Ø lower bearing inside: 21 mm · Ø inside upper bearing: 15 mm · Dimension lower bearing: 16/21 x 9.75 mm · Dimension upper bearing: 12/15 x 14.7 mm · Connecting rod pin length: 34 mm · Thickness: 10 mm · Area of application: Standard

swiing® ingenious connecting rod "Racing" | Puch

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: ground · Connecting rod length center-center: 90 mm · Total length: 90 mm · Ø piston pin (B): 12 mm · Ø Connecting rod bolt: 16 mm · Ø lower connecting rod eye outside: 28.2 mm · Ø upper connecting rod eye outside: 21.5 mm · Ø lower bearing inside: 21 mm · Ø inside upper bearing: 15 mm · Dimension lower bearing: 16/21 x 9.7 mm · Dimension upper bearing: 12/15 x 14.2 mm · Connecting rod pin length: 34 mm · Thickness: 10 mm · Area of application: Tuning

swiing® ingenious crankshaft "High End" | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Weight: 968 g · Number of gears: 1 pcs · Area of application: High End · Area of application: Racing · Area of application: Tuning

Rito connecting rod "Racing" Ø 16 mm bolt | Sachs

Manufacturer: Rito · Material: Steel · Surface: polished · Connecting rod length center-center: 85 mm · Total length: 110 mm · Ø piston pin (B): 12 mm · Ø Connecting rod bolt: 16 mm · Ø lower connecting rod eye outside: 28.2 mm · Ø upper connecting rod eye outside: 21.6 mm · Ø lower bearing inside: 21 mm · Ø inside upper bearing: 15 mm · Dimension lower bearing: 16/21 x 9.7 mm · Dimension upper bearing: 12/15 x 14.7 mm · Connecting rod pin length: 38.5 mm · Thickness: 10 mm · Area of application: High End · Area of application: Tuning

Rito connecting rod "Racing" Ø 16 mm bolt | Zündapp

Manufacturer: Rito · Material: Steel · Surface: polished · Connecting rod length center-center: 91 mm · Total length: 117 mm · Ø piston pin (B): 12 mm · Ø Connecting rod bolt: 16 mm · Ø lower connecting rod eye outside: 29.6 mm · Ø upper connecting rod eye outside: 23 mm · Ø lower bearing inside: 22 mm · Ø inside upper bearing: 16 mm · Dimension lower bearing: 16/22 x 11.7 mm · Dimension upper bearing: 12/16 x 15.7 mm · Connecting rod pin length: 37.3 mm · Thickness: 12 mm · Area of application: High End · Area of application: Tuning

Plastic license plate holder (CH version)

Manufacturer: Made in Switzerland · Material: Brass · Material: Plastic · Color: black · Total length: 175 mm · Width: 108 mm · Height: 11 mm · Thread type: M5x0.8 (standard thread) · Thread length: 6 mm · Mounting type: Nuts & bolts · Number of fixing points: 9 pcs · Ø mounting hole: 6 mm · Hole spacing: 50 mm

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

swiing® revival air filter screen Ø 52 mm original

Manufacturer: swiing® revival parts · Camouflaged: No · Color: silver · Material: Steel · Surface: galvanized (blue) · Height: 10 mm · Ø outside: 52 mm · Area of application: Standard

BOSCH breaker with cable | Bosch / Ducati

Manufacturer: BOSCH · Material: Steel · Ø axle: 4 mm · Ø mounting hole: 4.5 mm · Cable available: Yes · Number of fixing points: 1 pcs · Area of application: Original · Area of application: Standard · Cable length: 100 mm · Ø Internal flywheel: 90 mm · Alternative version of the Pony OEM number: A4606 · Alternative version of the Pony OEM number: A4606A · Pony OEM number: A4607 · Alternative version of the Sachs OEM number: 0983 106 000 · Alternative version of the Sachs OEM number: 2783 039 001 · BOSCH OEM number: 1 217 013 025 · Sachs OEM no.: 0283 116 102 · BERU OEM number: 0 340 100 710

GPO light switch with wiring harness base chrome version

Manufacturer: GPO · Material: Plastic · Housing material: Steel · Substructure material: Steel · Surface: chrome-plated · Color: Chrome · Functions: High beam (headlights) · Functions: Horn · Functions: Light off · Functions: Low beam · Functions: Motor stop · Number of positions: 3 pcs · Number of cables: 5 pcs · Cable length: 970 mm · Cable bifurcation to motor: 970 mm · Cable bifurcation to lamp: 180 mm · Cable bifurcation to switch: 420 mm · Ø Handlebars: 22 mm · Total length: 50 mm · Width: 30 mm · Height: 25 mm

Flame tube 22 mm | Puch

Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Ø inside: 18.2 mm · Ø outside: 22 mm · Total length: 900 mm · Color: Chrome · Mounting type: Stud bolts & nuts · Flame tube attachment: Thread for screwing · Number of fixing points: 2 pcs · Thread type: M7x1 (standard thread) · Hole spacing outlet: 42 mm

GPO bulb 12V - 5W (BA9s) 1-filament rear light

Manufacturer: GPO · Test mark: none · Bulb holder: BA9s · Tension: 12 V · Performance: 5 W · Color: white · Ø base: 9 mm · Total length: 23 mm · Ø Lamp head: 11 mm · Height: 23.6 mm · LED: No

GPO pedal cranks chrome (pair) | Puch

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 180 mm · Crank length (center-center): 156 mm · Wide intake: 28 mm · Ø Pedal wedge: 9.5 mm · Ø Pedal axle: 16 mm · Cranking (offset): 37 mm · Cranking (offset): 49 mm · Thread type: FG14.3 (9/16" 20G)

GPO air filter | Puch Maxi S, N

Manufacturer: GPO · Color: black · Material: Plastic · Ø Internal connection: 20 mm
