Racing crankshaft suitable for all Piaggio Ciao, Si, Bravo and Boxer mopeds / mopeds.

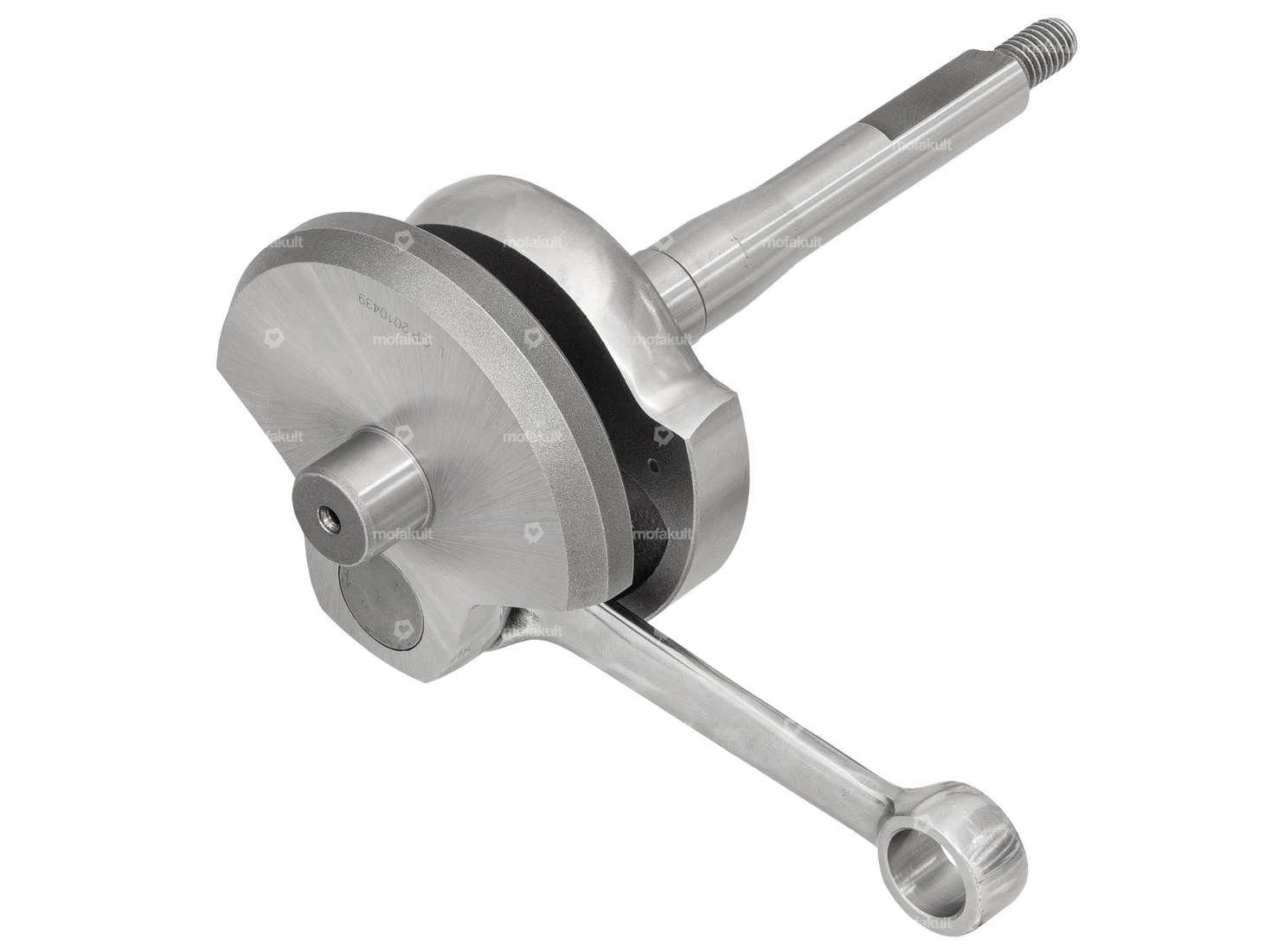

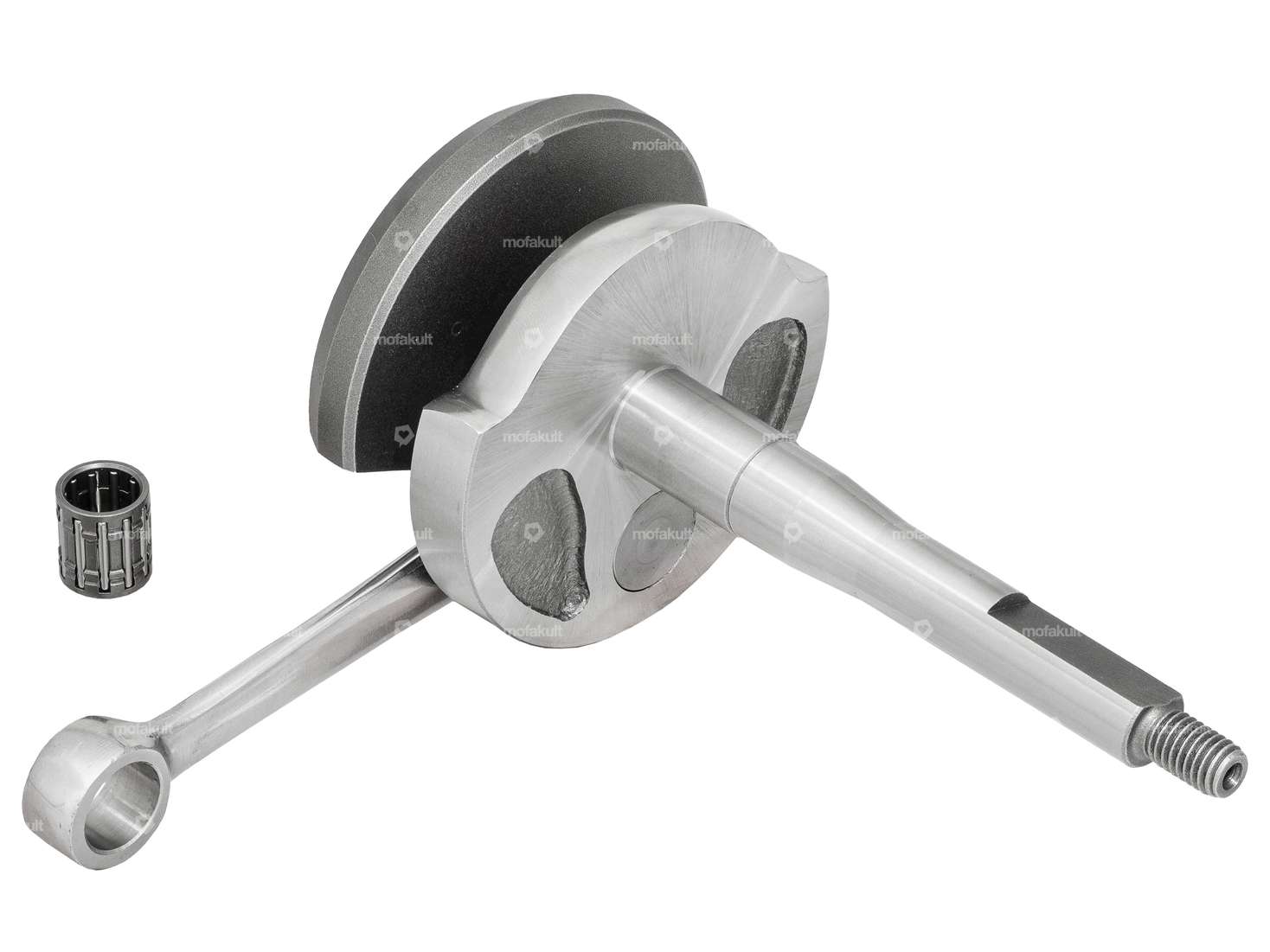

This finely balanced tuning crankshaft with polished connecting rod and cheeks fits all cylinders with 10 mm piston pins. Due to the longer intake timing, this tuning crankshaft is ideal for racing mopeds.
For installation, a 16 x 0.5 mm shim must be inserted between the racing crankshaft and its main bearings.
Caution: The crankpin is 1 mm shorter than on the original crankshaft, so the camshaft end must be removed by 1 mm to ensure that the flywheel sits correctly on the cone. Alternatively, you can also use the already machined cam from the accessories.
Branded product from the Portuguese manufacturer Jasil under the Top Racing brand.

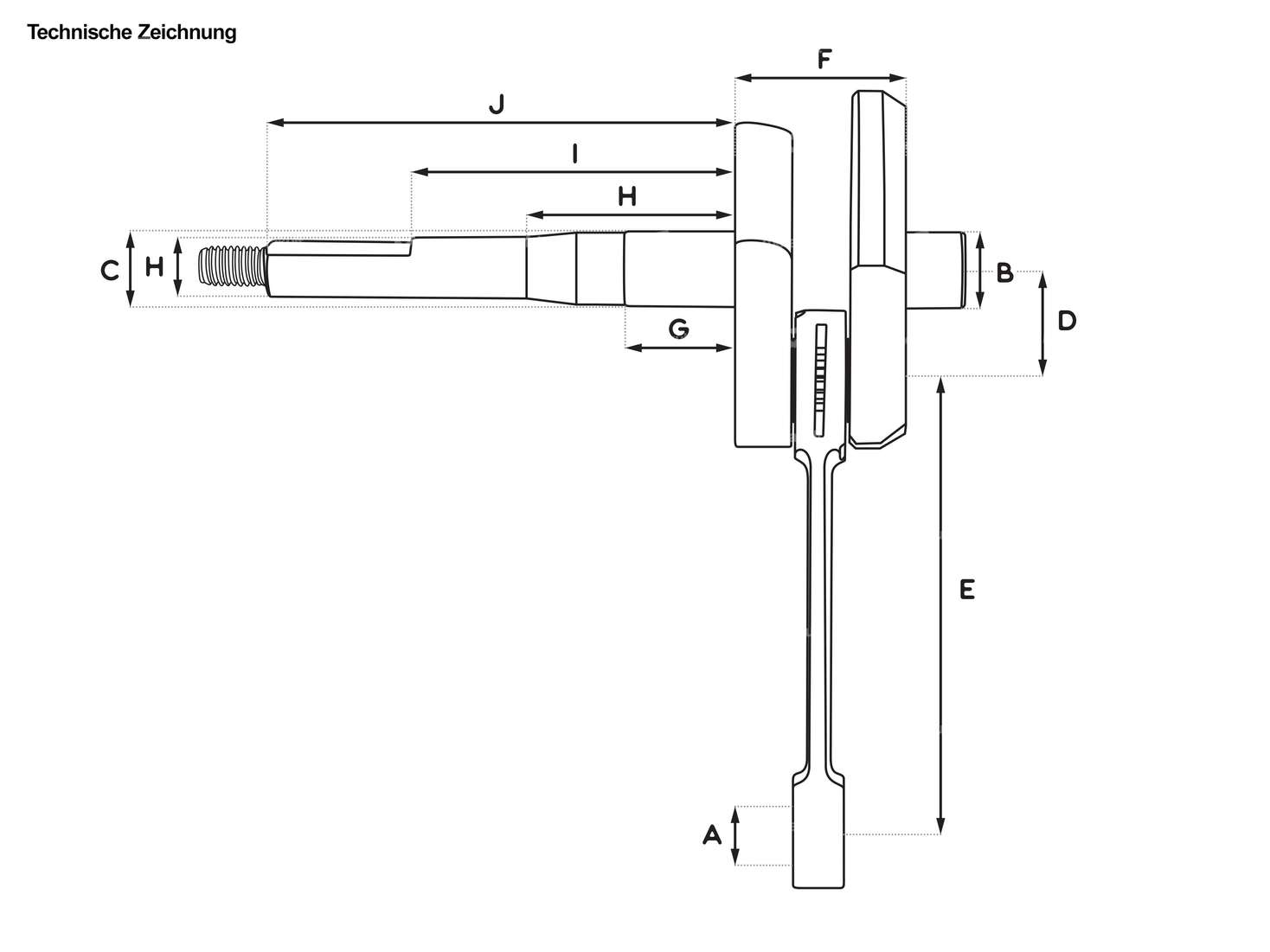

| Manufacturer | Jasil |
| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 43 mm |
| Area of application | Racing |
| Ø coupling pin / vario pin | 12 mm |
| Connecting rod length center-center | 87 mm |
| Total length crankpin ignition side | 91.5 mm, 105 mm |
| Ø crank webs | 69.8 mm |
| Ø piston pin (B) | 10 mm |
| Thread length | 13.5 mm |
| Ø Connecting rod eye | 13 mm |
| Bearing seat right | 15 mm |
| Thread type | M8x1.25 (standard thread) |
| Ø Bearing seat (ignition side) | 15 mm |
| Dimension needle bearing | 10 / 13 x 14.2 mm (axe 10) |
| Wide crank webs | 32.9 mm |
| Length 1st paragraph | 21.5 mm |
| Length 2nd paragraph | 44 mm |
| Length 3rd paragraph | 64.9 mm |
| Ø 1st step (on the coupling side) | 15 mm |
| Ø 2nd shoulder (on the clutch side) | 14.4 mm |
| Ø 3rd step (on the clutch side) | 12 mm |
| Weight | 716 g |
| Number of gears | 1 pcs |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
