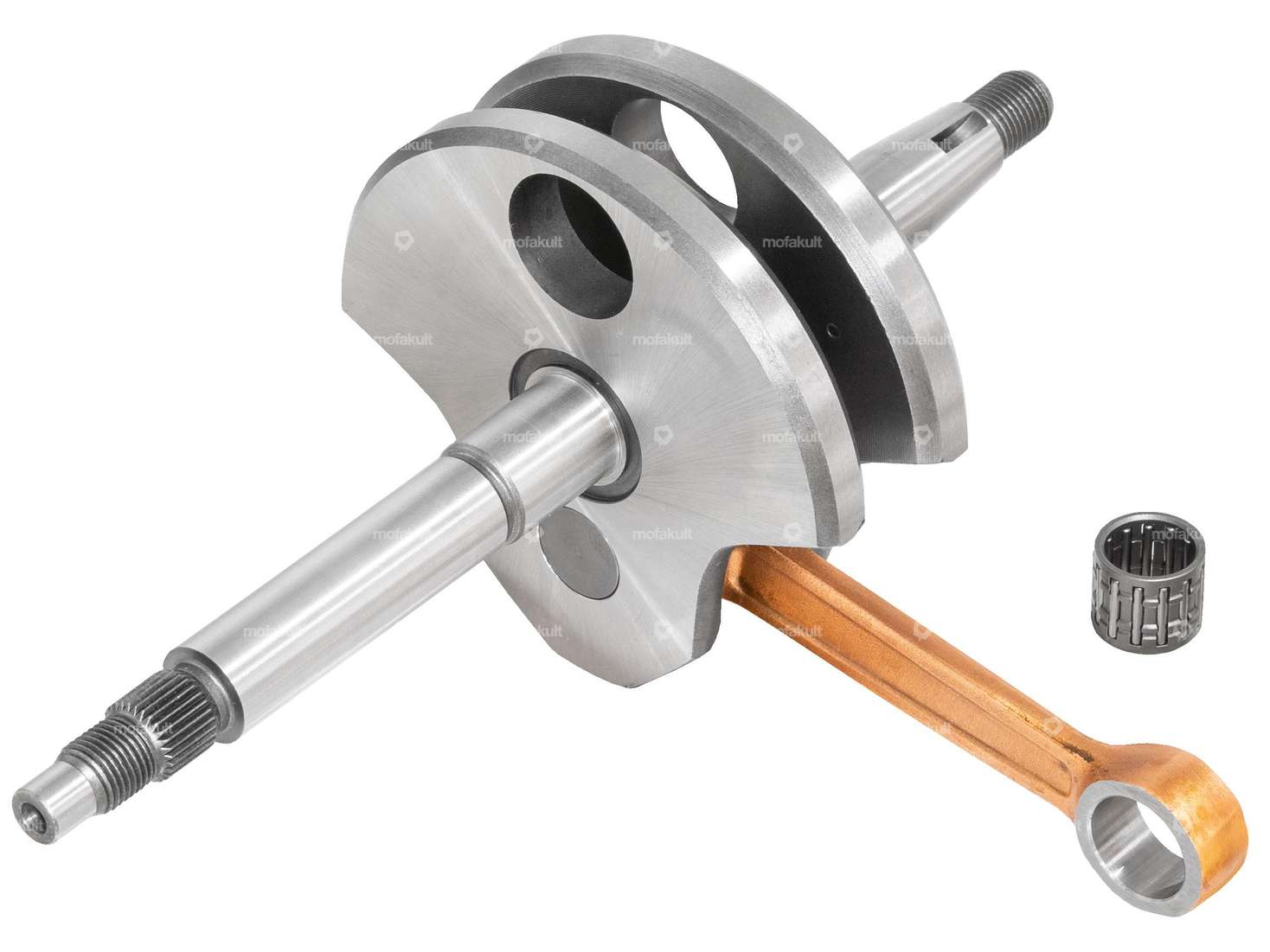

Crankshaft suitable for Sachs 503 AB-CH 2-speed automatic mopeds / mopeds with the large black cylinder without catalytic converter (up to engine number 11'065'712), spare part number: A2902
Also suitable for the 2nd models of the Sachs 503 ABL CH 2-speed automatic engines (from engine number 9'504'770).
Spare part number: A2901
If you have an ABL engine of the old generation (up to engine number 9'504'769) and the shaft is to be installed, either the clutch basket must be replaced by that of the new model, or various adjustments must be made to the crankshaft and clutch basket. More detailed information and explanations with instructions can be obtained from customer service.
| Manufacturer | Jasil |
| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 42 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Connecting rod length center-center | 84 mm |
| Thread length | 11 mm |
| Number of gears | 2 pcs |
| Total length of crankpin on clutch side | 101.15 mm |
| Total length crankpin ignition side | 64.1 mm |
| Ø crank webs | 85 mm |
| Ø Connecting rod eye | 15 mm |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 15 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Dimension needle bearing | 12 / 15 x 12.8 mm (axe 12) |
| Wide crank webs | 30.3 mm |
| Length 1st paragraph | 19 mm |
| Length 2nd paragraph | 51 mm |
| Ø 1st step (on the coupling side) | 15 mm |
| Area of application | Standard |
| Ø 2nd shoulder (on the clutch side) | 14 mm |
| Weight | 875 g |
| Ø 3rd step (on the clutch side) | 8 mm |
| Length of shoulder (ignition side) | 34 mm |
| Alternative version of the Pony OEM number | A2900 |
| Pony OEM number | A2902, A2901 |
| Alternative version of the Sachs OEM number | 0288 115 002, 0288 115 102 |
| Sachs | 503 - ABL, AB |
