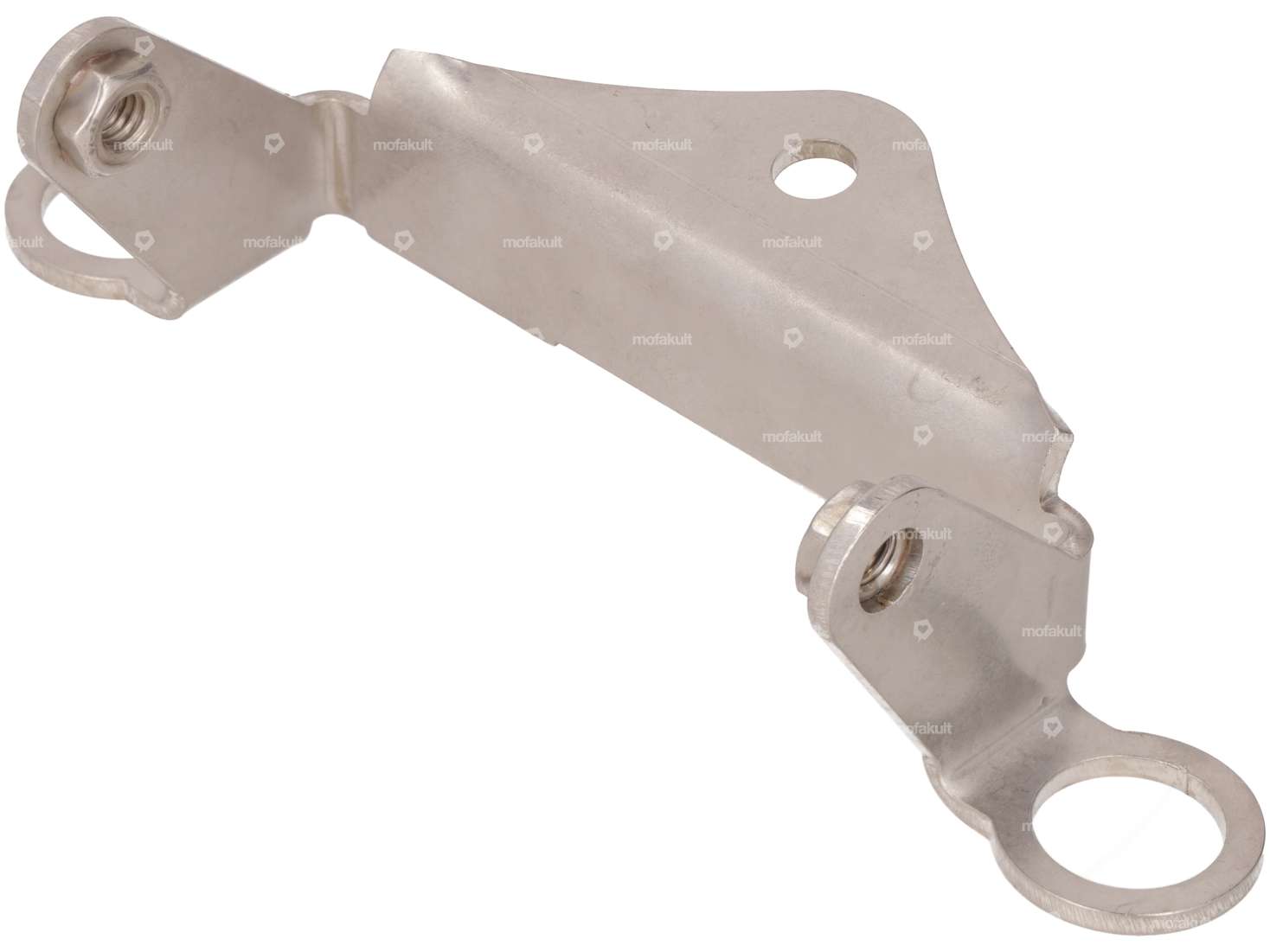

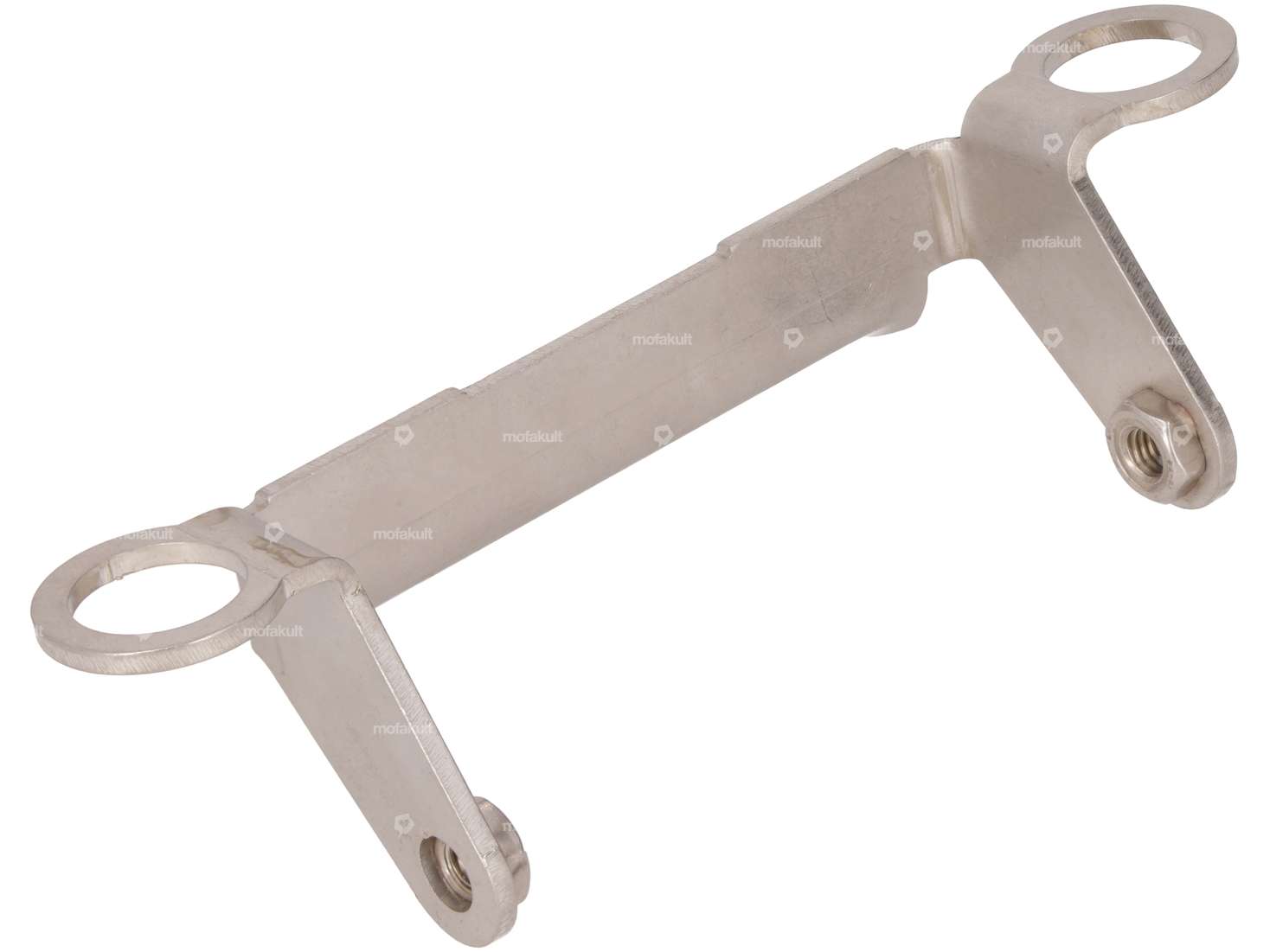

Rustproof steel headlight bracket for your Piaggio Ciao moped / moped in combination with the newer, angular front lights.
From the factory, this headlight bracket was installed on late PX and some C24 models.
The lamp bracket is equipped with eyelets to ensure proper guidance of the Bowden cables. The cable gland can be protected with a rubber ring to prevent damage. The bracket offers sufficient space for the speedometer cable, which can continue to be used as usual.
Total width with lugs: 151 mm
Width of headlight mount: 99.5 mm
Height: 42 mm
Ø Öse inside: 17 mm
Ø Öse outside: 24 mm
Thread: M6 mm
Material: Chrome steel (stainless steel)
Front lights, other front light brackets and the rubber insert described can be found in the accessories section.
Original Piaggio spare part number: 247947
Alternative to the original Piaggio spare part number: 188227
Details
| Material | Chrome steel (known as Nirosta®) |
| Width | 151 mm |
| Height | 42 mm |
| Thread size | M6 |
| Piaggio OEM number | 247947 |
| Alternative version of the Piaggio OEM number | 188227 |
Suitable for the following models
| Piaggio | Ciao - PX, C24 |
