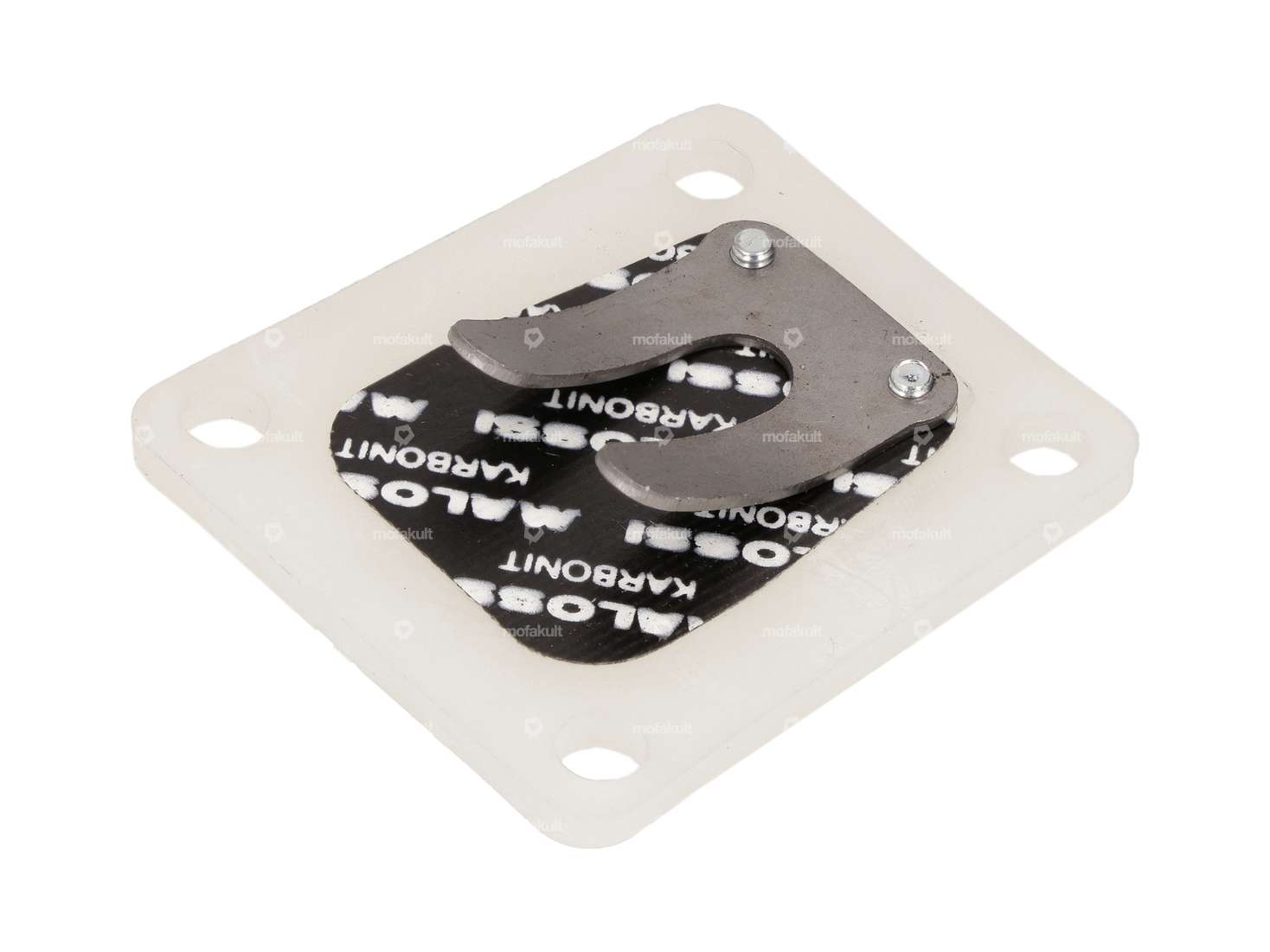

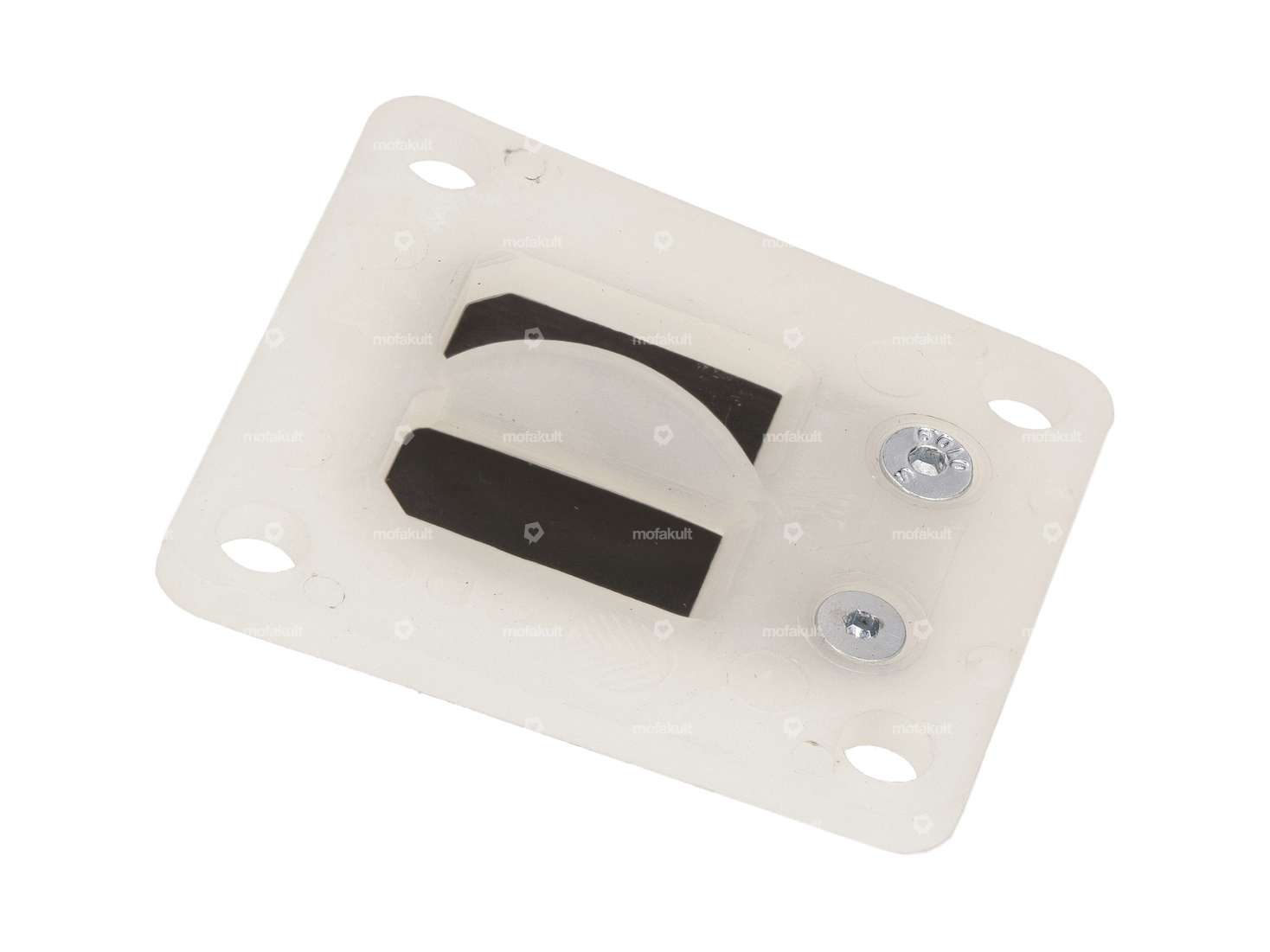

Malossi 2-folding diaphragm insert carbonite | Puch / Tomos / Peugeot

Polini 43.5 mm cylinder kit reed | Puch

Manufacturer: Polini · Material: Aluminum · Camouflaged: No · Surface: Nickel silicon carbide (colloquially known as Nikasil) · Crankshaft stroke: 43 mm · Displacement: 65 ccm · Ø cylinder neck: 48 mm · Number of fixing points: 4 pcs · Nominal diameter: 43.5 mm · Ø outlet inside: 22 mm · Ø piston pin (B): 12 mm · Inlet window: 26 x 21 mm · Thread inlet: M5x0.8 (standard thread) · Area of application: Racing · Area of application: Tuning · Hole spacing inlet: 32 mm · Hole spacing inlet: 39 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44

Clutch lever | Puch E50

Area of application: Standard

Dell'Orto 19 mm PHBG CS carburetor hand choke

Nominal diameter: 19 mm · Manufacturer: Dell'Orto · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Color: black · Area of application: Racing · Area of application: Tuning · Width: 70 mm · Carburetor type: PHBG CS · Total length: 82 mm · Height: 124 mm · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 5.4 mm · Ø fuel hose connection: 6 mm · Mounting type: Plug connection clamped · Ø without reducing sleeve: 26 mm · Nozzle size: 75 · Ø Inside entrance: 19 mm · Ø Internal connection: 24 mm · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 60 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Choke nozzle size: 60 · Size of secondary nozzle: 45

30 cm gasoline hose, 5/8" diameter, red

Material: Plastic · Ø inside: 5 mm · Total length: 300 mm · Ø outside: 8 mm · Color: red

swiing® revival clutch shaft Ø 14 mm | Puch E50

Ø outside: 13.95 mm · Manufacturer: swiing® revival parts · Area of application: Standard · Total length: 79.2 mm

DMP 2 hinged membrane insert

Manufacturer: DMP · Number of flaps: 2 pcs · Membrane material: Spring steel · Number of fixing points: 4 pcs · Ø mounting hole: 5.8 mm · Area of application: Tuning · Mounting type: Screws · Hole pattern [mm]: 39 x 36/32 mm

Polini gasket diaphragm

Manufacturer: Polini · Place of use: Admission · Ø cylinder: 45 mm

Continental 2.00 - 2.50 x 16" tube

Valve type: TR6 car valve · Manufacturer: Continental · Tire width: 2 - 2.5 " · Tire width: 2.25 - 2.5 " · Tire width: 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width: 2 " · Width: 2 1/4 " · Width: 2 1/2 " · Tire height [%]: 100 · Old designation: 20 x 2 " · Old designation: 20 x 2.25 " · Old designation: 20 x 2.5 " · Wheel size: 16 "

Malossi needle bearing 10/13/14.5 aluminum cage piston pin

Bearing type: Needle roller and cage assembly · Ø inside: 13 mm · Ø outside: 1 mm · Width: 14.5 mm · Manufacturer: Malossi · Bearing cage: Sheet steel cage · Dimension needle bearing: 10/13 x 14.5

Malossi piston 43 mm (10 mm KoBo) new version | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Ø outside piston (A): 42.96 mm · Compression height (C): 26 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 43 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 10 mm · Piston ring height: 1.5 mm · Thick piston ring: 1.75 mm · Weight piston kit: 88 g
