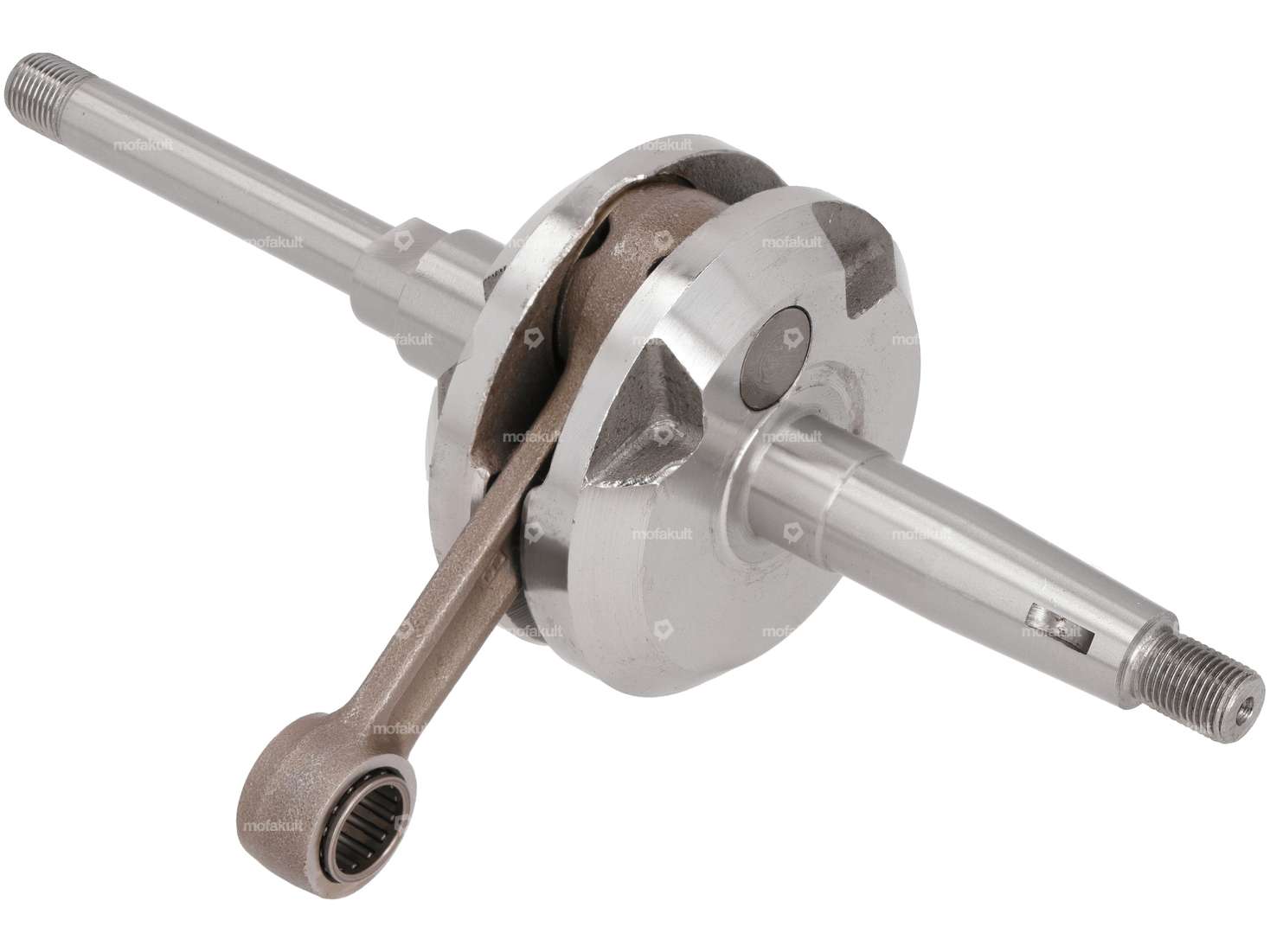

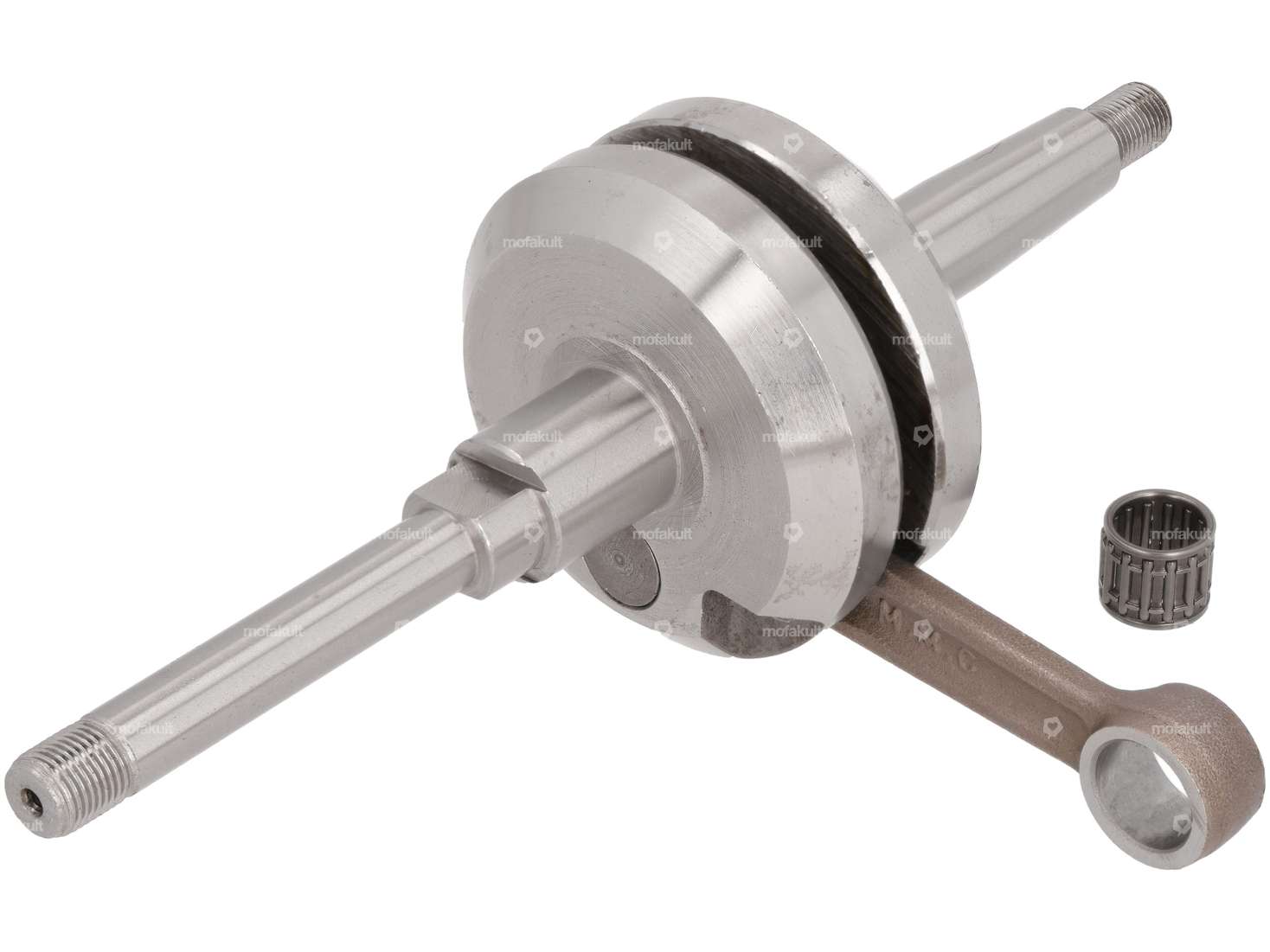

Standard crankshaft for Peugeot 103 SP, MV, MVL, LM, VOGUE and 104 mopeds / mopeds with interrupter ignition.
The workmanship of the cheeks could be of a slightly higher quality, but the stubs and threads of the shaft are flawless.
The needle bearing is included in the scope of delivery.
Note: Due to the large cone, this crankshaft can only be used for contact ignition and not for electronic ignition.
Quality product from the Italian manufacturer Mazzucchelli.
| Manufacturer | Mazzucchelli |
| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 39 mm |
| Connecting rod length center-center | 76 mm |
| Total length of crankpin on clutch side | 100 mm |
| Weight | 1016 g |
| Total length crankpin ignition side | 72 mm |
| Ø crank webs | 68.7 mm |
| Thread type | MF10x1 (fine pitch thread), MF11x1 (fine pitch thread) |
| Ø Connecting rod eye | 16 mm |
| Area of application | Standard |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 20 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Thread length | 11 mm, 14 mm |
| Dimension needle bearing | 12 / 15 x 12.5 mm (axe 12) |
| Wide crank webs | 36 mm |
| Length 1st paragraph | 22 mm |
| Length 2nd paragraph | 9.5 mm |
| Length 3rd paragraph | 56.5 mm |
| Ø 1st step (on the coupling side) | 20 mm |
| Ø 2nd shoulder (on the clutch side) | 15.9 mm |
| Ø 3rd step (on the clutch side) | 10.9 mm |
| Length of shoulder (ignition side) | 12 mm |
| Number of gears | 1 pcs |
| Peugeot |
