Name: Mazzucchelli crankshaft "Sport" | Vespa PX200, P200, Rally 200, Cosa 200
Brand: Mazzucchelli
SKU: 39333
Price: 217.00 EUR
Availability: LimitedAvailability

New

Description

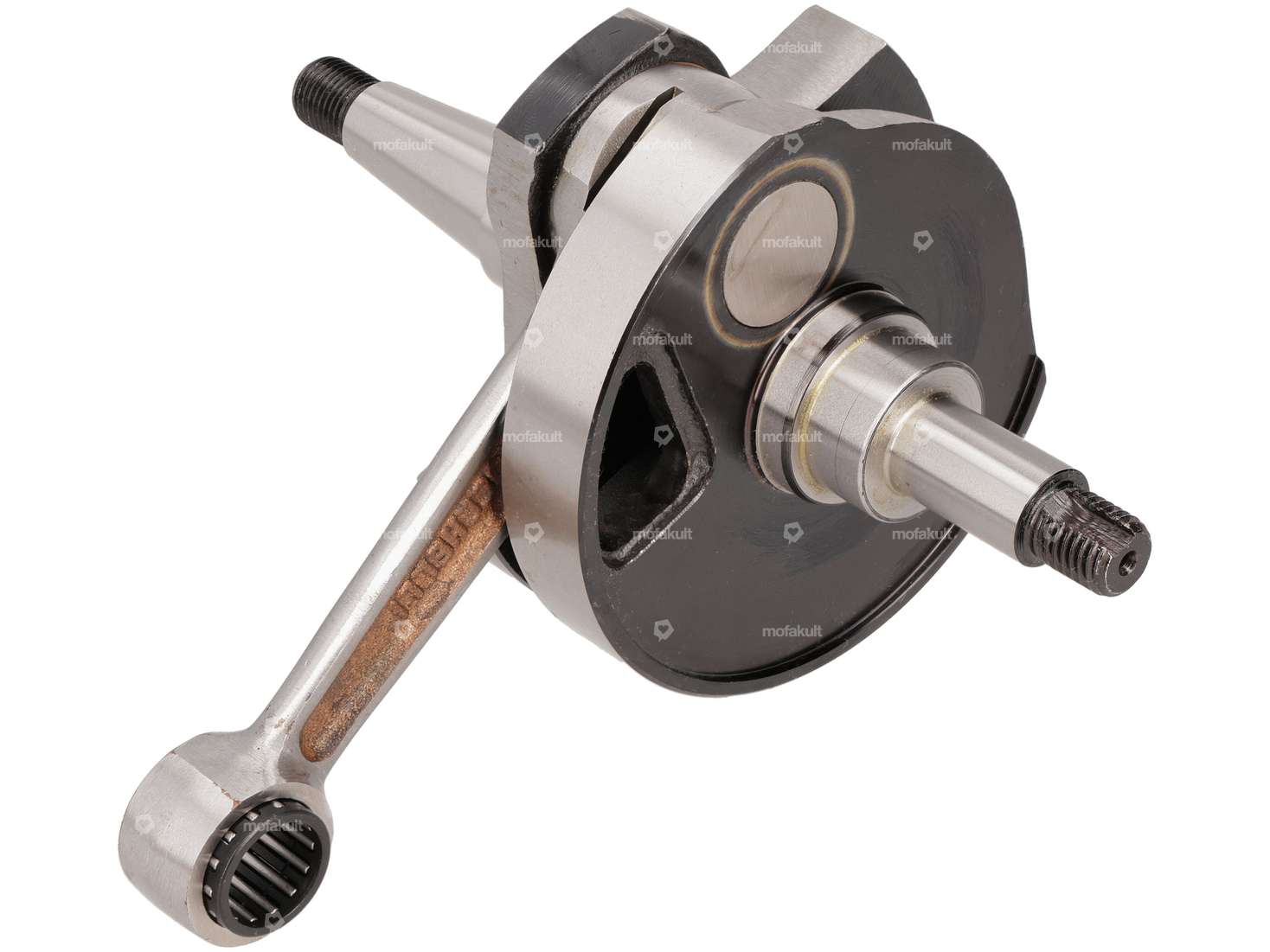

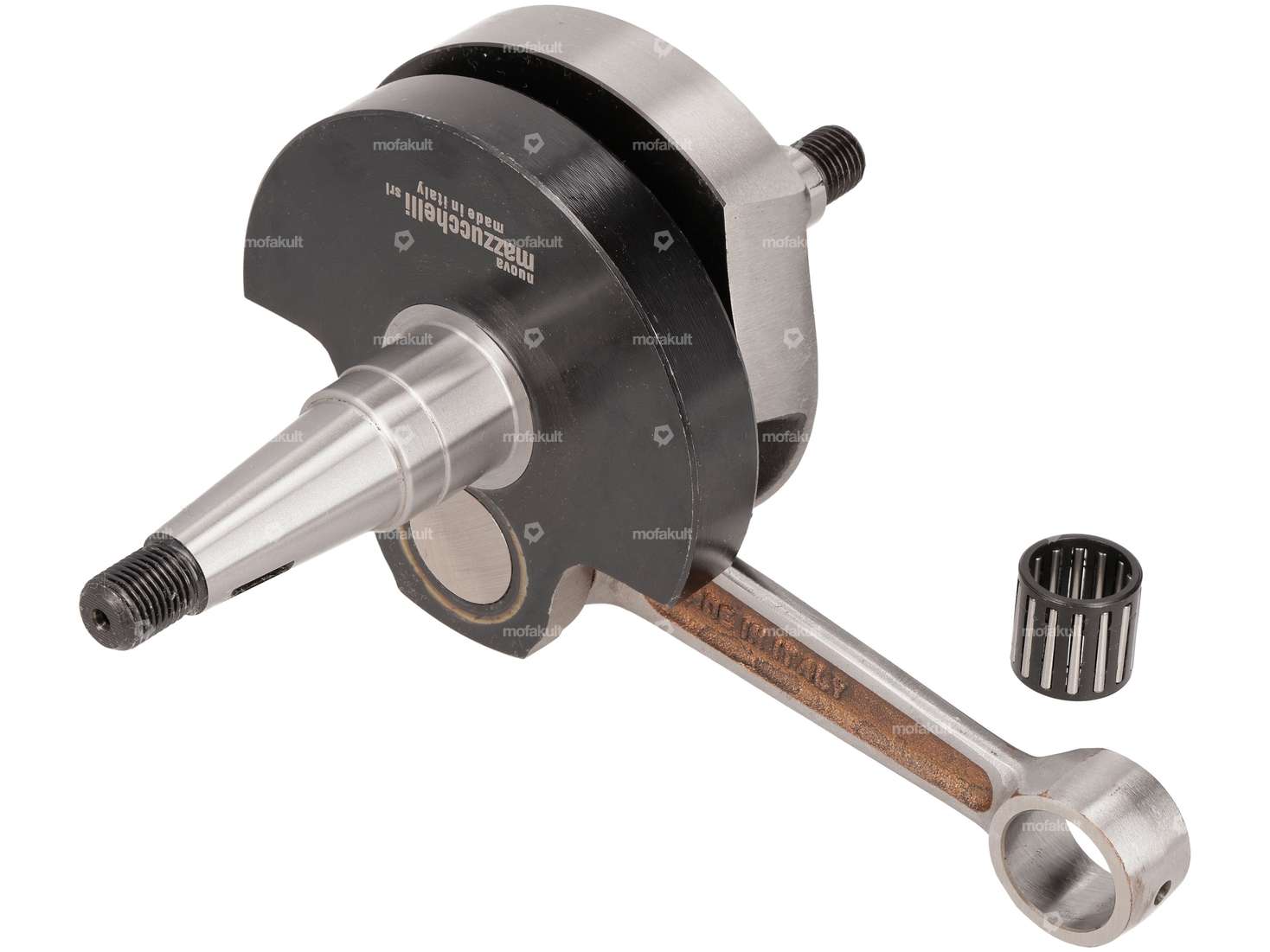

Finely balanced Mazzucchelli tuning crankshaft suitable for your Vespa PX 200, P 200, Rally 200 and Cosa 200.

Thanks to the clean workmanship and the timing of 138° / 6° after TDC, the tuning shaft is suitable for light tuning setups with rotary valve intake and impresses with its clean workmanship and good fit for Vespa largeframe 200 cc engines.

Matching crankshaft bearings and oil seals can be found in the accessories section.

Quality product from the Italian manufacturer Mazzucchelli

Original Piaggio spare part number: 238959, 1331535

Details

Manufacturer	Mazzucchelli
Area of application	Tuning
Material	Steel
Cheek type	standard
Crankshaft stroke	57 mm
Connecting rod length center-center	110 mm
Total length of crankpin on clutch side	57.9 mm
Total length crankpin ignition side	76 mm
Ø crank webs	98 mm
Ø Connecting rod eye	20 mm

Ø piston pin (B)	16 mm
Ø Bearing seat (clutch side)	25 mm
Ø Bearing seat (ignition side)	25 mm
Dimension needle bearing	16x20x20 mm
Wide crank webs	40.4 mm
Piaggio OEM number	238959, 1331535

Suitable for the following models

Vespa

Vespa PX, T5, Cosa - P200E · VSX1T · 1977 - 1984 (Zündschloss Lenkkopf) , PX200 · VSX1T · 1984 - 1993 Lusso / Arcobaleno , PX200 · VSX1T · 1993 - 1996 Classic , PX200 · VSX1T · 1997 - 1999 (Disc) , Cosa 200 · VSR1T · I 1988 - 1992 II 1992 - 1998
