logo_meteor-piston-mk

For: Zündapp

28155

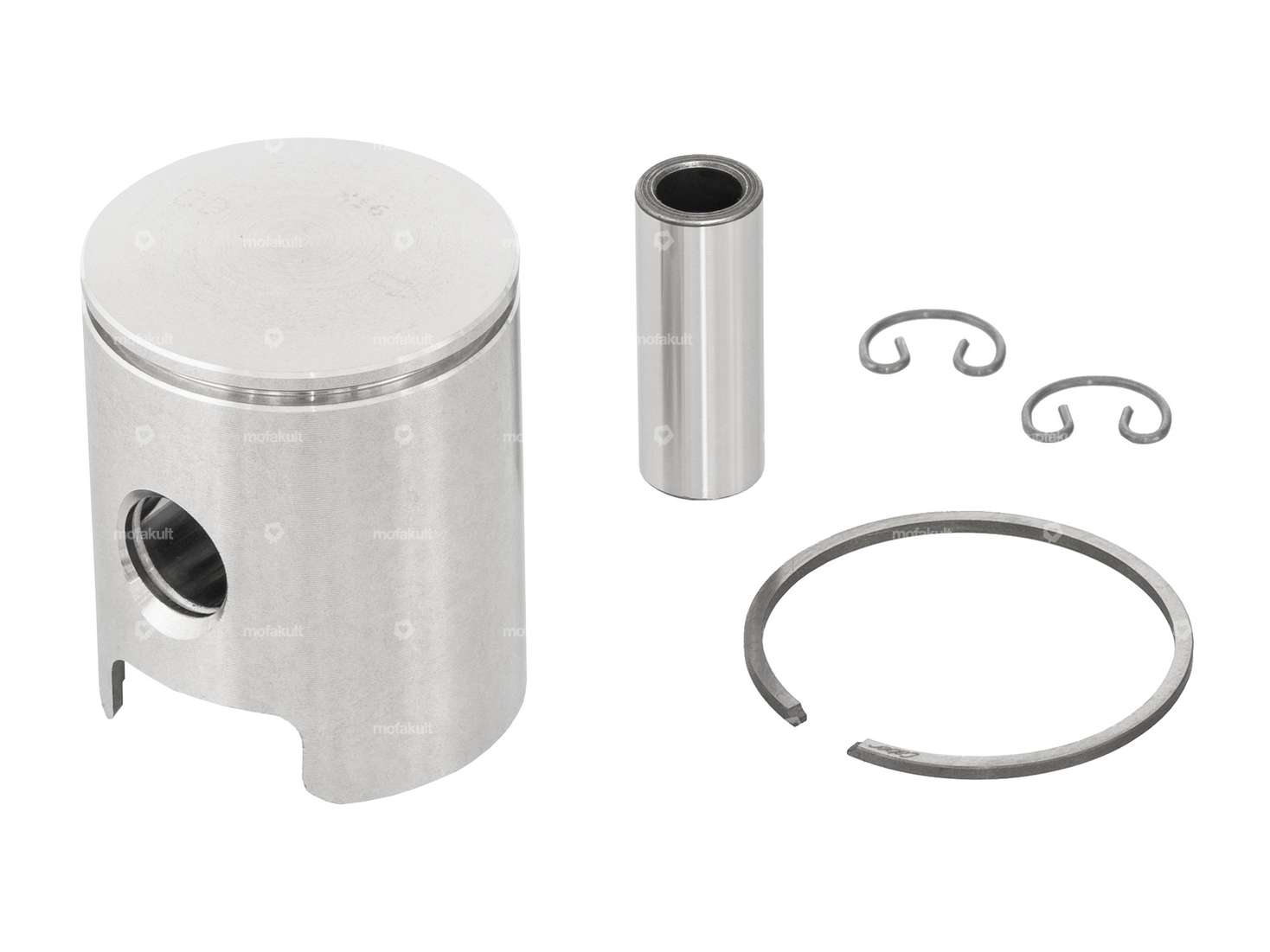

Meteor piston 38.95 mm #CD | Zündapp ZR, ZD, ZA

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 72.70

Incl. 23% VAT.

Description

39.0 mm piston with a 1.5 mm rectangular piston ring with flank lock (FS) for Zündapp ZR25 / ZR50 mopeds / mopeds with a type 250 engine.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their dimensions and locking types on the legend in the images.

Tolerance type: CD

The piston kit contains piston pins, piston clips and piston rings.

You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.

Original Zündapp spare part number: 250-02.711/04

Quality product from the Italian manufacturer Meteor.

Nominal diameter39 mm
ManufacturerMeteor
Ø outside piston (A)38.95 mm
Compression height (C)23 mm
Curvature (D)1.5 mm
Total piston height (E)48 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Tolerance groupCD
Weight piston kit75 g
Zündapp

ZR 10 / ZR 20 / ZR 22 / ZR 30 / ZB 22 (type 250-447)

ZD 10 / ZD 30 (type 250-466)

ZA 25 / ZA 40 (type 250-460)

Accessories & related products

Airsal piston pin lock Ø 12 mm (single)
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha

10240

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Surface: blank · Number of sensors / lugs: 1 pcs · Ø outside: 12 mm

EUR 1.45

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L
undefined

Universal

10610

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents: 1000 ml · Color: red

EUR 31.50

EUR 31.50/l

Buzzetti pliers for piston ring assembly
undefined

For: Sachs · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha · Zündapp · Franco Morini

15195

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

EUR 16.40

Meteor piston pin lock Ø 12 mm (double)
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha

17313

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Surface: blank · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

EUR 1.45

Exhaust manifold 26 mm | Zündapp Bergsteiger, ZR25, ZR30

For: Zündapp

20588

Exhaust manifold 26 mm | Zündapp Bergsteiger, ZR25, ZR30

Color: Chrome · Ø outside: 26 mm · Total length: 420 mm · Material: Steel · Surface: chrome-plated · Number of fixing points: 2 pcs · Mounting type: Stud bolts & nuts · Hole spacing outlet: 41.5 mm · Zündapp OEM number: 434-22.600

EUR 42.40

Meteor piston pin Ø 12 mm (length: 31 - 40 mm)
undefined
angle-right

For: Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha

20875

Meteor piston pin Ø 12 mm (length: 31 - 40 mm)

Manufacturer: Meteor · Material: Steel · Surface: Hardened · Total length: 31 mm · Total length: 31.5 mm · Total length: 33 mm · Total length: 35.5 mm · Total length: 37 mm · Total length: 38 mm · Total length: 40 mm · Ø piston pin (B): 12 mm · Pony OEM number: A1112 · Sachs OEM no.: 0216 003 105

EUR 8.40

Gasket set | Zündapp automatic ZA, ZR

For: Zündapp

21278

Gasket set | Zündapp automatic ZA, ZR

Number of components: 5 pcs · Area of application: Standard

EUR 26.60

Moped fans also bought

Hot Hot
KMC drive chain 415H (reinforced) 128L
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Zündapp Belmondo · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo

10040

KMC drive chain 415H (reinforced) 128L

Chain type: 415H · Ø Pin: 3.94 mm · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Number of chain links: 128 pcs · Chain pitch: 1/2" x 3/16" · Rolling circumference: 1626 mm · Chain lock type: Spring lock · Ø bore: 4 mm · Color: gray

EUR 15.20

GPO 15 mm carburetor tuning | Puch
undefined

For: Puch · Sachs

10067

GPO 15 mm carburetor tuning | Puch

Nominal diameter: 15 mm · Manufacturer: GPO · Component group Carburetor: Carburetor complete · Material: Aluminum · Mounting type: Plug connection clamped · Carburetor type: SRE · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Ø fuel hose connection: 6 mm · Nozzle size: 62 · Total length: 66 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Area of application: Tuning · Ø Air filter connection: 20 mm · Width: 50 mm · Ø Internal connection: 20 mm · Height: 95 mm · Mixed oil connection: No · Vacuum connection: No · Nozzle block: 2.17 · Camouflaged: No · Clamping screw torque (max.): 4 N/m

EUR 78.80

GPO mushroom air filter grille, Bing SRE (Ø=20 mm)
undefined

For: Universal · Sachs

10122

GPO mushroom air filter grille, Bing SRE (Ø=20 mm)

Manufacturer: GPO · Material: Metal · Material: Rubber · Mounting type: Bride · Mounting type: Plug connection clamped · Filter type: Grille · Length rubber part: 63.5 mm · Length of filter section: 49 mm · Total length: 113 mm · Ø outside: 61 mm · Color: Chrome · Area of application: Tuning · Color: black · Ø Internal connection: 20 mm · Camouflaged: No

EUR 15.70

Hot Hot
Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing
undefined

For: Universal · Puch · Sachs · Zündapp Belmondo · Tomos · Alpa Chopper / Turbo · DKW · ILO / JLO · Kreidler · MBK / Motobécane · Miele · Monark · Victoria · Zündapp

10173

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø Stranded wire: 1.25 mm · Cable length: 2200 mm · Nipple shape: Cylinder · Ø nipple: 3 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Nipple length: 5 mm · Number of components: 1 pcs

EUR 2.90

swiing® revival locking plate gear nut M10 | Puch X30

For: Puch

12277

swiing® revival locking plate gear nut M10 | Puch X30

Manufacturer: swiing® revival parts · Material: Steel · Thread size: M10 · Ø inside: 10.45 mm · Number of lobes: 1 pcs

EUR 7.15

swiing® revival gasket outlet | Zündapp Belmondo

For: Zündapp Belmondo · Zündapp

16169

swiing® revival gasket outlet | Zündapp Belmondo

Material: Graphite / Graphite · Total length: 53 mm · Number of fixing points: 2 pcs · Ø mounting hole: 7.1 mm · Manufacturer: swiing® revival parts · Place of use: Outlet · Ø outside: 38.3 mm · Ø inside: 25 mm · Thickness: 1.5 mm · Hole spacing: 40 mm

EUR 4.75

Nut M10x1 mm galvanized

Universal

24185

Nut M10x1 mm galvanized

Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut · Drive: External hexagon · Height: 8 mm · Width across flats: 17 mm · Thread type: MF10x1 (fine pitch thread) · Tomos OEM number: 215487

EUR 3.50

Pinion mounting M10x1 mm original | Zündapp Belmondo, Bergsteiger, Alpa (Type 247)

For: Zündapp Belmondo · Zündapp

24186

Pinion mounting M10x1 mm original | Zündapp Belmondo, Bergsteiger, Alpa (Type 247)

Nut type: Hexagon nut · Drive: External hexagon · Width across flats: 17 mm · Thread type: MF10x1 (fine pitch thread)

EUR 7.90

Inox

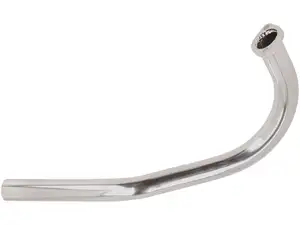

swiing® ingenious flame tube 28 mm (right-handed) Inox | Alpa SP 3000, Zündapp Bergsteiger
