logo_meteor-piston-mk

For: Zündapp

24343

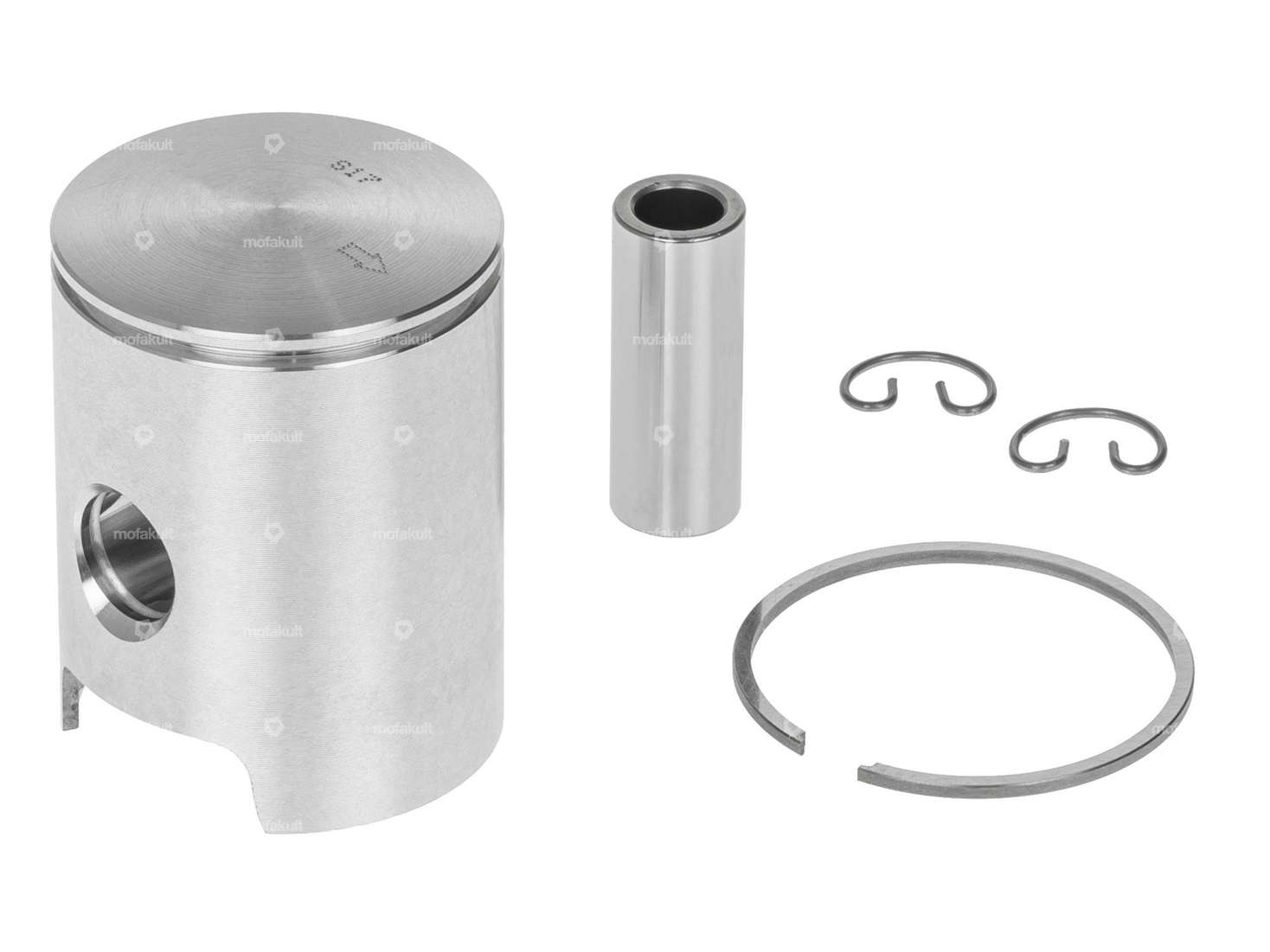

Meteor piston 38.96 mm #CD | Zündapp ZA, ZL, ZS, ZX, ZE

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 72.20

Incl. 23% VAT.

Description

39.0 mm piston with one piece of 1.5 mm rectangular piston rings with internal circlip (IS) suitable for Zündapp ZX25 / ZA25 / ZA40 / ZL25 / ZS25 / ZE40 / X25 / A25 mopeds, which have a Zündapp engine type 460 installed.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter39 mm
ManufacturerMeteor
Ø outside piston (A)38.96 mm
Compression height (C)26 mm
Curvature (D)1.5 mm
Total piston height (E)51.5 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Tolerance groupCD
Weight piston kit79 g
Zündapp

ZA 25 / ZA 40 (type 250-460)

ZL 25 / ZS 25 / ZX 25 / ZE 40 (type 278-460)
