38.0 mm piston with a 1.5 mm rectangular piston ring with flank lock (FS) for your Puch Supermaxi LG1 & LG2 moped / moped with catalytic converter.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the images.
Tolerance no. 2

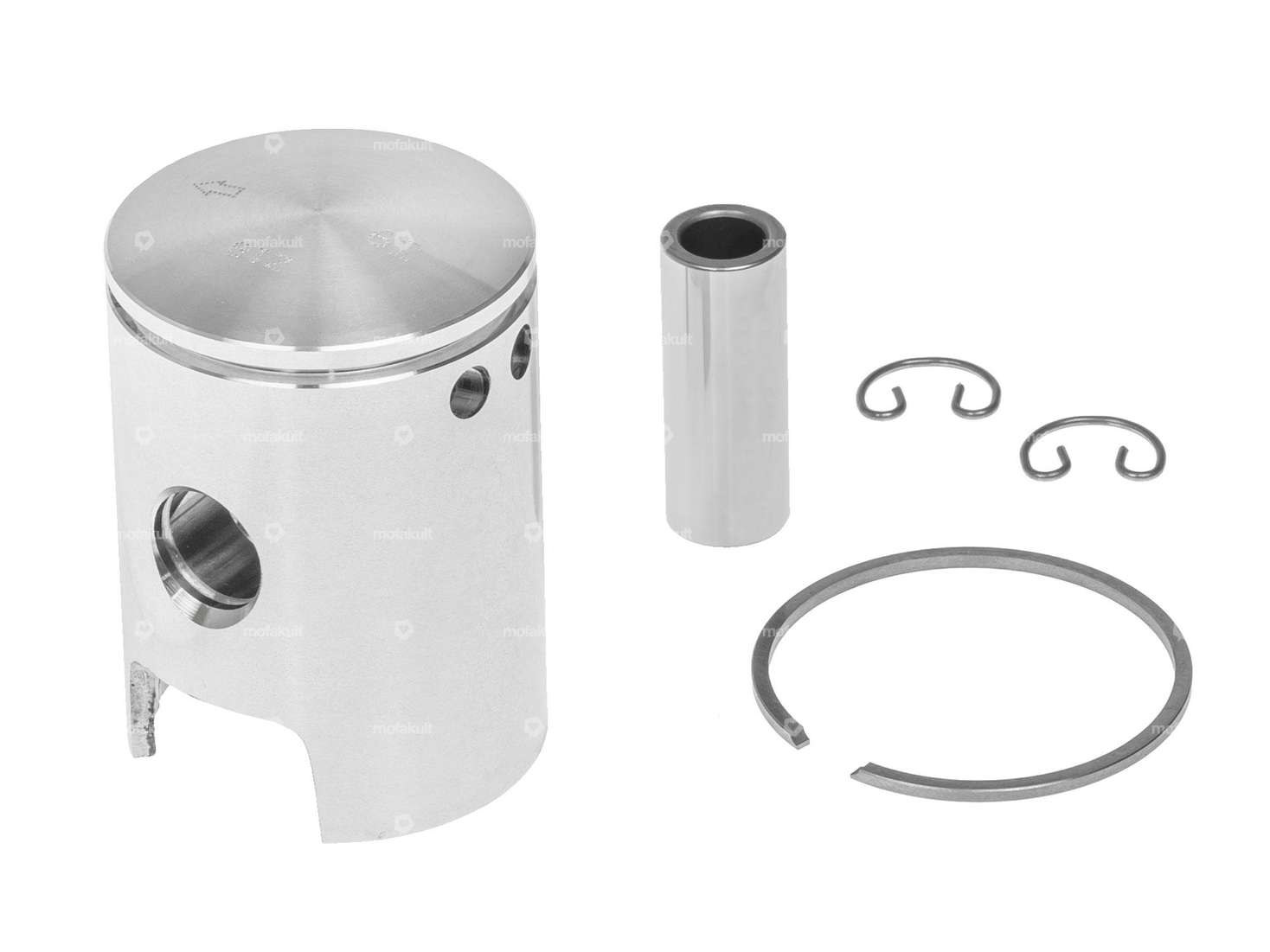

The piston kit contains piston pins, piston clips and piston rings.
Corresponding assembly tools, piston rings, piston pin locks etc. can be found under accessories.
Quality product from the Italian manufacturer Meteor.
| Manufacturer | Meteor |
| Ø outside piston (A) | 37.96 mm |
| Compression height (C) | 24 mm |
| Curvature (D) | 2.3 mm |
| Total piston height (E) | 55.3 mm |
| Number of piston rings (F) | 1 pcs |
| Nominal diameter | 38 mm |
| Piston ring mold | Rectangular ring |
| Ø piston pin (B) | 12 mm |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 1.5 mm |
| Tolerance group | 2 |
| Weight piston kit | 78 g |
| Puch | E50 ZA50 (air-cooled) |
