logo_meteor-piston-mk

For: Puch

10594

Meteor piston 38 mm #3 | Puch

EUR 59.90

Incl. 23% VAT.

Product description

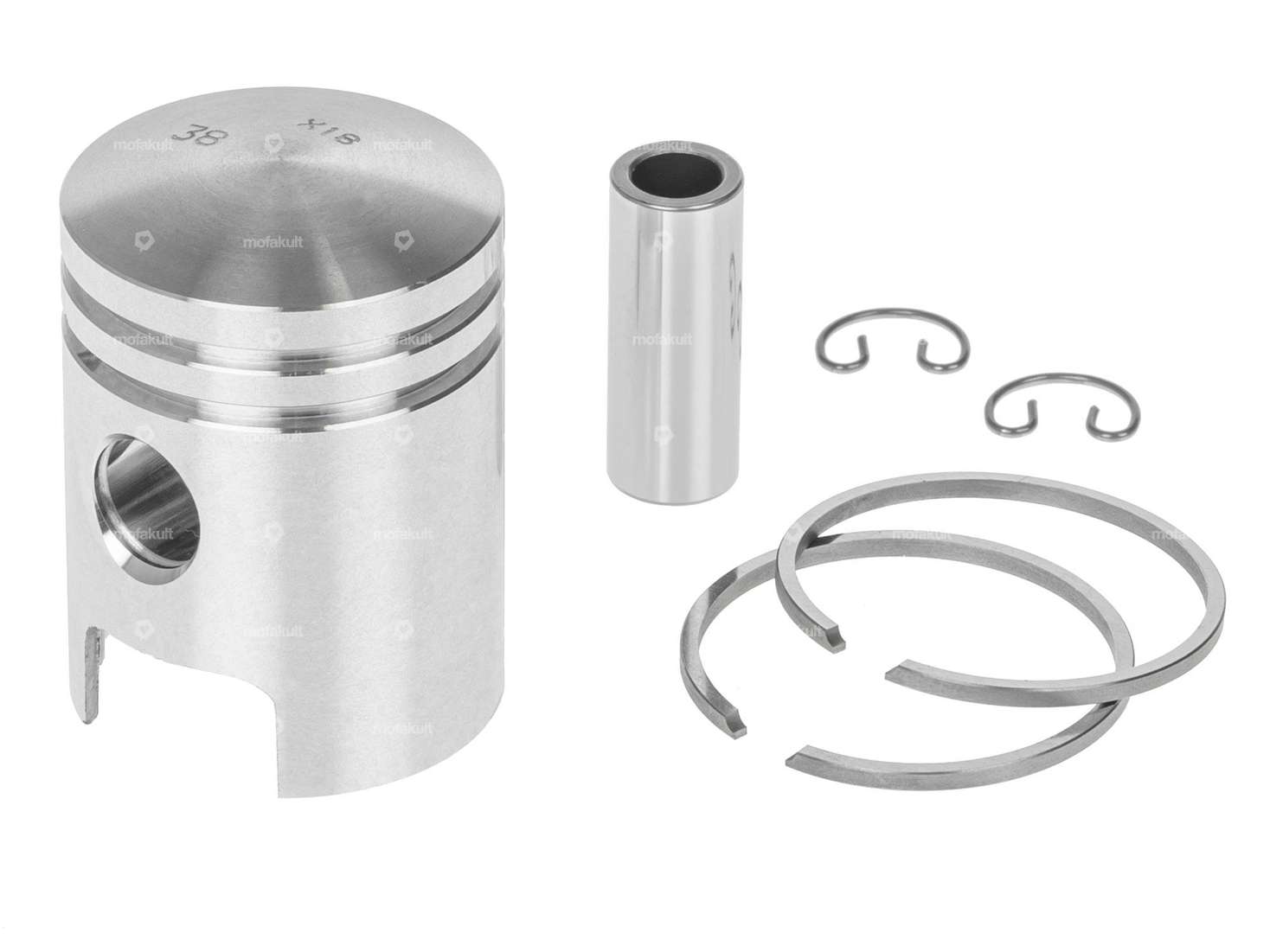

38.0 mm piston with two 2 mm rectangular piston rings with flank lock (FS) for original Puch Maxi and X30 Sport mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.

Tolerance no. 3

The piston kit contains piston pins, piston clips and piston rings.

Corresponding assembly tools, piston rings, piston pin locks etc. can be found under accessories.

Quality product from the Italian manufacturer Meteor.

Nominal diameter38 mm
ManufacturerMeteor
Ø outside piston (A)37.97 mm
Compression height (C)22.7 mm
Curvature (D)3.3 mm
Total piston height (E)52.5 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height2 mm
Ø piston pin (B)12 mm
Tolerance group3
Piston weight79 g
Puch

E50

ZA50 (air-cooled)

ZA50 (fan-cooled)

Z50 (X30 Sport)

Z50 (X30 Velux)

2-speed MS, MV, MV50

3-speed VSD, DS, VZ, MC
