38.0 mm piston with two 2 mm rectangular piston rings for original Puch Maxi, X30 Sport.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their dimensions and locking types on the legend in the pictures.
Tolerance no. 5

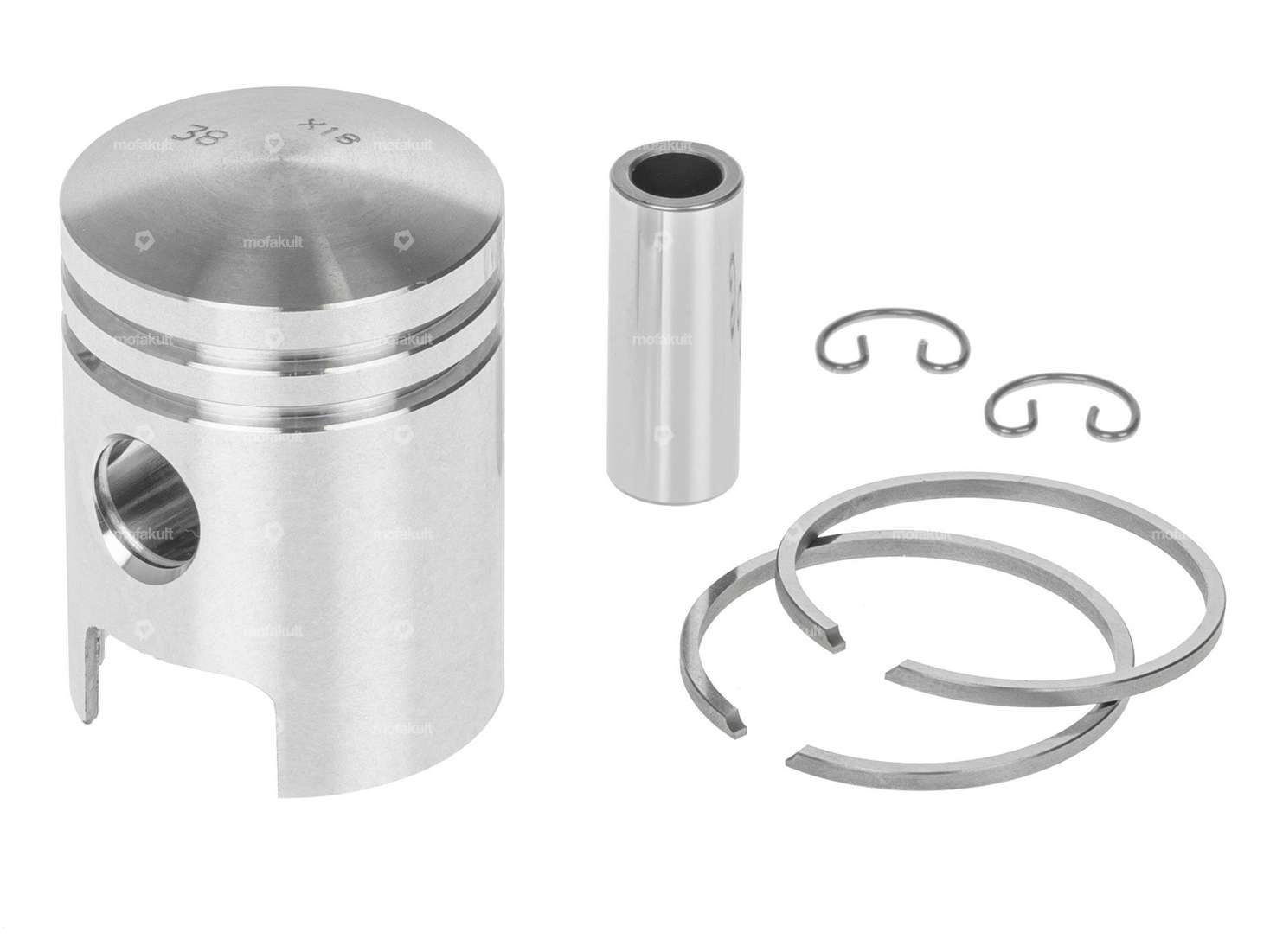

The piston kit contains piston pins, piston clips and piston rings.
Corresponding assembly tools, piston rings, piston pin locks etc. can be found under accessories.
Quality product from the Italian manufacturer Meteor.
| Nominal diameter | 38 mm |
| Manufacturer | Meteor |
| Ø outside piston (A) | 37.99 mm |
| Compression height (C) | 22.7 mm |
| Curvature (D) | 3.3 mm |
| Total piston height (E) | 52.5 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 2 mm |
| Ø piston pin (B) | 12 mm |
| Tolerance group | 5 |
| Weight piston kit | 80 g |
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
Ratings
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Total length: 130 mm · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool · Number of components: 7 pcs
EUR 24.00
GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH
Manufacturer: GPO · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Ø cylinder: 38 mm · Ø outlet inside: 22 mm · Area of application: Standard · Hole spacing outlet: 42 mm · Thickness: 0.3 mm · Thickness: 0.4 mm · Thickness: 1.8 mm · Number of components: 4 pcs · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes · Hole spacing inlet: 32 - 38 mm
EUR 8.90
