For: Sachs

11681

Meteor piston 38 mm #B | Sachs 503 AB/AC

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 65.50

Incl. 23% VAT.

Description

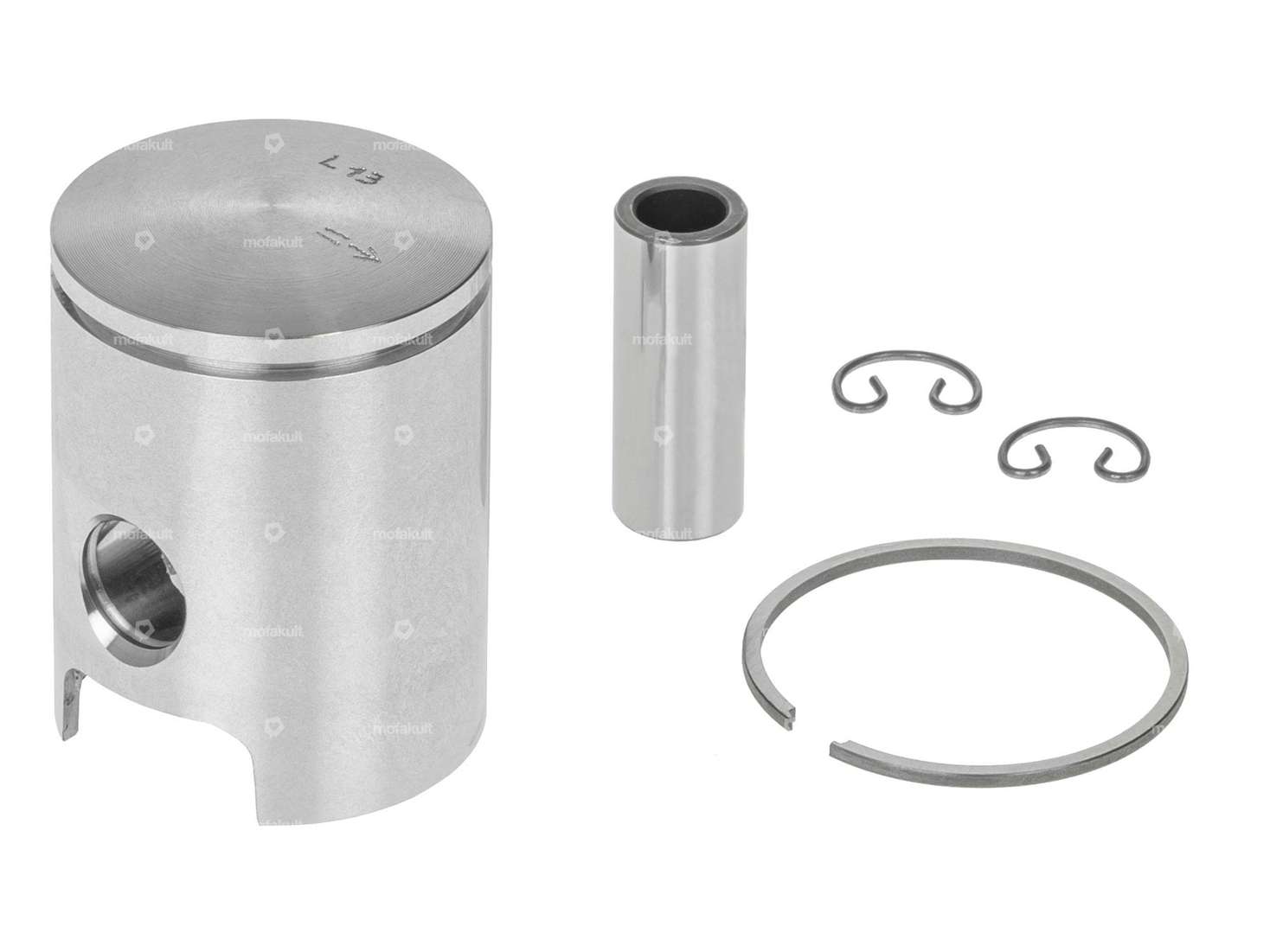

38.0 mm piston with a 1.5 mm rectangular piston ring with internal circlip (IS) suitable for mopeds / mopeds with Sachs 503 AB / AC engines.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the images.

Tolerance: B

The piston kit contains piston pins, piston clips and piston rings.

Corresponding assembly tools, piston rings, piston pin locks etc. can be found under accessories.

Original Sachs spare part number: A5685B

Quality product from the Italian manufacturer Meteor.

ManufacturerMeteor
Ø outside piston (A)37.97 mm
Compression height (C)28 mm
Curvature (D)2 mm
Total piston height (E)51 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Nominal diameter38 mm
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Tolerance groupB
Weight piston kit75 g
Pony OEM numberA5685B
Sachs OEM no.0286 382 306
Sachs

503 - AB , AC
