For: Puch

18014

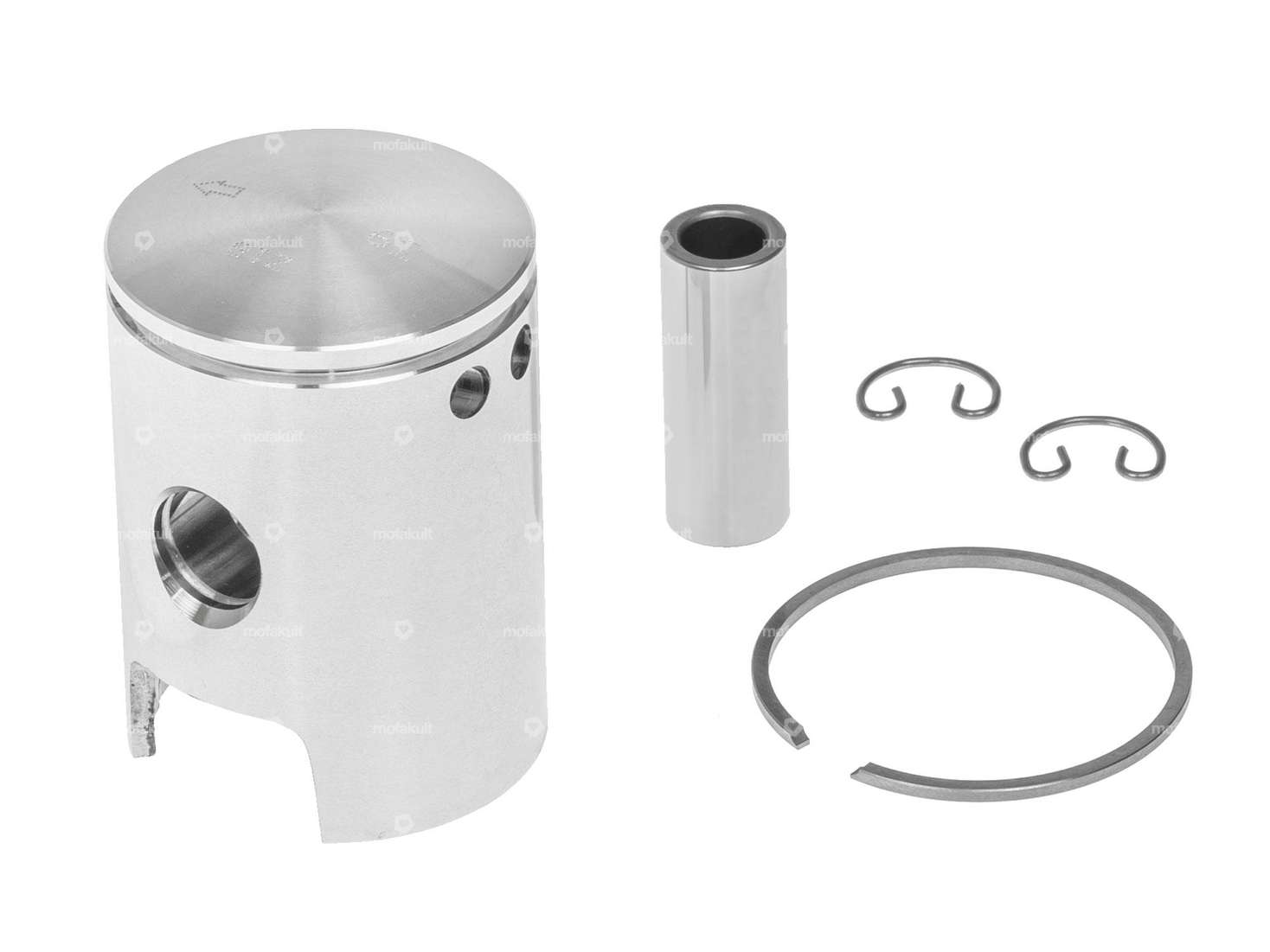

Meteor piston 38 mm type 4 | Puch Supermaxi Cat.

EUR 66.20

Incl. 23% VAT.

Description

38 mm piston with a 1.5 mm rectangular piston ring with flank lock (FS) for Puch Supermaxi LG1 & LG2 mopeds / mopeds with catalytic converter.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter38 mm
ManufacturerMeteor
Ø outside piston (A)37.97 mm
Compression height (C)24 mm
Curvature (D)2.3 mm
Total piston height (E)55.3 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Tolerance group4
Weight piston kit78 g
Puch

E50

ZA50 (air-cooled)
