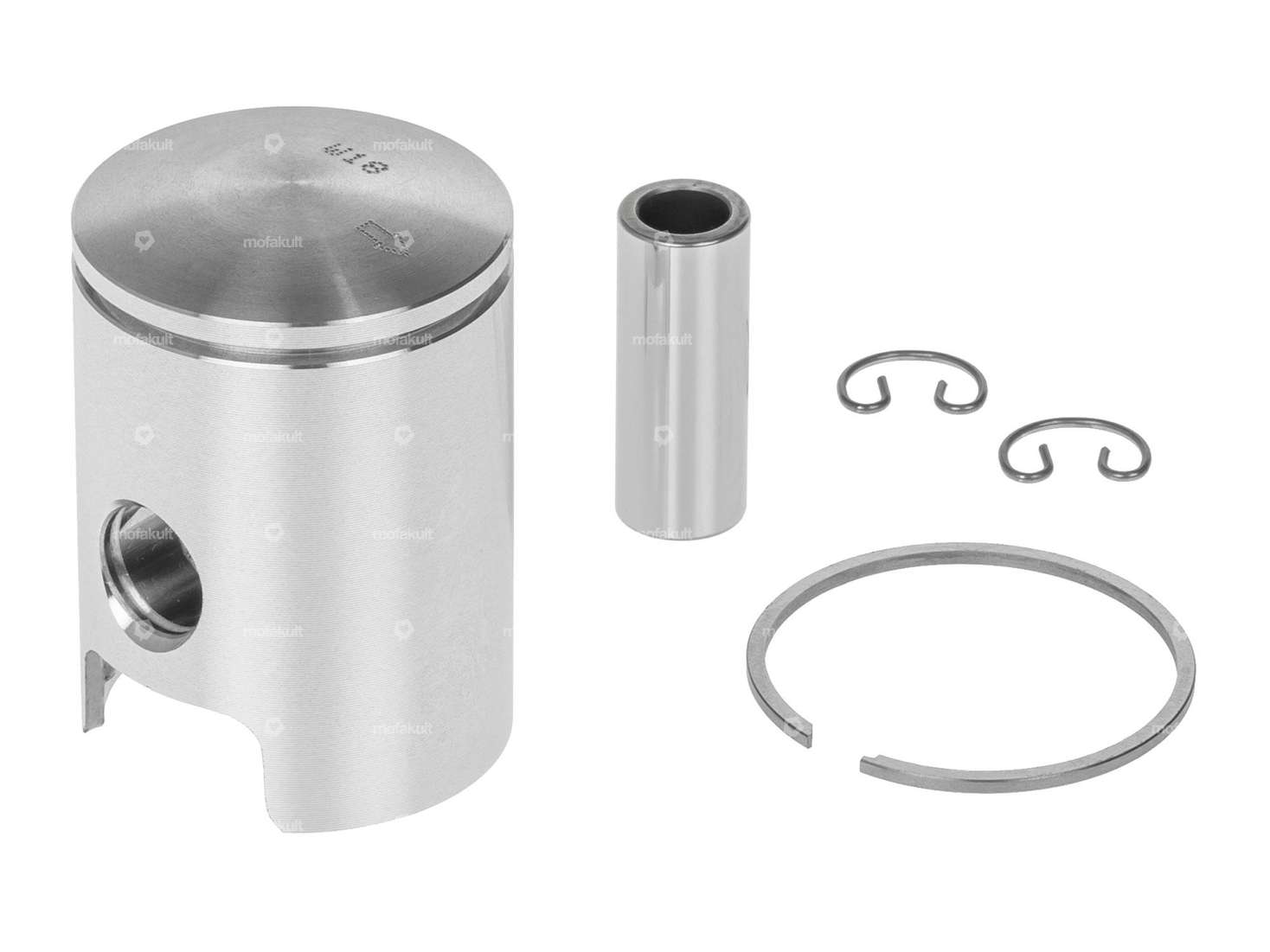

Meteor piston 38 mm type D | Sachs 503 ADV

EUR 67.40

Incl. 23% VAT.

Description

37.99 mm piston with a 1.5 mm rectangular piston ring with internal circlip (IS) suitable for Sachs 503 ADV engines.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter38 mm
ManufacturerMeteor
Ø outside piston (A)37.99 mm
Compression height (C)28 mm
Curvature (D)3 mm
Total piston height (E)54 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Tolerance groupD
Weight piston kit77 g
Sachs

503 - ADV

Accessories & related products

Hot Hot
Motorex 2-stroke oil "POWER SYNT" fully synthetic 1 L
undefined

Universal

10610

Motorex 2-stroke oil "POWER SYNT" fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents: 1000 ml · Color: red

EUR 31.20

EUR 31.20/l

Meteor piston ring 38 x 1.5 (IS)
undefined

For: Puch · Sachs

11685

Meteor piston ring 38 x 1.5 (IS)

Manufacturer: Meteor · Nominal diameter: 38 mm · Height: 1.5 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Thick piston ring: 1.6 mm

EUR 11.90

swiing® revival cylinder base gasket | Sachs 503 AB / AC / ADV
undefined

For: Sachs

12002

swiing® revival cylinder base gasket | Sachs 503 AB / AC / ADV

Place of use: Cylinder base · Nominal diameter: 38 mm · Ø inside: 56 mm · Manufacturer: swiing® revival parts · Material: Sealing paper · Thickness: 0.4 mm · Area of application: Standard · Hole pattern [mm]: 55 x 55

EUR 5.30

swiing® revival gasket cylinder head | Sachs 503 AB/AC/ADV
undefined

For: Sachs

12003

swiing® revival gasket cylinder head | Sachs 503 AB/AC/ADV

Place of use: Cylinder head · Manufacturer: swiing® revival parts · Nominal diameter: 38 mm · Reinforced: Yes · Thickness: 1 mm

EUR 10.10

Buzzetti pliers for piston ring assembly
undefined

For: Sachs · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · Suzuki · Monark · Peugeot · Victoria · Yamaha · Zündapp · Franco Morini

15195

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

EUR 16.30

Meteor piston pin lock Ø 12 mm (double)
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · Suzuki · Monark · Peugeot · Victoria · Yamaha

17313

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

EUR 1.45

GPO piston pin extractor Ø 10, 12, 14 mm
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · Suzuki · Monark · Peugeot · Victoria · Yamaha · Zündapp

17988

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Number of components: 7 pcs · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Area of application: (Dis)assembly tool · Width across flats: 10 mm · Width across flats: 17 mm

EUR 24.00

O-ring gasket cylinder head | Sachs 503 AB, ADV, AC (A7678)
undefined

For: Sachs

18041

O-ring gasket cylinder head | Sachs 503 AB, ADV, AC (A7678)

Place of use: Cylinder head · Nominal diameter: 58 mm · Manufacturer: Sachs · Thickness: 3.5 mm · Ø outside: 58.5 mm · Ø outlet inside: 53 mm · Ø inside: 51.5 mm

EUR 10.70

Meteor piston ring 38 x 1.5 (IS) | Sachs 503 AB, AC
undefined

For: Sachs

21297

Meteor piston ring 38 x 1.5 (IS) | Sachs 503 AB, AC

Nominal diameter: 38 mm · Manufacturer: Meteor · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Height: 1.5 mm · Area of application: Original · Thick piston ring: 1.6 mm · Pony OEM number: A1101 · Sachs OEM no.: 0215 100 100

EUR 11.90

Explore categories from Piston

S-10-60-020-010_Kolbenring
Piston ring
S-10-60-020-020_Kolbenbolzen
Piston pin
S-10-60-020-030_Kolbenbolzenclip
Piston pin clip
S-10-60-020-040_Kolbenkit
Piston kit
S-10-60-020-050_Werkzeug
Tool

Moped fans also bought

swiing® revival Bing float needle (with penetration) SRE, SRC, SRF, SRA, 85, 18
undefined

For: Puch · Sachs · Zündapp Belmondo · DKW · Hercules · Kreidler · KTM

10002

swiing® revival Bing float needle (with penetration) SRE, SRC, SRF, SRA, 85, 18

Ø outside: 2.6 mm · Ø outside: 4 mm · Width: 3.3 mm · Manufacturer: swiing® revival parts · Material: Aluminum · Material: Rubber · Component group Carburetor: Adjusting screws, float, etc. · Color: black · Color: silver · Carburetor type: SRA (1/11/35) Velux · Carburetor type: SRC · Carburetor type: SRE · Carburetor type: SRF · Carburetor type: 18 Catalyst · Carburetor type: 85 · Total length: 12 mm · Alternative version of the Pony OEM number: A4595A · Alternative version of the Sachs OEM number: Bing 47-032

EUR 8.30

Hot Hot
Motorex Automatic Motor Oil (ATF) 450 ml
undefined

For: Universal · Puch · Sachs · Tomos · Bye Bike

10366

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

EUR 13.10

EUR 29.11/l

BING Rubber cap Bing 17 & 18
undefined

For: Puch · Sachs

10624

BING Rubber cap Bing 17 & 18

Manufacturer: BING · Color: black

EUR 4.70

Meteor piston 38 mm #C | Sachs 503 AB/AC
undefined

For: Sachs

11682

Meteor piston 38 mm #C | Sachs 503 AB/AC

Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.98 mm · Compression height (C): 28 mm · Curvature (D): 2 mm · Total piston height (E): 51 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: C · Weight piston kit: 75 g · Pony OEM number: A5685C · Sachs OEM no.: 0286 382 306

EUR 67.40

Oil seal NBR 17/33/7 B DUO crankshaft | Sachs 503 AB, ADV
undefined

For: Sachs

11987

Oil seal NBR 17/33/7 B DUO crankshaft | Sachs 503 AB, ADV

Shaft seal type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Place of use: Crankshaft · Material: NBR · Width: 7 mm · Ø inside: 17 mm · Ø outside: 33 mm · Temperature resistance (min.): -30 - 100 °C

EUR 10.70

swiing® revival engine seal | Sachs 503 AAL, ABL, AB, AC, ADV, 2AL, 2BL (A1884)
undefined

For: Sachs

11995

swiing® revival engine seal | Sachs 503 AAL, ABL, AB, AC, ADV, 2AL, 2BL (A1884)

Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Total length: 233 mm · Width: 140 mm · Ø inside: 87 mm · Thickness: 0.4 mm · Number of fixing points: 9 pcs · Number of components: 1 pcs · Pony OEM number: A1884 · Sachs OEM no.: 0250 149 100

EUR 6.50

swiing® revival gearbox cover gasket | Sachs 503 AAL, ABL, AB, AC, ADV, 2AL, 2BL (A1888)
undefined

For: Sachs

11998

swiing® revival gearbox cover gasket | Sachs 503 AAL, ABL, AB, AC, ADV, 2AL, 2BL (A1888)

Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Total length: 200 mm · Width: 130 mm · Thickness: 0.35 mm · Number of fixing points: 6 pcs · Number of components: 1 pcs · Pony OEM number: A1888 · Sachs OEM no.: 0250 150 000

EUR 6.50

swiing® revival cylinder base gasket | Sachs 503 AB / AC / ADV
undefined

For: Sachs

12002

swiing® revival cylinder base gasket | Sachs 503 AB / AC / ADV

Place of use: Cylinder base · Nominal diameter: 38 mm · Ø inside: 56 mm · Manufacturer: swiing® revival parts · Material: Sealing paper · Thickness: 0.4 mm · Area of application: Standard · Hole pattern [mm]: 55 x 55

EUR 5.30

swiing® revival Seal Kit | Sachs 503 ADV Wide-Wall (Cat.)
undefined

For: Sachs

21576

swiing® revival Seal Kit | Sachs 503 ADV Wide-Wall (Cat.)

Manufacturer: swiing® revival parts · Material: Copper · Material: Fiber · Material: Rubber · Material: Sealing carton · Material: Sealing paper · Ø outlet inside: 23.3 mm · Area of application: Standard · Hole spacing inlet: 38 mm · Decompressor: No · Hole pattern [mm]: 56 x 56 · Number of components: 15 pcs

EUR 54.20

swiing® revival gasket set cylinder | Sachs 503 AB, AC, ADV (wide wall)
undefined

For: Sachs

29115

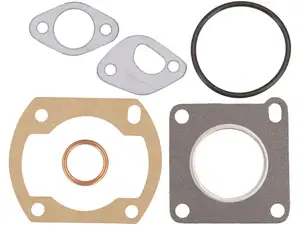

swiing® revival gasket set cylinder | Sachs 503 AB, AC, ADV (wide wall)
