logo_meteor-piston-mk

For: Zündapp

23883

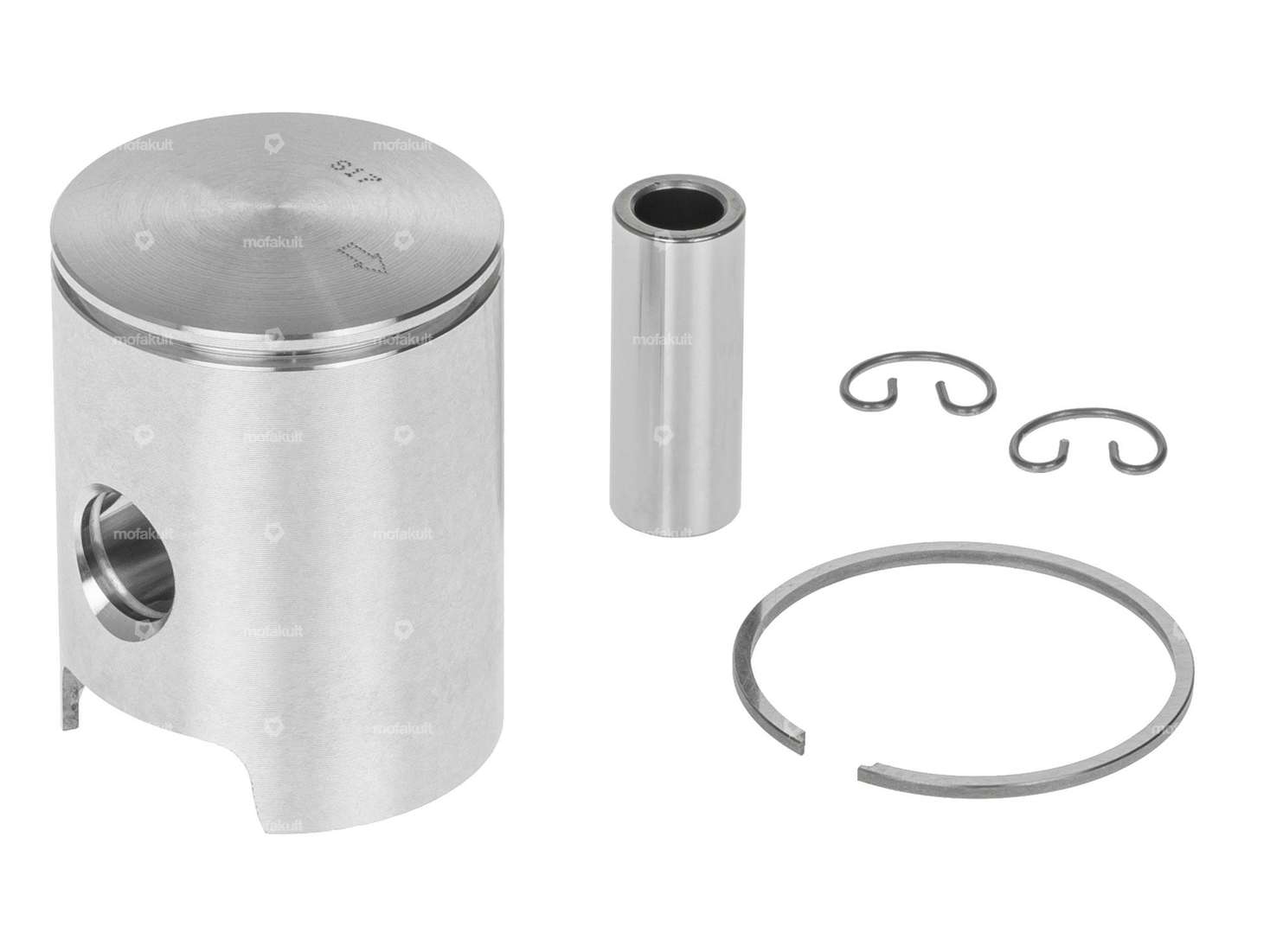

Meteor piston 39 mm #D | Zündapp ZA, ZL, ZS, ZX, ZE

EUR 72.20

Incl. 23% VAT.

Description

39.0 mm piston with a 1.5 mm rectangular piston ring with internal fuse (IS) suitable for Zündapp ZX25 / ZA25 / ZA40 / ZL25 / ZS25 / ZE40 / X25 / A25 mopeds, which have a Zündapp engine type 460 installed.

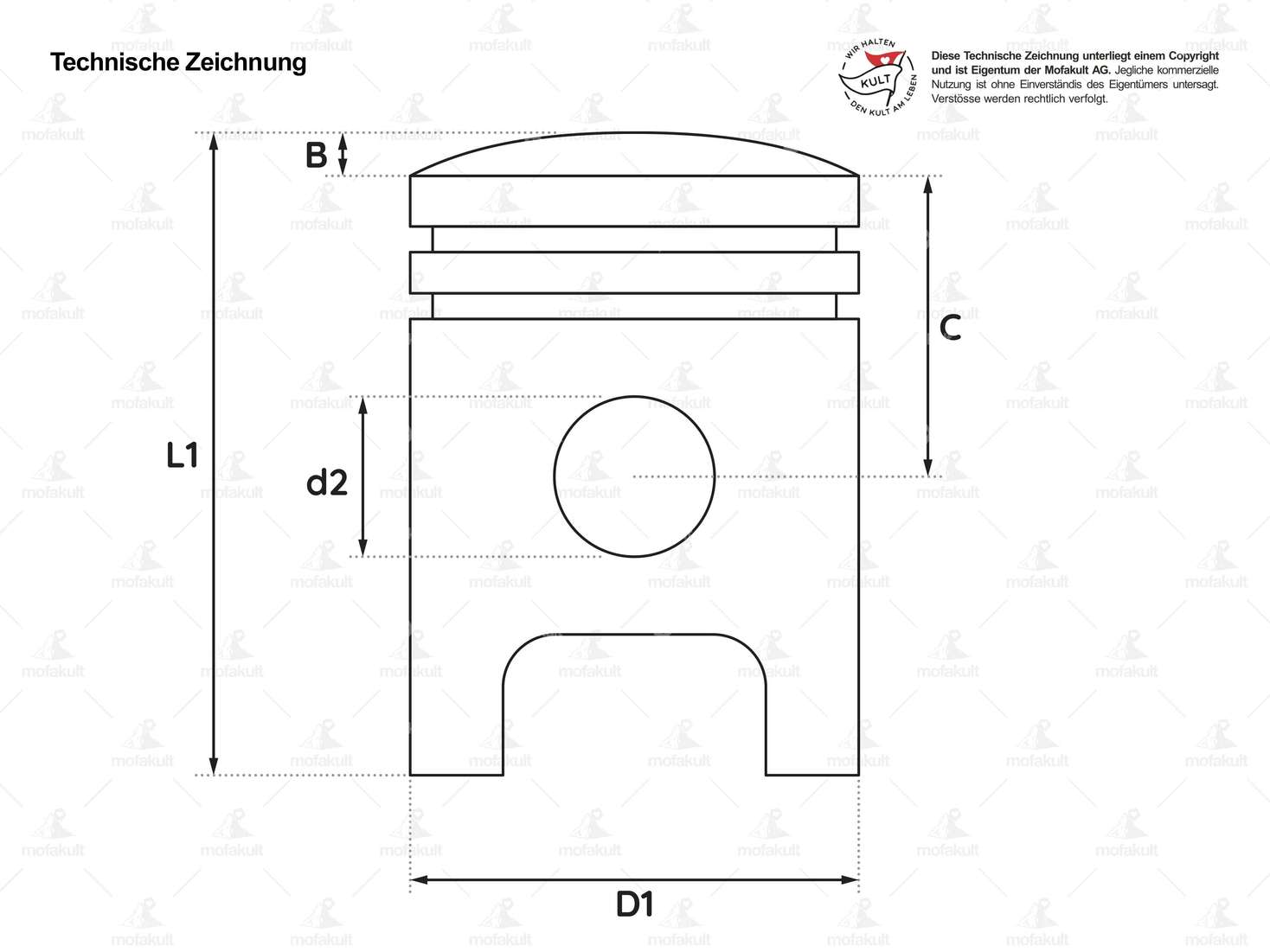

The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

ManufacturerMeteor
Nominal diameter39 mm
Ø outside piston (A)38.98 mm
Ø piston pin (B)12 mm
Compression height (C)26 mm
Curvature (D)1.5 mm
Total piston height (E)51.5 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Tolerance groupD
Weight piston kit80 g
Zündapp

ZA 25 / ZA 40 (type 250-460)

ZL 25 / ZS 25 / ZX 25 / ZE 40 (type 278-460)
