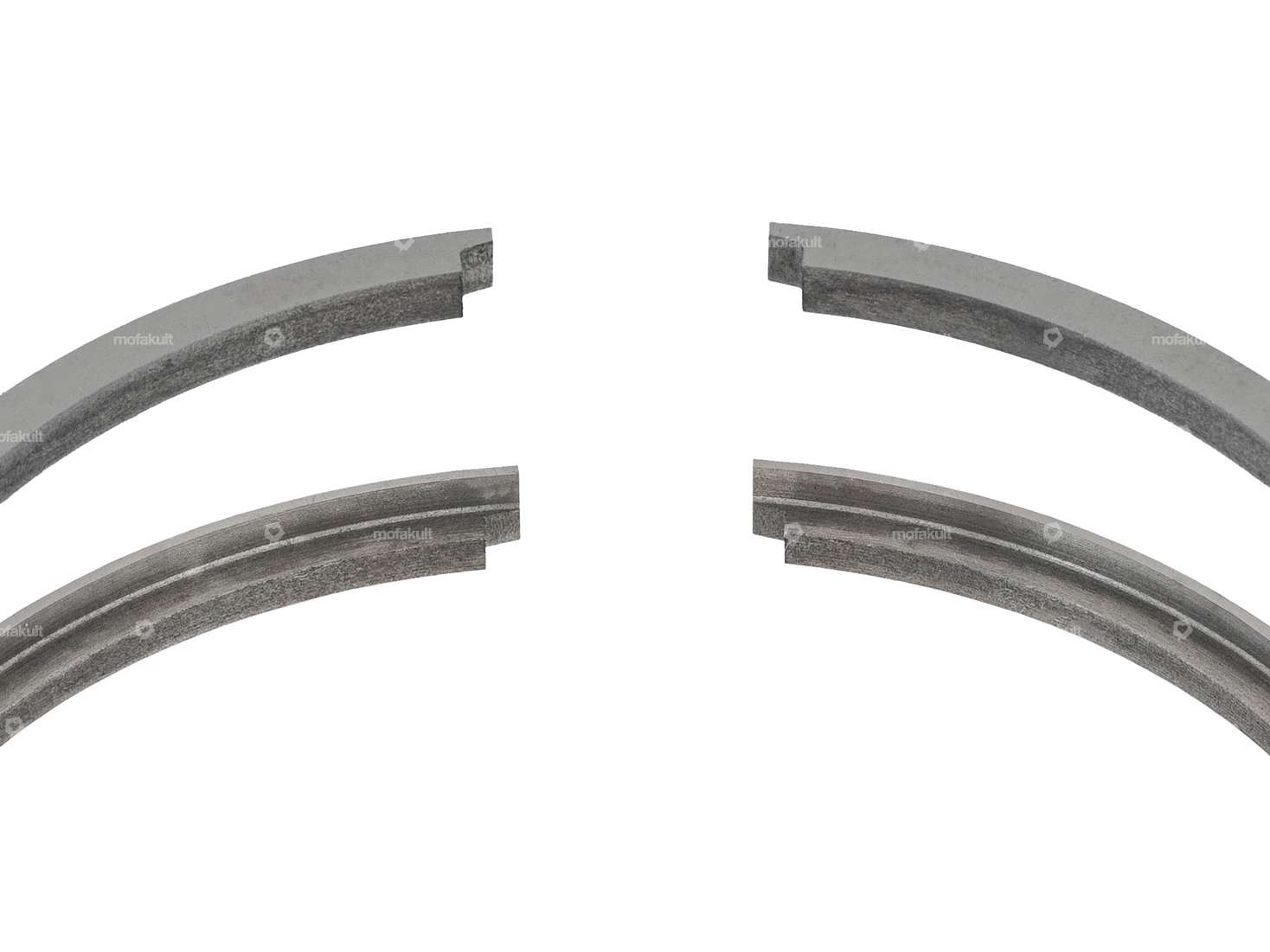

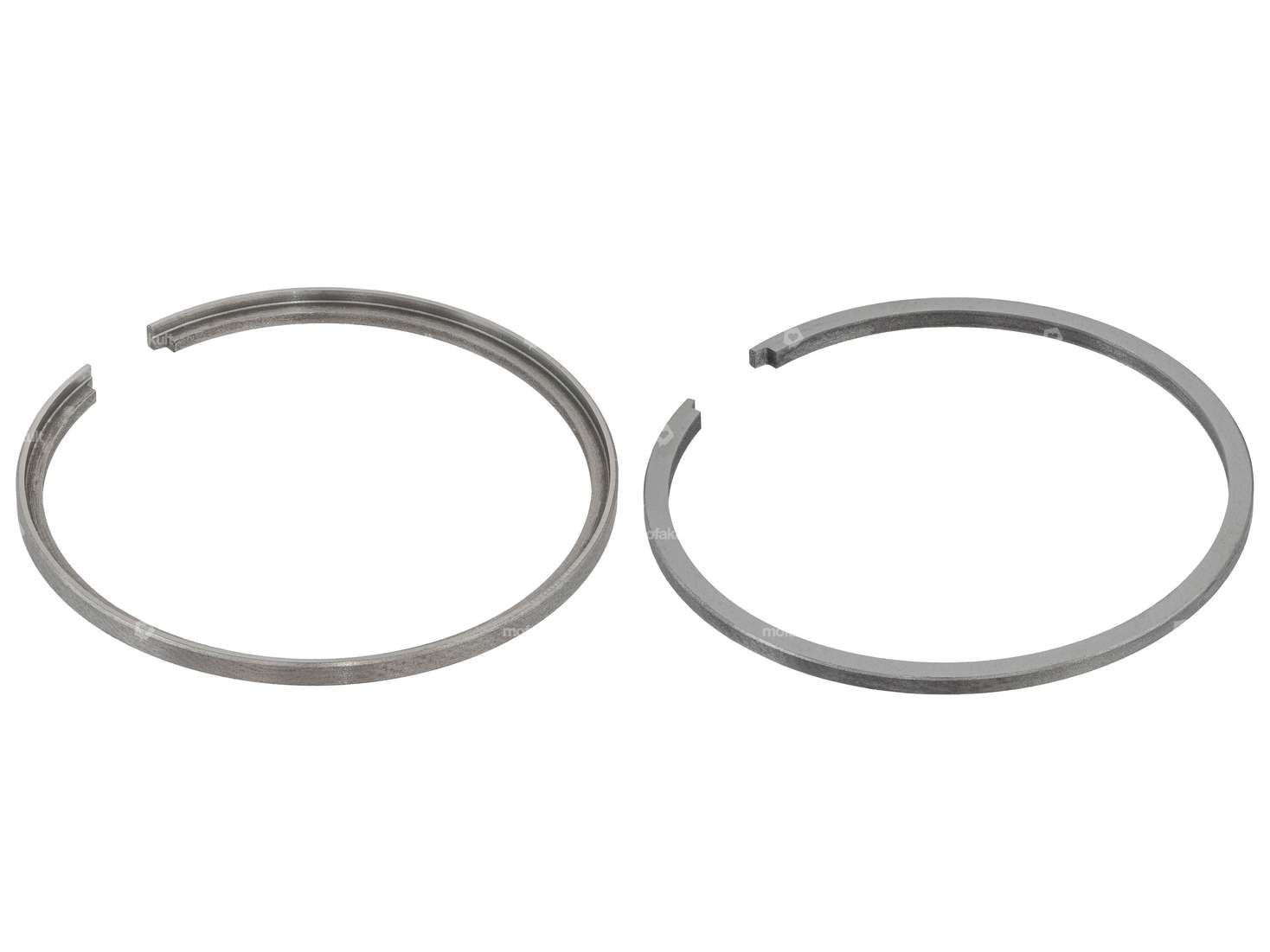

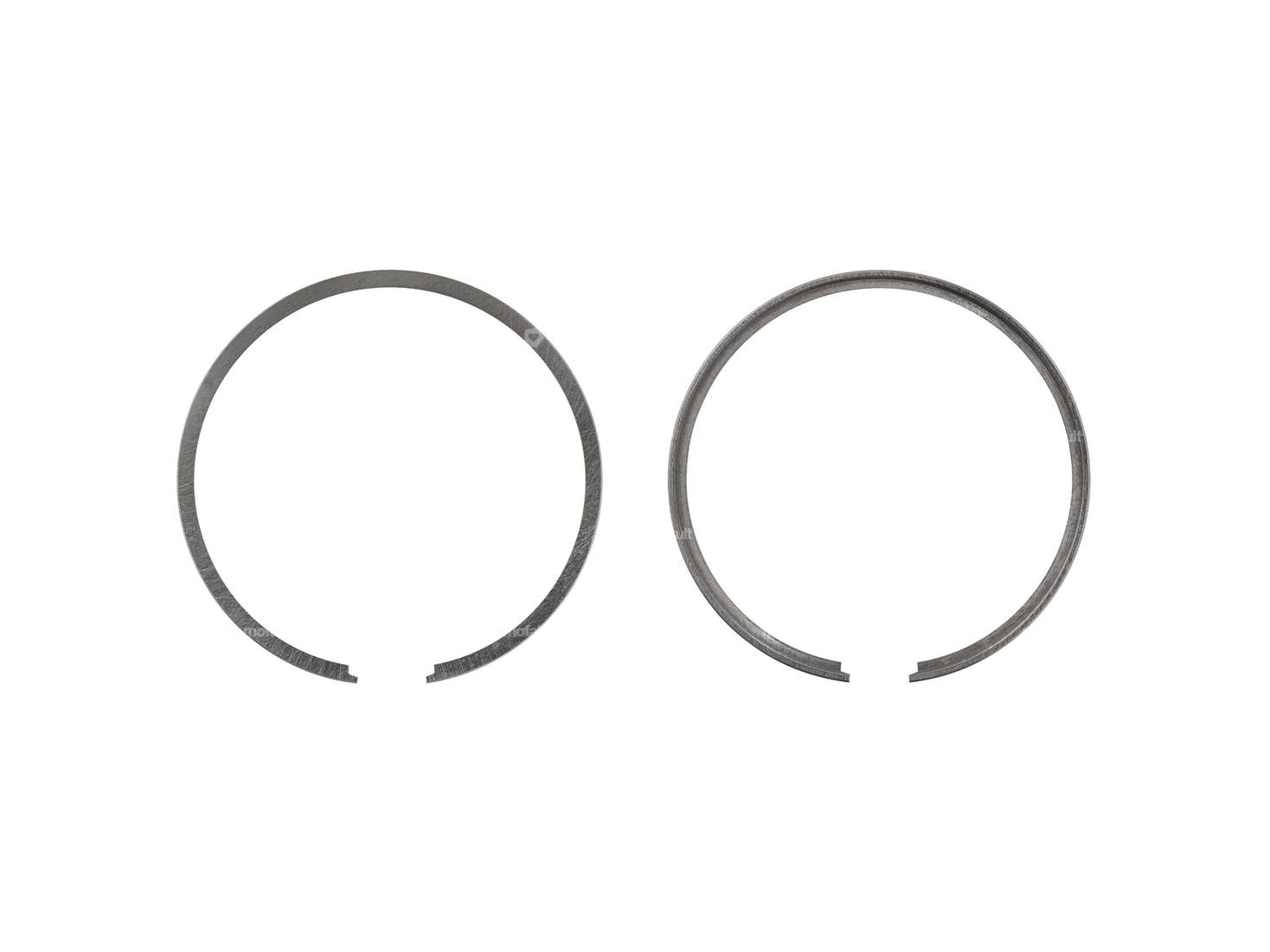

A set of 40.0 mm compression rings consisting of a rectangular ring and an L-piston ring, suitable for various Kreidler mopeds and small motorcycles such as Florett RS, Flory etc.

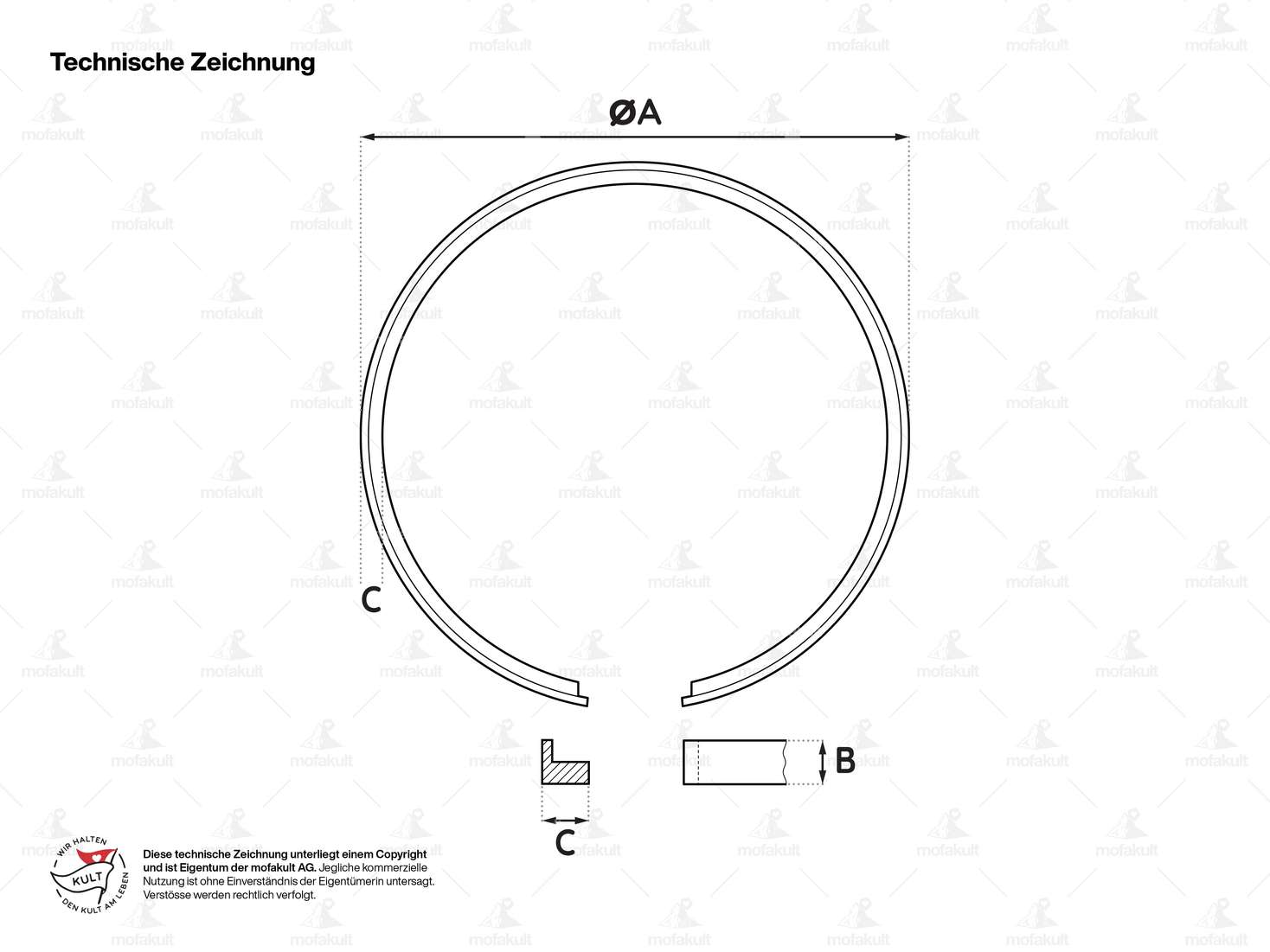

Dimension L-ring:
Ø outside (ØA): 40.00 mm
Height (B): 2.0 mm
Thickness (C): 1.85 mm

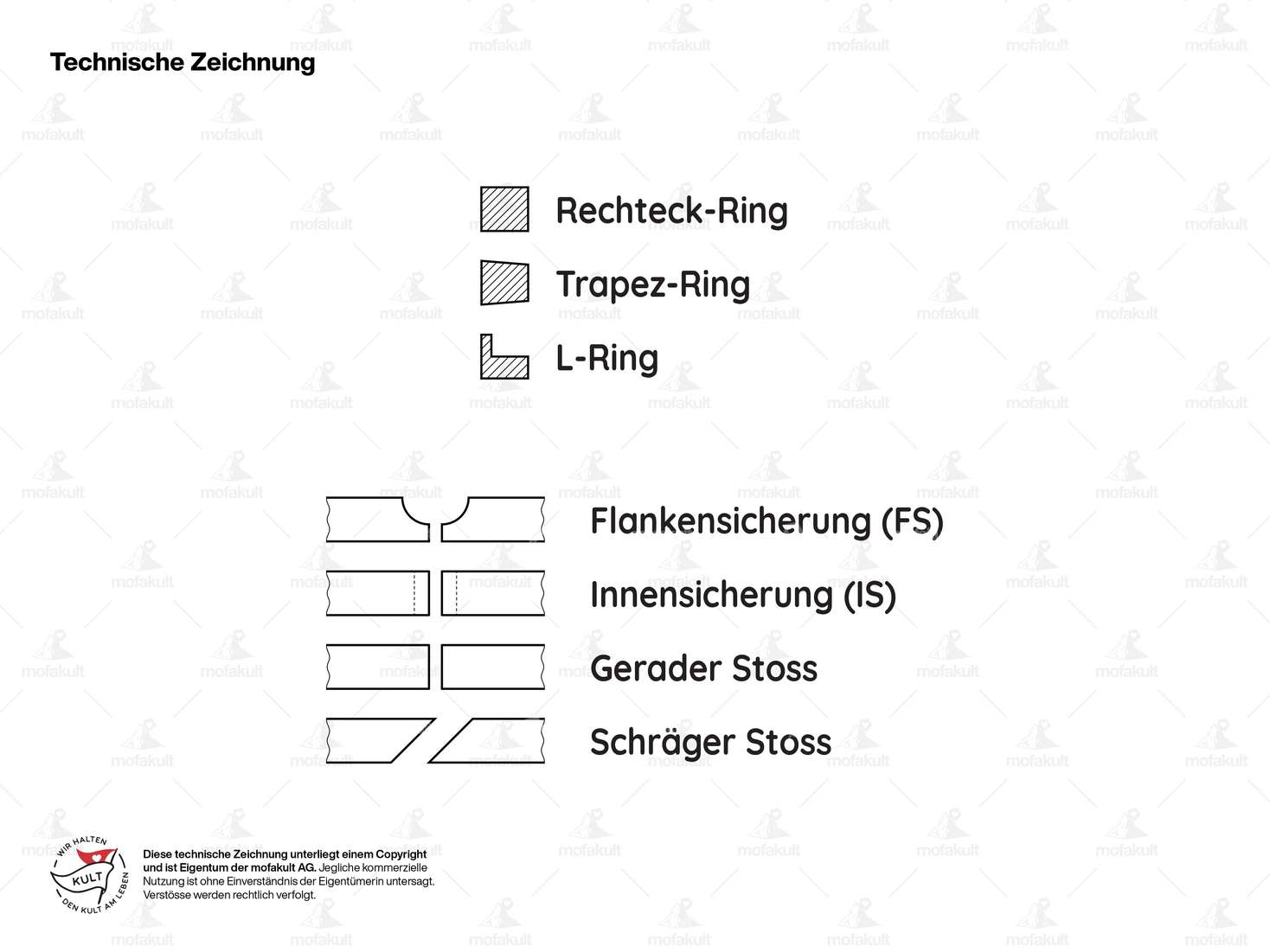

Piston ring shape: L-ring
Piston ring joint: Internal locking (IS)

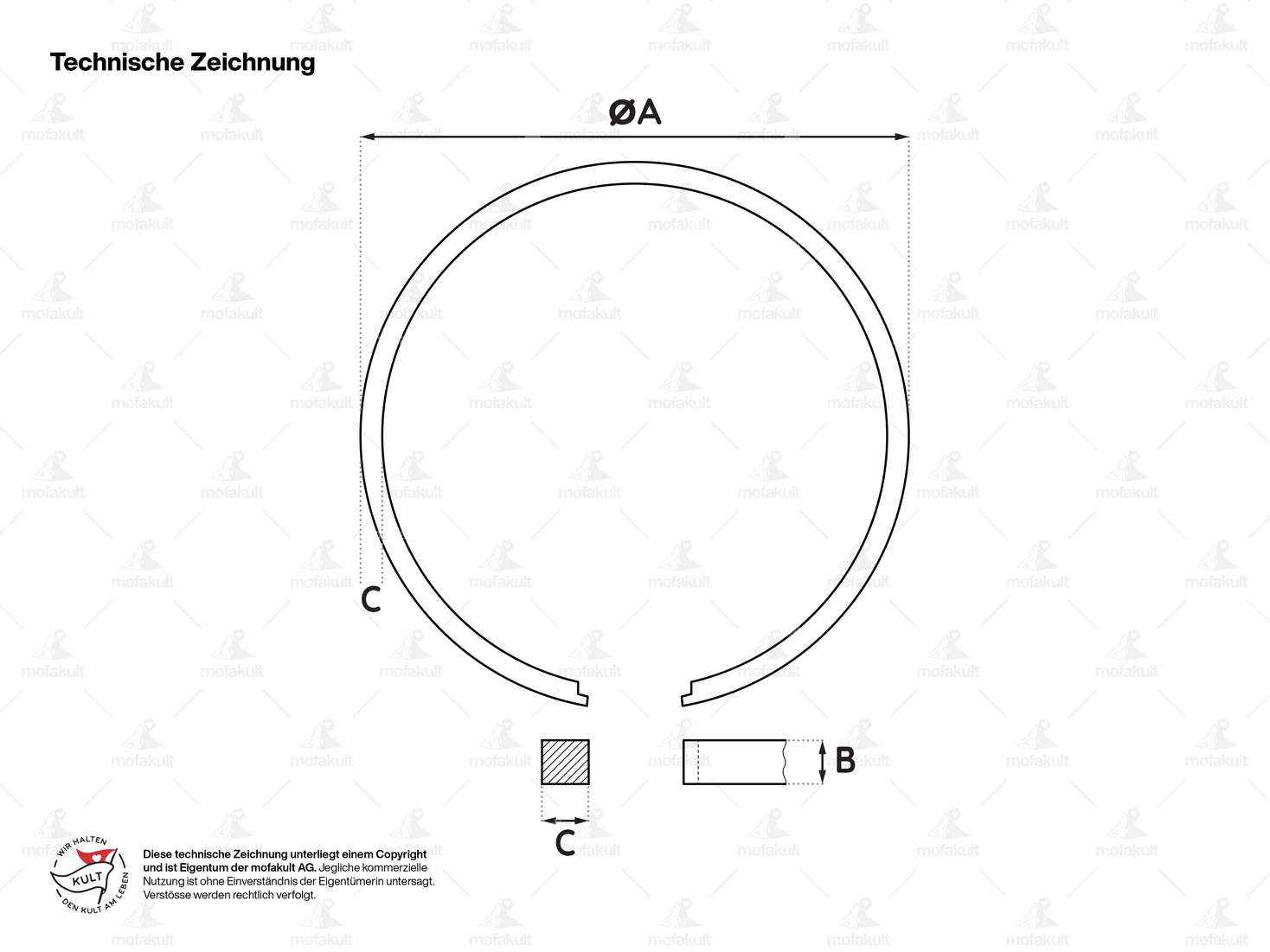

Size rectangular ring:
Ø outer (ØA): 40.00 mm
Height (B): 1.5 mm
Thickness (C): 1.65 mm
Piston ring shape: Rectangular ring
Piston ring joint: Internal locking (IS)
The scope of delivery corresponds to one pair.
Matching pistons, assembly tools and lubricant can be found in the accessories section.
Quality product from the Italian manufacturer Meteor.
Manufacturer: Meteor · Nominal diameter: 40 mm · Thick piston ring: 1.65 mm · Height: 1.5 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Diameter: 40 mm
Manufacturer: Meteor · Nominal diameter: 40 mm · Thick piston ring: 1.85 mm · Height: 2 mm · Piston ring mold: L-ring · Piston ring impact: Internal fuse (IS) · Diameter: 40 mm
| Nominal diameter | 40 mm |
| Manufacturer | Meteor |
| Diameter | 40 mm |
| Height | 2 mm, 1.5 mm |
| Piston ring mold | L-ring, Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Thick piston ring | 1.85 mm, 1.65 mm |
| Kreidler |
