MIKUNI float chamber carburetor TM24-9

MIKUNI 24 mm flat slide carburetor TM24-9 hand choke

Nominal diameter: 24 mm · Manufacturer: MIKUNI · Component group Carburetor: Carburetor complete · Carburetor type: Flat slide valve · Choke control: Hand choke · Width: 75 mm · Nozzle thread: M5.3x0.9 (standard thread) · Mounting type: Plug connection · Ø fuel hose connection: 6 mm · Nozzle size: 130 · Ø Air filter connection: 44 mm · Height: 130 mm · Size of secondary nozzle: 51 · Area of application: Tuning

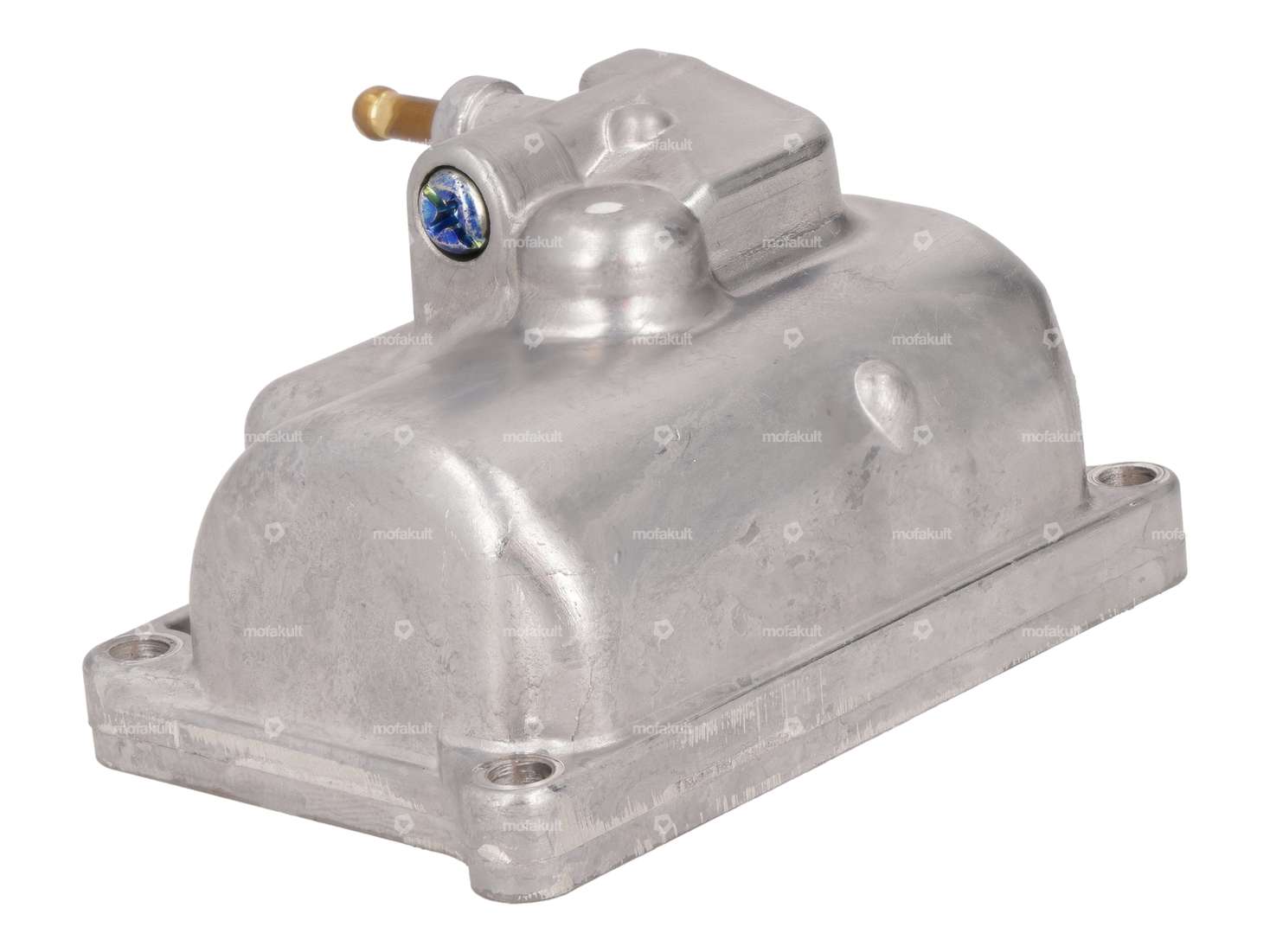

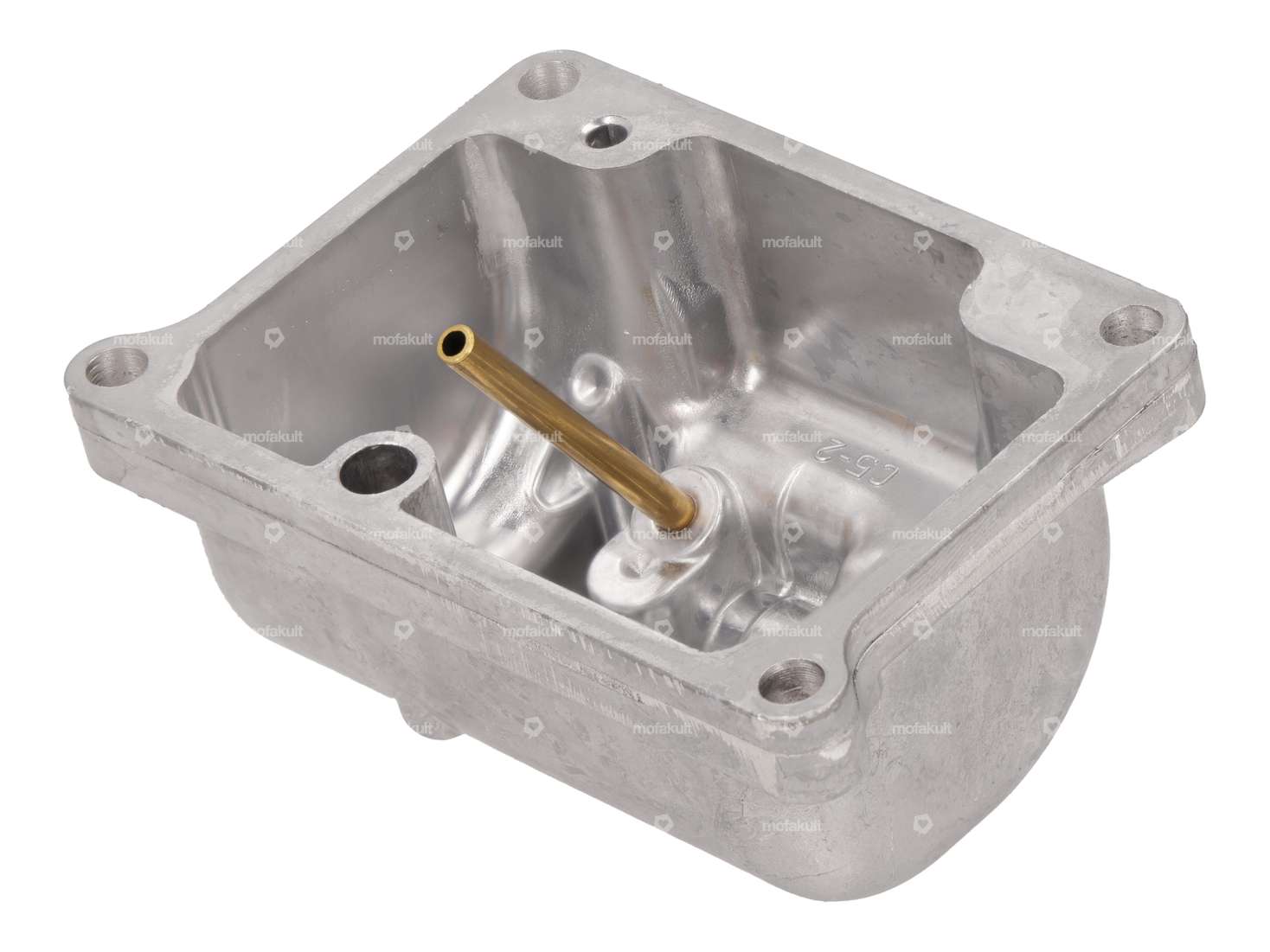

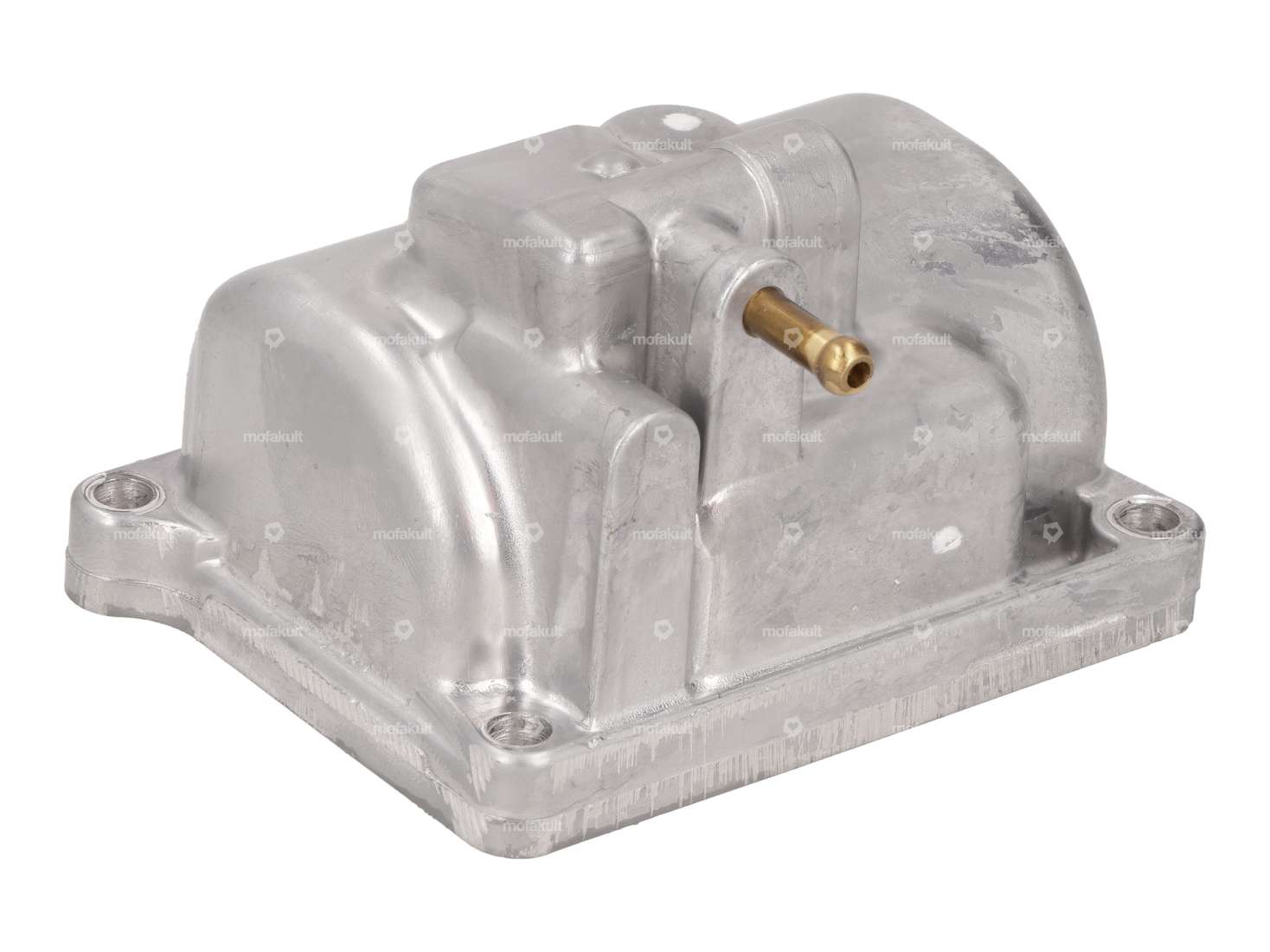

MIKUNI float chamber with adjusting nozzle

Manufacturer: MIKUNI · Material: Aluminum · Component group Carburetor: Adjusting screws, float, etc. · Thread type: M4x0.7 (standard thread) · Carburetor type: Mikuni (VM, TM, TMX) · Number of fixing points: 4 pcs

MIKUNI choke knob carburetor TM24-9

Manufacturer: MIKUNI · Material: Brass · Material: Plastic · Material: Spring steel · Component group Carburetor: Choke control · Ø inside: 8 mm · Carburetor type: Mikuni (VM, TM, TMX) · Ø outside: 13 mm · Choke control: Hand choke · Total length: 49.8 mm

MIKUNI circlip jet needle carburetor TM24-9

Manufacturer: MIKUNI · Material: Spring steel · Component group Carburetor: Spraying · Carburetor type: Mikuni (VM, TM, TMX) · Ø outside: 6 mm · Thickness: 0.4 mm · Ø Passage: 1.6 mm

MIKUNI jet needle 5N14-3 Carburetor TM24-9

Manufacturer: MIKUNI · Material: Aluminum · Component group Carburetor: Spraying · Carburetor type: Mikuni (VM, TM, TMX) · Ø outside: 2.5 mm · Total length: 52.2 mm · Number of notches (needle clip): 5 pcs

MIKUNI idle jet size 15 carburetor TM24-9

Manufacturer: MIKUNI · Material: Brass · Component group Carburetor: Spraying · Carburetor type: Mikuni (VM, TM, TMX) · Total length: 13.5 mm · Nozzle type: Idle nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 15 · Thread length: 4 mm

MIKUNI gasket float carburetor TM24-9

Manufacturer: MIKUNI · Material: Sealing carton · Component group Carburetor: Sealing, revising · Carburetor type: Mikuni (VM, TM, TMX) · Width: 48 mm · Total length: 73 mm · Thickness: 0.9 mm

MIKUNI sealing ring screw float chamber carburetor TM24-9

Manufacturer: MIKUNI · Material: Fiber · Component group Carburetor: Sealing, revising · Ø inside: 6 mm · Carburetor type: Mikuni (VM, TM, TMX) · Ø outside: 8 mm · Thickness: 0.4 mm

MIKUNI gasket cover carburetor TM24-9

Manufacturer: MIKUNI · Material: Sealing carton · Component group Carburetor: Sealing, revising · Ø inside: 15 mm · Carburetor type: Mikuni (VM, TM, TMX) · Width: 25 mm · Total length: 49.5 mm · Cord thickness: 1 mm

MIKUNI needle jet Q-0 (454) Carburetor TM24-9

Manufacturer: MIKUNI · Material: Brass · Component group Carburetor: Spraying · Carburetor type: Mikuni (VM, TM, TMX) · Total length: 34.5 mm · Nozzle type: Needle nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 454 · Thread length: 5.5 mm

MIKUNI needle valve size 2.5 carburetor TM24-9

Manufacturer: MIKUNI · Material: Brass · Material: Rubber · Component group Carburetor: Sealing, revising · Carburetor type: Mikuni (VM, TM, TMX) · Ø outside: 9 mm · Total length: 16.5 mm

MIKUNI gasket carburetor halves carburetor TM24-9

Manufacturer: MIKUNI · Material: Sealing carton · Component group Carburetor: Sealing, revising · Ø inside: 0.6 mm · Carburetor type: Mikuni (VM, TM, TMX) · Width: 59.5 mm · Total length: 68.3 mm

GPO racing handlebar fork plate 7 cm aluminum black matt

Manufacturer: GPO · Material: Aluminum · Surface: anodized · Color: black · Ø outside: 22.15 mm · Fork plate holder length: 70 mm · Clamping diameter: 22.15 mm · Width: 650 mm · Height: 70 mm · Mounting type: Fork plate · Length handlebar ends: 170 mm · Crossbar: Yes · Ø Strut: 12.5 mm · Strut length: 160 mm

MIKUNI gasket float carburetor TM24-9

Manufacturer: MIKUNI · Material: Sealing carton · Component group Carburetor: Sealing, revising · Carburetor type: Mikuni (VM, TM, TMX) · Width: 48 mm · Total length: 73 mm · Thickness: 0.9 mm
