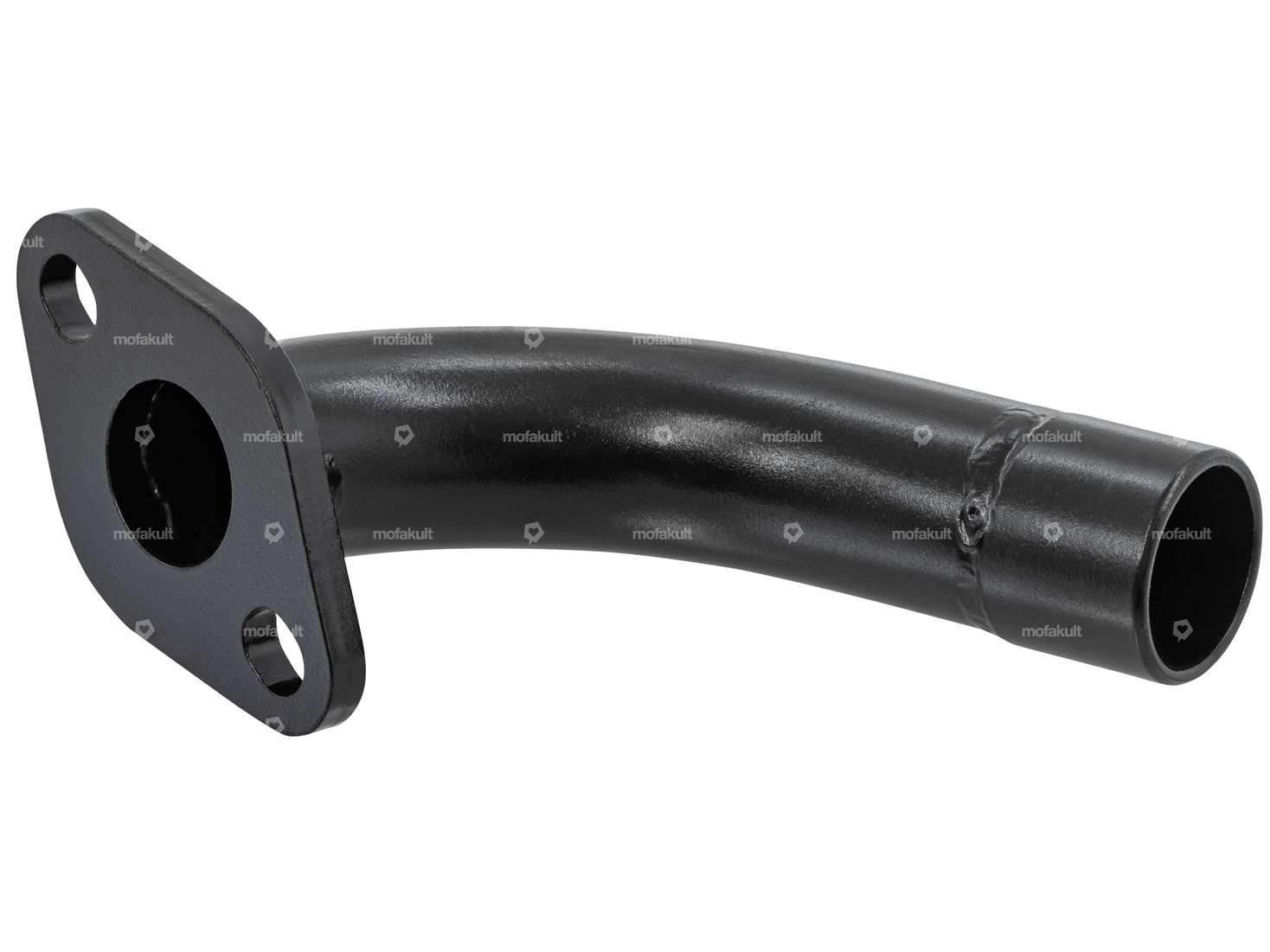

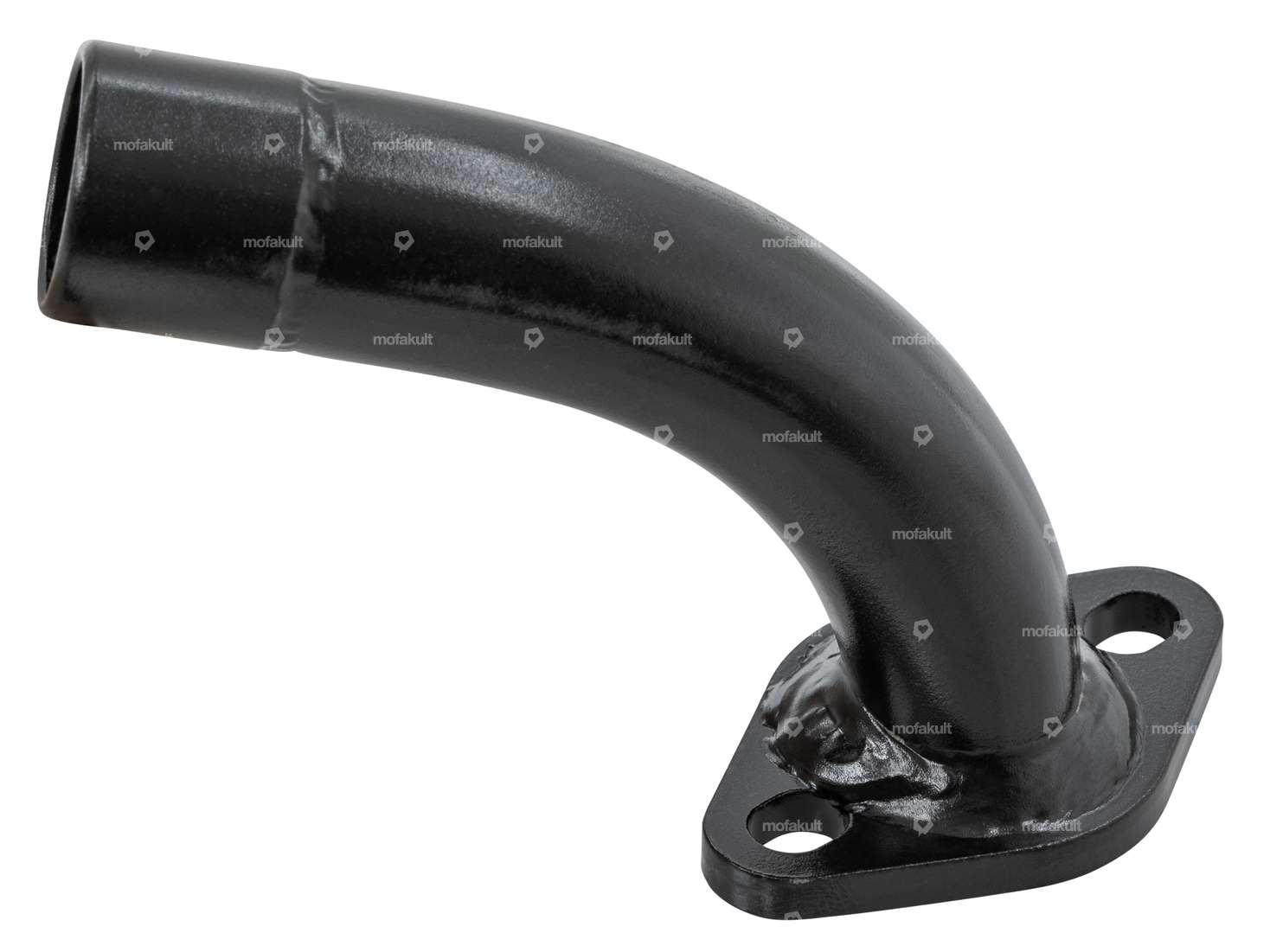

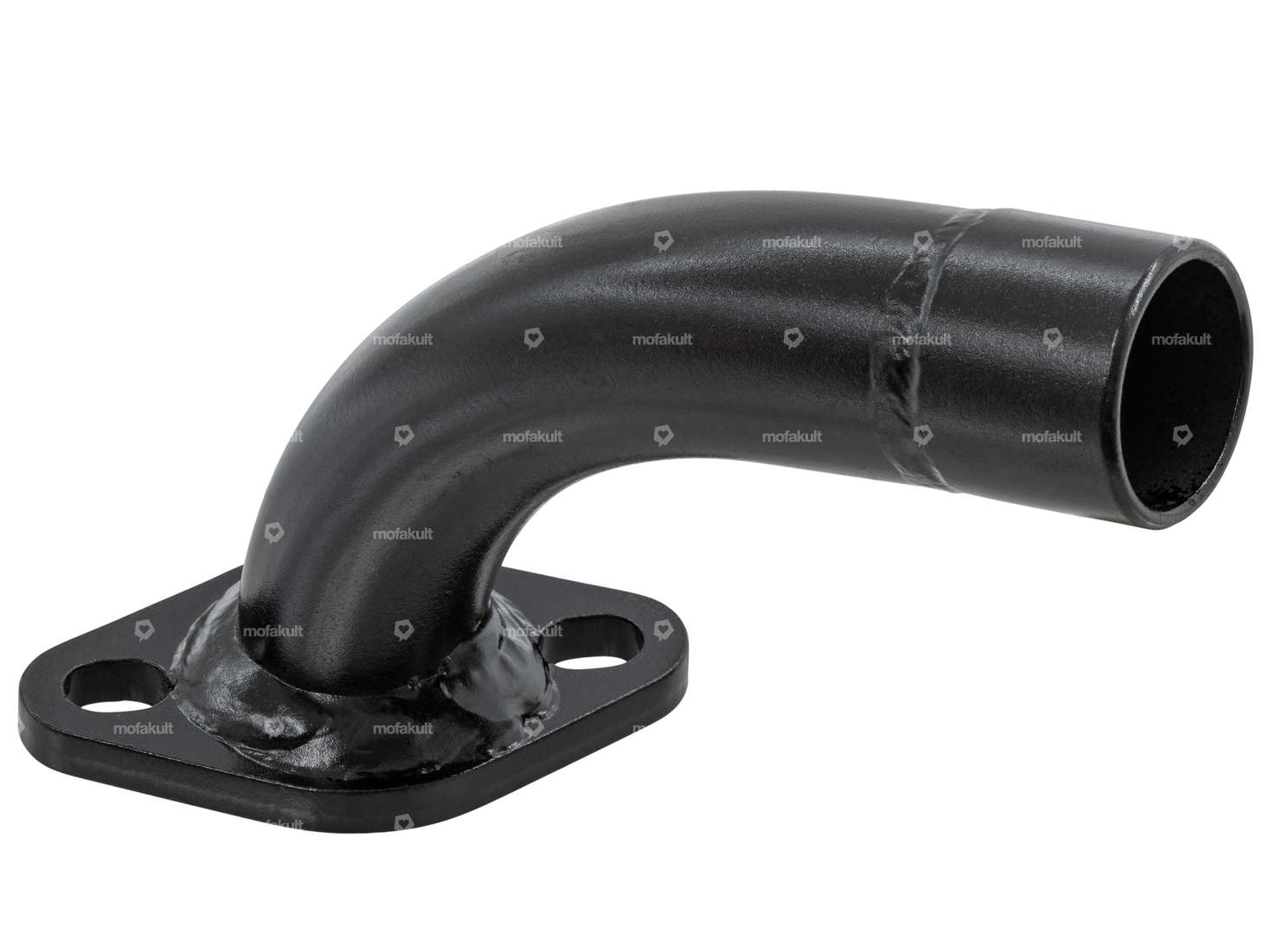

MLM 18 mm intake manifold Dell'Orto PHBG | Minarelli V1

Karcoma fuel tap M12x1 vertical (with union nut) 2 connections

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Thread type: MF12x1 (fine pitch thread) · Material lever: Metal · Filter type: Plastic net · Mounting type: Union nut · Installation direction: vertical / vertical · Outlet direction: any · Spare tube shape: straight · Ø fuel hose connection: 6 mm · Reserve level: 50 mm

Repair kit carburetor Dell'Orto PHBG

Component group Carburetor: Sealing, revising · Carburetor type: PHBG

Nut M12x1 x 10 SW19 Wheel nut Inox

Material: Chrome steel (colloquially known as stainless steel) · Surface: blank · Nut type: Hexagon nut 1D · Drive: External hexagon · Height: 10 mm · Area of application: Standard · Thread type: MF12x1 (fine pitch thread) · Strength class: A2-70 · Width across flats: 19 mm

AKOA 21 mm intake manifold Dell'Orto PHBG | Puch

Manufacturer: AKOA · Material: Plastic · Color: black-matt · Ø External connection: 26 mm · Number of fixing points: 2 pcs · Ø inside: 20.7 mm · Mounting type: Screws · Hole spacing inlet: 38 mm · Area of application: Tuning

GPO bulb 12V - 5W (BA9s) 1-filament rear light

Manufacturer: GPO · Test mark: none · Tension: 12 V · Bulb holder: BA9s · Performance: 5 W · Ø base: 9 mm · Ø Lamp head: 11 mm · Total length: 23 mm · Height: 23.6 mm · LED: No · Color: white

GPO bulb 6V - 15/15W (BA15d) 2-filament full/dipped beam

Manufacturer: GPO · Bulb holder: BA15d · Color: white · Tension: 6 V · Performance: 15 W · Ø base: 15 mm · Total length: 51 mm · Test mark: none · Ø Lamp head: 27 mm · LED: No

Nut M10x1.25 LH galvanized

Material: Steel · Thread type: MF10x1.25 LH (fine/left-hand thread) · Surface: galvanized (blue) · Drive: External hexagon · Nut type: Hexagon nut · Width across flats: 17 mm · Height: 10 mm

VeeRubber 2.25 x 17" tires VRM087 (V087) Allround

Manufacturer: Vee Rubber · Tire width: 2.25 " · Width: 2 1/4 " · Wheel size: 17 " · Old designation: 21 x 2.25 " · Speed index: J = 100 km/h · Load capacity index: 39 = 136 kg · Profile type: VRM-087 / V087 · Tire type: Allround · Color: black · White wall: No · Tubeless (yes/no): Tubetype TT (requires hose)

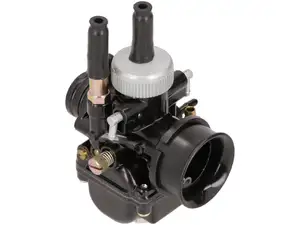

17 mm Racing carburetor PHBG (Dell'Orto replica) black

Component group Carburetor: Carburetor complete · Material: Aluminum · Surface: varnished · Color: black · Carburetor type: PHBG · Nominal diameter: 17 mm · Ø Internal connection: 16.8 mm · Ø Inside entrance: 16.8 mm · Ø Output inside: 28.5 mm · Ø Air filter connection: 32 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: Yes · Choke control: Cable choke · Choke nozzle size: 45 · Nozzle thread: M5x0.8 (standard thread) · Nozzle block: 26240 · Nozzle size: 70 · Size of secondary nozzle: 60 · Mounting type: Plug connection clamped · Total length: 87 mm · Width: 73 mm · Height: 130 mm
