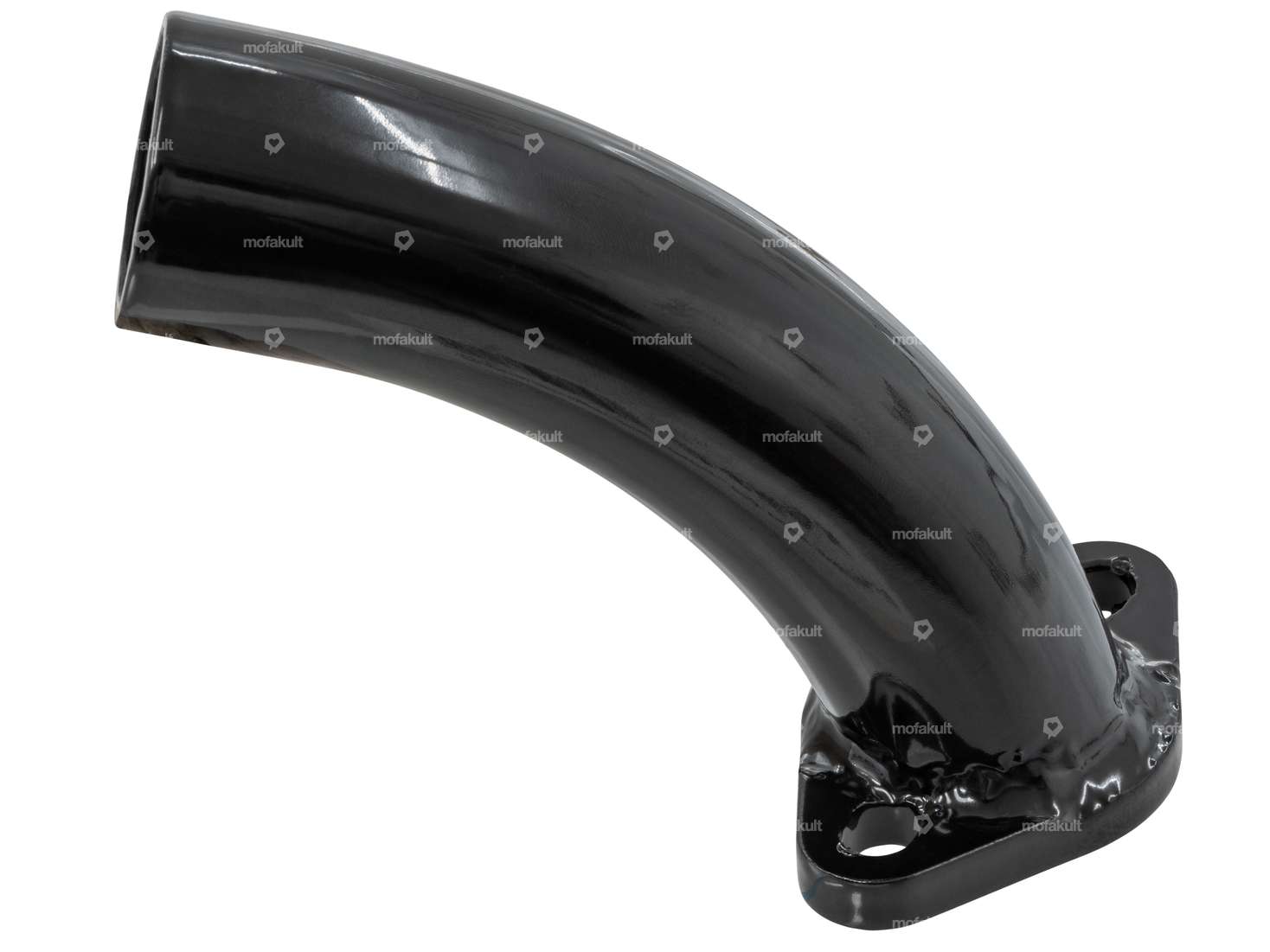

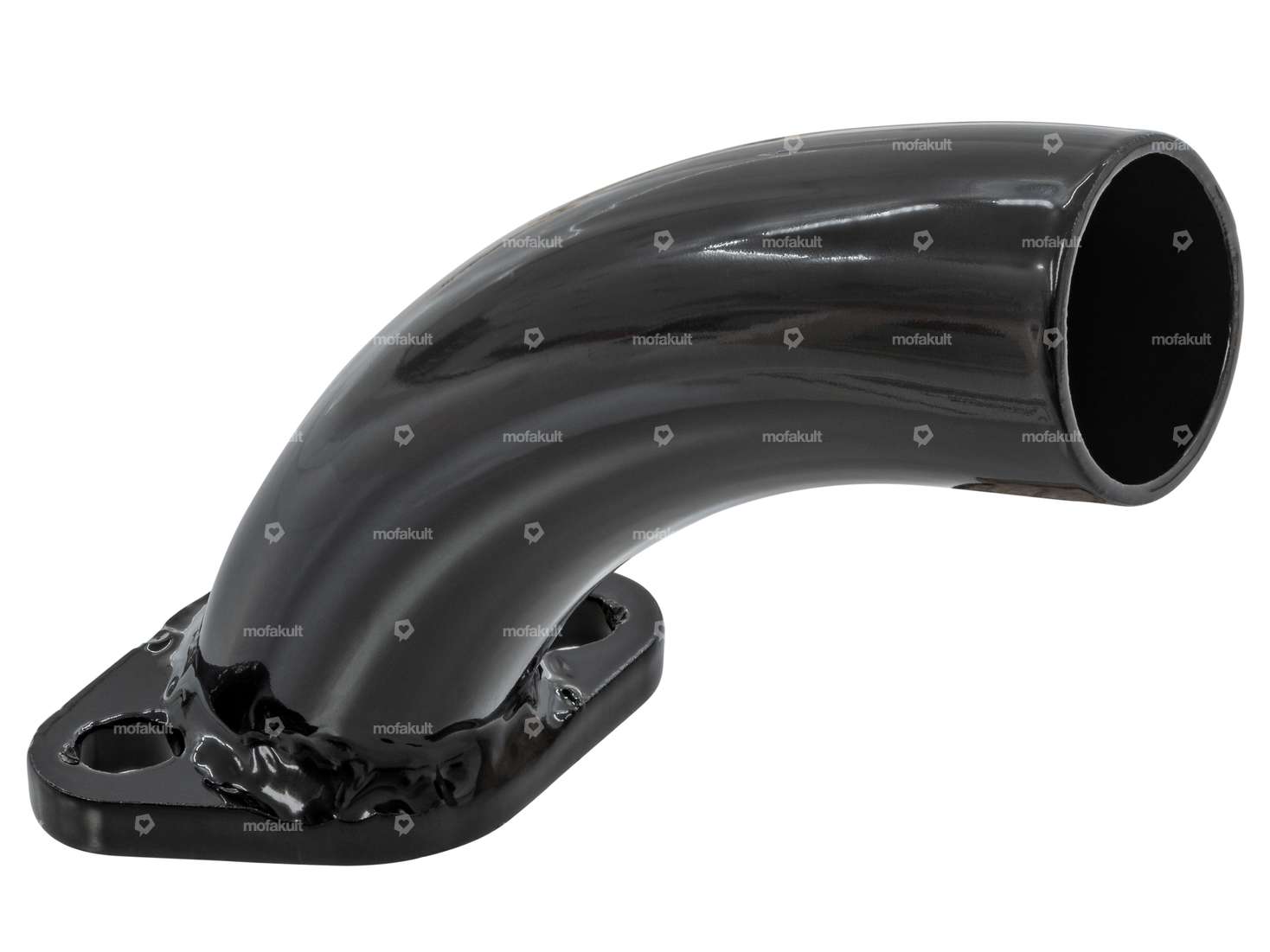

MLM intake manifold 24 mm | Minarelli V1

Oil seal NBR 17/33/7 B DUO crankshaft | Sachs 503 AB, ADV

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Place of use: Crankshaft · Ø inside: 17 mm · Width: 7 mm · Ø outside: 33 mm

NSK 6201 ball bearing 12/32/10

Bearing type: Shoulder bearing · Stock number: 6201 · Inner ring width: 10 mm · Manufacturer: NSK · Ball bearing closed: No · Bearing clearance: CM (special/noise-reduced) · Bearing cage: Sheet steel cage ball-guided · Groove ring: No · Area of application: Standard · Material: Steel · Surface: blank · Ø inside: 12 mm · Width: 10 mm · Ø outside: 32 mm

Shaft seal NBR 14.96x31.5x3.5 Pinion shaft | Sachs 502, 50/2, 503 (A1134)

Temperature resistance (min.): -30 - 100 °C · Manufacturer: Sachs · Material: NBR · Area of application: Standard · Surface: coated · Place of use: Pinion shaft · Ø inside: 14.96 mm · Width: 3.5 mm · Ø outside: 31.5 mm · Pony OEM number: A1134 · Sachs OEM no.: 0230 011 100 · Sachs OEM no.: 0230 011 200

Jasil crankshaft | Sachs 503 AC / ADV (A3337 / A2904)

Manufacturer: Jasil · Area of application: Standard · Material: Steel · Cheek type: standard · Crankshaft stroke: 44 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 86 mm · Number of gears: 2 pcs · Total length of crankpin on clutch side: 97 mm · Total length crankpin ignition side: 62 mm · Weight: 964 g · Ø crank webs: 83 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 12 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 7 mm · Thread length: 11 mm · Dimension needle bearing: 12 / 15 x 12.8 mm (axe 12) · Wide crank webs: 34.2 mm · Length 1st paragraph: 9.4 mm · Length 2nd paragraph: 19.4 mm · Length 3rd paragraph: 74 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Ø 3rd step (on the clutch side): 11.6 mm · Length of shoulder (ignition side): 32 mm

Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Ø inside: 15 mm · Width: 7 mm · Ø outside: 30 mm · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000

NTN needle roller bearing 8/12/10 | Sachs 50/2, 503 (A1176)

Bearing type: Needle sleeve · Stock number: HK0810 · Manufacturer: NTN · Ø inside: 8 mm · Width: 10 mm · Ø outside: 12 mm · Dimension needle bearing: 8/12 x 10 · Pony OEM number: A1176 · Sachs OEM no.: 0232 137 000

NSK 6000 ball bearing 10/26/8

Bearing type: Deep groove ball bearing · Stock number: 6000 · Inner ring width: 8 mm · Manufacturer: NSK · Bearing clearance: CN (standard) · Bearing cage: Sheet steel cage ball-guided · Ø inside: 10 mm · Width: 8 mm · Ø outside: 26 mm

swiing® revival gasket set | Sachs 503 ADV wide screen Cat.

Manufacturer: swiing® revival parts · Material: Copper · Material: Fiber · Material: Rubber · Material: Sealing carton · Material: Sealing paper · Area of application: Standard · Number of components: 15 pcs · Ø outlet inside: 23.3 mm · Decompressor: No · Hole spacing inlet: 38 mm · Hole pattern [mm]: 56 x 56

Engine revision set | Sachs 503 ADV wide screen Cat.

Manufacturer: NSK · Manufacturer: NTN · Area of application: Standard

NSK 6202 ball bearing 15/35/11

Bearing type: Deep groove ball bearing · Stock number: 6202 · Inner ring width: 11 mm · Manufacturer: NSK · Bearing cage: Sheet steel cage ball-guided · Ø inside: 15 mm · Width: 11 mm · Ø outside: 35 mm
