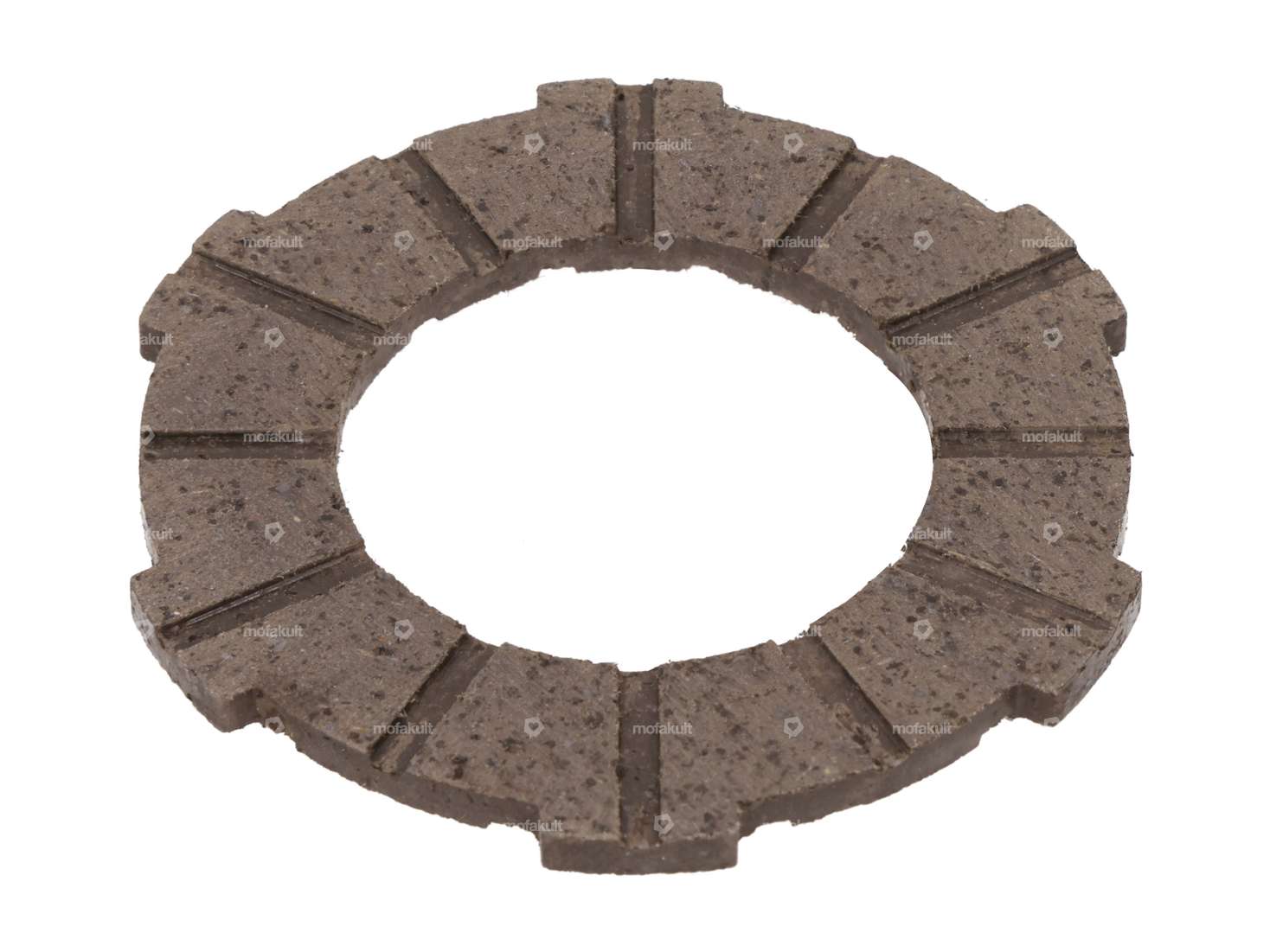

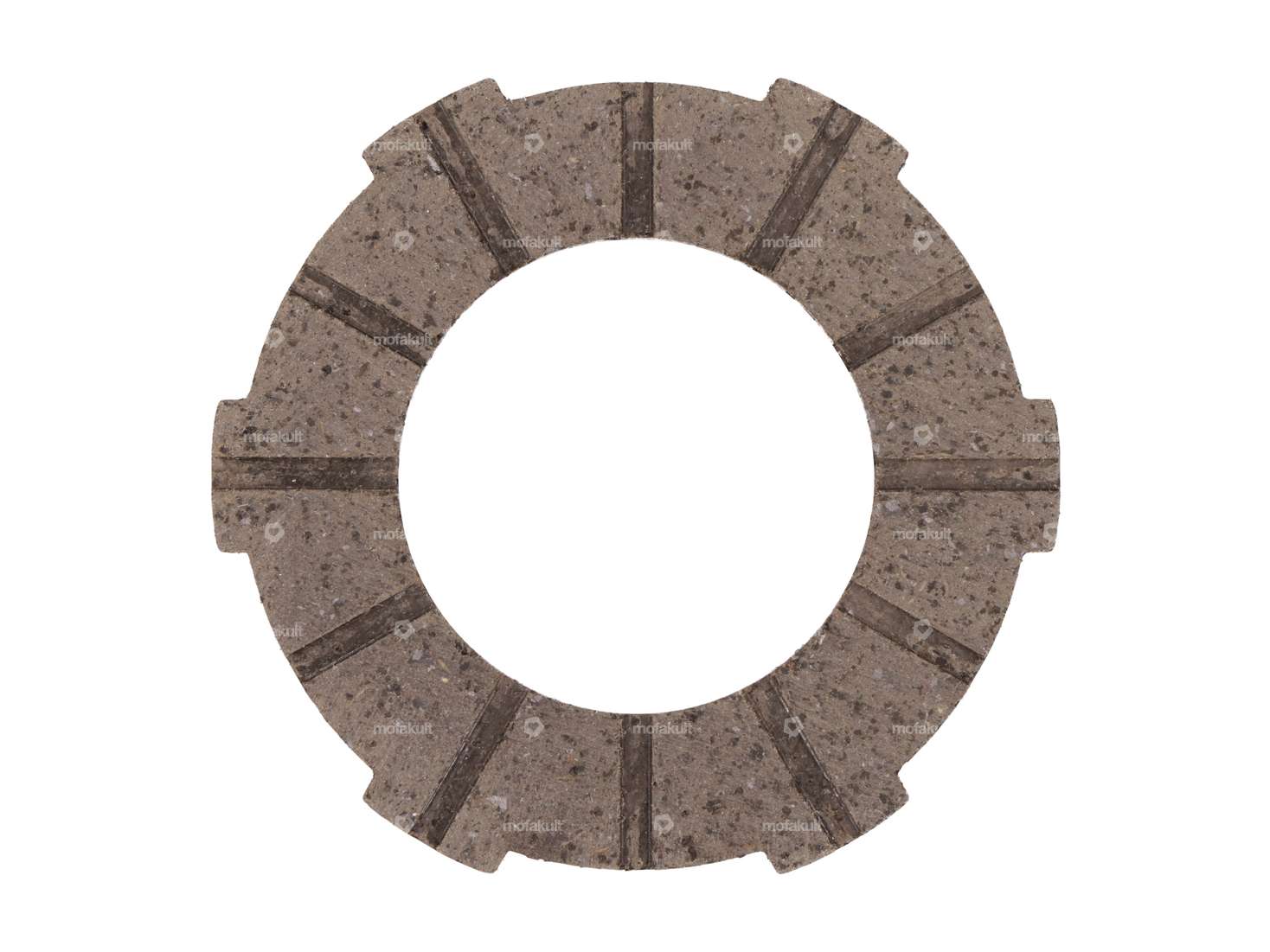

NewFren clutch plate | Sachs 504, 505, 535 (A4292)

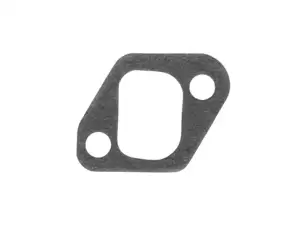

Inlet seal | Sachs 504 (A4279)

Place of use: Admission

Engine mount set | Sachs 504/1

Manufacturer: NTN · Area of application: Standard · Number of components: 5 pcs

Clutch hub | Sachs 504/1, 504/2 ACH (A4295)

Manufacturer: Sachs · Toothing type: straight toothed · Recording type: Wedge connection · Number of teeth: 15 pcs · Thickness: 15.2 mm

Clutch disk | Sachs 504, 505, 508, 535 (A4257)

Manufacturer: Sachs · Material: Steel · Area of application: Original · Pony OEM number: A4257 · Sachs OEM no.: 0244 157 000

Clutch plate | Sachs 504, 535 (A4293)

Manufacturer: Sachs · Material: Steel · Area of application: Original

GPO ignition coil Bosch small | Sachs 504 (A2148)

Manufacturer: GPO · Ø Internal flywheel: 80 mm · Place of use: Internal (in the ignition) · Color: black · Mounting type: Screws · Number of fixing points: 2 pcs · Ø mounting hole: 4.3 mm · Hole spacing: 46.5 mm · Area of application: Original · Area of application: Standard

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents: 450 ml · Area of application: Gearbox lubrication with clutch · Gearbox type: Automatic machine · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

NGK B8ES spark plug long thread

Manufacturer: NGK · Candle designation: B8ES · Candle thread type: long · Thread type: MF14x1.25 (fine pitch thread) · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Width across flats: 21 mm · Area of application: Performance · Area of application: Racing · Area of application: Tuning

Oil seal NBR 15/32/5.5 A main shaft | Sachs 504, 505, 535 (A4216)

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Ø inside: 15 mm · Ø outside: 32 mm · Width: 5.5 mm

Oil seal NBR 15/30/5.5 A crankshaft | Sachs (A4215 & A5602)

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Ø inside: 15 mm · Place of use: Crankshaft · Width: 5.5 mm · Ø outside: 30 mm · Pony OEM number: A5602 · Sachs OEM no.: 0230 111 100

Oil seal NBR 15/35/7 AS crankshaft | Sachs 504, 535 (A4214)

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Ø inside: 15 mm · Ø outside: 35 mm · Place of use: Crankshaft · Width: 7 mm

Airsal 43.5 mm cylinder kit incl. mounting parts | Sachs 504, 505, 535, 508

Nominal diameter: 43.5 mm · Manufacturer: Airsal · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 44 mm · Ø cylinder neck: 50 mm · Ø Outlet outside: 26 mm · Ø Inlet inside: 14 mm · Hole spacing inlet: 31 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Inlet window: 23.8 x 14.8 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 56 (61) x 56 · Outlet type: clamped · Decompressor: M10x1.5 · Area of application: Tuning

Inner plate 2.5 mm NOS | Sachs 535 (A4458)

Manufacturer: Sachs · Thickness: 2.5 mm · Area of application: Original

NTN 6202 Ball bearing 15/35/11

Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6202 · Inner ring width: 11 mm · Manufacturer: NTN · Bearing clearance: CM (special/noise-reduced) · Groove ring: No · Material: Steel · Surface: blank · Ø inside: 15 mm · Bearing type: Deep groove ball bearing · Ø outside: 35 mm · Width: 11 mm · Ball bearing closed: No

Clutch cover gasket | Sachs 504, 505, 535 (A4278)

Manufacturer: Sachs · Material: Sealing paper · Number of fixing points: 5 pcs · Number of components: 1 pcs · Pony OEM number: A4278 · Sachs OEM no.: 0250 131 000

Clutch spring reinforced | Sachs 504/2, 505/2

Manufacturer: Made in Germany · Material: Spring steel · Ø inside: 27.5 mm · Ø outside: 58.5 mm · Thickness: 1.1 mm · Number of springs: 1 pcs · Area of application: Tuning · Sachs OEM no.: 0239 142 000
