Galvanized locking plate with 2 tabs for securing screws and nuts.
Take the following measurements from Figure 2:
- d1: 5.3 mm
- d2: 10 mm
- b: 6 mm
- h: 8 mm
- h1: 16 mm
- s: 0.5 mm
A high-quality product from the Normio brand for select industrial components with high standards for precision, durability, and manufacturing quality.
| Total length | 8 mm |
| Manufacturer | Normio |
| Material | Steel |
| Surface | galvanized (blue) |
| Thread size | M5 |
| Width | 6 mm |
| Ø inside | 5.3 mm |
| Ø outside | 10 mm |
| Nominal diameter (thread) | 5 mm |
| Number of lobes | 2 pcs |
| Thickness | 0.5 mm |
| Length 2 | 16 mm |
| Width 2 | 6 mm |
Explore categories from Screws & fastener sets
Moped fans also bought

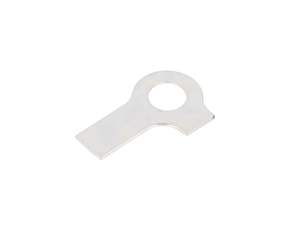

Normio Locking Plate M6, 2 Tabs
