Name: Oil filler plug / oil drain plug M8x8 original | Vespa Largeframe, Smallframe, Wideframe
Brand: Piaggio
SKU: 39535
Price: 4.10 EUR
Availability: InStock

Description

Original Öleinfüll- / Ölablassschraube M8x8 für das Getriebeöl passend zu Ihrem Vespa Smallframe, Largeframe und Wideframe Roller. You can find a list of the exact models in the drop-down menu below under «suitable for the following models».

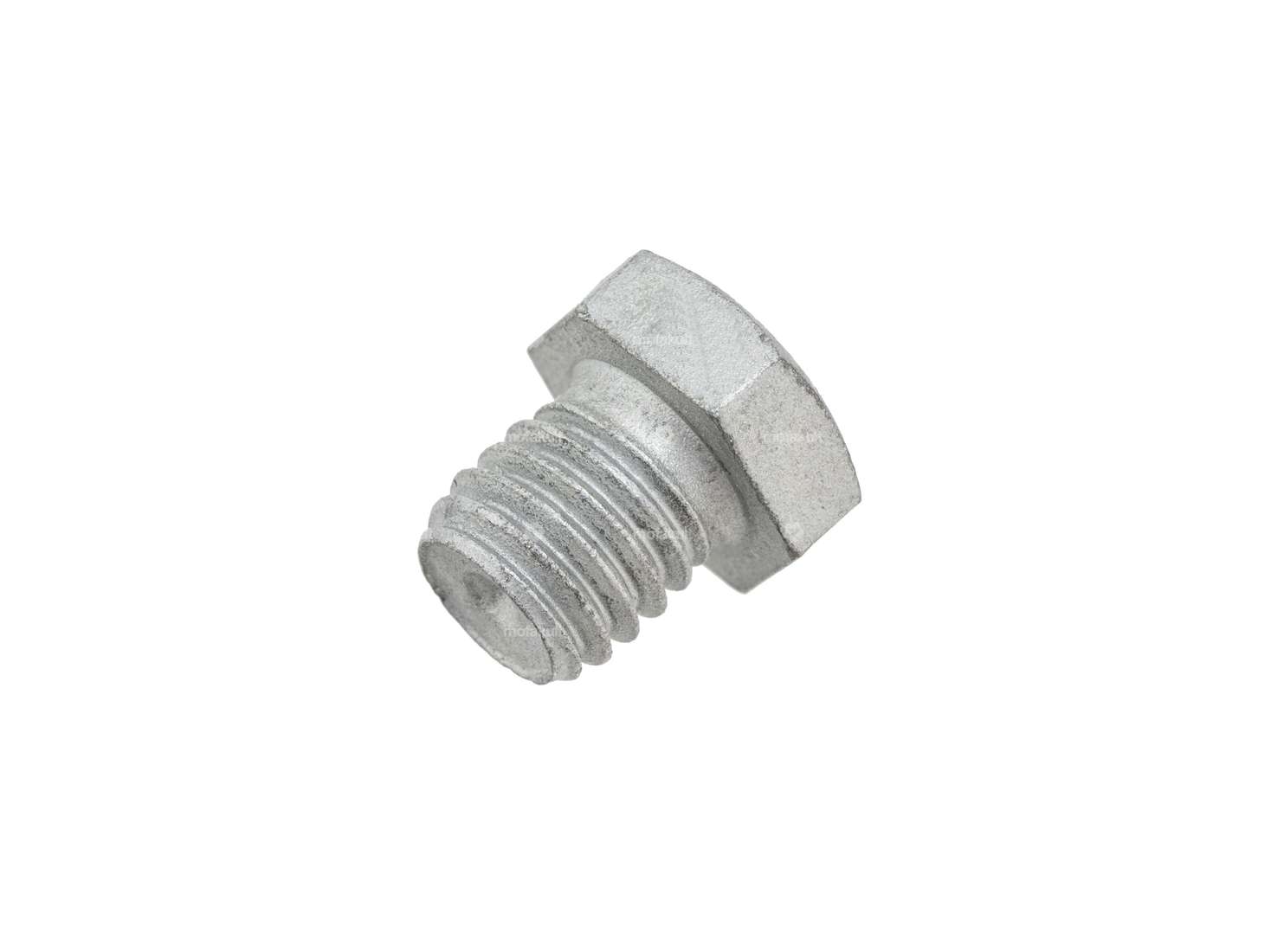

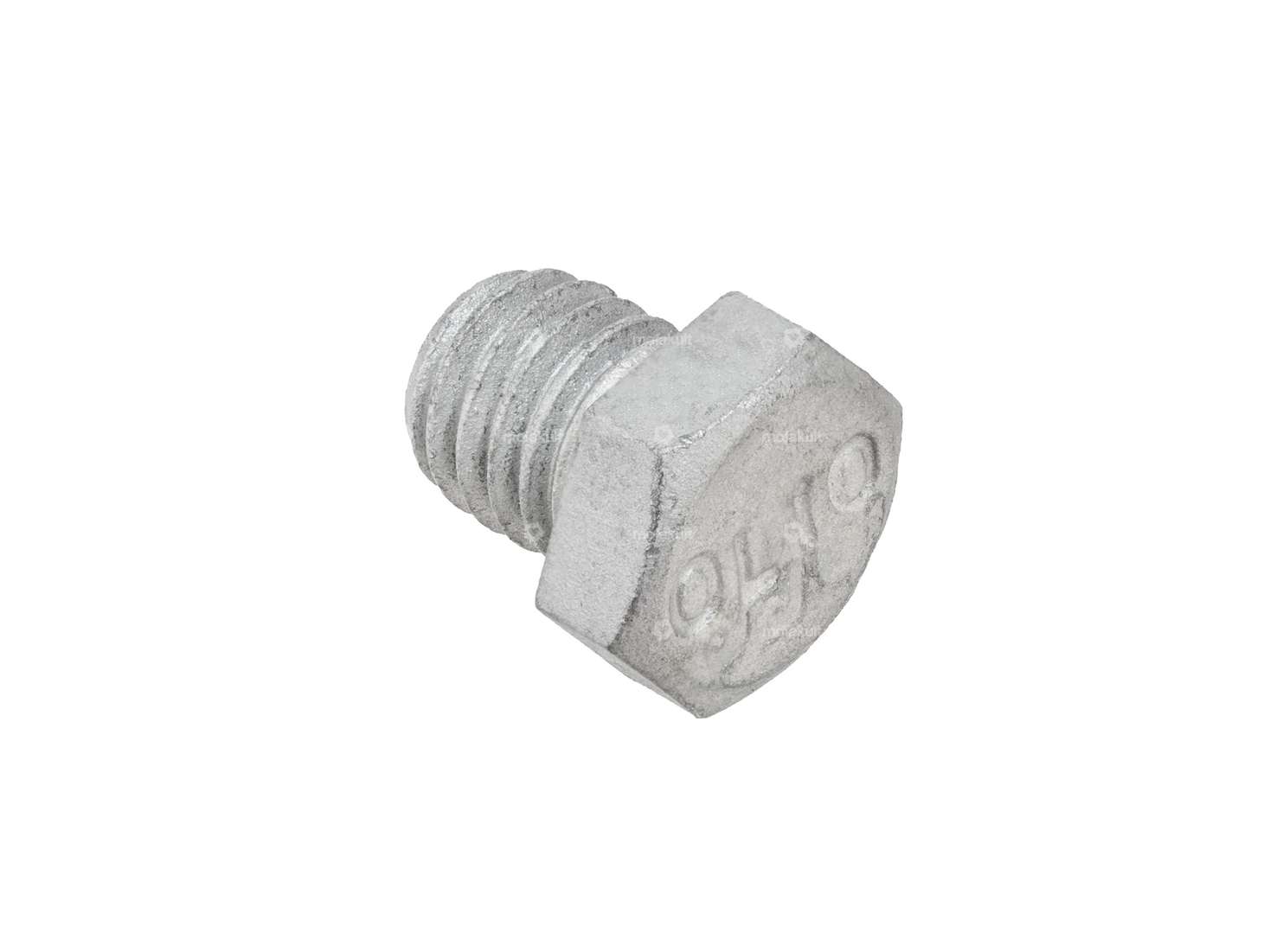

This galvanized screw plug with external hexagon closes the opening cleanly and true to the original. The screw head is embossed with «OLIO», and the key width is reduced to 11 mm – practical for mounting on the engine. Ideal if your oil check screw needs to be replaced or you need to install a fresh drain plug in original equipment quality.

You will find the appropriate sealing ring, the corresponding gearbox oil and an alternative screw set for oil changes in the accessories section.

Quality product from the Italian manufacturer Piaggio in original equipment quality.

Original Piaggio spare part number: 138345, 002990

Parts included in the set

For: Piaggio

Oil filler plug fork M8x8 original | Piaggio SI Europe, Bravo, Boxer

28164

Manufacturer: Piaggio · Material: Steel · Surface: galvanized (blue) · Thread type: M8x1.25 (standard thread) · Drive: External hexagon · Screw head: Hexagon · Width across flats: 11 mm · Shank: No · Total length: 8 mm · Thread length: 8 mm · Piaggio OEM number: 138345

Details

Total length	8 mm
Manufacturer	Piaggio
Material	Steel
Surface	galvanized (blue)
Width across flats	11 mm
Drive	External hexagon
Screw head	Hexagon
Shank	No
Thread type	M8x1.25 (standard thread)
Thread length	8 mm

Piaggio OEM number

138345, 002990

Suitable for the following models

Vespa

Vespa PX, T5, Cosa - PX80 E Lusso · V8X1T · 1983 - 1993 Lusso / Arcobaleno , PX100E · VIX1T · Indien , P125X · VNX1T · 1977 - 1982 (PX alt) Aussenverschluss , P125X · VNX2T · 1981 - 1984 (PX alt) Innenverschluss , PX125 E · VNX2T · 1982 - 1993 / Lusso / Arcobaleno , PX125 · VNX2T · 1993 - 1996 Classic , PX125 · VNX2T · 1997 - 1999 (Disc) , T5 125 · VNX5T · 1985 - 1993 , PX125 · ZAPM471 · 2001 MY Katalysator (Millenium) , P150X · VLX1T · 1978 - 1993 , P150S · VBX1T · 1978 - 1990 , PX150 · ZAPM742 · 2001 MY Katalysator (Millenium) , P200E · VSX1T · 1977 - 1984 (Zündschloss Lenkkopf) , PX200 · VSX1T · 1984 - 1993 Lusso / Arcobaleno , PX200 · VSX1T · 1993 - 1996 Classic , Cosa 125 · VNR1T · I 1988 - 1992 II 1992 - 1998 , PX200 · VSX1T · 1997 - 1999 (Disc) , Cosa 150 · VLR1T · I 1988 - 1991 II 1992 - 1995 , Cosa 200 · VSR1T · I 1988 - 1992 II 1992 - 1998 , P80X · V8X1T · alt (Zündschloss Lenkkopf)

Ratings

Accessories & related products

Universal

18505

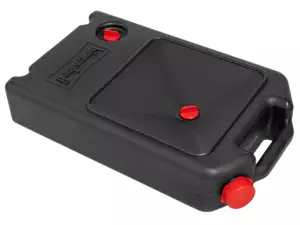

Oil drip tray (oil pan) 8 L
