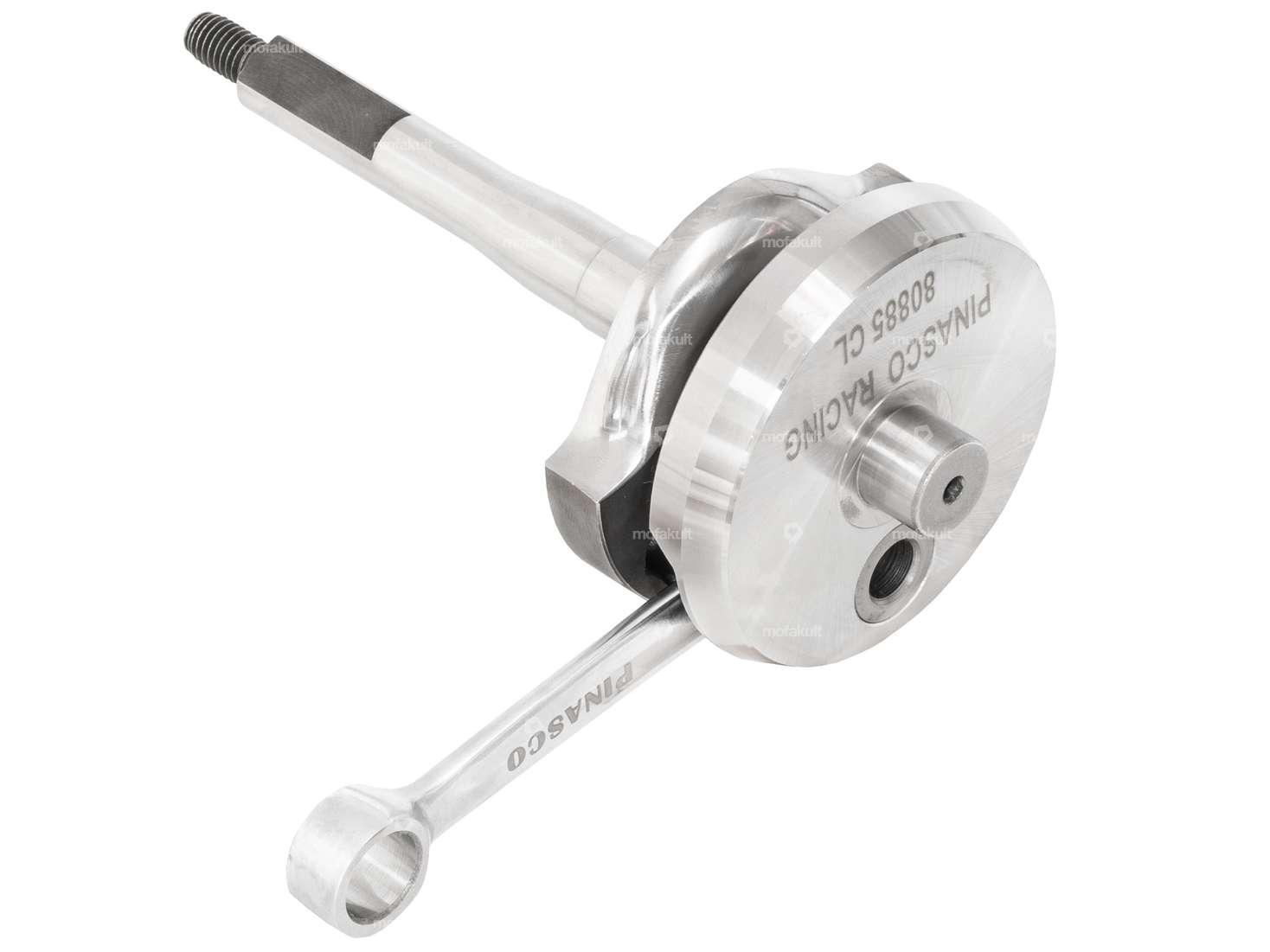

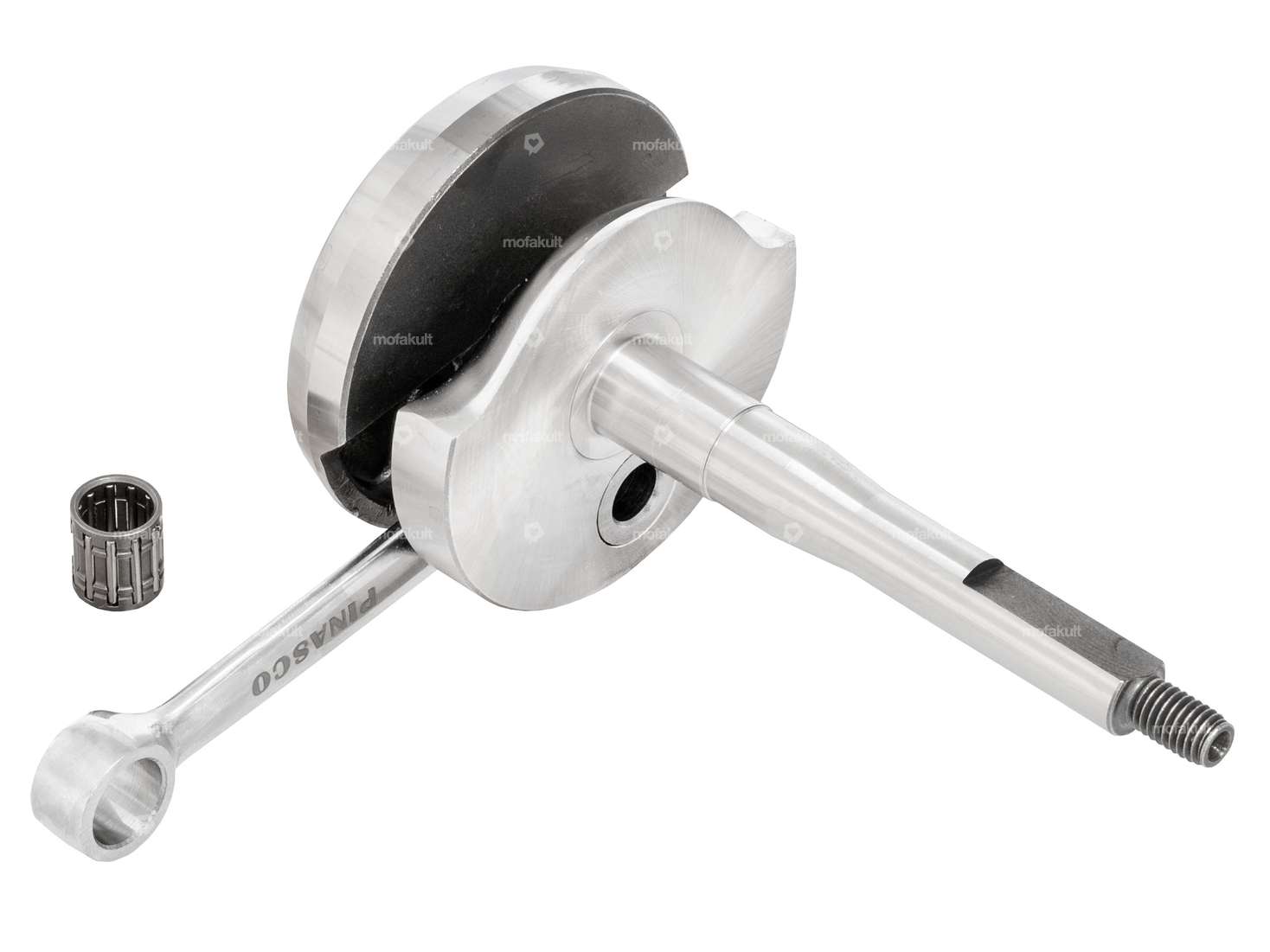

Racing crankshaft compatible with all Piaggio moped models (Ciao, Si, Bravo, Boxer, Grillo).
This precision-balanced tuning crankshaft, featuring polished connecting rods and crankcase halves, is compatible with all cylinders equipped with 10 mm piston pins and impresses with its high-quality craftsmanship.
Due to the longer intake valve timing, this tuning crankshaft is ideally suited for racing mopeds.

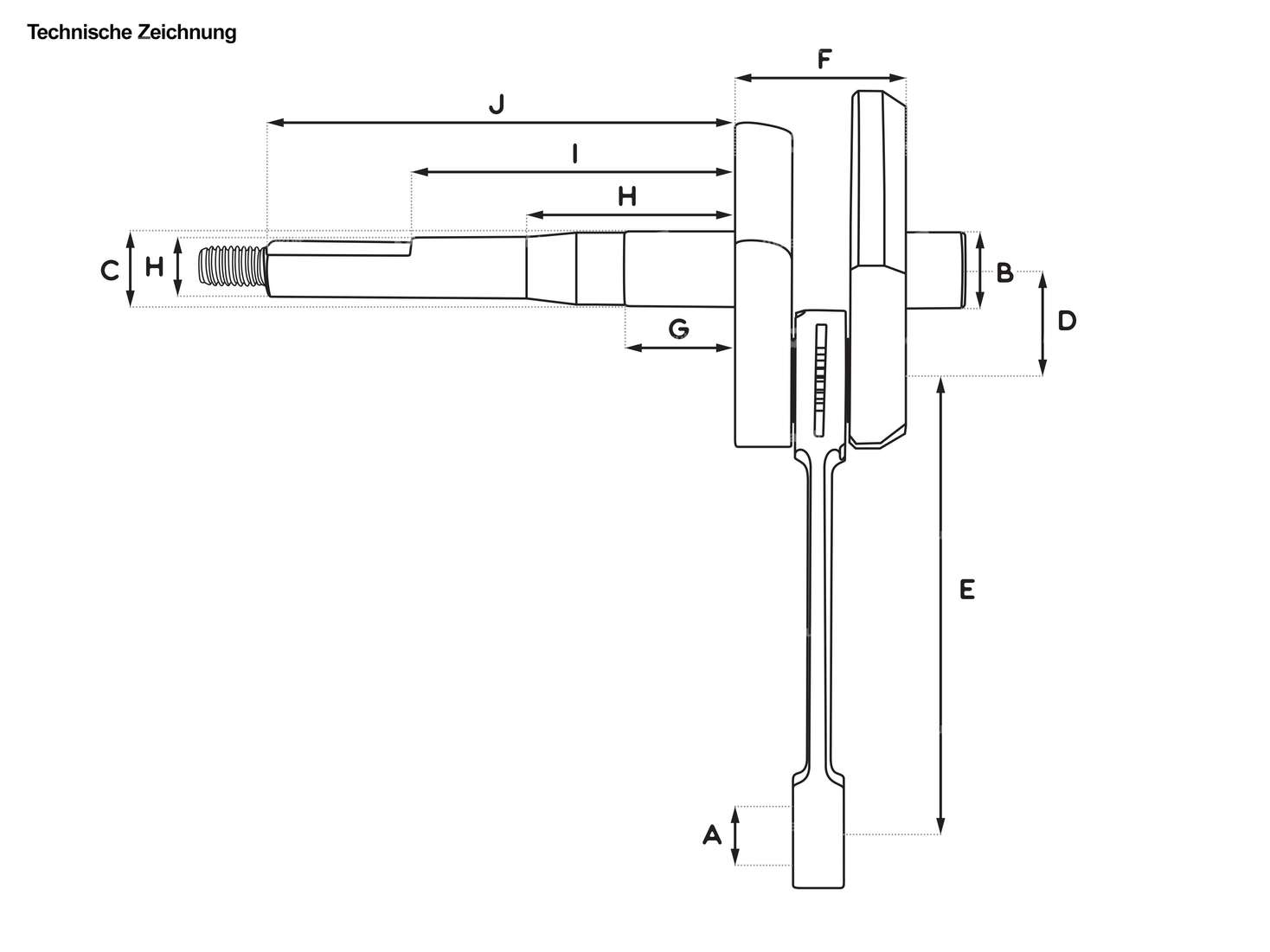

Connecting rod eye (A): 13.0 mm
Ø Bearing seat, right (B): 15.0 mm
Ø Bearing seat, ignition side (C): 15.0 mm
Stroke (2xD): 43.0 mm
Connecting rod length (E): 87.0 mm
Crankpin width (F): 32.5 mm
1st step (G): 21.0 mm
2nd step (H): 44.0 mm
3rd step (I): 63.0 mm
Total length of crankshaft journal, ignition side (J): 91.5 mm
Ø Vario / clutch journal (H): 12.0 mm
Needle bearing dimensions: Ø 10 / 13 x 14.2 mm (axe 10)
Thread: M8 x 1.25 mm
No shim is required between the racing crankshaft and its main bearings during installation.
So-so! – We strive to offer you the widest selection of moped replacement parts. However, the quality of this product is rather so-so, and we do not recommend it. If you still decide to go with this item, we understand your choice, but we cannot offer any warranty or exchange.
Manufactured by the Italian brand Pinasco.
| Manufacturer | Pinasco |
| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 43 mm |
| Ø coupling pin / vario pin | 12 mm |
| Ø piston pin (B) | 10 mm |
| Connecting rod length center-center | 87 mm |
| Total length crankpin ignition side | 91.5 mm, 105 mm |
| Weight | 708 g |
| Ø crank webs | 69.7 mm |
| Ø Connecting rod eye | 13 mm |
| Bearing seat right | 15 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Thread type | M8x1.25 (standard thread) |
| Thread length | 13.5 mm |
| Dimension needle bearing | 10 / 13 x 14.2 mm (axe 10) |
| Area of application | Racing |
| Wide crank webs | 32.5 mm |
| Length 1st paragraph | 21 mm |
| Length 2nd paragraph | 44 mm |
| Length 3rd paragraph | 63 mm |
| Ø 1st step (on the coupling side) | 15 mm |
| Ø 2nd shoulder (on the clutch side) | 14.4 mm |
| Ø 3rd step (on the clutch side) | 12 mm |
| Inlet control time | 146 ° |
| Control time before O.T | 88 ° |
| Control time according to O.T | 58 ° |
| Number of gears | 1 pcs |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
Hot
swiing® ingenious puller flywheel | Piaggio Ciao, SI, Bravo, Boxer
Width across flats trigger: 10 mm · Width across flats trigger: 17 mm · Width across flats Screw: 19 mm · Manufacturer: swiing® ingenious parts · Number of components: 3 pcs · Material: Steel · Diameter: 12 mm · Diameter: 24 mm · Surface: blackened · Surface: galvanized (blue) · Total length: 100 mm · Thread type: MF12x1.5 (fine pitch thread) · Thread type: MF17x1 (fine pitch thread) · Area of application: (Dis)assembly tool
EUR 21.60

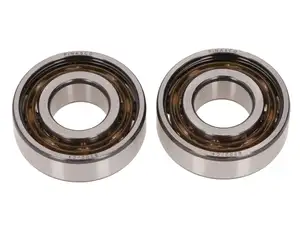

Pinasco 6202 T9 C4 ball bearing 15/35/11 polyamide cage pair
